5-01 — FRAME AND OTHER PARTS
(#48832) — 59 parça
◀

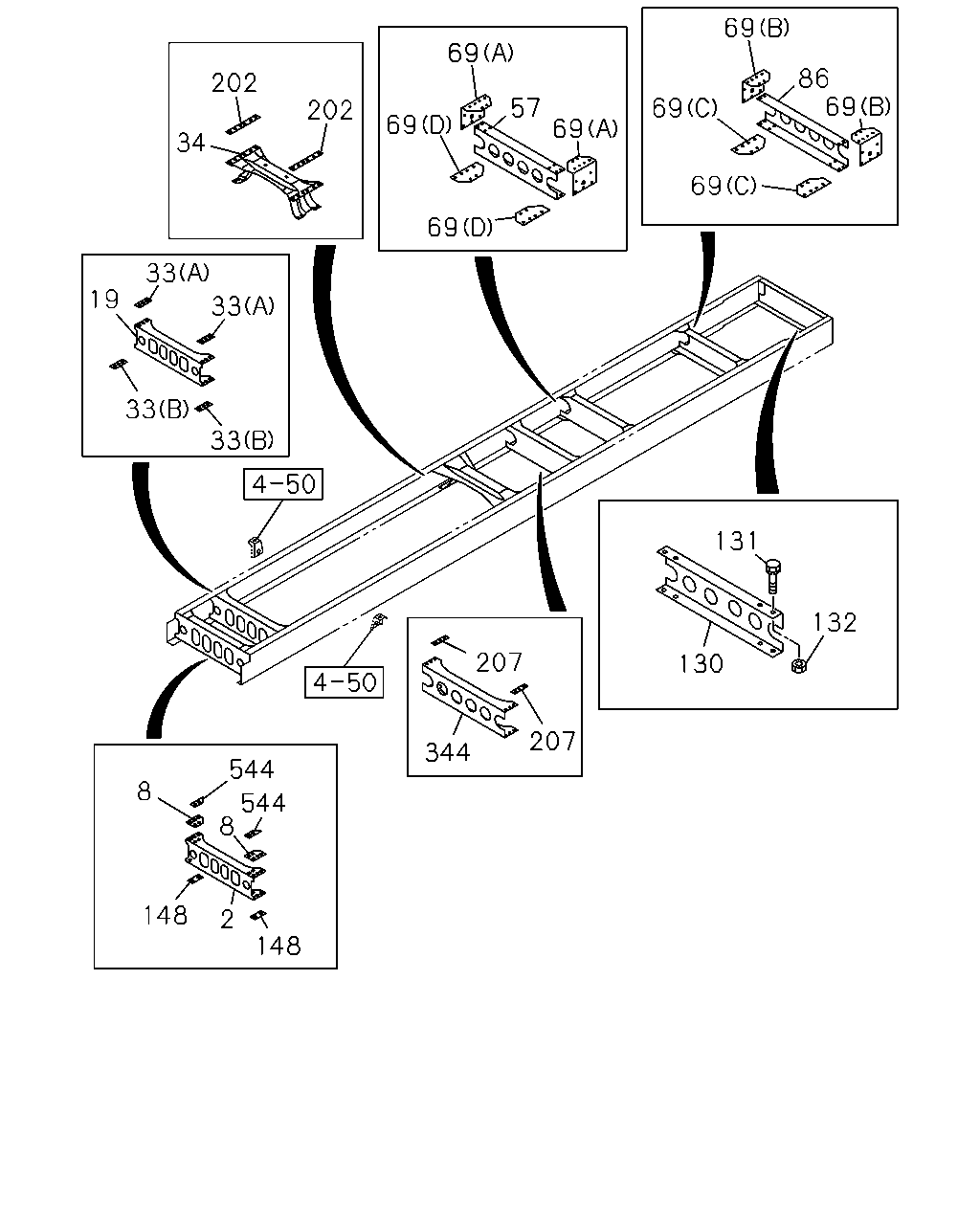

[501A] CROSS MEMBER (23 parça)

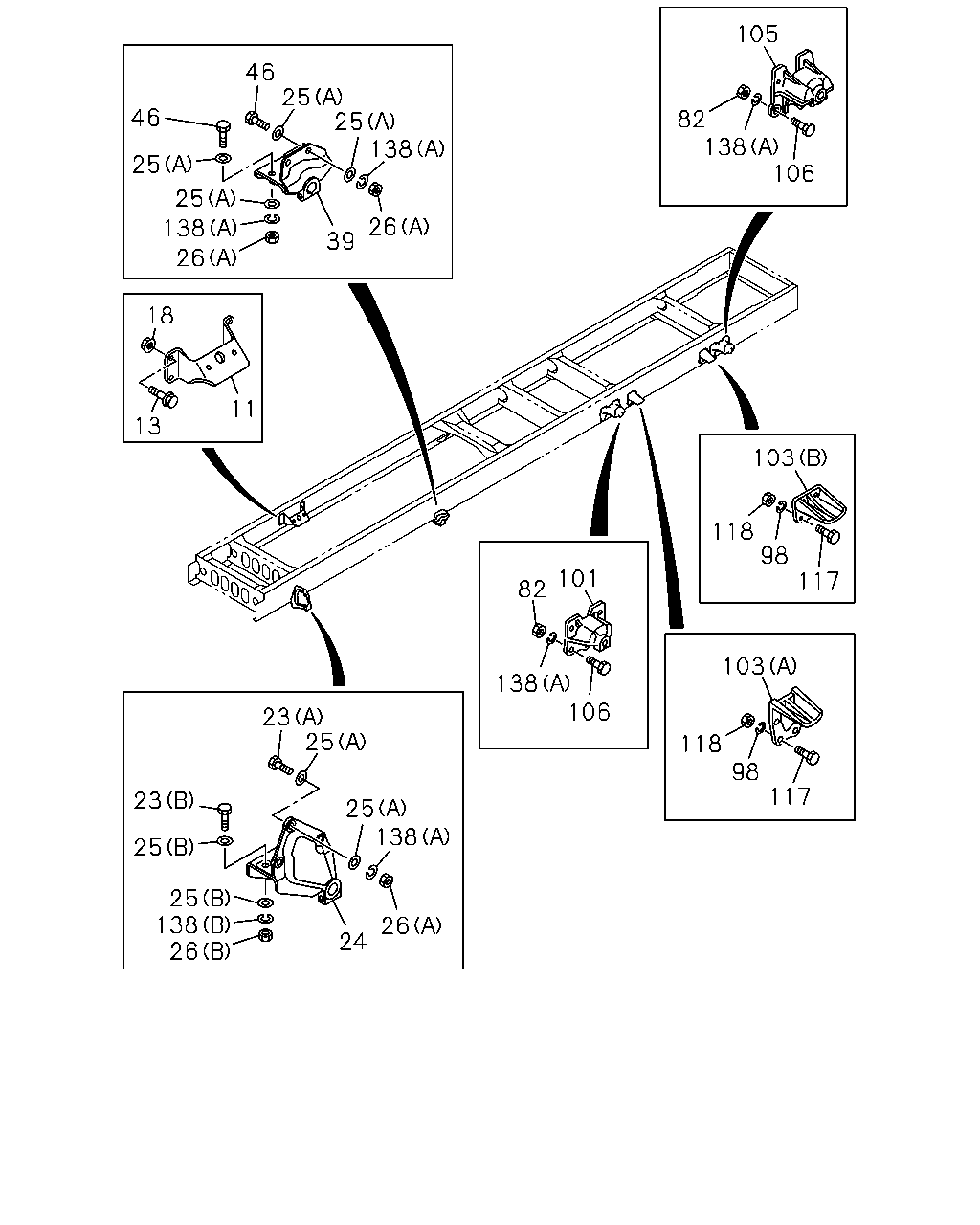

[501A] BRACKET AND OTHER PARTS (36 parça)
▶
69
69
86
69
202
69
57
69
202
69
34
69
69
33
19
33
33
33
131
132
207
130
207
344
544
8
544
8
148
2
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97610-852-4
01
1
0712-0801
2
MEMBER; CROSS,1ST
8-97626-850-1
01
1
0802-
8
GUSSET; 1ST C/MBR
8-97611-027-0
02
1
0712-
19
MEMBER; CROSS,2ND
8-97615-907-3
01
1
0712-
33
SPACER; 2ND C/MBR,UPR
(A)
8-97611-040-0
02
1
0712-
33
SPACER; 2ND C/MBR,UPR
(B)
8-97616-640-0
02
1
0712-
34
MEMBER; CROSS,3RD
8-97610-854-2
01
1
0712-
57
MEMBER; CROSS,RR SUSP FRT
8-97610-858-5
01
1
0712-
69
GUSSET; RR SUSP,UPR
(D)
8-97610-865-0
02
1
0712-
69
GUSSET; RR SUSP,UPR
(C)
8-97610-866-0
02
1
0712-
69
GUSSET; RR SUSP,UPR
(A)
8-97612-264-0
01
1
0712-
69
GUSSET; RR SUSP,UPR
(A)
8-97612-265-1
01
1
0712-
69
GUSSET; RR SUSP,UPR
(B)
8-97612-266-1
01
1
0712-
69
GUSSET; RR SUSP,UPR
(B)
8-97612-267-1
01
1
0712-
86
MEMBER; CROSS,RR SUSP RR
8-97610-858-5
01
1
0712-
130
MEMBER; CROSS,END
8-97610-869-1
01
1
0712-
131
BOLT; END C/MBR
M12X30 W/LK WASHER
0-50541-230-0
04
1
0712-
132
NUT; END C/MBR
M12
0-91110-512-0
04
1
0712-
148
SPACER; C/MBR
8-97611-039-0
02
1
0712-
202
SPACER; 3RD C/MBR
8-97610-872-0
02
1
0712-
207
SPACER; 4TH C/MBR
8-97611-244-0
02
1
0712-
344
MEMBER; CROSS,4TH
8-97616-641-4
01
1
0712-
544
PLATE; CAB FRT MTG
8-97617-891-0
02
1
0712-
105
46
25
25
138
46
82
138
106
25
25
26
138
39
26
18
11
13
103
118
98
101
117
82
103
138
106
23
25
118
98
117
23
25
138
25
25
138
26
26
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
8-97619-549-0
02
1
0712-
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
0712-
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
0712-
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
06
1
0712-
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
0712-
24
BRACKET; FRT SPR,FRT
1-53351-259-0
01
1
0712-
24
BRACKET; FRT SPR,FRT
1-53351-260-0
01
1
0712-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
28
1
0712-
25
WASHER; PL,BRKT
FTS WIDE SGL CAB(FG**M*) (B) ID=16.2
1-09503-223-0
08
1
0712-0811
25
WASHER; PL,BRKT
FTS WIDE DBL CAB(FG**W*) (B) ID=16.2
1-09503-316-0
08
1
0712-0811
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
0812-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
14
1
0712-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
0712-
39
BRACKET; FRT SPR,RR
1-53352-124-2
01
1
0712-
39
BRACKET; FRT SPR,RR
1-53352-125-2
01
1
0712-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
0712-
82
NUT; BRKT
M14
0-91110-514-0
20
1
0712-
98
WASHER; LK,STOPPER
ID=14.2
0-91510-614-0
16
1
0712-0803
98
WASHER; LK,STOPPER
FTS WIDE SGL CAB(FG**M*) ID=14.2
0-91510-614-0
16
1
0804-0811
98
WASHER; LK,STOPPER
FTS WIDE DBL CAB(FG**W*) ID=14.2
0-91510-814-0
16
1
0804-0811
98
WASHER; LK,STOPPER
ID=14.2
0-91510-814-0
16
1
0812-
101
BRACKET; RR SPR,FRT
1-53353-072-1
02
1
0712-
103
STOPPER; SUB SPR
(A)
1-53356-038-1
02
1
0712-
103
STOPPER; SUB SPR
(B)
1-53357-029-1
02
1
0712-
105
BRACKET; RR SPR,RR
1-53353-072-1
02
1
0712-
106
BOLT; BRKT
M14X50
0-20851-450-0
20
1
0712-
117
BOLT; STOPPER
M14X50
0-20851-450-0
16
1
0712-
118
NUT; STOPPER
M14
0-91110-514-0
16
1
0712-
138
WASHER; LK,BRKT
(A) ID=14.2
0-91510-614-0
34
1
0712-0803
138
WASHER; LK,BRKT
FTS WIDE SGL CAB(FG**M*) (A) ID=14.2
0-91510-614-0
34
1
0804-0811
138
WASHER; LK,BRKT
(B) ID=16.2
0-91510-616-0
04
1
0712-0803
138
WASHER; LK,BRKT
FTS WIDE SGL CAB(FG**M*) (B) ID=16.2
0-91510-616-0
04
1
0804-0811
138
WASHER; LK,BRKT
FTS WIDE DBL CAB(FG**W*) (A) ID=14.2
0-91510-814-0
34
1
0804-0811
138
WASHER; LK,BRKT
(A) ID=14.2
0-91510-814-0
34
1
0812-
138
WASHER; LK,BRKT
FTS WIDE DBL CAB(FG**W*) (B) ID=16.2
0-91510-816-0
04
1
0804-0811
138
WASHER; LK,BRKT
(B) ID=16.2
0-91510-816-0
04
1
0812-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
