4-60 — REAR SUSPENSION (#4883) — 75 parça

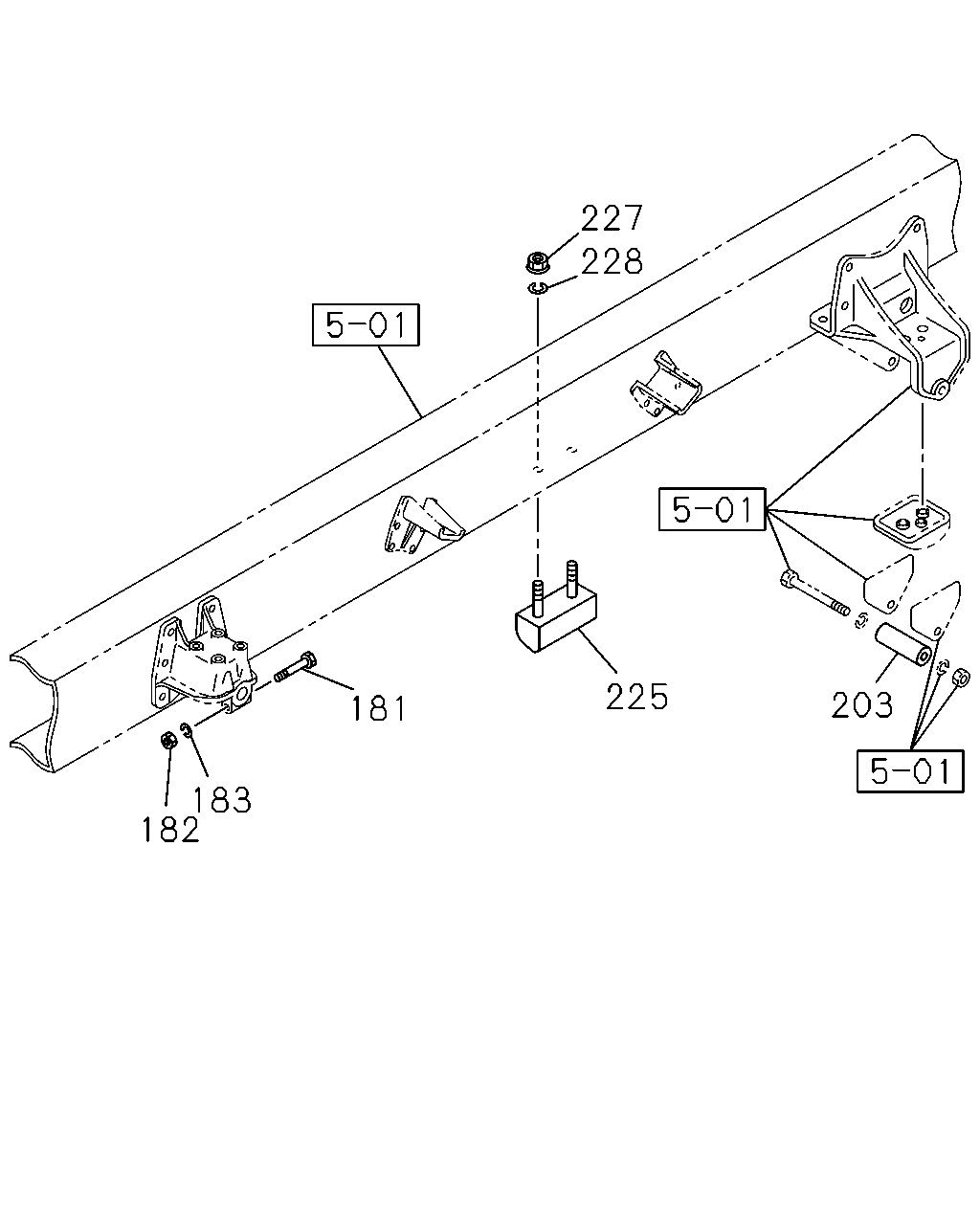

çizim 42052
227 228 225 203 181 183 182
BalonParca AdiParca NoAdetTipApplied Date
181 BOLT; SPR & SHACKLE
M14X80 		0-10806-480-0 02 1 9601-
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 9601-
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 9601-
203 COLLAR; LEAF SPR STOPPER 1-53359-004-0 02 1 9601-
225 RUBBER; CUSHION,RR SPR
L TYPE ENG<90L> 		1-53366-041-2 02 1 9601-
225 RUBBER; CUSHION,RR SPR
10PE1S(60L) 		1-53366-028-1 02 1 9601-9904
225 RUBBER; CUSHION,RR SPR
V TYPE ENG<91L> 		1-53366-028-1 02 1 9905-
227 NUT; CUSHION RUBBER
M12 		9-99110-512-0 04 1 9601-9606
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 9607-
228 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 04 1 9601-9606

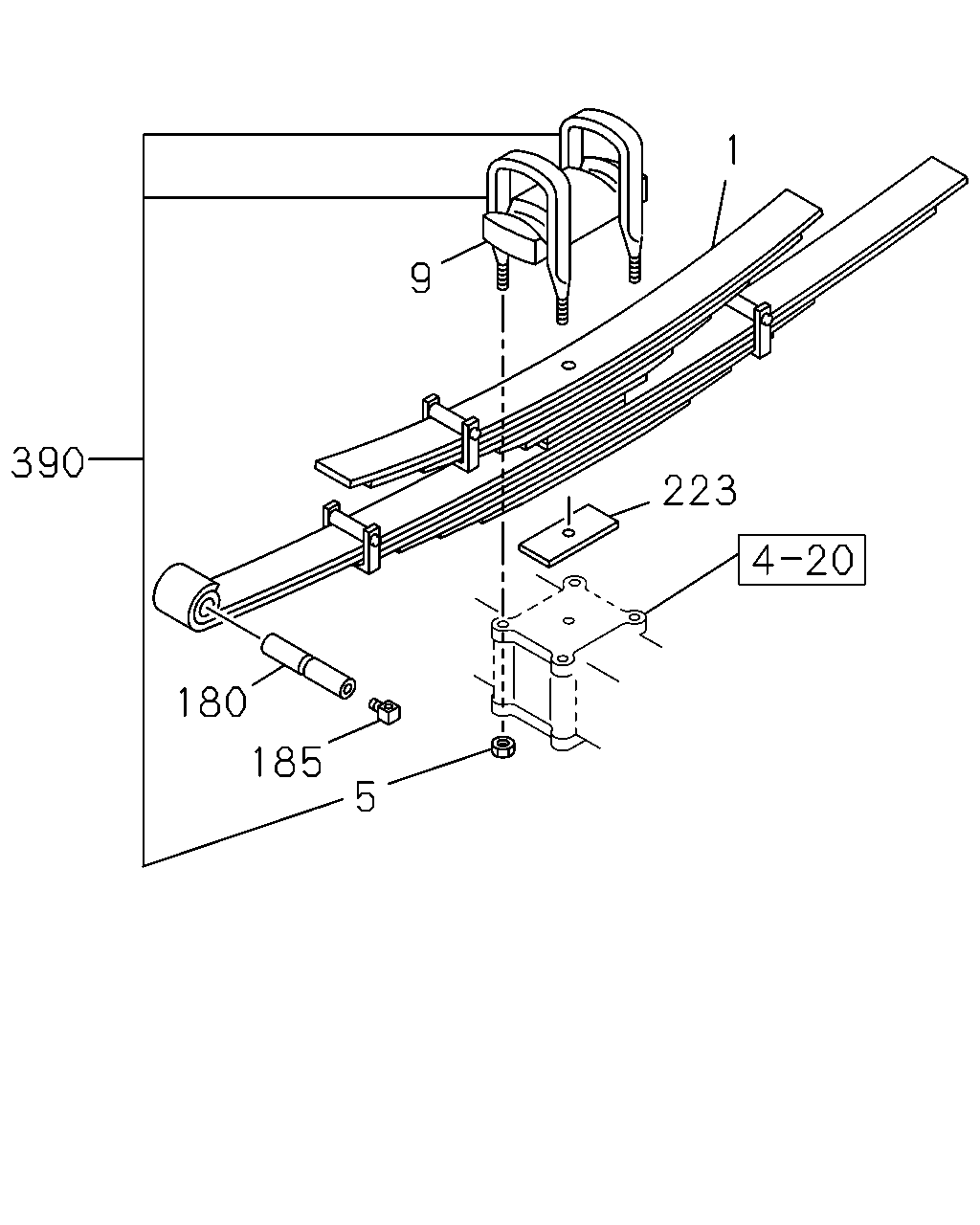

çizim 42053
1 9 390 223 180 185 5
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51300-260-1 02 1 9601-
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51300-257-1 02 1 9601-
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 9601-
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 9601-
180 PIN; RR SPR 1-51361-020-0 02 1 9601-
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9601-
223 SPACER; U BOLT,RR SPR
L TYPE ENG<90L> 		1-51377-357-0 02 1 9601-
223 SPACER; U BOLT,RR SPR
10PE1S(60L) 		1-51377-296-0 02 1 9601-9803
223 SPACER; U BOLT,RR SPR
10PE1S(60L) 		1-51377-369-0 02 1 9804-9904
223 SPACER; U BOLT,RR SPR
V TYPE ENG<91L> 		1-51377-369-1 02 1 9905-
390 U-BOLT SET; RR SPRING
6WA1 TC-S(56L) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) REAR STABILIZER SHAFT<F61> L=490 		1-87870-299-0 04 1 9601-9904
390 U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) REAR STABILIZER SHAFT<F61> L TYPE ENG<90L> L=490 		1-87870-299-0 04 1 9905-
390 U-BOLT SET; RR SPRING
6WA1 TC-S(56L) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. REAR STABILIZER SHAFT<F61> L=470 		1-87870-300-0 04 1 9601-9904
390 U-BOLT SET; RR SPRING
6WA1 TC-S(56L) REAR STABILIZER SHAFT<F61> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=470 		1-87870-300-0 04 1 9601-9904
390 U-BOLT SET; RR SPRING
10PE1S(60L) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=470 		1-87870-300-0 04 1 9601-9904
390 U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L TYPE ENG<90L> EXC. REAR STABILIZER SHAFT<F61> L=470 		1-87870-300-0 04 1 9905-
390 U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) V TYPE ENG<91L> L=470 		1-87870-300-0 04 1 9905-
390 U-BOLT SET; RR SPRING
REAR STABILIZER SHAFT<F61> L TYPE ENG<90L> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=470 		1-87870-300-0 04 1 9905-
390 U-BOLT SET; RR SPRING
6WA1 TC-S(56L) EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40),REAR STABILIZER SHAFT<F61> L=430 		1-87870-095-2 04 1 9601-9904
390 U-BOLT SET; RR SPRING
10PE1S(60L) EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=430 		1-87870-095-2 04 1 9601-9904
390 U-BOLT SET; RR SPRING
L TYPE ENG<90L> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40),REAR STABILIZER SHAFT<F61> L=430 		1-87870-095-2 04 1 9905-
390 U-BOLT SET; RR SPRING
V TYPE ENG<91L> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=430 		1-87870-095-2 04 1 9905-

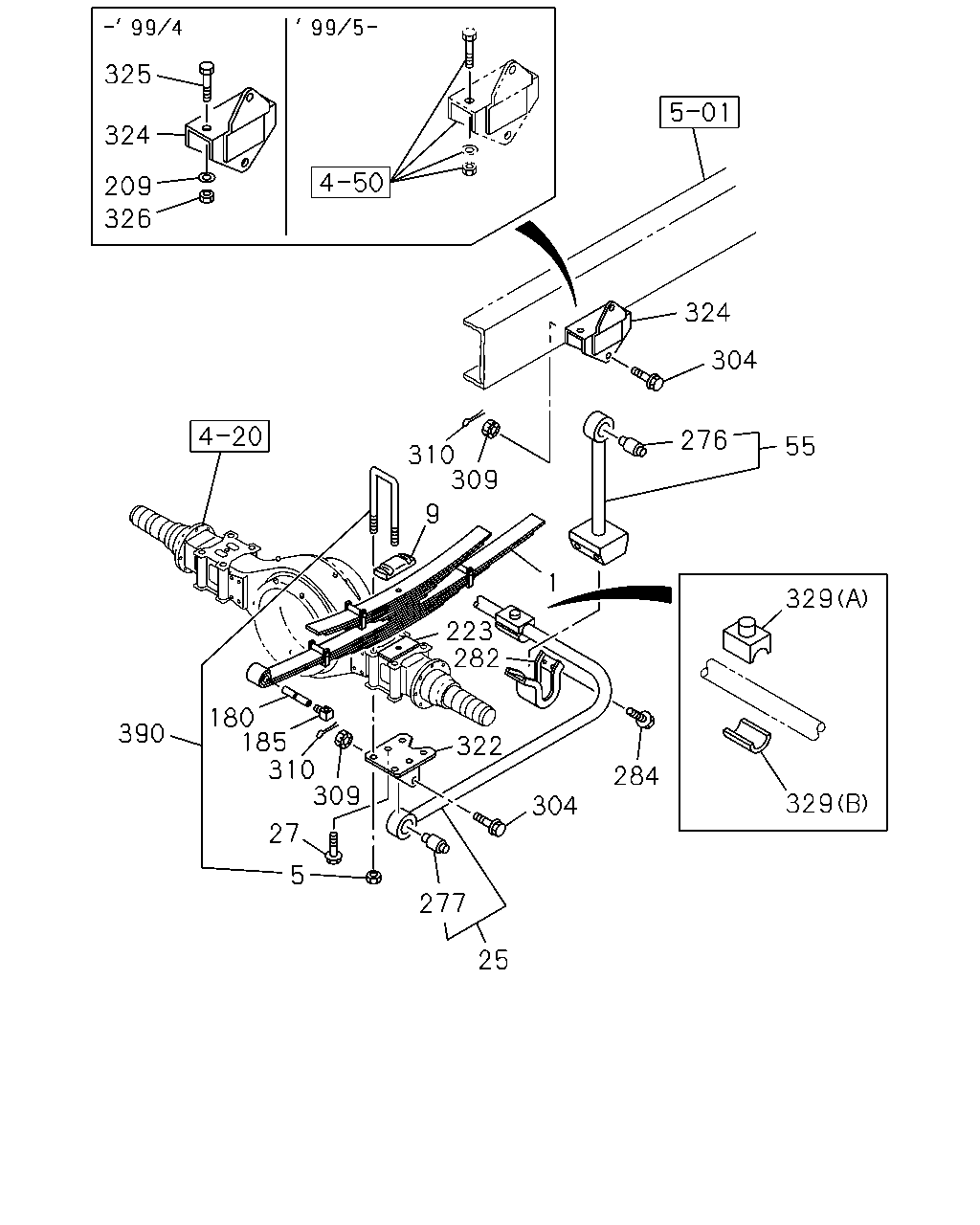

çizim 43098
325 324 209 326 324 304 276 55 310 309 9 1 329 223 282 180 185 310 309 390 322 284 329 304 27 5 277 25
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51300-260-1 02 1 9601-
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51300-257-1 02 1 9601-
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 9601-
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 9601-
25 BAR ASM; STAB,RR SUSP
REAR STABILIZER SHAFT<F61> 		1-51770-030-2 01 1 9601-
27 BOLT; STAB
REAR STABILIZER SHAFT<F61> M10X20 FLANGE 		0-28081-020-0 04 1 9601-
55 ROD; STAB
REAR STABILIZER SHAFT<F61> 		1-51770-024-1 02 1 9601-
180 PIN; RR SPR 1-51361-020-0 02 1 9601-
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9601-
209 WASHER; PL
6WA1 TC-C(55L),6WA1 TC-S(56L) REAR STABILIZER SHAFT<F61> ID=15 		9-09651-069-0 06 1 9611-9904
209 WASHER; PL
6WA1 TC-S(56L) REAR STABILIZER SHAFT<F61> ID=15 		9-09651-069-0 06 1 9601-9904
223 SPACER; U BOLT,RR SPR
L TYPE ENG<90L> 		1-51377-357-0 02 1 9601-
223 SPACER; U BOLT,RR SPR
10PE1S(60L) 		1-51377-296-0 02 1 9601-9803
223 SPACER; U BOLT,RR SPR
10PE1S(60L) 		1-51377-369-0 02 1 9804-9904
223 SPACER; U BOLT,RR SPR
V TYPE ENG<91L> 		1-51377-369-1 02 1 9905-
276 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51779-019-0 04 1 9601-
277 BUSHING; STAB,RR UPR
REAR STABILIZER SHAFT<F61> 		1-51779-067-0 02 1 9601-
282 RETAINER; STAB BAR
REAR STABILIZER SHAFT<F61> 		1-51789-015-2 02 1 9601-
284 BOLT; RET TO RET
REAR STABILIZER SHAFT<F61> M10X25 		8-94463-351-0 08 1 9601-
304 PIN; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51789-020-2 04 1 9601-
309 NUT; STAB ROD
REAR STABILIZER SHAFT<F61> M24 		9-99116-424-0 04 1 9601-
310 PIN; SPLIT,STAB ROD
REAR STABILIZER SHAFT<F61> OD=4.6 L=45 		9-08115-045-0 04 1 9601-
322 BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61> 		1-51781-102-0 02 1 9601-
324 BRACKET; STAB BAR TO FRAME
6WA1 TC-S(56L) REAR STABILIZER SHAFT<F61> 		1-51781-074-0 02 1 9601-9904
324 BRACKET; STAB BAR TO FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) REAR STABILIZER SHAFT<F61> 		1-51781-074-0 02 1 9611-9904
325 BOLT; BRKT TO FRAME
6WA1 TC-S(56L) REAR STABILIZER SHAFT<F61> M14X40 		9-92061-440-0 06 1 9601-9904
325 BOLT; BRKT TO FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) REAR STABILIZER SHAFT<F61> M14X40 		9-92061-440-0 06 1 9611-9904
326 NUT; BRKT TO FRAME
6WA1 TC-S(56L) REAR STABILIZER SHAFT<F61> M14 		9-99110-514-0 06 1 9601-9904
326 NUT; BRKT TO FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) REAR STABILIZER SHAFT<F61> M14 		9-99110-514-0 06 1 9611-9904
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (A) 		1-51789-051-1 02 1 9601-
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (B) 		1-51789-052-0 02 1 9601-
390 U-BOLT SET; RR SPRING
6WA1 TC-S(56L) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) REAR STABILIZER SHAFT<F61> L=490 		1-87870-299-0 04 1 9601-9904
390 U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) REAR STABILIZER SHAFT<F61> L TYPE ENG<90L> L=490 		1-87870-299-0 04 1 9905-
390 U-BOLT SET; RR SPRING
6WA1 TC-S(56L) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. REAR STABILIZER SHAFT<F61> L=470 		1-87870-300-0 04 1 9601-9904
390 U-BOLT SET; RR SPRING
6WA1 TC-S(56L) REAR STABILIZER SHAFT<F61> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=470 		1-87870-300-0 04 1 9601-9904
390 U-BOLT SET; RR SPRING
10PE1S(60L) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=470 		1-87870-300-0 04 1 9601-9904
390 U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L TYPE ENG<90L> EXC. REAR STABILIZER SHAFT<F61> L=470 		1-87870-300-0 04 1 9905-
390 U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) V TYPE ENG<91L> L=470 		1-87870-300-0 04 1 9905-
390 U-BOLT SET; RR SPRING
REAR STABILIZER SHAFT<F61> L TYPE ENG<90L> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=470 		1-87870-300-0 04 1 9905-
390 U-BOLT SET; RR SPRING
6WA1 TC-S(56L) EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40),REAR STABILIZER SHAFT<F61> L=430 		1-87870-095-2 04 1 9601-9904
390 U-BOLT SET; RR SPRING
10PE1S(60L) EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=430 		1-87870-095-2 04 1 9601-9904
390 U-BOLT SET; RR SPRING
L TYPE ENG<90L> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40),REAR STABILIZER SHAFT<F61> L=430 		1-87870-095-2 04 1 9905-
390 U-BOLT SET; RR SPRING
V TYPE ENG<91L> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=430 		1-87870-095-2 04 1 9905-
