◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11421 - FTS(AUST)EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#48829) — 19 parça

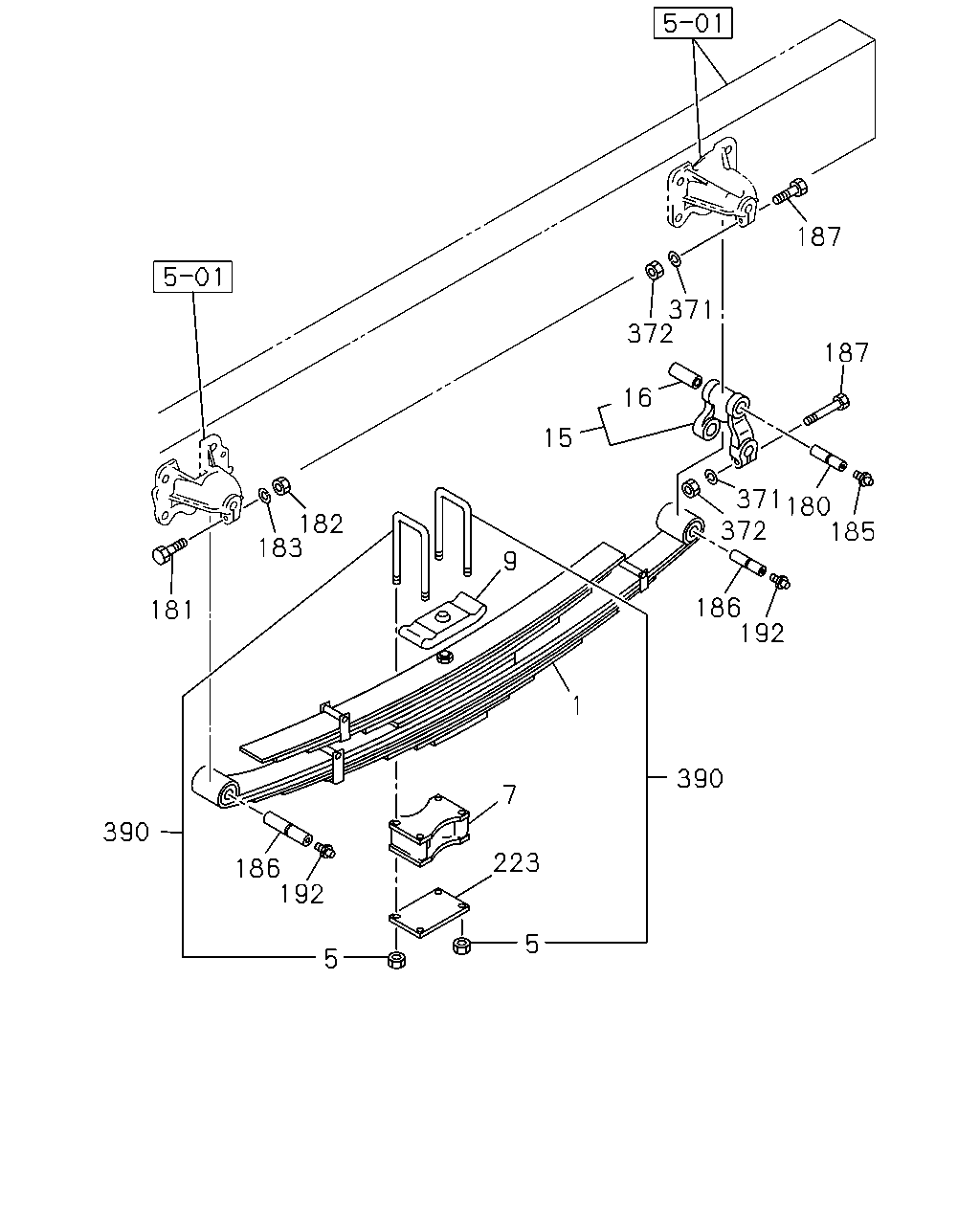

çizim 23109
187 371 372 187 16 15 371 180 372 185 182 183 9 186 192 181 1 390 7 390 223 186 192 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-98034-467-0 02 1 0712- ● ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 0712- ● ●
7 SEAT; SPR,LWR 1-51385-062-2 02 1 0712- ● ●
9 PAD; U BOLT,RR SPR 1-51372-048-1 02 1 0712- ● ●
15 SHACKLE; RR SPR 1-51362-049-2 02 1 0712- ● ●
16 BUSHING; SHACKLE,RR SPR 9-51351-019-2 02 1 0712-0902 ● ●
16 BUSHING; SHACKLE,RR SPR 8-98081-830-0 02 1 0903- ● ●
180 PIN; RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 02 1 0712- ● ●
181 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 02 1 0712- ● ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 0712- ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 0712- ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0712- ● ●
186 PIN; SHACKLE,RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 04 1 0712- ● ●
187 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 04 1 0712- ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0712- ● ●
223 SPACER; U BOLT,RR SPR 1-51377-246-0 01 1 0712- ● ●
371 WASHER; LK,SHACKLE
ID=14.2 		0-91510-514-0 04 1 0712- ● ●
372 NUT; SHACKLE
M14 		0-91110-514-0 04 1 0712- ● ●
390 U-BOLT SET; RR SPRING
L=590 		1-87870-478-0 04 1 0712- ● ●
