◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11421 - FTS(AUST)EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#48828) — 10 parça

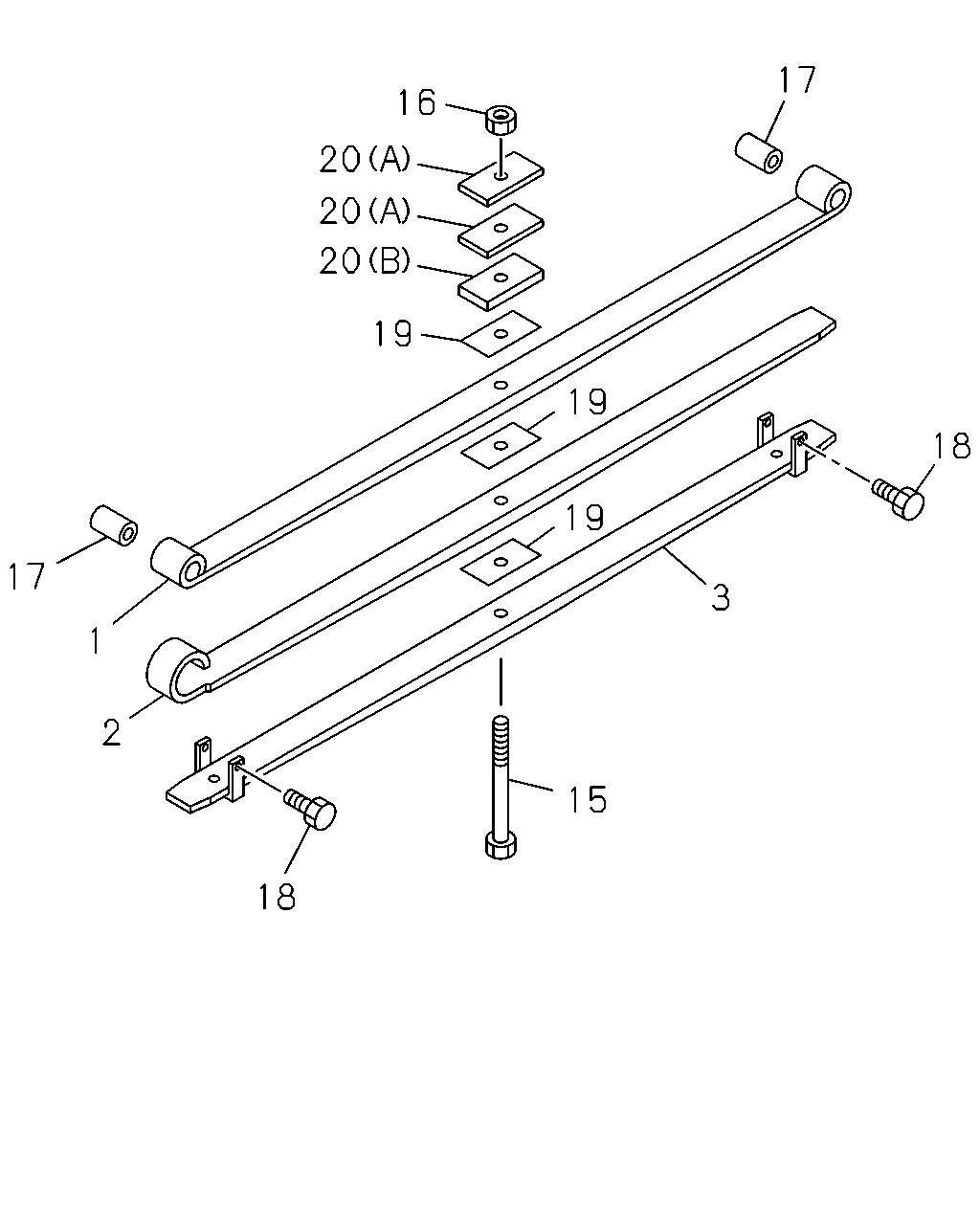

çizim 24335
17 16 20 20 20 19 19 18 19 17 3 1 2 15 18
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98027-963-1 		8-98051-282-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98027-963-1 		8-98051-283-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98027-963-1 		8-98051-284-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=125 ASM PART: A = 8-98027-963-1 		1-51156-196-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98027-963-1 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 8-98027-963-1 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: A = 8-98027-963-1 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98027-963-1 		8-97386-326-0 03 1 -
20 SEAT; LEAF SPR,FRT
(A) ASM PART: A = 8-98027-963-1 		1-51177-252-0 02 1 -
20 SEAT; LEAF SPR,FRT
(B) ASM PART: A = 8-98027-963-1 		8-98049-893-0 01 1 -
