◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11421 - FTS(AUST)EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#48824) — 28 parça

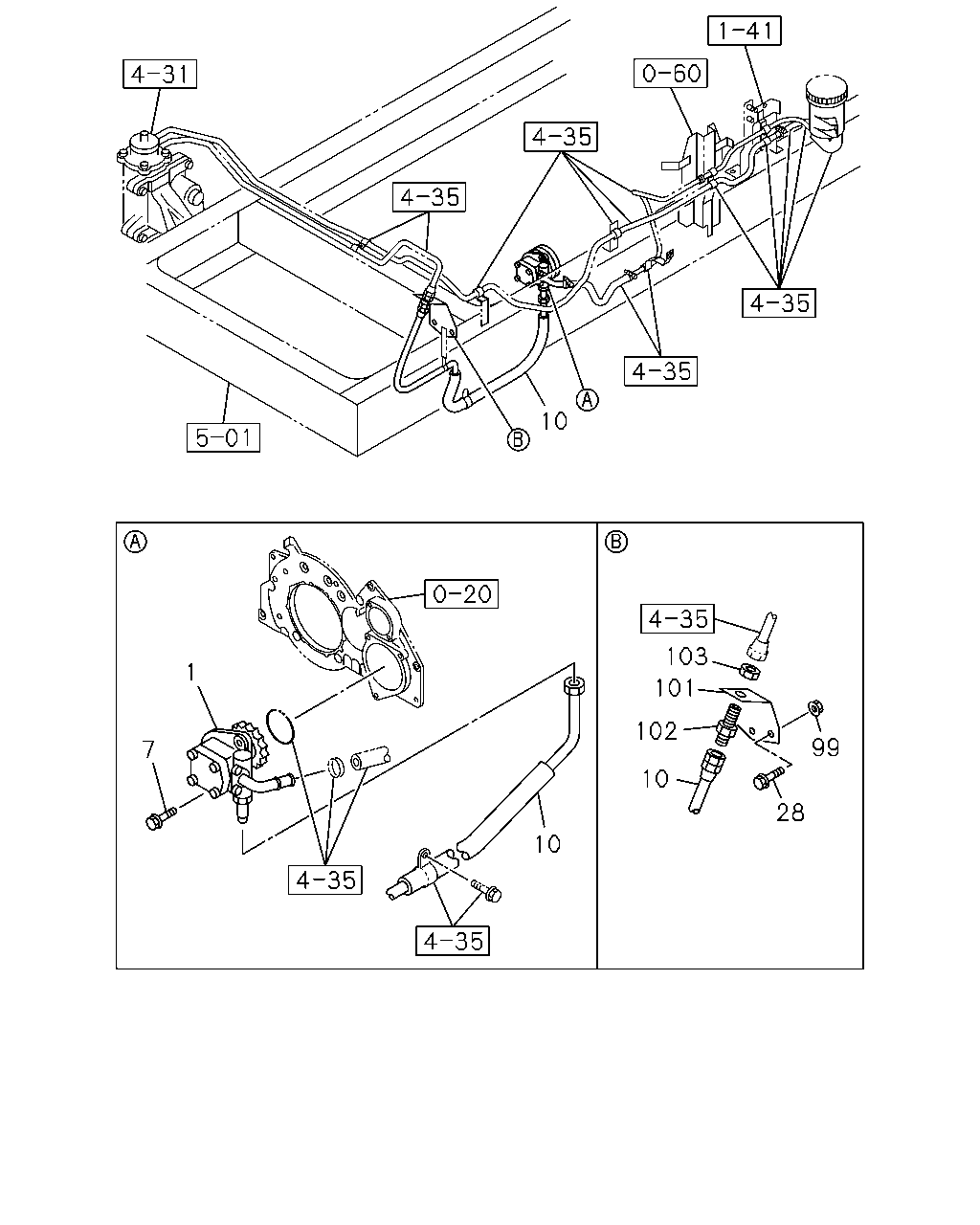

çizim 24507
10 103 1 101 102 99 7 10 28 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-634-1 01 1 0712- ● ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-97365-449-0 02 1 0712- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL 8-98098-277-0 01 1 0712-0802 ●
10 HOSE; FLEX,P/S OIL PUMP,INL 8-98098-277-0 01 1 0803- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-181-0 01 1 0712-0802 ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
99 NUT; BRKT,FLEX HOSE,P/S
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
101 BRACKET; UNION 8-98052-888-1 01 1 0712-0802 ●
101 BRACKET; UNION 8-98052-888-1 01 1 0803- ● ●
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 0712-0802 ●
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 0803- ● ●
103 NUT; UNION
M22 		0-91111-522-0 01 1 0712-0802 ●
103 NUT; UNION
M22 		0-91111-522-0 01 1 0803- ● ●

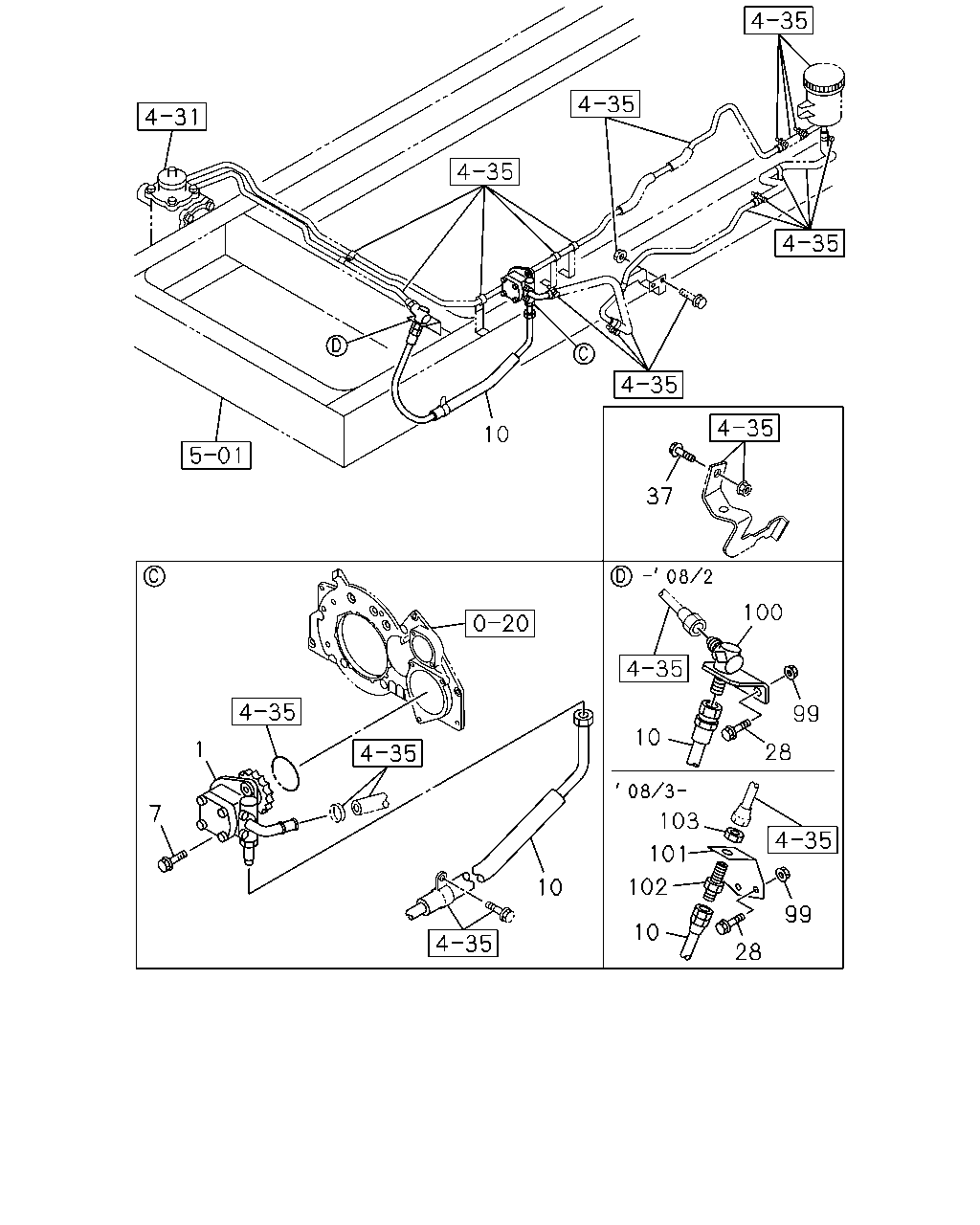

çizim 25060
10 37 100 99 10 1 28 7 103 101 102 10 99 10 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-634-1 01 1 0712- ● ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-97365-449-0 02 1 0712- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL 8-98098-277-0 01 1 0712-0802 ●
10 HOSE; FLEX,P/S OIL PUMP,INL 8-98098-277-0 01 1 0803- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-181-0 01 1 0712-0802 ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
37 BOLT; P/S PUMP
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0802 ●
99 NUT; BRKT,FLEX HOSE,P/S
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
100 UNION; FLEX HOSE 1-47470-663-0 01 1 0712-0802 ●
101 BRACKET; UNION 8-98052-888-1 01 1 0712-0802 ●
101 BRACKET; UNION 8-98052-888-1 01 1 0803- ● ●
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 0712-0802 ●
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 0803- ● ●
103 NUT; UNION
M22 		0-91111-522-0 01 1 0712-0802 ●
103 NUT; UNION
M22 		0-91111-522-0 01 1 0803- ● ●
