Sayfa 4-35 - Isuzu EPC

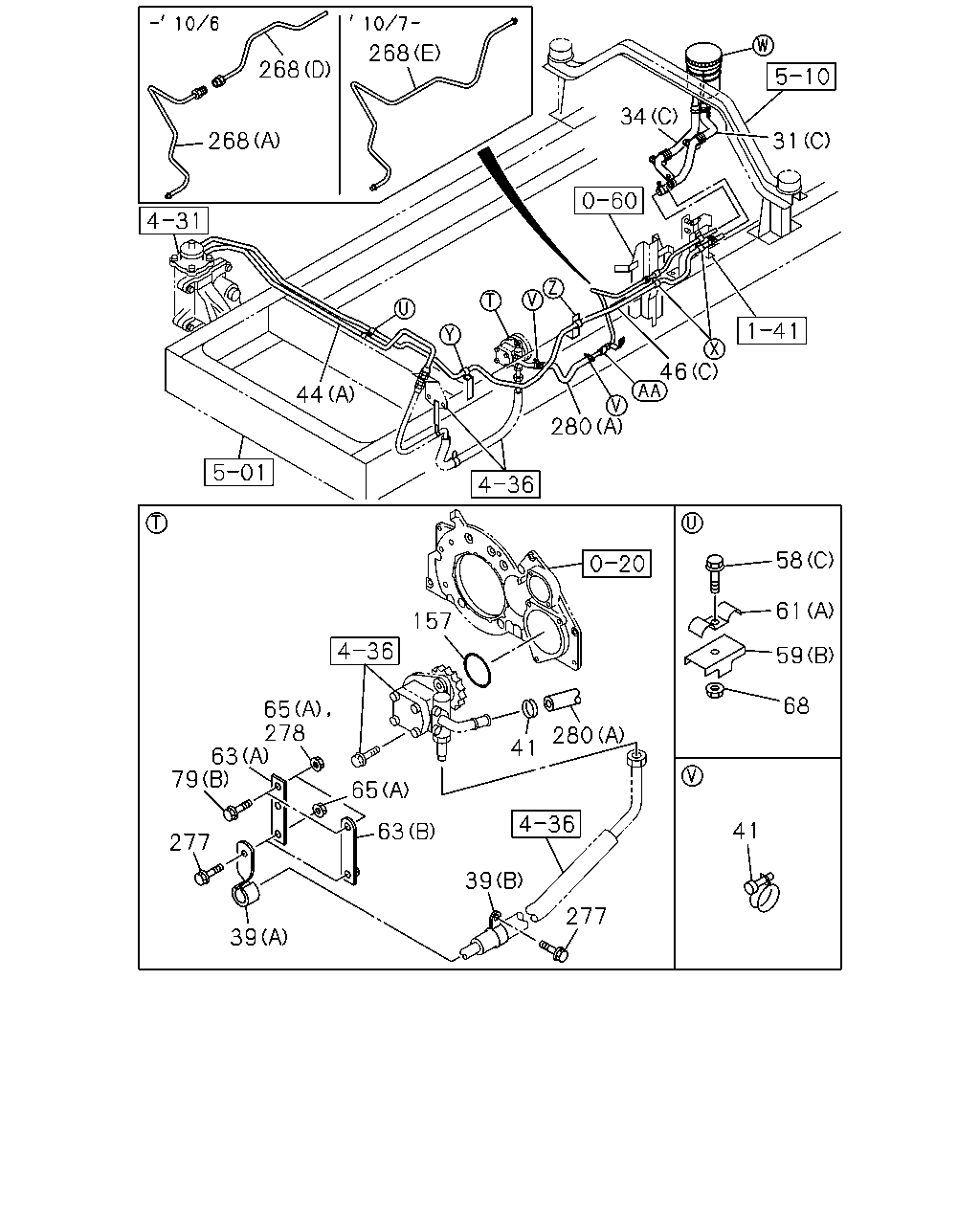

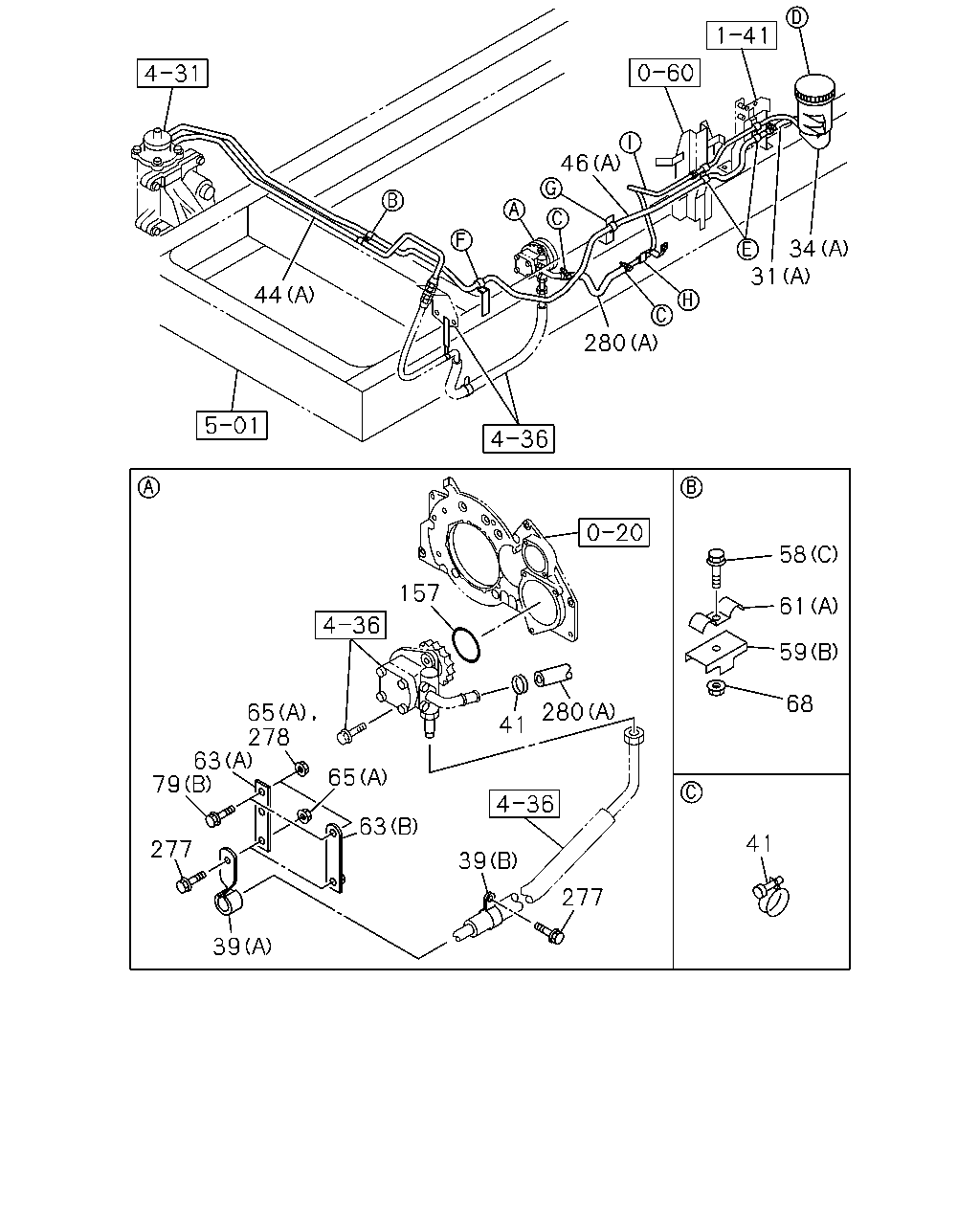

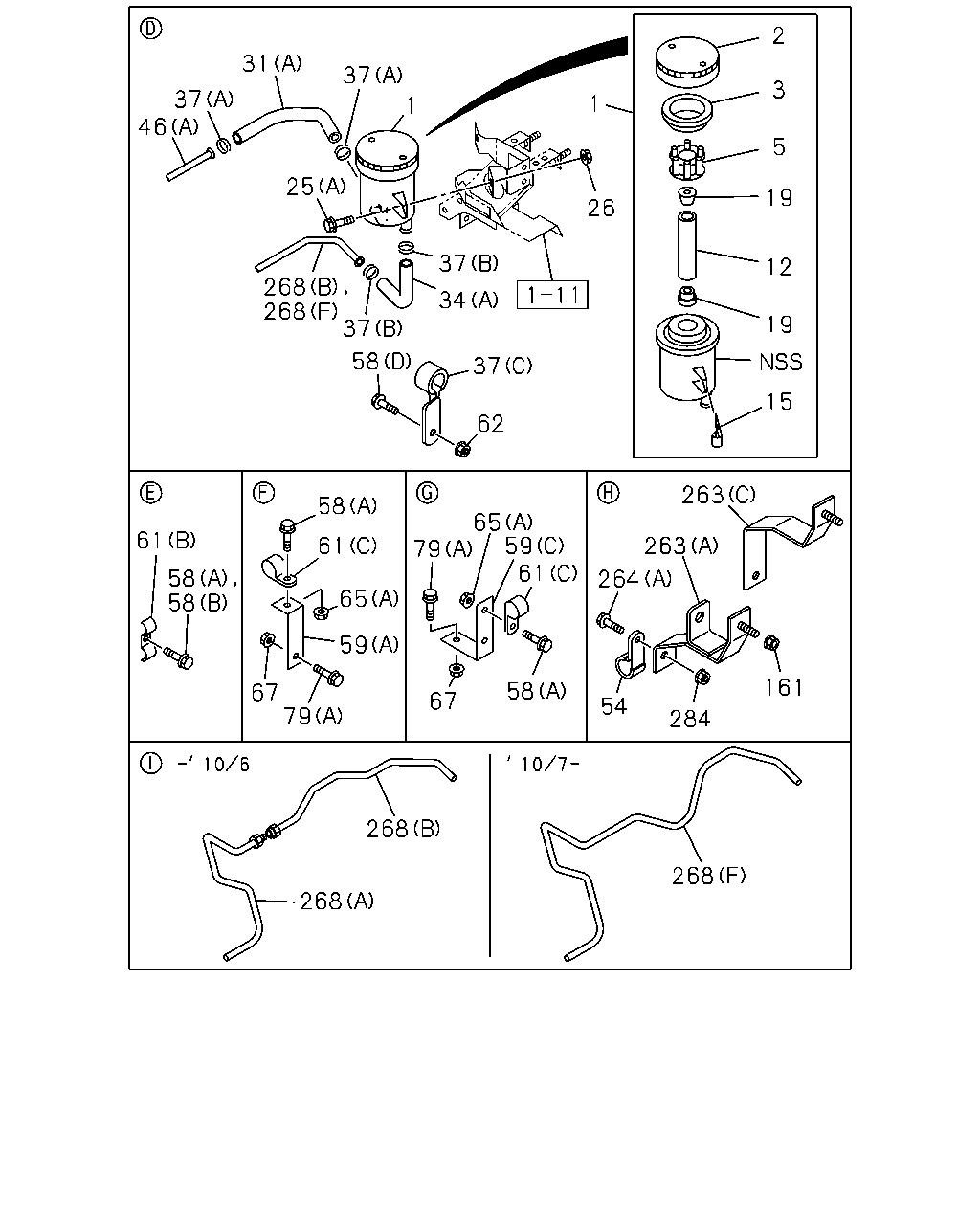

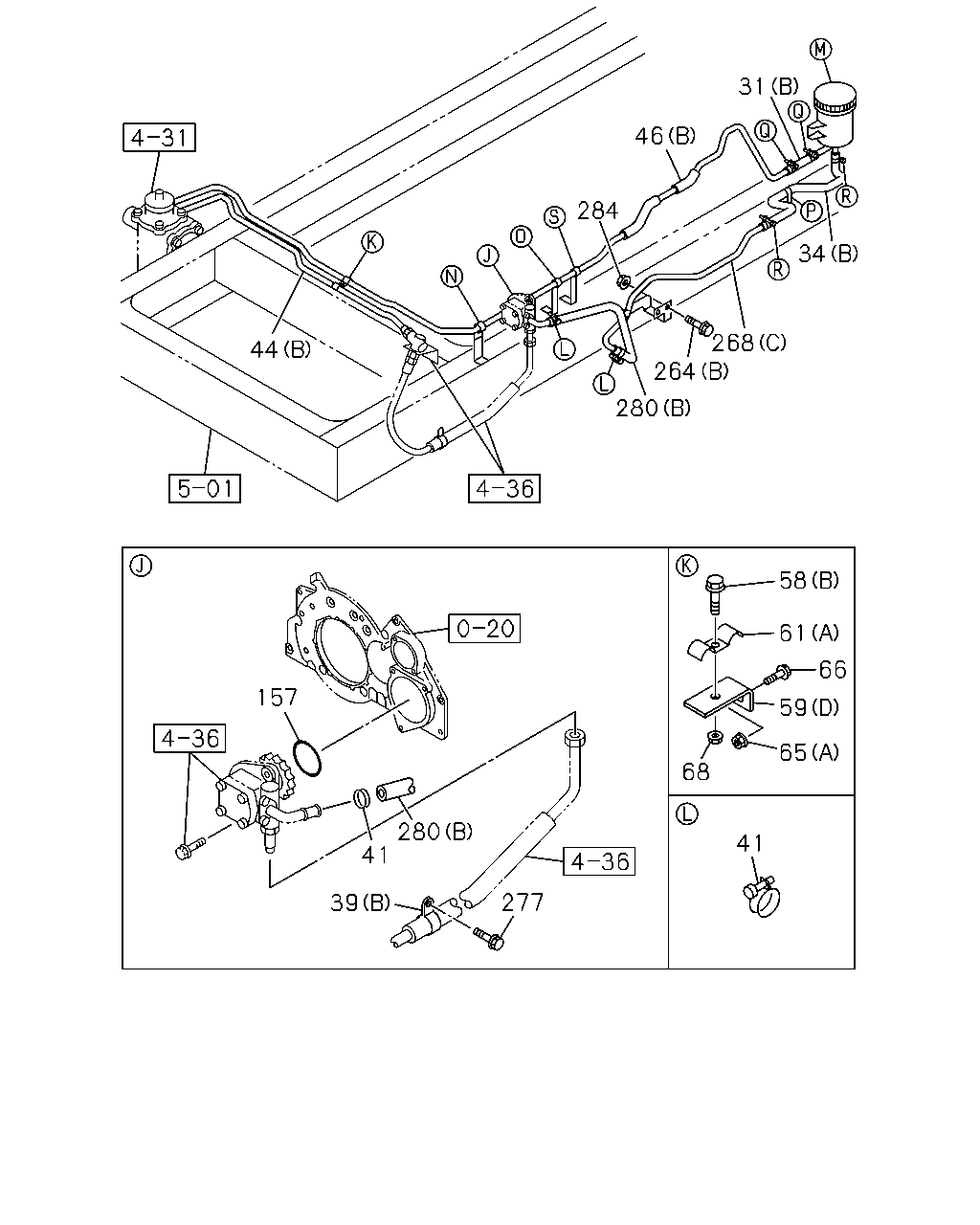

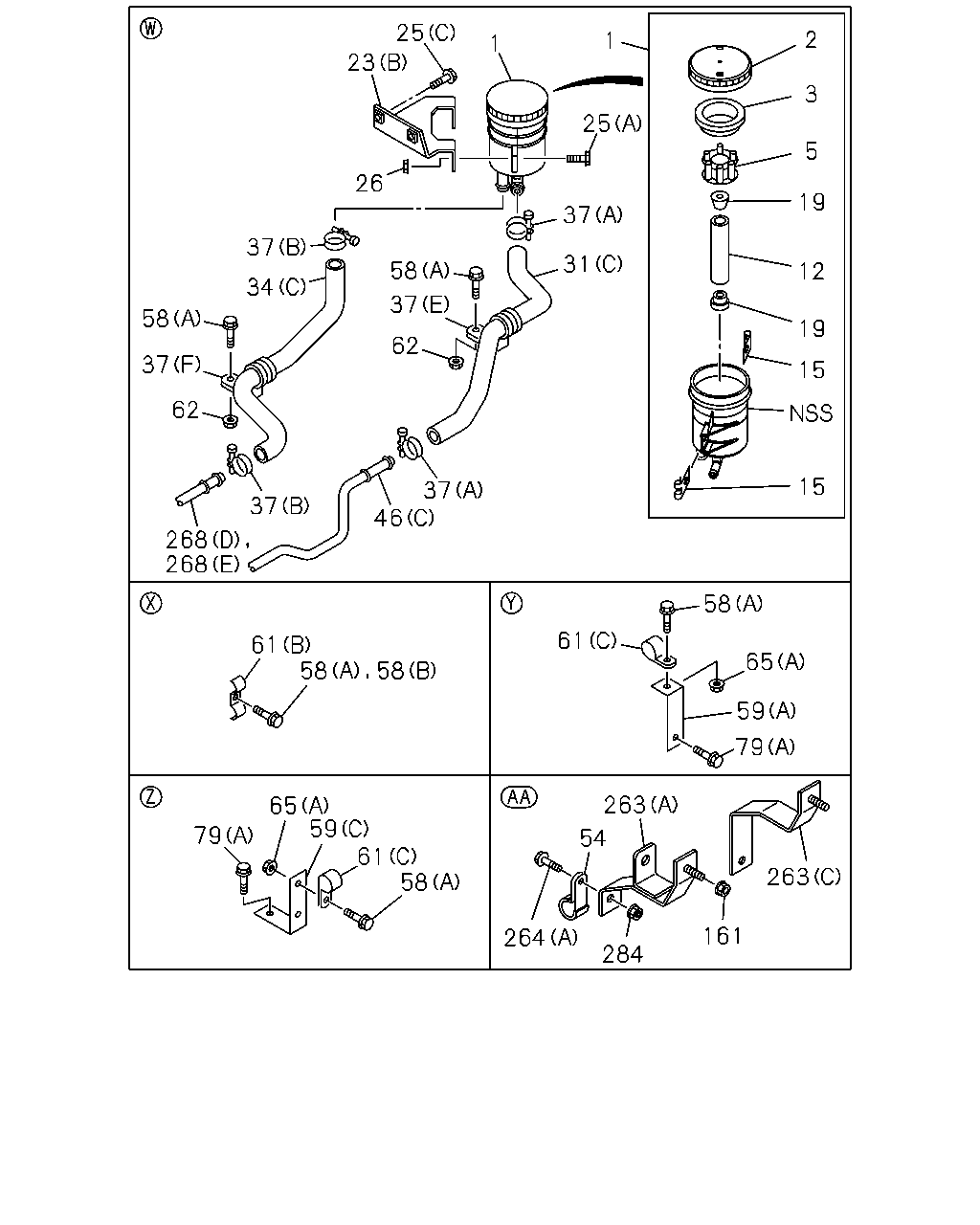

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#48823) — 450 parça

31 46 284 34 268 264 44 280 58 61 66 157 59 65 68 280 41 41 277 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL (A)	8-98092-730-0	01	1	0712-	●
31	HOSE; P/S OIL TANK,INL (B)	0-09814-080-0	01	1	0712-0802		●
31	HOSE; P/S OIL TANK,INL (C)	8-98101-814-0	01	1	0803-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	0712-	●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98054-212-0	01	1	0712-0802		●
34	HOSE; P/S OIL TANK,OUTLET (C)	8-98101-815-0	01	1	0803-		●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	0712-	●	●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	0803-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0712-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-97623-288-0	01	1	0712-0802	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-97623-288-0	01	1	0803-0803	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-97623-288-0	01	1	0804-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (B)	8-98054-049-1	01	1	0712-0802		●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98113-923-0	01	1	0804-1010		●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98182-041-0	01	1	1011-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2773	8-98093-666-0	01	1	0712-0802	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2775	8-98111-272-0	01	1	0803-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=3039	8-98054-048-0	01	1	0712-0802		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=1835 SERVICED BY L=2000	1-47428-739-0	01	1	0803-0803		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=2879	8-98113-921-0	01	1	0804-1010		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=2877	8-98182-043-0	01	1	1011-		●
58	BOLT; CLIP (D) M8X16 FLANGE	0-28050-816-0	01	1	0712-0802	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	0712-0802	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	0803-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-0802	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	0803-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-0802		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0803-		●
58	BOLT; CLIP (E) M8X25 FLANGE	0-28650-825-0	04	1	0712-0802		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (F)	1-21464-481-0	02	1	0712-0802		●
59	BRACKET; CLIP,OIL PIPE (D)	1-47471-051-0	01	1	0712-0802		●
59	BRACKET; CLIP,OIL PIPE (E) L=55	1-47476-177-0	01	1	0712-0802		●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-0802	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0803-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0712-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-	●	●
61	CLIP; OIL PIPE (D) ID=15 H=24 L=20	1-09700-606-0	03	1	0712-0802		●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0712-0802	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0803-0908	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0909-	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0909-	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	06	1	0712-0802		●
65	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0712-0802		●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	01	1	0712-0802		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0712-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0712-	●	●
264	BOLT; PIPE BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-0802	●
264	BOLT; PIPE BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
264	BOLT; PIPE BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-97623-289-1	01	1	0712-0802	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98111-273-0	01	1	0803-0811	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98131-411-0	01	1	0812-1006	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	0712-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (F)	8-98154-048-0	01	1	1007-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98054-047-0	01	1	0712-0802		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (D) L=2791 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0803		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (D)	8-98111-275-0	01	1	0804-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (E)	8-98154-049-0	01	1	1007-		●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0712-0804	●	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0805-	●	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98099-865-0	01	1	0712-0802	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98116-327-0	01	1	0803-0811	●	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98131-414-0	01	1	0812-	●	●
280	HOSE; P/S OIL PUMP,INL (B)	8-98050-877-1	01	1	0712-0802		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0712-	●	●

268 268 34 268 31 46 44 280 58 61 157 59 68 65 278 280 41 63 79 65 41 63 277 39 277 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL (A)	8-98092-730-0	01	1	0712-	●
31	HOSE; P/S OIL TANK,INL (B)	0-09814-080-0	01	1	0712-0802		●
31	HOSE; P/S OIL TANK,INL (C)	8-98101-814-0	01	1	0803-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	0712-	●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98054-212-0	01	1	0712-0802		●
34	HOSE; P/S OIL TANK,OUTLET (C)	8-98101-815-0	01	1	0803-		●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	0712-	●	●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	0803-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0712-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-97623-288-0	01	1	0712-0802	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-97623-288-0	01	1	0803-0803	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-97623-288-0	01	1	0804-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (B)	8-98054-049-1	01	1	0712-0802		●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98113-923-0	01	1	0804-1010		●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98182-041-0	01	1	1011-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2773	8-98093-666-0	01	1	0712-0802	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2775	8-98111-272-0	01	1	0803-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=3039	8-98054-048-0	01	1	0712-0802		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=1835 SERVICED BY L=2000	1-47428-739-0	01	1	0803-0803		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=2879	8-98113-921-0	01	1	0804-1010		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=2877	8-98182-043-0	01	1	1011-		●
58	BOLT; CLIP (D) M8X16 FLANGE	0-28050-816-0	01	1	0712-0802	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	0712-0802	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	0803-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-0802	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	0803-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-0802		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0803-		●
58	BOLT; CLIP (E) M8X25 FLANGE	0-28650-825-0	04	1	0712-0802		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (F)	1-21464-481-0	02	1	0712-0802		●
59	BRACKET; CLIP,OIL PIPE (D)	1-47471-051-0	01	1	0712-0802		●
59	BRACKET; CLIP,OIL PIPE (E) L=55	1-47476-177-0	01	1	0712-0802		●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-0802	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0803-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0712-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-	●	●
61	CLIP; OIL PIPE (D) ID=15 H=24 L=20	1-09700-606-0	03	1	0712-0802		●
63	BRACKET; CLIP,P/S (A) L=105	1-47477-409-0	01	1	0712-0802	●
63	BRACKET; CLIP,P/S (A) L=105	1-47477-409-0	01	1	0803-0804	●	●
63	BRACKET; CLIP,P/S (B)	1-47476-396-1	01	1	0805-	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0712-0802	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0803-0908	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0909-	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0909-	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	06	1	0712-0802		●
65	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0712-0802		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0712-	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-0802	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0712-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-97623-289-1	01	1	0712-0802	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98111-273-0	01	1	0803-0811	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98131-411-0	01	1	0812-1006	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	0712-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (F)	8-98154-048-0	01	1	1007-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98054-047-0	01	1	0712-0802		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (D) L=2791 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0803		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (D)	8-98111-275-0	01	1	0804-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (E)	8-98154-049-0	01	1	1007-		●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0712-0804	●	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0805-	●	●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	01	1	0803-0804	●	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98099-865-0	01	1	0712-0802	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98116-327-0	01	1	0803-0811	●	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98131-414-0	01	1	0812-	●	●
280	HOSE; P/S OIL PUMP,INL (B)	8-98050-877-1	01	1	0712-0802		●

46 34 31 44 280 58 157 61 59 68 280 65 278 41 63 79 65 63 41 277 39 277 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL (A)	8-98092-730-0	01	1	0712-	●
31	HOSE; P/S OIL TANK,INL (B)	0-09814-080-0	01	1	0712-0802		●
31	HOSE; P/S OIL TANK,INL (C)	8-98101-814-0	01	1	0803-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	0712-	●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98054-212-0	01	1	0712-0802		●
34	HOSE; P/S OIL TANK,OUTLET (C)	8-98101-815-0	01	1	0803-		●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	0712-	●	●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	0803-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0712-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-97623-288-0	01	1	0712-0802	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-97623-288-0	01	1	0803-0803	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-97623-288-0	01	1	0804-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (B)	8-98054-049-1	01	1	0712-0802		●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98113-923-0	01	1	0804-1010		●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98182-041-0	01	1	1011-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2773	8-98093-666-0	01	1	0712-0802	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2775	8-98111-272-0	01	1	0803-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=3039	8-98054-048-0	01	1	0712-0802		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=1835 SERVICED BY L=2000	1-47428-739-0	01	1	0803-0803		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=2879	8-98113-921-0	01	1	0804-1010		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=2877	8-98182-043-0	01	1	1011-		●
58	BOLT; CLIP (D) M8X16 FLANGE	0-28050-816-0	01	1	0712-0802	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	0712-0802	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	0803-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-0802	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	0803-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-0802		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0803-		●
58	BOLT; CLIP (E) M8X25 FLANGE	0-28650-825-0	04	1	0712-0802		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (F)	1-21464-481-0	02	1	0712-0802		●
59	BRACKET; CLIP,OIL PIPE (D)	1-47471-051-0	01	1	0712-0802		●
59	BRACKET; CLIP,OIL PIPE (E) L=55	1-47476-177-0	01	1	0712-0802		●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-0802	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0803-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0712-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-	●	●
61	CLIP; OIL PIPE (D) ID=15 H=24 L=20	1-09700-606-0	03	1	0712-0802		●
63	BRACKET; CLIP,P/S (A) L=105	1-47477-409-0	01	1	0712-0802	●
63	BRACKET; CLIP,P/S (A) L=105	1-47477-409-0	01	1	0803-0804	●	●
63	BRACKET; CLIP,P/S (B)	1-47476-396-1	01	1	0805-	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0712-0802	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0803-0908	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0909-	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0909-	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	06	1	0712-0802		●
65	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0712-0802		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0712-	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-0802	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0712-	●	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0712-0804	●	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0805-	●	●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	01	1	0803-0804	●	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98099-865-0	01	1	0712-0802	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98116-327-0	01	1	0803-0811	●	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98131-414-0	01	1	0812-	●	●
280	HOSE; P/S OIL PUMP,INL (B)	8-98050-877-1	01	1	0712-0802		●

1 2 3 23 26 5 19 12 25 15 19 25 65 58 65 59 61 37 79 65 61 59 62 67 58 67 58 79 161 58 37 37 263 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0712-1006	●	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0712-1006	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0712-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0712-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0712-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0712-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0712-	●	●
23	BRACKET; OIL TANK,P/S (A)	1-21119-142-1	01	1	0712-0802		●
23	BRACKET; OIL TANK,P/S (B)	8-98101-813-0	01	1	0803-0805		●
23	BRACKET; OIL TANK,P/S (B)	8-98125-268-0	01	1	0806-		●
25	BOLT; OIL TANK BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●
25	BOLT; OIL TANK BRKT (B) M10X25 FLANGE	0-28651-025-0	02	1	0712-0802		●
25	BOLT; OIL TANK BRKT (C) M8X20 FLANGE	0-28650-820-0	02	1	0803-		●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
37	CLIP; HOSE,P/S (C) ID=19 L=58	1-09700-733-1	01	1	0712-0802	●
37	CLIP; HOSE,P/S (E) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0803-		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0712-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0712-	●	●
37	CLIP; HOSE,P/S (D) ID=32 L=50	1-09701-055-1	01	1	0712-0802		●
37	CLIP; HOSE,P/S (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0803-		●
58	BOLT; CLIP (D) M8X16 FLANGE	0-28050-816-0	01	1	0712-0802	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	0712-0802	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	0803-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-0802	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	0803-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-0802		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0803-		●
58	BOLT; CLIP (E) M8X25 FLANGE	0-28650-825-0	04	1	0712-0802		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (F)	1-21464-481-0	02	1	0712-0802		●
59	BRACKET; CLIP,OIL PIPE (D)	1-47471-051-0	01	1	0712-0802		●
59	BRACKET; CLIP,OIL PIPE (E) L=55	1-47476-177-0	01	1	0712-0802		●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-0802	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0803-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0712-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-	●	●
61	CLIP; OIL PIPE (D) ID=15 H=24 L=20	1-09700-606-0	03	1	0712-0802		●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0803-		●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0712-0802	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0803-0908	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0909-	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0909-	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	06	1	0712-0802		●
65	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0712-0802		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-0802	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	0712-	●	●
263	BRACKET; P/S PIPE (A)	8-98094-083-0	01	1	0712-0802	●
263	BRACKET; P/S PIPE (A)	8-98102-163-0	01	1	0803-0811	●	●
263	BRACKET; P/S PIPE (C)	8-98131-412-0	01	1	0812-	●	●
263	BRACKET; P/S PIPE (B)	8-97616-357-3	01	1	0712-0802		●

25 2 1 1 23 3 25 5 26 19 37 37 31 58 12 34 37 58 19 62 37 15 62 15 37 46 37 268 268 58 61 61 58 65 58 59 79 263 65 59 61 58 79 54 263 161 264 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0712-1006	●	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0712-1006	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0712-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0712-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0712-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0712-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0712-	●	●
23	BRACKET; OIL TANK,P/S (A)	1-21119-142-1	01	1	0712-0802		●
23	BRACKET; OIL TANK,P/S (B)	8-98101-813-0	01	1	0803-0805		●
23	BRACKET; OIL TANK,P/S (B)	8-98125-268-0	01	1	0806-		●
25	BOLT; OIL TANK BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●
25	BOLT; OIL TANK BRKT (B) M10X25 FLANGE	0-28651-025-0	02	1	0712-0802		●
25	BOLT; OIL TANK BRKT (C) M8X20 FLANGE	0-28650-820-0	02	1	0803-		●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
31	HOSE; P/S OIL TANK,INL (A)	8-98092-730-0	01	1	0712-	●
31	HOSE; P/S OIL TANK,INL (B)	0-09814-080-0	01	1	0712-0802		●
31	HOSE; P/S OIL TANK,INL (C)	8-98101-814-0	01	1	0803-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	0712-	●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98054-212-0	01	1	0712-0802		●
34	HOSE; P/S OIL TANK,OUTLET (C)	8-98101-815-0	01	1	0803-		●
37	CLIP; HOSE,P/S (C) ID=19 L=58	1-09700-733-1	01	1	0712-0802	●
37	CLIP; HOSE,P/S (E) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0803-		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0712-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0712-	●	●
37	CLIP; HOSE,P/S (D) ID=32 L=50	1-09701-055-1	01	1	0712-0802		●
37	CLIP; HOSE,P/S (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0803-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2773	8-98093-666-0	01	1	0712-0802	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2775	8-98111-272-0	01	1	0803-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=3039	8-98054-048-0	01	1	0712-0802		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=1835 SERVICED BY L=2000	1-47428-739-0	01	1	0803-0803		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=2879	8-98113-921-0	01	1	0804-1010		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=2877	8-98182-043-0	01	1	1011-		●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	0712-0802	●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	0803-	●	●
58	BOLT; CLIP (D) M8X16 FLANGE	0-28050-816-0	01	1	0712-0802	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	0712-0802	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	0803-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-0802	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	0803-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-0802		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0803-		●
58	BOLT; CLIP (E) M8X25 FLANGE	0-28650-825-0	04	1	0712-0802		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (F)	1-21464-481-0	02	1	0712-0802		●
59	BRACKET; CLIP,OIL PIPE (D)	1-47471-051-0	01	1	0712-0802		●
59	BRACKET; CLIP,OIL PIPE (E) L=55	1-47476-177-0	01	1	0712-0802		●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-0802	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0803-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0712-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-	●	●
61	CLIP; OIL PIPE (D) ID=15 H=24 L=20	1-09700-606-0	03	1	0712-0802		●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0803-		●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0712-0802	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0803-0908	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0909-	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0909-	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	06	1	0712-0802		●
65	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0712-0802		●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-0802	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	0712-	●	●
263	BRACKET; P/S PIPE (A)	8-98094-083-0	01	1	0712-0802	●
263	BRACKET; P/S PIPE (A)	8-98102-163-0	01	1	0803-0811	●	●
263	BRACKET; P/S PIPE (C)	8-98131-412-0	01	1	0812-	●	●
263	BRACKET; P/S PIPE (B)	8-97616-357-3	01	1	0712-0802		●
264	BOLT; PIPE BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-0802	●
264	BOLT; PIPE BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
264	BOLT; PIPE BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-97623-289-1	01	1	0712-0802	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98111-273-0	01	1	0803-0811	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98131-411-0	01	1	0812-1006	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	0712-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (F)	8-98154-048-0	01	1	1007-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98054-047-0	01	1	0712-0802		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (D) L=2791 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0803		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (D)	8-98111-275-0	01	1	0804-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (E)	8-98154-049-0	01	1	1007-		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0712-	●	●

2 31 37 3 37 46 1 1 5 25 19 26 37 12 268 268 37 34 19 58 37 15 62 263 58 65 59 61 61 23 61 79 58 58 264 65 59 161 58 67 79 67 54 284 268 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0712-1006	●	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0712-1006	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0712-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0712-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0712-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0712-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0712-	●	●
23	BRACKET; OIL TANK,P/S (A)	1-21119-142-1	01	1	0712-0802		●
23	BRACKET; OIL TANK,P/S (B)	8-98101-813-0	01	1	0803-0805		●
23	BRACKET; OIL TANK,P/S (B)	8-98125-268-0	01	1	0806-		●
25	BOLT; OIL TANK BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●
25	BOLT; OIL TANK BRKT (B) M10X25 FLANGE	0-28651-025-0	02	1	0712-0802		●
25	BOLT; OIL TANK BRKT (C) M8X20 FLANGE	0-28650-820-0	02	1	0803-		●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
31	HOSE; P/S OIL TANK,INL (A)	8-98092-730-0	01	1	0712-	●
31	HOSE; P/S OIL TANK,INL (B)	0-09814-080-0	01	1	0712-0802		●
31	HOSE; P/S OIL TANK,INL (C)	8-98101-814-0	01	1	0803-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	0712-	●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98054-212-0	01	1	0712-0802		●
34	HOSE; P/S OIL TANK,OUTLET (C)	8-98101-815-0	01	1	0803-		●
37	CLIP; HOSE,P/S (C) ID=19 L=58	1-09700-733-1	01	1	0712-0802	●
37	CLIP; HOSE,P/S (E) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0803-		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0712-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0712-	●	●
37	CLIP; HOSE,P/S (D) ID=32 L=50	1-09701-055-1	01	1	0712-0802		●
37	CLIP; HOSE,P/S (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0803-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2773	8-98093-666-0	01	1	0712-0802	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2775	8-98111-272-0	01	1	0803-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=3039	8-98054-048-0	01	1	0712-0802		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=1835 SERVICED BY L=2000	1-47428-739-0	01	1	0803-0803		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=2879	8-98113-921-0	01	1	0804-1010		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=2877	8-98182-043-0	01	1	1011-		●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	0712-0802	●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	0803-	●	●
58	BOLT; CLIP (D) M8X16 FLANGE	0-28050-816-0	01	1	0712-0802	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	0712-0802	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	0803-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-0802	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	0803-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-0802		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0803-		●
58	BOLT; CLIP (E) M8X25 FLANGE	0-28650-825-0	04	1	0712-0802		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0712-0802	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	0803-	●	●
59	BRACKET; CLIP,OIL PIPE (F)	1-21464-481-0	02	1	0712-0802		●
59	BRACKET; CLIP,OIL PIPE (D)	1-47471-051-0	01	1	0712-0802		●
59	BRACKET; CLIP,OIL PIPE (E) L=55	1-47476-177-0	01	1	0712-0802		●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-0802	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0803-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0712-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-	●	●
61	CLIP; OIL PIPE (D) ID=15 H=24 L=20	1-09700-606-0	03	1	0712-0802		●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0803-		●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0712-0802	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0803-0908	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0909-	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0909-	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	06	1	0712-0802		●
65	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0712-0802		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-0802	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	0712-	●	●
263	BRACKET; P/S PIPE (A)	8-98094-083-0	01	1	0712-0802	●
263	BRACKET; P/S PIPE (A)	8-98102-163-0	01	1	0803-0811	●	●
263	BRACKET; P/S PIPE (C)	8-98131-412-0	01	1	0812-	●	●
263	BRACKET; P/S PIPE (B)	8-97616-357-3	01	1	0712-0802		●
264	BOLT; PIPE BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-0802	●
264	BOLT; PIPE BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
264	BOLT; PIPE BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-97623-289-1	01	1	0712-0802	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98111-273-0	01	1	0803-0811	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98131-411-0	01	1	0812-1006	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	0712-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (F)	8-98154-048-0	01	1	1007-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98054-047-0	01	1	0712-0802		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (D) L=2791 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0803		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (D)	8-98111-275-0	01	1	0804-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (E)	8-98154-049-0	01	1	1007-		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0712-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
