◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11421 - FTS(AUST)EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#48822) — 33 parça
çizim 25059
1 3 4 9 36 21 11 13 13 11 21 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; PITMAN,STRG 1-44341-423-0 01 1 0712-1304 ● ●
1 ARM; PITMAN,STRG 1-44341-423-1 01 1 1305- ● ●
3 WASHER; LK,PITMAN ARM 1-09500-056-0 01 1 0712- ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 0712- ● ●
9 LINK; DRAG 1-44380-122-2 01 1 0712-1103 ● ●
9 LINK; DRAG 8-98177-629-0 01 1 1104- ● ●
11 NIPPLE; GREASE,DRAG LINK
(A) 		1-43159-132-0 01 1 1104- ● ●
11 NIPPLE; GREASE,DRAG LINK
(B) 		8-98160-122-0 01 1 1104- ● ●
13 BOOT; DRAG LINK
(A) 		1-43159-078-0 01 1 0712-1103 ● ●
13 BOOT; DRAG LINK
(C) 		1-43159-131-0 01 1 1104- ● ●
13 BOOT; DRAG LINK
(B) 		1-43159-081-0 01 1 0712-1103 ● ●
13 BOOT; DRAG LINK
(D) 		1-43159-134-0 01 1 1104- ● ●
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 0712- ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 0712- ● ●

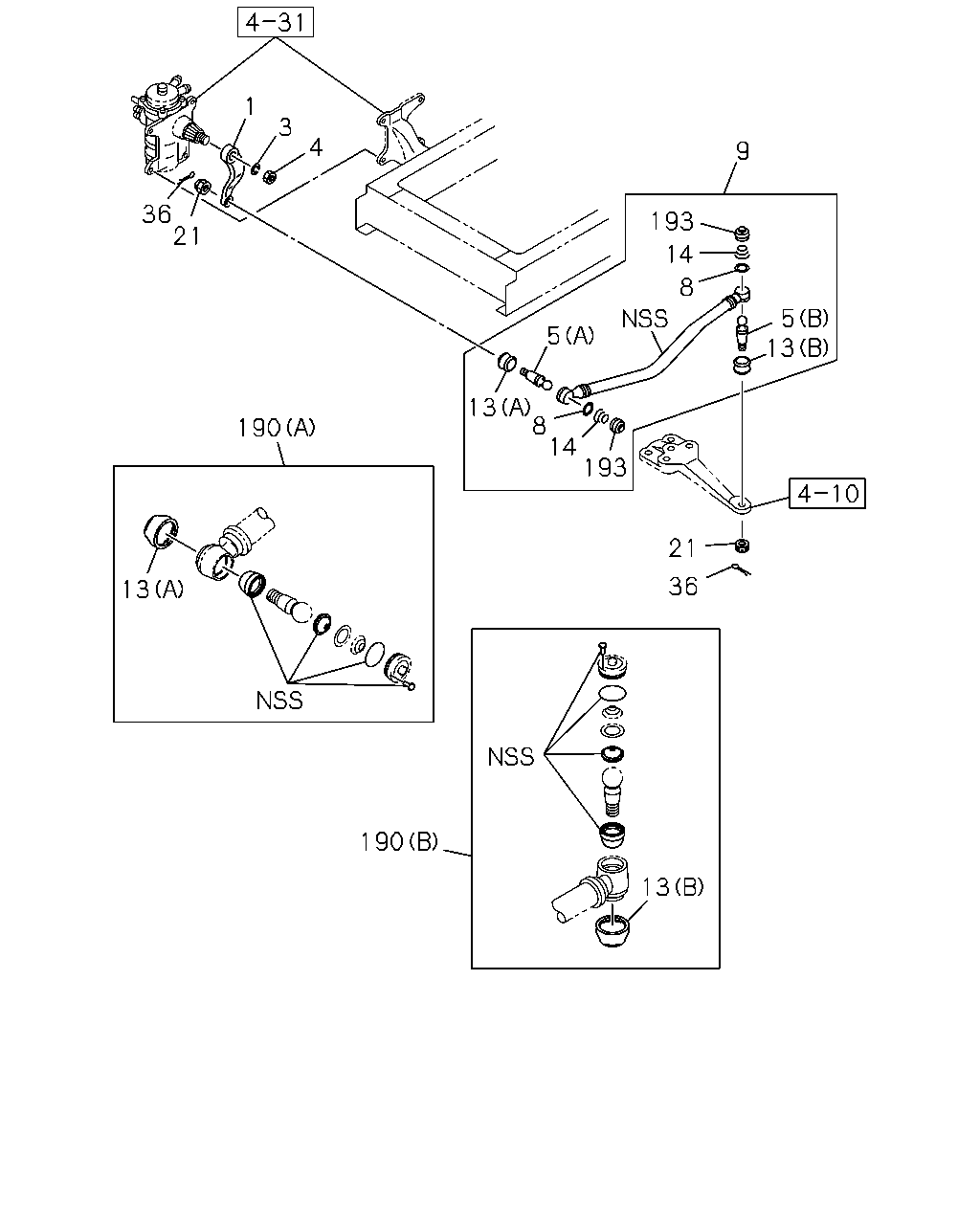

çizim 25140
1 3 4 9 36 21 193 14 8 5 13 5 13 8 14 193 190 21 36 13 190 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; PITMAN,STRG 1-44341-423-0 01 1 0712-1304 ● ●
1 ARM; PITMAN,STRG 1-44341-423-1 01 1 1305- ● ●
3 WASHER; LK,PITMAN ARM 1-09500-056-0 01 1 0712- ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 0712- ● ●
5 BALL; JOINT,DRAG LINK
(A) 		1-44361-098-0 01 1 0712-1103 ● ●
5 BALL; JOINT,DRAG LINK
(B) 		1-44361-105-1 01 1 0712-1103 ● ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 0712-1103 ● ●
9 LINK; DRAG 1-44380-122-2 01 1 0712-1103 ● ●
9 LINK; DRAG 8-98177-629-0 01 1 1104- ● ●
13 BOOT; DRAG LINK
(A) 		1-43159-078-0 01 1 0712-1103 ● ●
13 BOOT; DRAG LINK
(C) 		1-43159-131-0 01 1 1104- ● ●
13 BOOT; DRAG LINK
(B) 		1-43159-081-0 01 1 0712-1103 ● ●
13 BOOT; DRAG LINK
(D) 		1-43159-134-0 01 1 1104- ● ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 0712-1103 ● ●
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 0712- ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 0712- ● ●
190 REPAIR KIT; DRAG LINK
(B) 		1-85574-040-0 01 1 0712-1103 ● ●
190 REPAIR KIT; DRAG LINK
(A) 		1-85574-041-0 01 1 0712-1103 ● ●
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 0712-1103 ● ●
