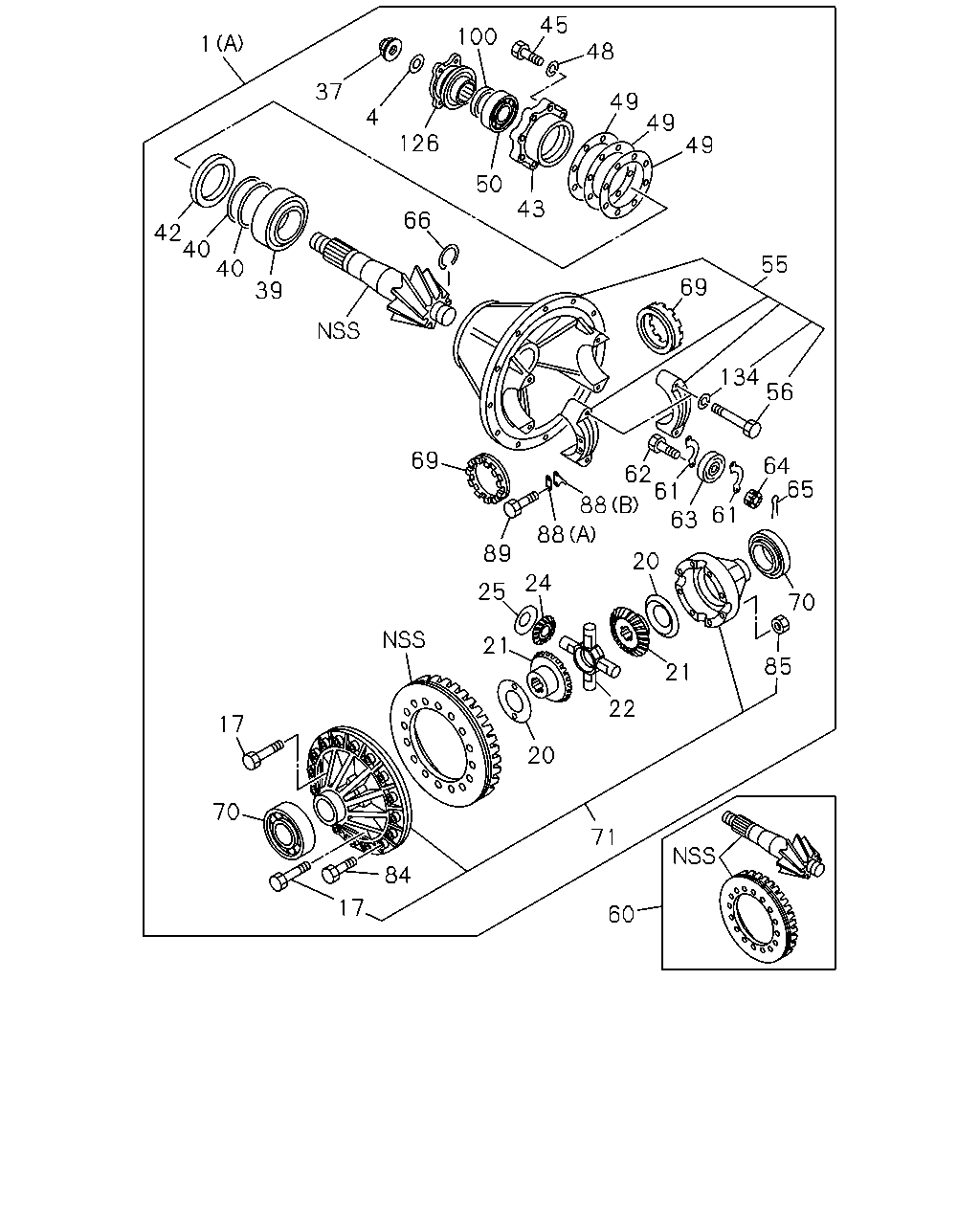

4-25 — REAR FINAL DRIVE (#48819) — 143 parça

45 100 1 48 37 49 49 4 126 49 50 43 66 42 40 40 55 69 39 134 56 69 64 65 62 61 63 88 61 88 89 20 24 25 70 21 85 21 22 17 20 70 71 84 17 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41001-547-0	01	1	0712-
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/7	1-41001-257-0	01	1	0712-
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	0712-
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	0712-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.75	1-41562-139-0	AR	1	0712-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.80	1-41562-140-0	AR	1	0712-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.85	1-41562-141-0	AR	1	0712-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.90	1-41562-142-0	AR	1	0712-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.95	1-41562-143-0	AR	1	0712-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.00	1-41562-144-0	AR	1	0712-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.05	1-41562-145-0	AR	1	0712-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.10	1-41562-146-0	AR	1	0712-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.15	1-41562-147-0	AR	1	0712-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.20	1-41562-148-0	AR	1	0712-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.25	1-41562-149-0	AR	1	0712-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.30	1-41562-150-0	AR	1	0712-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.35	1-41562-151-0	AR	1	0712-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.40	1-41562-152-0	AR	1	0712-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.45	1-41562-153-0	AR	1	0712-
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=16	1-41561-126-0	02	1	0712-0903
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=16	1-41561-159-1	02	1	0904-
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-41521-061-0	01	1	0712-
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=10	1-41551-041-0	04	1	0712-0903
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=10	1-41551-051-0	04	1	0904-
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-41552-012-0	04	1	0712-
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	0712-
39	BEARING; FINAL PINION KOYO	1-09812-218-0	01	1	0712-
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	0712-
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	0712-
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	0712-
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	0712-
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	0712-
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	0712-
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	0712-
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	0712-
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	0712-
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	0712-
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	0712-
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	0712-
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	0712-
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	0712-
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	0712-
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	0712-
43	CAGE; FINAL PINION	1-41151-028-1	01	1	0712-
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	0712-
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	0712-
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	0712-
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	0712-
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	0712-
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	0712-
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0712-
50	BEARING; FINAL PINION KOYO	1-09812-042-1	01	1	0712-
55	CARRIER; DIFF	1-41110-052-0	01	1	0712-
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	0712-
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	0712-
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	0712-
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	0712-
63	BEARING; PINION PILOT KOYO	1-09810-229-2	01	1	0712-
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0712-
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0712-
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0712-0805
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0712-
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	0712-
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	0712-
70	BEARING; DIFF CAGE ID=80 OD=140 T=35.3 NACHI	1-09812-144-0	02	1	0712-0911
70	BEARING; DIFF CAGE KOYO ID=80 OD=140 T=35.3	1-09812-145-0	02	1	0712-0911
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	0912-
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	0712-1002
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1003-
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	0712-
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0712-
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0712-
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	0712-
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	0712-
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0712-
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	0712-
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	0712-
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	0712-

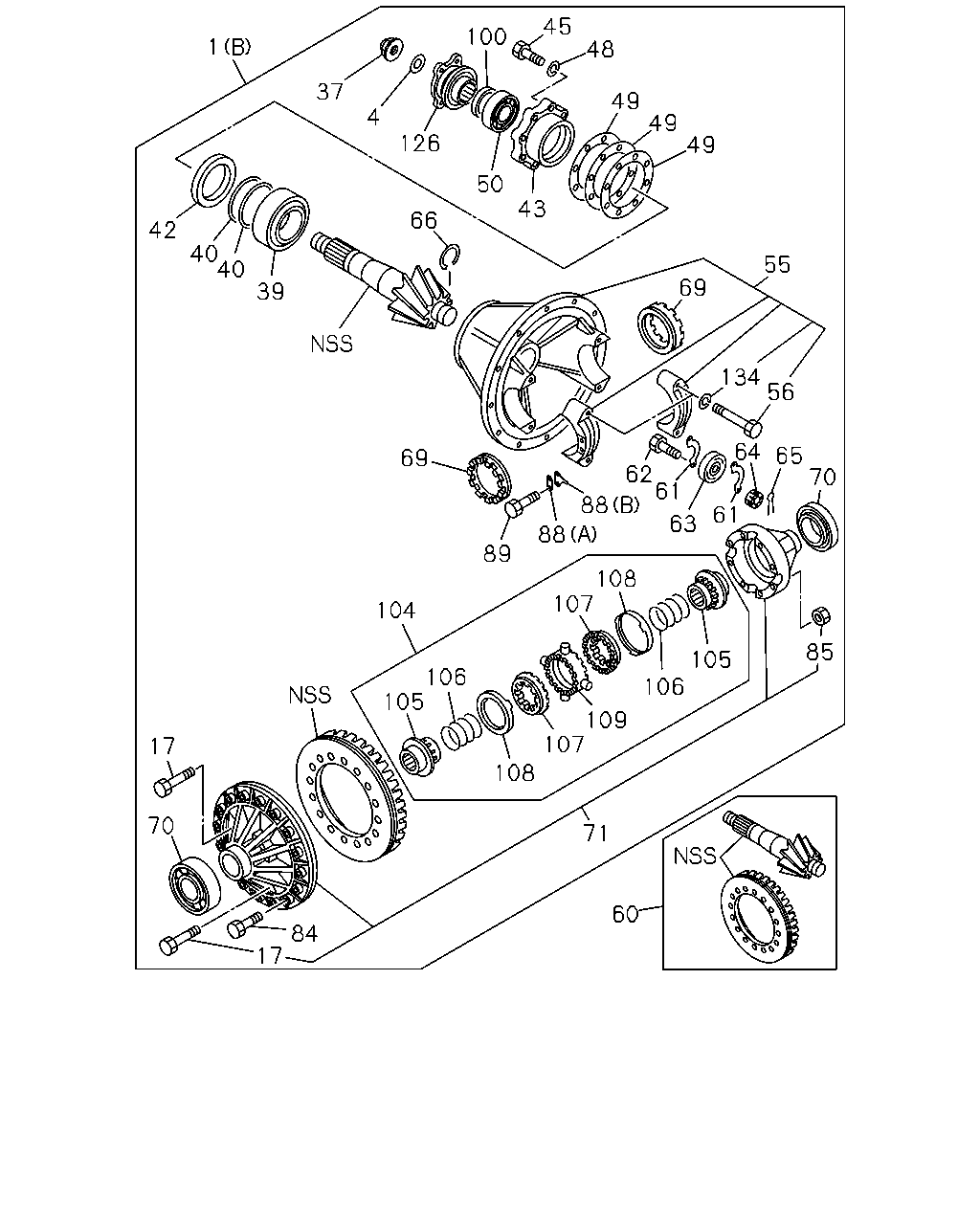

45 100 1 48 37 49 49 49 4 126 50 43 66 42 40 40 55 69 39 134 56 64 65 70 69 62 61 88 61 63 88 89 108 107 104 85 105 106 106 105 109 107 17 108 70 71 60 84 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41001-547-0	01	1	0712-
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/7	1-41001-257-0	01	1	0712-
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	0712-
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	0712-
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	0712-
39	BEARING; FINAL PINION KOYO	1-09812-218-0	01	1	0712-
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	0712-
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	0712-
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	0712-
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	0712-
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	0712-
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	0712-
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	0712-
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	0712-
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	0712-
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	0712-
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	0712-
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	0712-
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	0712-
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	0712-
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	0712-
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	0712-
43	CAGE; FINAL PINION	1-41151-028-1	01	1	0712-
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	0712-
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	0712-
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	0712-
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	0712-
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	0712-
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	0712-
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0712-
50	BEARING; FINAL PINION KOYO	1-09812-042-1	01	1	0712-
55	CARRIER; DIFF	1-41110-052-0	01	1	0712-
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	0712-
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	0712-
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	0712-
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	0712-
63	BEARING; PINION PILOT KOYO	1-09810-229-2	01	1	0712-
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0712-
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0712-
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0712-0805
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0712-
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	0712-
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	0712-
70	BEARING; DIFF CAGE ID=80 OD=140 T=35.3 NACHI	1-09812-144-0	02	1	0712-0911
70	BEARING; DIFF CAGE KOYO ID=80 OD=140 T=35.3	1-09812-145-0	02	1	0712-0911
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	0912-
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	0712-1002
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1003-
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	0712-
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0712-
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0712-
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	0712-
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	0712-
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0712-
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	0712-
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86>	1-41530-040-0	01	1	0712-
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86>	1-41561-100-0	02	1	0712-
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86>	1-09580-314-0	02	1	0712-
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86>	1-41532-003-0	02	1	0712-
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	1-41539-032-0	02	1	0712-
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	1-41521-034-0	01	1	0712-
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	0712-
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	0712-
