4-12 — FRONT DRIVE SHAFT (#48815) — 87 parça

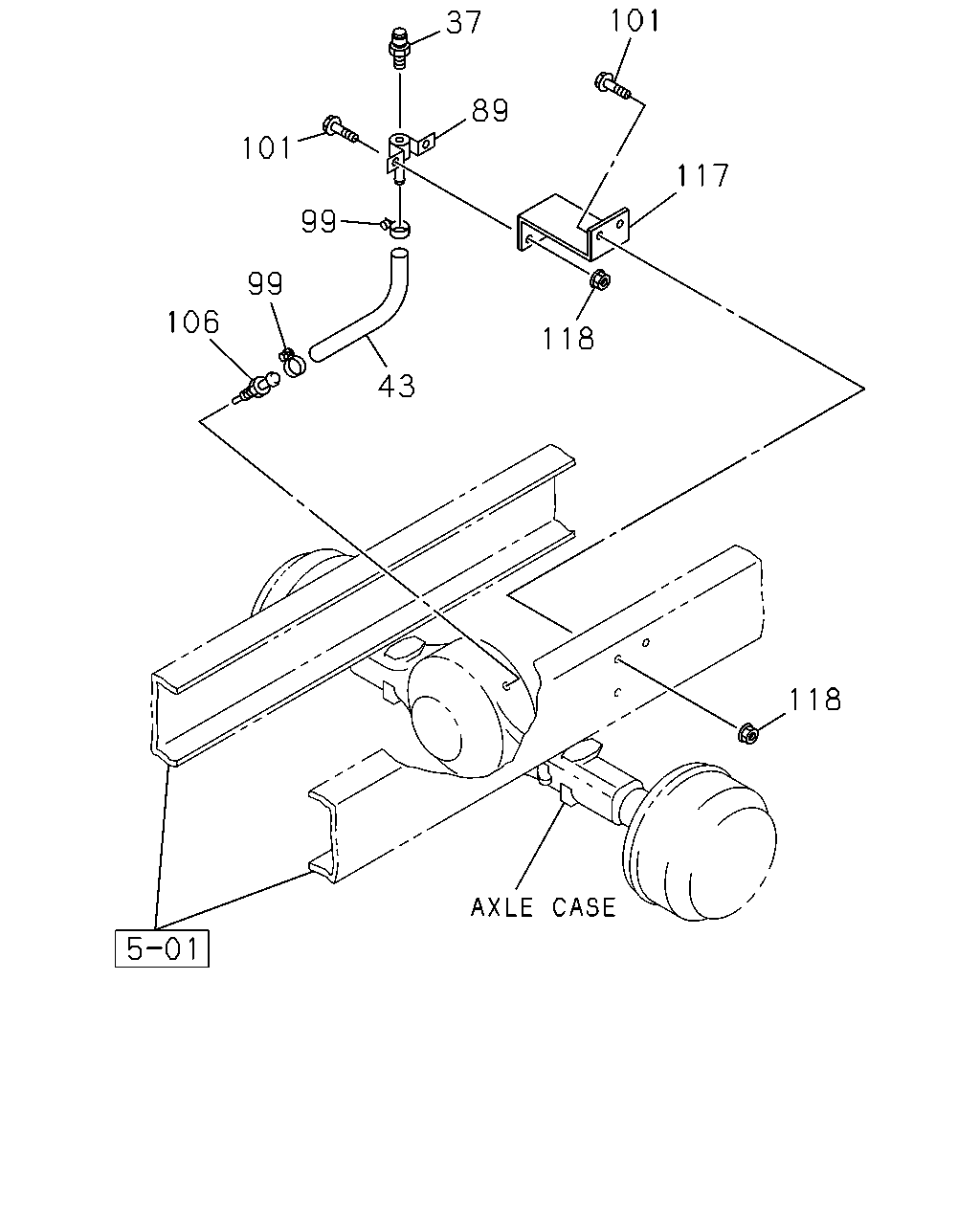

101 37 89 101 117 99 99 106 118 43 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	BREATHER; FRT AXLE CASE	9-36122-013-0	01	1	0712-	●	●
43	HOSE; RUBBER,AIR BREATHER L=640 SERVICED BY L=3000	0-02857-300-0	01	1	0712-0908	●	●
43	HOSE; RUBBER,AIR BREATHER L=440 SERVICED BY L=3000	0-02857-300-0	01	1	0909-	●	●
89	ADAPTER; AIR BREATHER	1-09669-066-0	01	1	0712-	●	●
99	CLIP; RUBBER HOSE ID=15	1-09704-018-1	02	1	0712-0908	●	●
99	CLIP; RUBBER HOSE ID=15	1-09704-018-1	01	1	0909-	●	●
99	CLIP; RUBBER HOSE ID=15	1-09704-018-1	01	1	0909-	●	●
101	BOLT; BRKT,ADAPTER M8X25 FLANGE	0-28650-825-0	04	1	0712-0908	●	●
101	BOLT; BRKT,ADAPTER M8X25 FLANGE	0-28650-825-0	02	1	0909-	●	●
101	BOLT; BRKT,ADAPTER M8X20 FLANGE	0-28050-820-0	02	1	0909-	●	●
106	CONNECTOR; RUBBER HOSE	1-09669-081-0	01	1	0712-	●	●
117	BRACKET; ADAPTER,AIR BREATHER	1-42129-203-0	01	1	0712-	●	●
118	NUT; BRKT,ADAPTER M8 FLANGE	0-91180-108-0	04	1	0712-0908	●	●
118	NUT; BRKT,ADAPTER M8 FLANGE	0-91180-108-0	02	1	0909-	●	●
118	NUT; BRKT,ADAPTER M8 FLANGE	0-91180-108-0	02	1	0909-	●	●

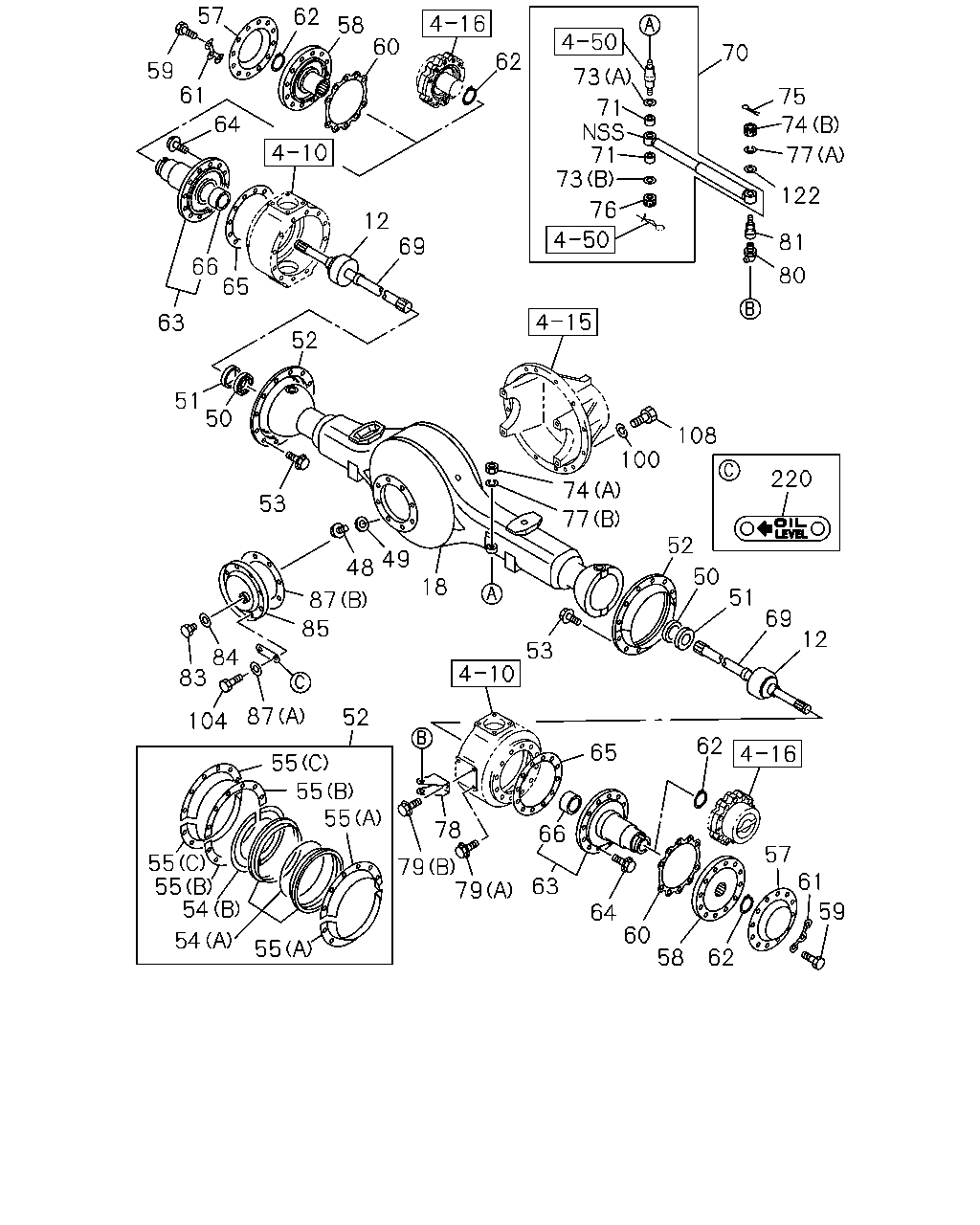

57 62 58 60 70 62 59 61 73 75 71 71 73 64 74 77 122 76 12 81 69 66 65 80 63 52 51 50 108 74 100 220 53 77 52 49 48 50 18 51 87 69 85 12 53 84 83 87 52 104 62 65 55 55 55 78 66 55 55 54 57 61 79 79 63 59 64 60 58 54 55 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	0801-1001	●	●
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	0712-1001	●	●
12	JOINT ASM	1-43330-018-0	02	1	1002-	●	●
18	CASE; FRT AXLE	8-98011-801-2	01	1	0712-1109	●	●
18	CASE; FRT AXLE	8-98200-146-0	01	1	1110-	●	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0712-	●	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0712-	●	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	0712-	●	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	0712-	●	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	0712-	●	●
53	BOLT; OIL SEAL M8X12 FLANGE	0-28050-812-0	24	1	0712-0712	●	●
53	BOLT; OIL SEAL M8X12 FLANGE	0-28050-812-0	22	1	0712-0803	●	●
53	BOLT; OIL SEAL M8X12 FLANGE	0-28050-812-0	20	1	0804-	●	●
53	BOLT; OIL SEAL M8X16 FLANGE	0-28050-816-0	02	1	0712-0803	●	●
53	BOLT; OIL SEAL M8X16 FLANGE	0-28050-816-0	04	1	0804-	●	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	0712-	●	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	0712-	●	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	0712-	●	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	0712-	●	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	0712-	●	●
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	0712-1001	●	●
57	COVER; FLANGE,FRT AXLE SHAFT	9-42313-116-0	02	1	1002-	●	●
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	0712-1001	●	●
58	FLANGE; AXLE SHAFT,FRT	1-42312-028-0	02	1	1002-	●	●
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	0712-1001	●	●
59	BOLT; FLANGE,FRT AXLE SHAFT M12X45	9-09804-239-1	20	1	1002-	●	●
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	0712-1001	●	●
60	GASKET; FLANGE,FRT AXLE SHAFT	1-42175-001-0	02	1	1002-	●	●
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	0712-1001	●	●
61	PLATE; LK,FLANGE	1-43319-005-0	08	1	1002-	●	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	0712-	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-028-1	02	1	0712-0902	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	0903-	●	●
64	BOLT; SPINDLE M12X30 FLANGE	0-28661-230-0	08	1	0712-0912	●	●
64	BOLT; SPINDLE M12X30 FLANGE	0-28061-230-0	08	1	1001-	●	●
64	BOLT; SPINDLE M12X50 FLANGE	0-29261-250-0	16	1	0712-0912	●	●
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1001-1003	●	●
64	BOLT; SPINDLE M12X50 FLANGE	0-29261-250-0	16	1	1004-1005	●	●
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1006-	●	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	0712-	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-008-0	02	1	0712-0902	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	0903-	●	●
69	SHAFT; AXLE,FRT INNER EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43311-063-0	01	1	0712-0712	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-063-0	01	1	0801-	●	●
69	SHAFT; AXLE,FRT INNER EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43311-064-0	01	1	0712-0712	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-064-0	01	1	0801-	●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	0712-	●	●
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	0712-	●	●
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	0712-	●	●
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	0712-	●	●
74	NUT; S/ABS (A) M16	0-91110-516-0	01	1	0712-	●	●
74	NUT; S/ABS (B) M12	0-91116-512-0	01	1	0712-	●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	0712-	●	●
76	NUT; LWR,FRT S/ABS	9-51631-083-0	01	1	0712-	●	●
77	WASHER; LK,S/ABS (A) ID=12.2	0-91510-512-0	01	1	0712-	●	●
77	WASHER; LK,S/ABS (B) ID=16.2	0-91510-516-0	01	1	0712-	●	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	0712-	●	●
79	BOLT; BRKT (A) M12X20 FLANGE	0-28051-220-0	02	1	0712-	●	●
79	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	02	1	0712-	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0712-	●	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	0712-	●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	0712-	●	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	0712-	●	●
85	COVER; AXLE CASE	9-42141-059-0	01	1	0712-1109	●	●
87	GASKET; COVER,AXLE CASE (A) ID=10.2 OD=19	9-09572-010-0	08	1	0712-1109	●	●
87	GASKET; COVER,AXLE CASE (B)	9-42142-026-2	01	1	0712-1109	●	●
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	0-91510-812-0	12	1	0712-	●	●
104	BOLT; COVER,AXLE CASE M10X16	9-09800-874-0	08	1	0712-1109	●	●
108	BOLT; FRT FINAL DRIVE M12X35	0-20951-235-0	08	1	0712-	●	●
108	BOLT; FRT FINAL DRIVE M12X45	9-92061-245-0	04	1	0712-	●	●
122	WASHER; S/ABS ID=17 OD=30	0-91610-516-0	01	1	0712-	●	●
220	PLATE	9-83996-444-1	01	1	0712-1109	●	●
