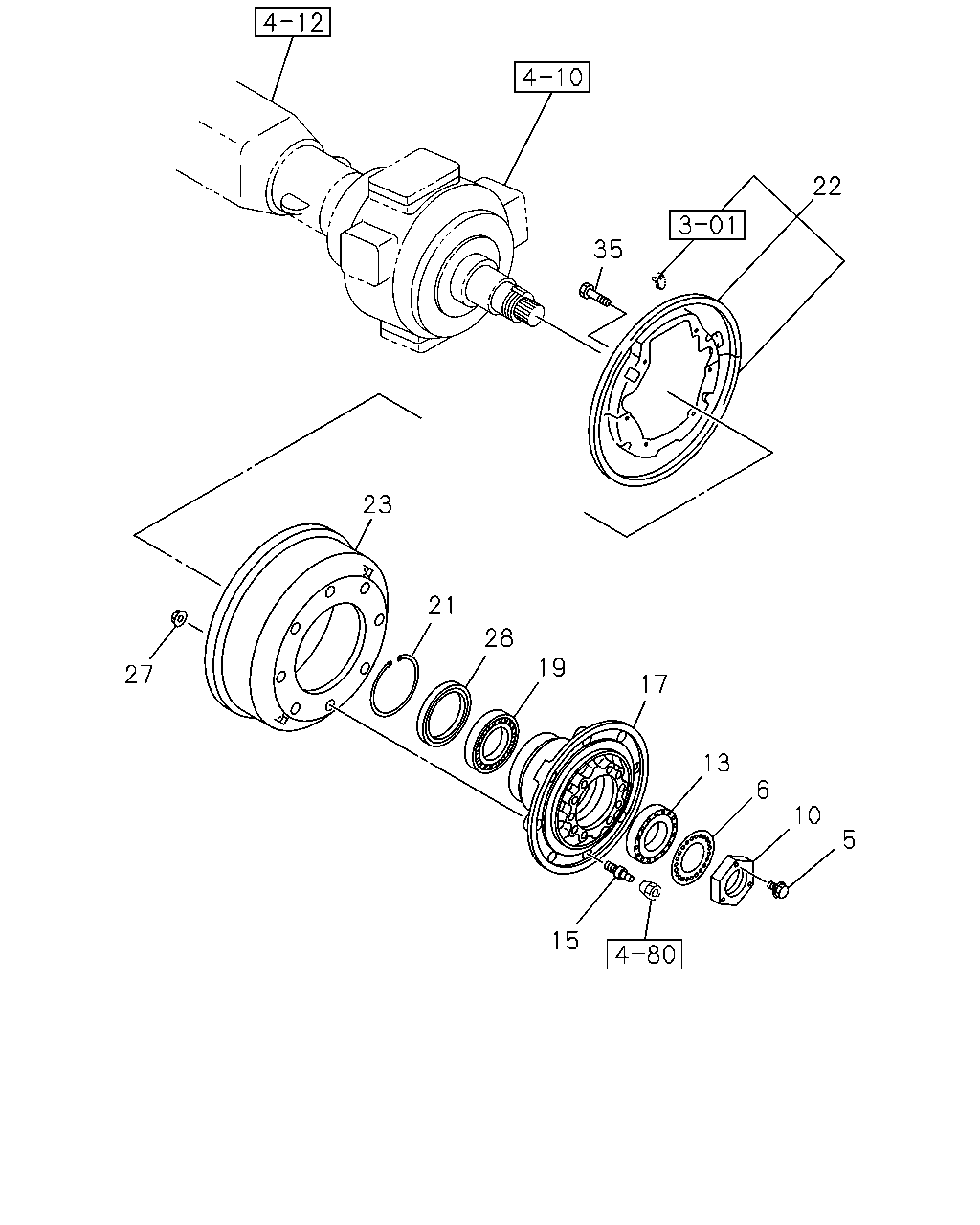

4-11 — FRONT HUB AND DRUM OR ROTOR (#48814) — 23 parça

22 35 23 21 28 19 27 17 13 6 10 5 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	BOLT; LK WASHER M6X16 FLANGE	8-98084-271-0	06	1	0712-1201	●	●
5	BOLT; LK WASHER M6X16 FLANGE	8-98200-943-0	06	1	1202-	●	●
6	WASHER; LK,FRT HUB ID=74.6	1-09533-008-0	02	1	0712-	●	●
10	NUT; FRT HUB BRG M74.6	9-09843-064-2	02	1	0712-	●	●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-044-0	02	1	0712-1002	●	●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-154-0	02	1	1003-	●	●
13	BEARING; HUB OUTER,FRT AXLE NACHI	1-09812-053-0	02	1	0712-1002	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-161-0	02	1	0712-1002	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-153-0	02	1	1003-	●	●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	0712-	●	●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	0712-	●	●
17	HUB; FRT AXLE	1-42312-143-1	02	1	0712-	●	●
19	BEARING; HUB INNER,FRT AXLE ID=80 OD=140 T=35.3 NACHI	1-09812-144-0	02	1	0712-1002	●	●
19	BEARING; HUB INNER,FRT AXLE KOYO ID=80 OD=140 T=35.3	1-09812-145-0	02	1	0712-1002	●	●
19	BEARING; HUB INNER,FRT AXLE NACHI	1-09812-151-0	02	1	1003-	●	●
19	BEARING; HUB INNER,FRT AXLE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	0712-1002	●	●
19	BEARING; HUB INNER,FRT AXLE NSK	1-09812-150-0	02	1	1003-	●	●
21	RING; SNAP,HUB OD=150	9-09950-147-0	02	1	0712-	●	●
22	COVER SET; FRT BRK DRUM	1-85576-014-1	02	1	0712-	●	●
23	DRUM; BRK,FRT	1-42315-362-1	02	1	0712-	●	●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	0712-	●	●
28	SEAL; OIL,FRT HUB TKK	9-09924-415-0	02	1	0712-	●	●
35	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0712-	●	●
