Sayfa 3-78 - Isuzu EPC

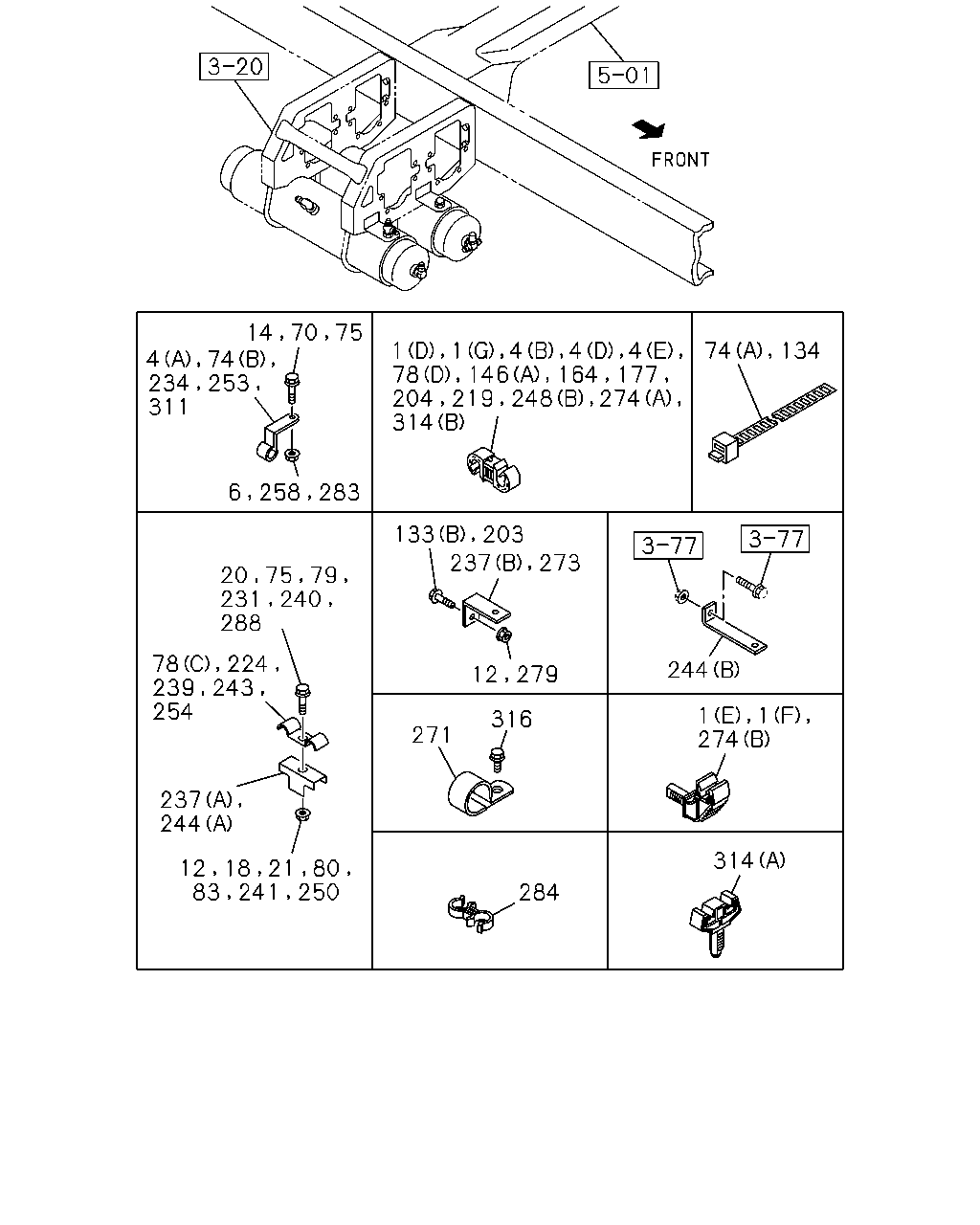

3-78 — FIXING PARTS; AIR PIPING (#48811) — 314 parça

70 311 1 78 314 74 134 75 288 254 244 1 1 274 316 271 237 244 314 284 12 279 250 80 21 241 83 18 12 243 239 78 224 240 231 79 133 203 273 237 20 75 14 74 253 234 6 283 258 4 1 4 4 4 78 164 177 274 248 219 204 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; AIR PIPE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0712-0802	●
1	CLIP; AIR PIPE (D) ID=6.35 & 6.35	1-09709-273-1	01	1	0803-	●	●
1	CLIP; AIR PIPE (C) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	0712-0802	●
1	CLIP; AIR PIPE (E) ID=6.35	1-09701-247-1	01	1	0803-	●	●
1	CLIP; AIR PIPE (A) ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0802	●
1	CLIP; AIR PIPE (F)	8-98012-254-1	01	1	0804-	●	●
1	CLIP; AIR PIPE (G) ID=12 & 15	1-09709-281-1	01	1	0804-		●
4	CLIP; AIR PIPE (C) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	0712-0802	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0803-0811	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	04	1	0812-	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0802	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0802	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0803-0803	●	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0804-0811	●
4	CLIP; AIR PIPE (E) ID=10 & 10	1-09709-277-1	02	1	0712-0811	●
4	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	01	1	0712-0811	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0802		●
4	CLIP; AIR PIPE (A) ID=11 H=20 L=20	8-98033-780-0	01	1	0712-0802		●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	06	1	0804-0804		●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	06	1	0805-0811	●	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	06	1	0812-		●
4	CLIP; AIR PIPE (E) ID=10 & 10	1-09709-277-1	04	1	0804-0804		●
4	CLIP; AIR PIPE (E) ID=10 & 10	1-09709-277-1	04	1	0805-	●	●
4	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	02	1	0804-0804		●
4	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	02	1	0805-0811	●	●
4	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	01	1	0812-	●	●
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
12	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
12	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
14	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●	●
14	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●
14	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0803-	●	●
18	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802		●
18	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
20	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	02	1	0712-0802	●
20	BOLT; CLIP M8X70 FLANGE	0-28050-870-0	02	1	0803-	●	●
20	BOLT; CLIP M8X60 FLANGE	0-28050-860-0	01	1	0712-0802		●
20	BOLT; CLIP M8X60 FLANGE	0-28050-860-0	01	1	0712-0802		●
20	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	05	1	0803-	●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0803-	●	●
70	BOLT; CLIP,AIR PIPE M8X40 FLANGE	0-28650-840-0	01	1	0712-0802	●
70	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	0803-0806	●	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	0807-0811	●	●
74	CLIP; NYLON TUBE (B) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0803-	●	●
75	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	01	1	0712-0802		●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0803-0806	●	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0807-0811	●	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0807-0811	●	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0812-	●	●
75	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0712-0802		●
75	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	0712-0802		●
78	CLIP; AIR PIPE (A) ID=10 & 15	1-09709-279-1	01	1	0712-0802	●
78	CLIP; AIR PIPE (B) ID=12 & 15	1-09709-281-1	01	1	0712-0802	●
78	CLIP; AIR PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0712-0802		●
78	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	01	1	0712-0802		●
78	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	02	1	0803-0811		●
78	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	01	1	0812-0905	●
78	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	01	1	0906-	●	●
79	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0712-0802		●
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0712-0802		●
83	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0712-0802		●
83	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
133	BOLT; BRKT (A) M6X20 FLANGE	0-28650-620-0	02	1	0712-0802		●
133	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	0812-	●	●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0712-0802	●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0803-0804	●	●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	04	1	0805-	●	●
146	CLIP; AIR PIPE (B) ID=10	1-09709-242-0	01	1	0712-0802		●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	01	1	0712-0802		●
164	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0712-0811	●	●
177	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0811	●
177	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	04	1	0712-0811		●
203	BOLT; CLIP BRKT M8X40 FLANGE	0-28650-840-0	02	1	0712-0802	●
203	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
204	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0909-	●
204	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0712-0804		●
204	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	03	1	0805-		●
219	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	04	1	0712-0811		●
224	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0811	●
224	CLIP; AIR PIPE ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	0712-0802		●
231	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
234	CLIP; UNION ID=11 H=34 L=27	1-09701-023-0	01	1	0803-	●	●
237	BRACKET; PIPE CLIP (A)	1-47475-427-1	03	1	0712-0802	●
237	BRACKET; PIPE CLIP (A)	1-47475-427-1	02	1	0712-0802	●	●
237	BRACKET; PIPE CLIP (B) L=65	1-47479-064-0	01	1	0712-0802		●
239	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0802	●
239	CLIP; AIR PIPE ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	03	1	0712-0802		●
240	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
240	BOLT; PIPE CLIP M8X40 FLANGE	0-28650-840-0	02	1	0712-0802		●
241	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0712-0802		●
243	CLIP; AIR,PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	0712-0802	●
243	CLIP; AIR,PIPE ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0712-0802		●
244	BRACKET; CLIP,AIR PIPE (A)	1-47475-427-1	01	1	0712-0802	●
244	BRACKET; CLIP,AIR PIPE (B) L=65	1-47479-064-0	01	1	0807-0811	●	●
244	BRACKET; CLIP,AIR PIPE (A)	1-47475-427-1	02	1	0712-0802		●
244	BRACKET; CLIP,AIR PIPE (B) L=95	1-82699-085-0	01	1	0712-0802		●
248	CLIP; AIR PIPE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0712-0802	●
248	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0807-0811	●	●
250	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
250	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0803-	●	●
253	CLIP; AIR PIPE ID=11 H=20 L=20	8-98033-780-0	02	1	0712-0802	●	●
253	CLIP; AIR PIPE ID=11 H=20 L=20	8-98033-780-0	05	1	0803-	●	●
254	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0803-	●	●
258	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
271	CLIP; AIR PIPE FIX ID=11 L=20	0-95235-035-0	06	1	0712-	●	●
273	BRACKET; CLIP L=65	1-47479-064-0	01	1	0712-0802		●
274	CLIP; AIR PIPE (B) ID=6.35	1-09701-247-1	02	1	0812-	●
274	CLIP; AIR PIPE (A) ID=6.35 & 6.35	1-09709-273-1	01	1	0812-	●
274	CLIP; AIR PIPE (B)	8-98012-254-1	01	1	0805-	●	●
274	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0712-		●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802		●
283	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0712-0802		●
284	CLIP; FLEX HOSE ID=18 & 18	8-94323-068-0	02	1	0712-0802		●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	02	1	0712-0802		●
311	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	02	1	0712-0802		●
314	CLIP; AIR PIPE (A)	8-98012-254-1	01	1	0712-0804	●
314	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0803-0806	●	●
314	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0807-0811	●	●
314	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0807-0811	●	●
314	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0812-	●	●
314	CLIP; AIR PIPE (A)	8-98012-254-1	05	1	0803-0811	●	●
314	CLIP; AIR PIPE (A)	8-98012-254-1	06	1	0812-	●	●
314	CLIP; AIR PIPE (A)	8-98012-254-1	02	1	0804-	●	●
314	CLIP; AIR PIPE (B) ID=6.35 & 6.35	1-09709-273-1	01	1	0712-0811		●
316	BOLT; CLIP M8X10 FLANGE	0-28050-810-0	04	1	0712-	●	●

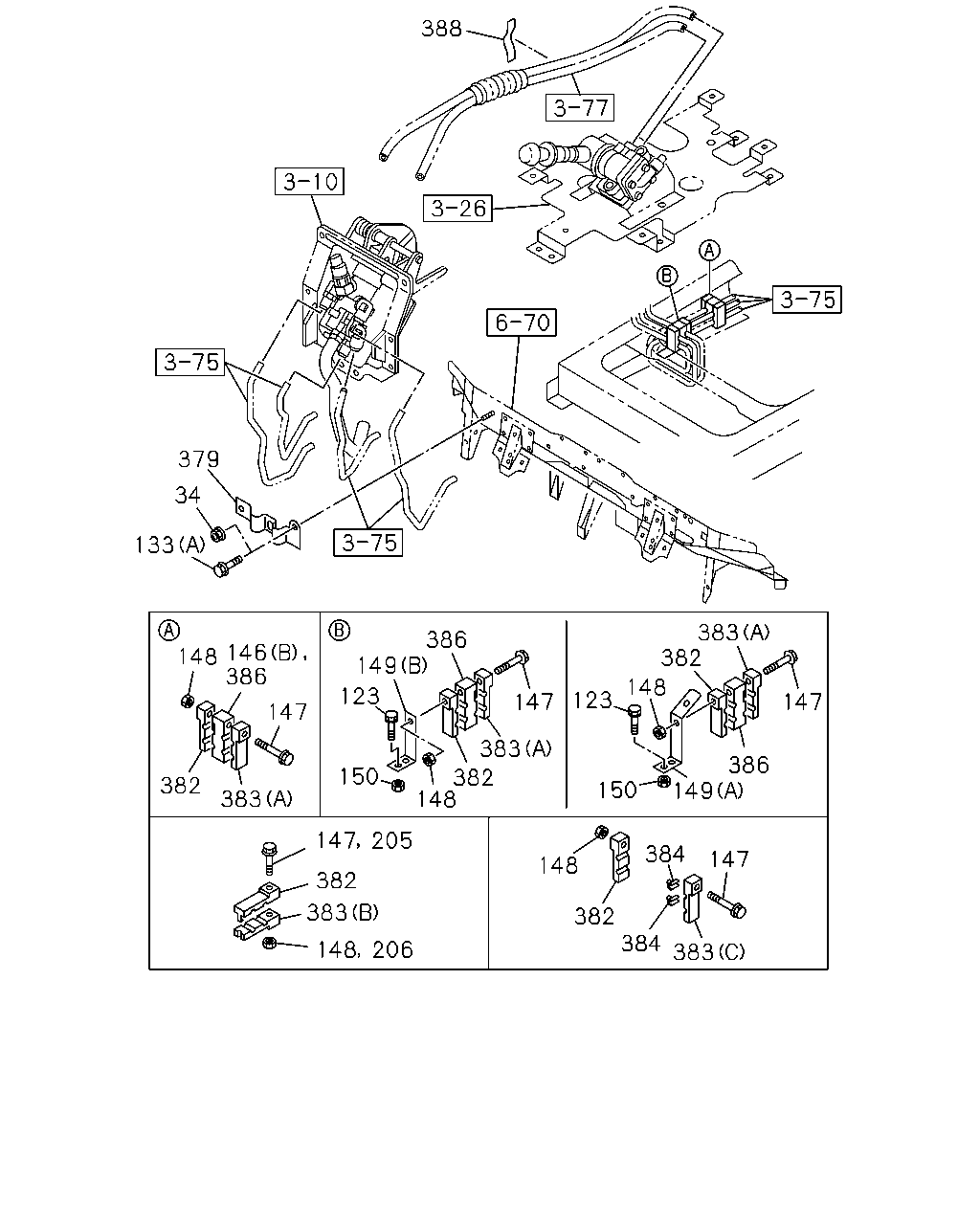

388 379 34 133 148 146 386 383 382 386 149 148 123 123 147 147 147 383 386 149 150 382 148 382 150 383 147 205 384 147 148 382 383 382 384 148 206 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	0712-0802	●
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	0803-	●	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0803-	●	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	03	1	0712-0802		●
133	BOLT; BRKT (A) M6X20 FLANGE	0-28650-620-0	02	1	0712-0802		●
133	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0712-0802	●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0803-0804	●	●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	04	1	0805-	●	●
146	CLIP; AIR PIPE (B) ID=10	1-09709-242-0	01	1	0712-0802		●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	01	1	0712-0802		●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	04	1	0712-0803	●	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	04	1	0804-	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	05	1	0804-		●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0712-0803	●	●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0804-	●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	0804-		●
149	BRACKET; PIPE CLIP (B)	1-47476-792-0	01	1	0712-0802	●
149	BRACKET; PIPE CLIP (B)	1-47476-792-0	01	1	0803-	●	●
149	BRACKET; PIPE CLIP (B)	1-47478-791-0	01	1	0712-0802		●
149	BRACKET; PIPE CLIP (A)	1-47479-986-1	01	1	0712-0802		●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	03	1	0712-0802		●
205	BOLT; PIPE CLIP M8X50 FLANGE	0-28050-850-0	01	1	0812-	●
206	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0812-	●
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	0712-0802	●
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	0803-	●	●
379	BRACKET; NYLON TUBE	8-98030-950-0	01	1	0712-0802		●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	0712-0802	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	0712-0802	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	01	1	0803-0811	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	0803-	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	06	1	0803-	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	0712-0802		●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	0712-0802		●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	0803-0803	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	0804-	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	05	1	0804-		●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	04	1	0712-0802	●	●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	04	1	0712-0802	●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	01	1	0803-0811	●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	02	1	0803-	●	●
383	CLIP; LWR (C) ID=10 & 10	1-09709-243-0	02	1	0712-0802		●
383	CLIP; LWR (C) ID=10 & 10	1-09709-243-0	06	1	0803-	●	●
383	CLIP; LWR (B) ID=6 & 6	1-09709-244-0	02	1	0712-0802		●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	04	1	0803-0803	●	●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	04	1	0804-	●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	05	1	0804-		●
384	COLLAR ID=6	1-47459-010-0	11	1	0712-0802	●
384	COLLAR ID=6	1-47459-010-0	04	1	0803-0811	●	●
384	COLLAR ID=6	1-47459-010-0	04	1	0803-0811	●
384	COLLAR ID=6	1-47459-010-0	04	1	0812-	●	●
384	COLLAR ID=6	1-47459-010-0	02	1	0712-0802		●
384	COLLAR ID=8	1-47459-011-0	02	1	0712-0802		●
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	0712-0802	●	●
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	0712-0802	●
386	CLIP; CENTER ID=10	1-09709-242-0	01	1	0803-0811	●
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	0803-0803	●	●
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	0804-	●
386	CLIP; CENTER ID=10	1-09709-242-0	02	1	0803-	●	●
386	CLIP; CENTER ID=10	1-09709-242-0	05	1	0804-		●
388	SEAL 100X40	1-72498-022-1	03	1	0712-	●	●

14 1 146 372 12 74 265 134 316 308 271 1 1 254 314 237 244 61 274 250 21 83 63 248 243 4 20 75 203 249 298 295 235 282 258 280 234 281 75 253 74 389 242 314 274 248 239 177 4 4 164 78 1 78 4 224 1 1 6 12 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; AIR PIPE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0712-0802	●
1	CLIP; AIR PIPE (D) ID=6.35 & 6.35	1-09709-273-1	01	1	0803-	●	●
1	CLIP; AIR PIPE (C) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	0712-0802	●
1	CLIP; AIR PIPE (E) ID=6.35	1-09701-247-1	01	1	0803-	●	●
1	CLIP; AIR PIPE (A) ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0802	●
1	CLIP; AIR PIPE (F)	8-98012-254-1	01	1	0804-	●	●
1	CLIP; AIR PIPE (G) ID=12 & 15	1-09709-281-1	01	1	0804-		●
4	CLIP; AIR PIPE (C) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	0712-0802	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0803-0811	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	04	1	0812-	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0802	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0802	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0803-0803	●	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0804-0811	●
4	CLIP; AIR PIPE (E) ID=10 & 10	1-09709-277-1	02	1	0712-0811	●
4	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	01	1	0712-0811	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0802		●
4	CLIP; AIR PIPE (A) ID=11 H=20 L=20	8-98033-780-0	01	1	0712-0802		●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	06	1	0804-0804		●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	06	1	0805-0811	●	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	06	1	0812-		●
4	CLIP; AIR PIPE (E) ID=10 & 10	1-09709-277-1	04	1	0804-0804		●
4	CLIP; AIR PIPE (E) ID=10 & 10	1-09709-277-1	04	1	0805-	●	●
4	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	02	1	0804-0804		●
4	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	02	1	0805-0811	●	●
4	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	01	1	0812-	●	●
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
12	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
12	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
14	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●	●
14	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●
14	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0803-	●	●
20	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	02	1	0712-0802	●
20	BOLT; CLIP M8X70 FLANGE	0-28050-870-0	02	1	0803-	●	●
20	BOLT; CLIP M8X60 FLANGE	0-28050-860-0	01	1	0712-0802		●
20	BOLT; CLIP M8X60 FLANGE	0-28050-860-0	01	1	0712-0802		●
20	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	05	1	0803-	●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0803-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
63	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	02	1	0712-0802	●
70	BOLT; CLIP,AIR PIPE M8X40 FLANGE	0-28650-840-0	01	1	0712-0802	●
70	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	0803-0806	●	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	0807-0811	●	●
74	CLIP; NYLON TUBE (B) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0803-	●	●
75	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	01	1	0712-0802		●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0803-0806	●	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0807-0811	●	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0807-0811	●	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0812-	●	●
75	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0712-0802		●
75	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	0712-0802		●
78	CLIP; AIR PIPE (A) ID=10 & 15	1-09709-279-1	01	1	0712-0802	●
78	CLIP; AIR PIPE (B) ID=12 & 15	1-09709-281-1	01	1	0712-0802	●
78	CLIP; AIR PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0712-0802		●
78	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	01	1	0712-0802		●
78	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	02	1	0803-0811		●
78	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	01	1	0812-0905	●
78	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	01	1	0906-	●	●
83	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0712-0802		●
83	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	0812-	●	●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0712-0802	●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0803-0804	●	●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	04	1	0805-	●	●
146	CLIP; AIR PIPE (B) ID=10	1-09709-242-0	01	1	0712-0802		●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	01	1	0712-0802		●
164	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0712-0811	●	●
177	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0811	●
177	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	04	1	0712-0811		●
203	BOLT; CLIP BRKT M8X40 FLANGE	0-28650-840-0	02	1	0712-0802	●
203	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
224	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0811	●
224	CLIP; AIR PIPE ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	0712-0802		●
234	CLIP; UNION ID=11 H=34 L=27	1-09701-023-0	01	1	0803-	●	●
235	CLIP; AIR PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0712-0802	●
237	BRACKET; PIPE CLIP (A)	1-47475-427-1	03	1	0712-0802	●
237	BRACKET; PIPE CLIP (A)	1-47475-427-1	02	1	0712-0802	●	●
237	BRACKET; PIPE CLIP (B) L=65	1-47479-064-0	01	1	0712-0802		●
239	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0802	●
239	CLIP; AIR PIPE ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	03	1	0712-0802		●
242	BRACKET; PIPE CLIP M8 W/NUT	1-47475-439-2	01	1	0712-0802	●
243	CLIP; AIR,PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	0712-0802	●
243	CLIP; AIR,PIPE ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0712-0802		●
244	BRACKET; CLIP,AIR PIPE (A)	1-47475-427-1	01	1	0712-0802	●
244	BRACKET; CLIP,AIR PIPE (B) L=65	1-47479-064-0	01	1	0807-0811	●	●
244	BRACKET; CLIP,AIR PIPE (A)	1-47475-427-1	02	1	0712-0802		●
244	BRACKET; CLIP,AIR PIPE (B) L=95	1-82699-085-0	01	1	0712-0802		●
248	CLIP; AIR PIPE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0712-0802	●
248	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0807-0811	●	●
249	BOLT; PIPE CLIP M8X40 FLANGE	0-28650-840-0	02	1	0712-0802	●
250	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
250	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0803-	●	●
253	CLIP; AIR PIPE ID=11 H=20 L=20	8-98033-780-0	02	1	0712-0802	●	●
253	CLIP; AIR PIPE ID=11 H=20 L=20	8-98033-780-0	05	1	0803-	●	●
254	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0803-	●	●
258	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
265	CLIP; NYLON TUBE L=250	1-09707-126-0	01	1	0712-0802	●
271	CLIP; AIR PIPE FIX ID=11 L=20	0-95235-035-0	06	1	0712-	●	●
274	CLIP; AIR PIPE (B) ID=6.35	1-09701-247-1	02	1	0812-	●
274	CLIP; AIR PIPE (A) ID=6.35 & 6.35	1-09709-273-1	01	1	0812-	●
274	CLIP; AIR PIPE (B)	8-98012-254-1	01	1	0805-	●	●
274	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0712-		●
280	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	03	1	0712-0802	●
281	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0712-0802	●
282	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0712-0802	●
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0712-0811	●
298	BOLT; CLIP M8X70 FLANGE	0-28050-870-0	02	1	0712-0802	●
308	BOLT; CLIP,AIR PIPE M8X70 FLANGE	0-28050-870-0	01	1	0712-0811	●
314	CLIP; AIR PIPE (A)	8-98012-254-1	01	1	0712-0804	●
314	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0803-0806	●	●
314	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0807-0811	●	●
314	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0807-0811	●	●
314	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0812-	●	●
314	CLIP; AIR PIPE (A)	8-98012-254-1	05	1	0803-0811	●	●
314	CLIP; AIR PIPE (A)	8-98012-254-1	06	1	0812-	●	●
314	CLIP; AIR PIPE (A)	8-98012-254-1	02	1	0804-	●	●
314	CLIP; AIR PIPE (B) ID=6.35 & 6.35	1-09709-273-1	01	1	0712-0811		●
316	BOLT; CLIP M8X10 FLANGE	0-28050-810-0	04	1	0712-	●	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0712-0802	●
389	BRACKET; UNION M8 W/NUT	1-47475-439-2	01	1	0712-0802	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
