Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#48810) — 492 parça

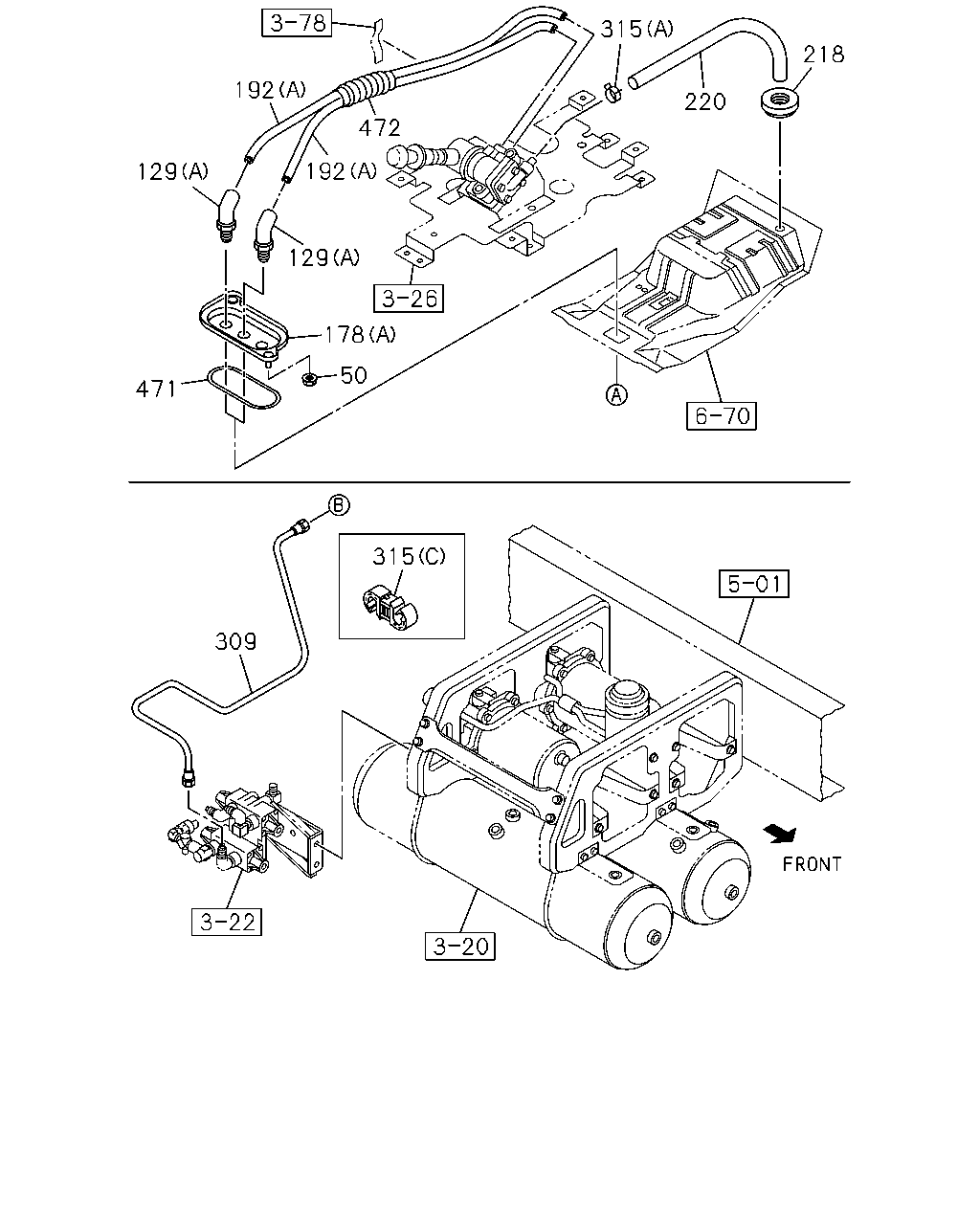

220 315 218 192 472 129 192 129 178 50 471 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
129	CONNECTOR; NYLON TUBE (A)	8-97611-963-1	02	1	0712-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0803-	●	●
178	BRACKET; UNION (A)	8-98017-054-1	01	1	0712-	●	●
178	BRACKET; UNION (B)	1-47475-611-4	01	1	0712-0802		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0712-0802	●
192	TUBE; NYLON (C)	8-98115-590-0	01	1	0803-0811	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●	●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	0712-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0712-	●	●
309	PIPE; AIR,MPV TO UNION L=937 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
309	PIPE; AIR,MPV TO UNION L=762 SERVICED BY L=800	1-47428-872-0	01	1	0803-	●
309	PIPE; AIR,MPV TO UNION L=1328 SERVICED BY L=1400	1-47428-878-0	01	1	0712-0802		●
309	PIPE; AIR,MPV TO UNION L=1180 SERVICED BY L=1250	1-47428-876-0	01	1	0803-		●
315	CLIP (C) ID=10 & 10	1-09709-277-1	01	1	0807-0811	●
315	CLIP (A) ID=14	8-94238-572-0	01	1	0712-	●	●
315	CLIP (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0807-0811	●	●
315	CLIP (E) L=350	1-09707-183-0	01	1	0812-	●	●
315	CLIP (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0812-	●	●
471	SEAL; BRKT	1-79738-832-0	01	1	0712-	●	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	0712-	●	●

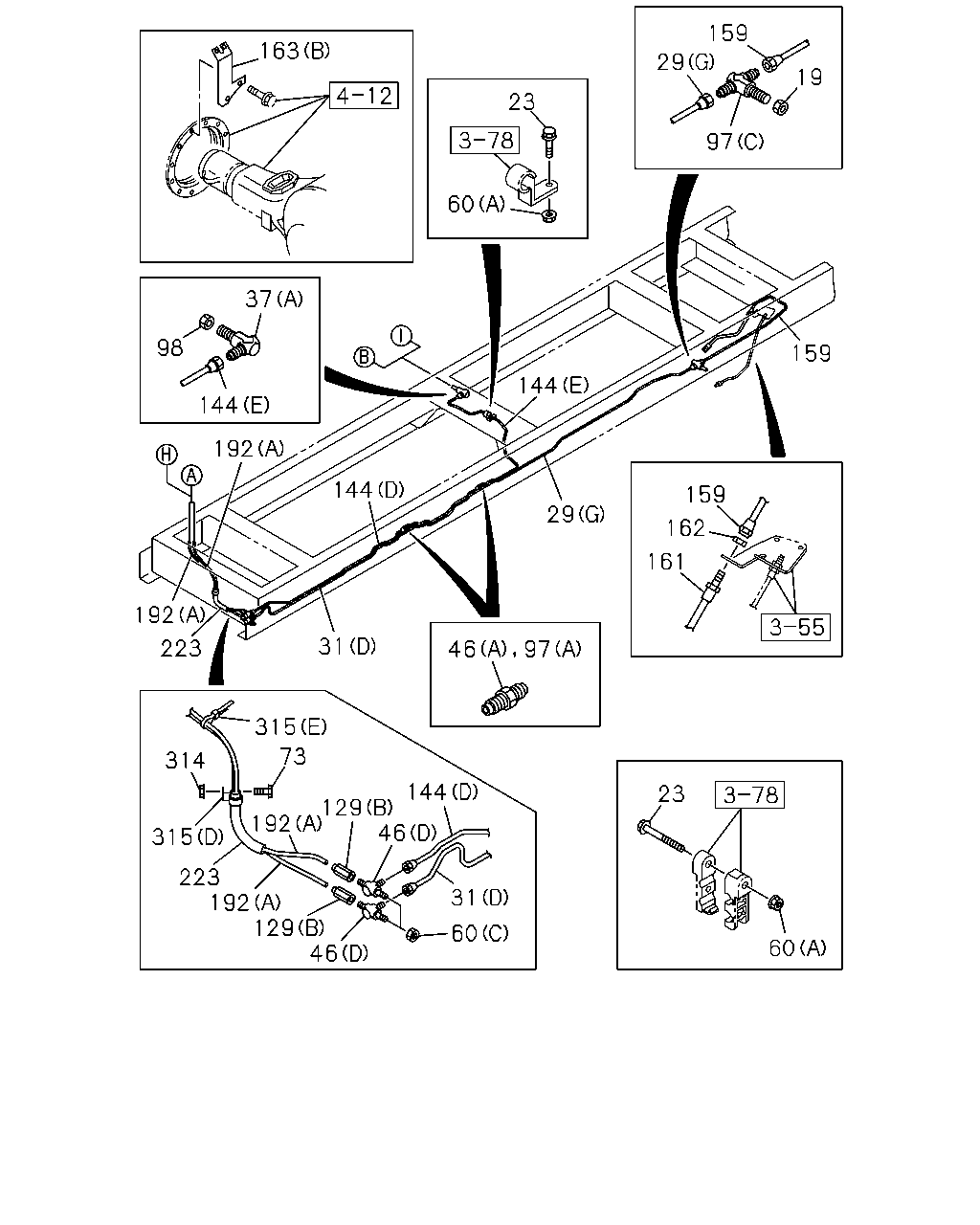

72 31 19 475 144 19 475 274 178 142 46 97 100 162 144 46 129 192 280 2 161 31 97 129 192 60 60 23 72 19 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	UNION; AIR PIPE M16 L=74	0-92123-310-0	01	1	0712-0802		●
19	NUT; PIPE UNION M12	9-09840-280-0	01	1	0712-0802	●
19	NUT; PIPE UNION M12	0-91111-512-0	01	1	0712-0802		●
19	NUT; PIPE UNION M12	0-91111-512-0	01	1	0803-	●	●
19	NUT; PIPE UNION M16	0-91111-516-0	02	1	0712-0802		●
23	BOLT; UNION BRKT M8X70 FLANGE	0-28050-870-0	01	1	0712-0802	●
23	BOLT; UNION BRKT M8X50 FLANGE	0-28050-850-0	01	1	0803-	●	●
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
31	PIPE; AIR,UNION TO UNION (A) L=916 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0803	●	●
31	PIPE; AIR,UNION TO UNION (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0804-0811	●
31	PIPE; AIR,UNION TO UNION (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●	●
31	PIPE; AIR,UNION TO UNION (B) L=1715 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION (C) L=1838 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802		●
31	PIPE; AIR,UNION TO UNION (D) L=2253 SERVICED BY L=2500	1-47428-883-0	01	1	0804-0811		●
46	NIPPLE; AIR PIPE (C) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0712-0802	●
46	NIPPLE; AIR PIPE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0712-0802	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	03	1	0803-0811	●	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0812-	●	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	02	1	0812-	●	●
46	NIPPLE; AIR PIPE (D) M16 2WAY	1-09650-182-1	02	1	0812-	●	●
60	NUT; NIPPLE,AIR PIPE (A) M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
60	NUT; NIPPLE,AIR PIPE (A) M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
60	NUT; NIPPLE,AIR PIPE (C) M12	9-09840-280-0	02	1	0812-0812	●	●
60	NUT; NIPPLE,AIR PIPE (C) M12	0-91111-512-0	02	1	0901-	●	●
60	NUT; NIPPLE,AIR PIPE (B) M16	0-91111-516-0	01	1	0712-0802		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0807-0811	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0803-	●	●
97	UNION; AIR PIPE (C) M16	1-09654-148-1	01	1	0803-	●	●
97	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	0712-0811		●
100	NUT; UNION (A) M16	0-91111-516-0	02	1	0712-0802	●
100	NUT; UNION (B) M12	9-09840-280-0	01	1	0712-0802	●
100	NUT; UNION (A) M16	0-91111-516-0	01	1	0712-0802	●	●
129	CONNECTOR; NYLON TUBE (A)	8-97611-963-1	02	1	0712-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0803-	●	●
142	HOSE; FLEX,MAXI L=600	1-09363-732-0	02	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION (A) L=1184 SERVICED BY L=1250	1-47428-876-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (A) L=1338 SERVICED BY L=1400	1-47428-878-0	01	1	0803-0811	●
144	PIPE; AIR,UNION TO UNION (E) L=2182 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
144	PIPE; AIR,UNION TO UNION (B) L=573 SERVICED BY L=600	1-47428-868-0	01	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION (B) L=1309 SERVICED BY L=1400	1-47428-878-0	01	1	0803-0811		●
144	PIPE; AIR,UNION TO UNION (E) L=2159 SERVICED BY L=2500	1-47428-883-0	01	1	0812-0908		●
144	PIPE; AIR,UNION TO UNION (E) L=2159 SERVICED BY L=2500	1-47428-883-0	01	1	0909-		●
144	PIPE; AIR,UNION TO UNION (C) L=2013 SERVICED BY L=2100	1-47428-882-0	01	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION (D) L=2211 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0811	●	●
144	PIPE; AIR,UNION TO UNION (D) L=1531 SERVICED BY L=1550	1-47428-879-0	01	1	0812-	●	●
161	HOSE; FLEX,QUICK RELEASE VLV L=490	1-09363-808-0	01	1	0712-0712	●
161	HOSE; FLEX,QUICK RELEASE VLV L=520	1-09363-605-0	01	1	0801-	●	●
161	HOSE; FLEX,QUICK RELEASE VLV L=680	1-09363-742-0	01	1	0712-0802		●
162	NUT; FLEX HOSE M16	0-91111-516-0	01	1	0803-	●	●
175	BOLT; HOSE BRKT M8X40 FLANGE	0-28650-840-0	01	1	0712-0802	●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	01	1	0807-0811	●	●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
178	BRACKET; UNION (A)	8-98017-054-1	01	1	0712-	●	●
178	BRACKET; UNION (B)	1-47475-611-4	01	1	0712-0802		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0712-0802	●
192	TUBE; NYLON (C)	8-98115-590-0	01	1	0803-0811	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●	●
274	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-0802		●
280	WASHER; LK (C) ID=12.2	0-91510-812-0	01	1	0712-0802	●
280	WASHER; LK (B) ID=16.2	0-91510-816-0	03	1	0712-0802	●
280	WASHER; LK (A) ID=16.2	0-91510-516-0	01	1	0712-0802		●
475	WASHER; FLEX HOSE ID=16.2	0-91510-516-0	02	1	0712-0802		●

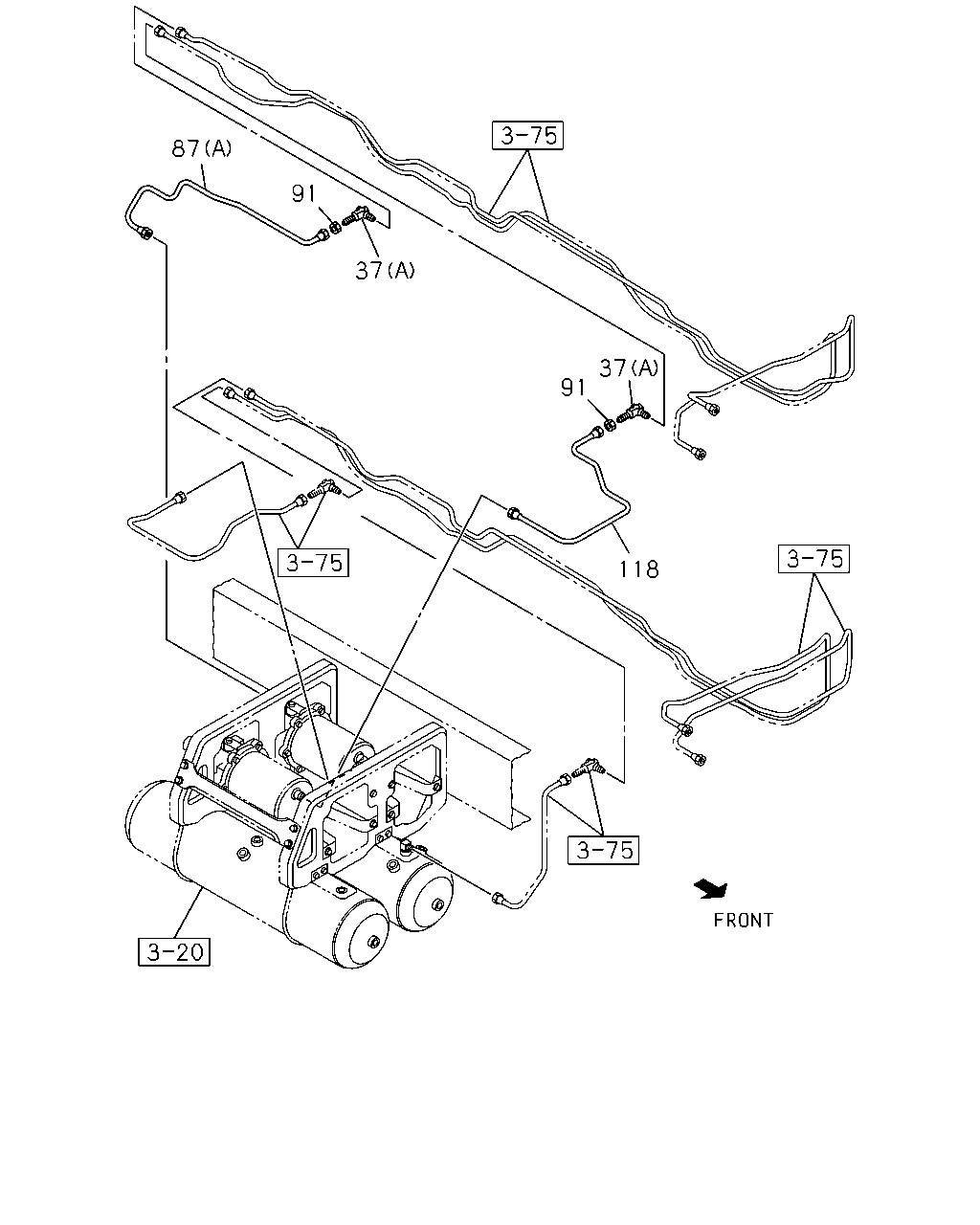

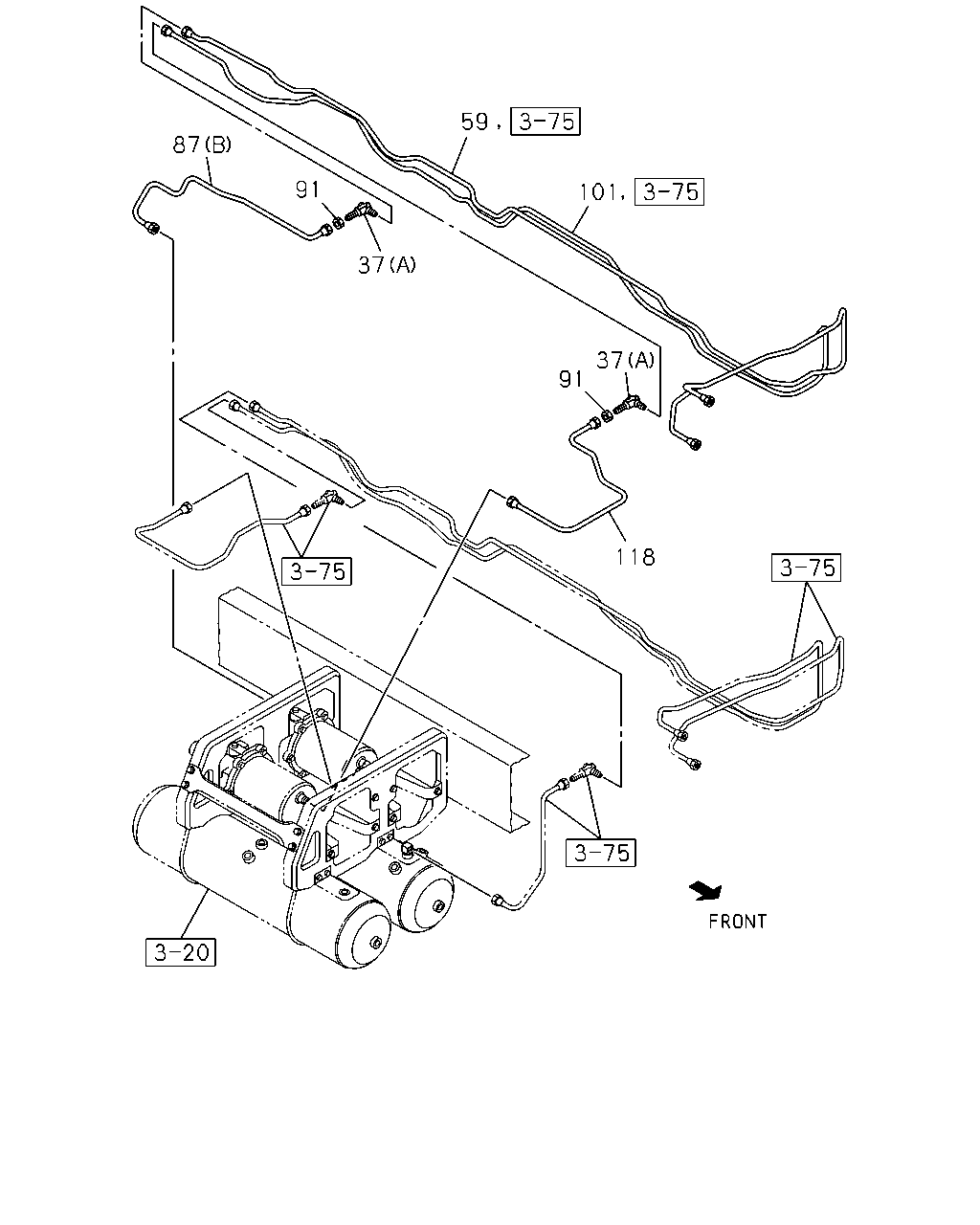

59 87 91 101 37 37 91 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE (C) M12 L=66.5	0-92113-306-0	01	1	0712-0802	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	02	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0811-0812	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-0802	●	●
37	UNION; AIR PIPE (D) M16	1-09654-148-1	01	1	0712-0802	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0811-0812	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3543	8-98054-017-0	01	1	0712-0802		●
87	PIPE; AIR,AIR TANK TO UNION (A) L=807 SERVICED BY L=900	1-47428-873-0	01	1	0712-0802	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=954 SERVICED BY L=1000	1-47428-874-0	01	1	0803-	●
87	PIPE; AIR,AIR TANK TO UNION (B) L=817 SERVICED BY L=900	1-49115-484-0	01	1	0712-0802		●
87	PIPE; AIR,AIR TANK TO UNION (B) L=979 SERVICED BY L=1000	1-47428-874-0	01	1	0803-		●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0712-0802	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-0810	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-0810	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0811-	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3804	8-98054-018-0	01	1	0712-0802		●
118	PIPE; AIR,UNION TO AIR MASTER L=474	8-98098-204-0	01	1	0712-0802	●
118	PIPE; AIR,UNION TO AIR MASTER L=689 SERVICED BY L=700	1-47428-870-0	01	1	0803-	●
118	PIPE; AIR,UNION TO AIR MASTER L=664 SERVICED BY L=700	1-47428-870-0	01	1	0803-		●

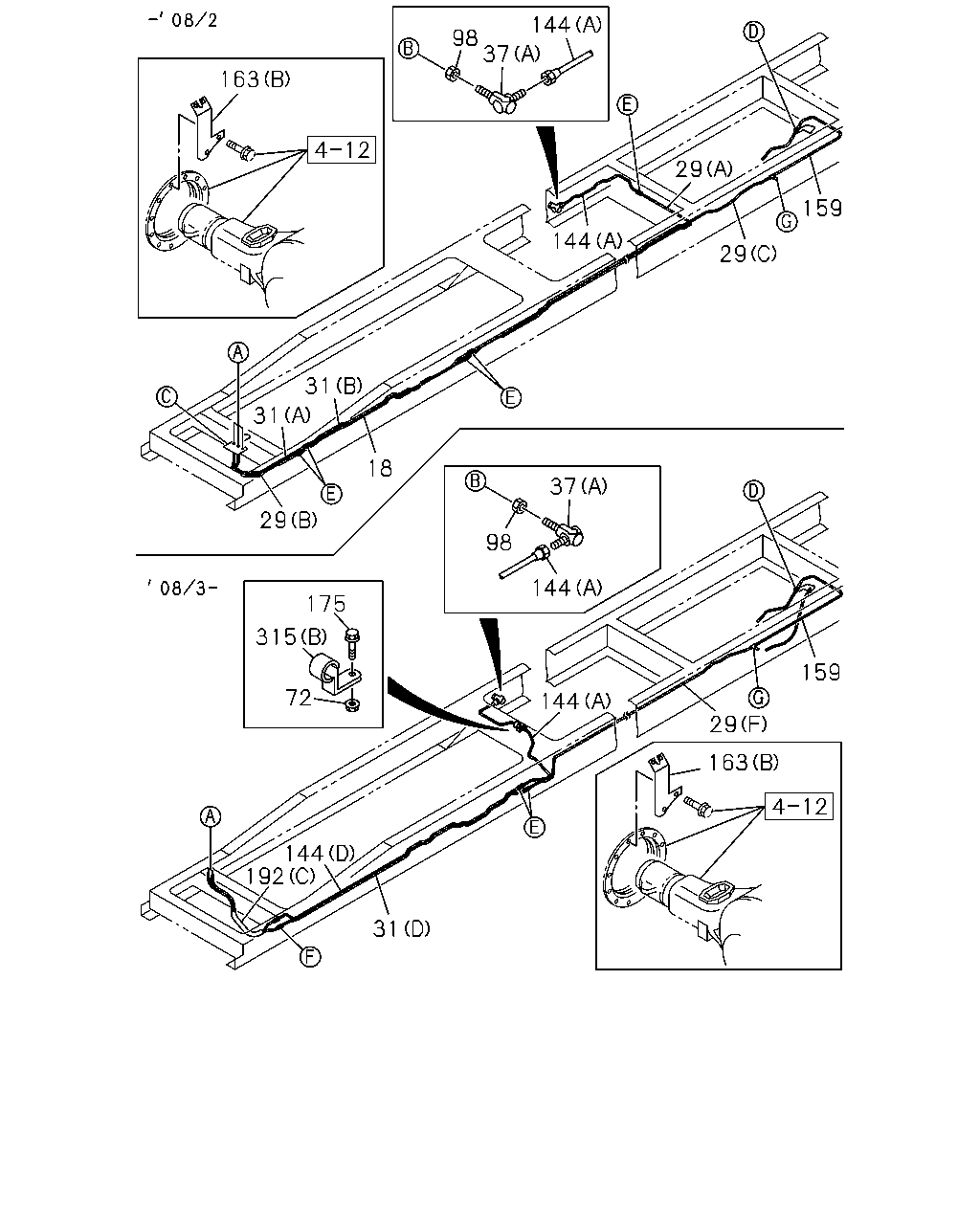

144 98 37 163 29 159 144 29 31 31 18 37 29 98 144 175 315 159 72 29 144 163 144 192 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	PIPE; AIR,UNION TO UNION L=1721 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION (B) L=907 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION (A) L=2377 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION (F)	8-98111-622-0	01	1	0803-0803	●	●
29	PIPE; AIR,UNION TO UNION (F)	8-98111-622-0	01	1	0804-0811	●
29	PIPE; AIR,UNION TO UNION (G) L=2736 SERVICED BY L=2900	1-47428-885-0	01	1	0812-1012	●
29	PIPE; AIR,UNION TO UNION (G) L=2728 SERVICED BY L=2900	1-47428-885-0	01	1	1101-	●
29	PIPE; AIR,UNION TO UNION (C) L=2763 SERVICED BY L=2900	1-47428-885-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION (D) L=1349 SERVICED BY L=1400	1-47428-878-0	01	1	0712-0802		●
29	PIPE; AIR,UNION TO UNION (E) L=2900 SERVICED BY L=2900	1-47428-885-0	01	1	0712-0802		●
29	PIPE; AIR,UNION TO UNION (F) L=2541 SERVICED BY L=2600	1-47428-884-0	01	1	0804-0811		●
29	PIPE; AIR,UNION TO UNION (G) L=2734 SERVICED BY L=2900	1-47428-885-0	01	1	0812-0908		●
29	PIPE; AIR,UNION TO UNION (G) L=2728 SERVICED BY L=2900	1-47428-885-0	01	1	0909-		●
31	PIPE; AIR,UNION TO UNION (A) L=916 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0803	●	●
31	PIPE; AIR,UNION TO UNION (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0804-0811	●
31	PIPE; AIR,UNION TO UNION (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●	●
31	PIPE; AIR,UNION TO UNION (B) L=1715 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION (C) L=1838 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802		●
31	PIPE; AIR,UNION TO UNION (D) L=2253 SERVICED BY L=2500	1-47428-883-0	01	1	0804-0811		●
37	UNION; AIR PIPE (C) M12 L=66.5	0-92113-306-0	01	1	0712-0802	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	02	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0811-0812	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-0802	●	●
37	UNION; AIR PIPE (D) M16	1-09654-148-1	01	1	0712-0802	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0811-0812	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0807-0811	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802		●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0712-0802	●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-	●	●
144	PIPE; AIR,UNION TO UNION (A) L=1184 SERVICED BY L=1250	1-47428-876-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (A) L=1338 SERVICED BY L=1400	1-47428-878-0	01	1	0803-0811	●
144	PIPE; AIR,UNION TO UNION (E) L=2182 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
144	PIPE; AIR,UNION TO UNION (B) L=573 SERVICED BY L=600	1-47428-868-0	01	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION (B) L=1309 SERVICED BY L=1400	1-47428-878-0	01	1	0803-0811		●
144	PIPE; AIR,UNION TO UNION (E) L=2159 SERVICED BY L=2500	1-47428-883-0	01	1	0812-0908		●
144	PIPE; AIR,UNION TO UNION (E) L=2159 SERVICED BY L=2500	1-47428-883-0	01	1	0909-		●
144	PIPE; AIR,UNION TO UNION (C) L=2013 SERVICED BY L=2100	1-47428-882-0	01	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION (D) L=2211 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0811	●	●
144	PIPE; AIR,UNION TO UNION (D) L=1531 SERVICED BY L=1550	1-47428-879-0	01	1	0812-	●	●
159	PIPE; AIR,UNION TO FLEX HOSE L=1295 SERVICED BY L=1300	1-47428-877-0	01	1	0712-0802	●	●
159	PIPE; AIR,UNION TO FLEX HOSE	8-98111-625-0	01	1	0803-	●	●
163	BRACKET; FLEX HOSE (A)	8-98098-182-0	01	1	0712-0802	●
163	BRACKET; FLEX HOSE (B)	8-98093-260-0	01	1	0712-	●	●
163	BRACKET; FLEX HOSE (B)	8-98106-706-0	01	1	0804-	●	●
175	BOLT; HOSE BRKT M8X40 FLANGE	0-28650-840-0	01	1	0712-0802	●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	01	1	0807-0811	●	●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0712-0802	●
192	TUBE; NYLON (C)	8-98115-590-0	01	1	0803-0811	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●	●
315	CLIP (C) ID=10 & 10	1-09709-277-1	01	1	0807-0811	●
315	CLIP (A) ID=14	8-94238-572-0	01	1	0712-	●	●
315	CLIP (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0807-0811	●	●
315	CLIP (E) L=350	1-09707-183-0	01	1	0812-	●	●
315	CLIP (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0812-	●	●

87 91 37 37 91 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE (C) M12 L=66.5	0-92113-306-0	01	1	0712-0802	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	02	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0811-0812	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-0802	●	●
37	UNION; AIR PIPE (D) M16	1-09654-148-1	01	1	0712-0802	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0811-0812	●	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=807 SERVICED BY L=900	1-47428-873-0	01	1	0712-0802	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=954 SERVICED BY L=1000	1-47428-874-0	01	1	0803-	●
87	PIPE; AIR,AIR TANK TO UNION (B) L=817 SERVICED BY L=900	1-49115-484-0	01	1	0712-0802		●
87	PIPE; AIR,AIR TANK TO UNION (B) L=979 SERVICED BY L=1000	1-47428-874-0	01	1	0803-		●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0712-0802	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-0810	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-0810	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0811-	●	●
118	PIPE; AIR,UNION TO AIR MASTER L=474	8-98098-204-0	01	1	0712-0802	●
118	PIPE; AIR,UNION TO AIR MASTER L=689 SERVICED BY L=700	1-47428-870-0	01	1	0803-	●
118	PIPE; AIR,UNION TO AIR MASTER L=664 SERVICED BY L=700	1-47428-870-0	01	1	0803-		●

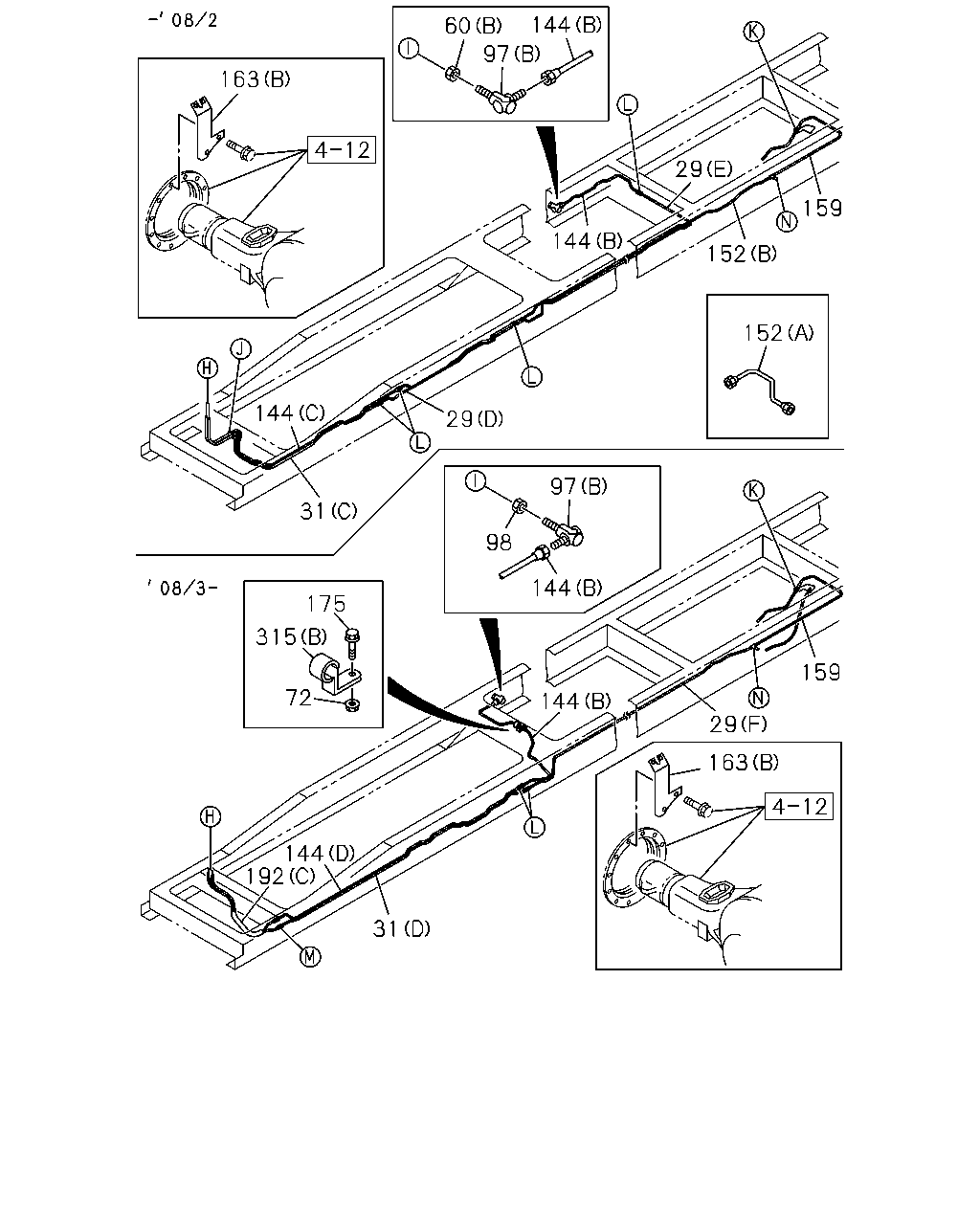

144 60 97 163 29 159 144 152 152 144 29 97 31 98 144 175 315 159 72 29 144 163 144 192 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	PIPE; AIR,UNION TO UNION (B) L=907 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION (A) L=2377 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION (F)	8-98111-622-0	01	1	0803-0803	●	●
29	PIPE; AIR,UNION TO UNION (F)	8-98111-622-0	01	1	0804-0811	●
29	PIPE; AIR,UNION TO UNION (G) L=2736 SERVICED BY L=2900	1-47428-885-0	01	1	0812-1012	●
29	PIPE; AIR,UNION TO UNION (G) L=2728 SERVICED BY L=2900	1-47428-885-0	01	1	1101-	●
29	PIPE; AIR,UNION TO UNION (C) L=2763 SERVICED BY L=2900	1-47428-885-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION (D) L=1349 SERVICED BY L=1400	1-47428-878-0	01	1	0712-0802		●
29	PIPE; AIR,UNION TO UNION (E) L=2900 SERVICED BY L=2900	1-47428-885-0	01	1	0712-0802		●
29	PIPE; AIR,UNION TO UNION (F) L=2541 SERVICED BY L=2600	1-47428-884-0	01	1	0804-0811		●
29	PIPE; AIR,UNION TO UNION (G) L=2734 SERVICED BY L=2900	1-47428-885-0	01	1	0812-0908		●
29	PIPE; AIR,UNION TO UNION (G) L=2728 SERVICED BY L=2900	1-47428-885-0	01	1	0909-		●
31	PIPE; AIR,UNION TO UNION (A) L=916 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0803	●	●
31	PIPE; AIR,UNION TO UNION (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0804-0811	●
31	PIPE; AIR,UNION TO UNION (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●	●
31	PIPE; AIR,UNION TO UNION (B) L=1715 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION (C) L=1838 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802		●
31	PIPE; AIR,UNION TO UNION (D) L=2253 SERVICED BY L=2500	1-47428-883-0	01	1	0804-0811		●
60	NUT; NIPPLE,AIR PIPE (A) M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
60	NUT; NIPPLE,AIR PIPE (A) M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
60	NUT; NIPPLE,AIR PIPE (C) M12	9-09840-280-0	02	1	0812-0812	●	●
60	NUT; NIPPLE,AIR PIPE (C) M12	0-91111-512-0	02	1	0901-	●	●
60	NUT; NIPPLE,AIR PIPE (B) M16	0-91111-516-0	01	1	0712-0802		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0807-0811	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0803-	●	●
97	UNION; AIR PIPE (C) M16	1-09654-148-1	01	1	0803-	●	●
97	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	0712-0811		●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0712-0802	●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-	●	●
144	PIPE; AIR,UNION TO UNION (A) L=1184 SERVICED BY L=1250	1-47428-876-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (A) L=1338 SERVICED BY L=1400	1-47428-878-0	01	1	0803-0811	●
144	PIPE; AIR,UNION TO UNION (E) L=2182 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
144	PIPE; AIR,UNION TO UNION (B) L=573 SERVICED BY L=600	1-47428-868-0	01	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION (B) L=1309 SERVICED BY L=1400	1-47428-878-0	01	1	0803-0811		●
144	PIPE; AIR,UNION TO UNION (E) L=2159 SERVICED BY L=2500	1-47428-883-0	01	1	0812-0908		●
144	PIPE; AIR,UNION TO UNION (E) L=2159 SERVICED BY L=2500	1-47428-883-0	01	1	0909-		●
144	PIPE; AIR,UNION TO UNION (C) L=2013 SERVICED BY L=2100	1-47428-882-0	01	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION (D) L=2211 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0811	●	●
144	PIPE; AIR,UNION TO UNION (D) L=1531 SERVICED BY L=1550	1-47428-879-0	01	1	0812-	●	●
152	PIPE; AIR,UNION TO UNION (A) L=507 SERVICED BY L=550	1-47428-867-0	01	1	0712-0802		●
152	PIPE; AIR,UNION TO UNION (B) L=2346 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802		●
159	PIPE; AIR,UNION TO FLEX HOSE L=1295 SERVICED BY L=1300	1-47428-877-0	01	1	0712-0802	●	●
159	PIPE; AIR,UNION TO FLEX HOSE	8-98111-625-0	01	1	0803-	●	●
163	BRACKET; FLEX HOSE (A)	8-98098-182-0	01	1	0712-0802	●
163	BRACKET; FLEX HOSE (B)	8-98093-260-0	01	1	0712-	●	●
163	BRACKET; FLEX HOSE (B)	8-98106-706-0	01	1	0804-	●	●
175	BOLT; HOSE BRKT M8X40 FLANGE	0-28650-840-0	01	1	0712-0802	●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	01	1	0807-0811	●	●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0712-0802	●
192	TUBE; NYLON (C)	8-98115-590-0	01	1	0803-0811	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●	●
315	CLIP (C) ID=10 & 10	1-09709-277-1	01	1	0807-0811	●
315	CLIP (A) ID=14	8-94238-572-0	01	1	0712-	●	●
315	CLIP (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0807-0811	●	●
315	CLIP (E) L=350	1-09707-183-0	01	1	0812-	●	●
315	CLIP (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0812-	●	●

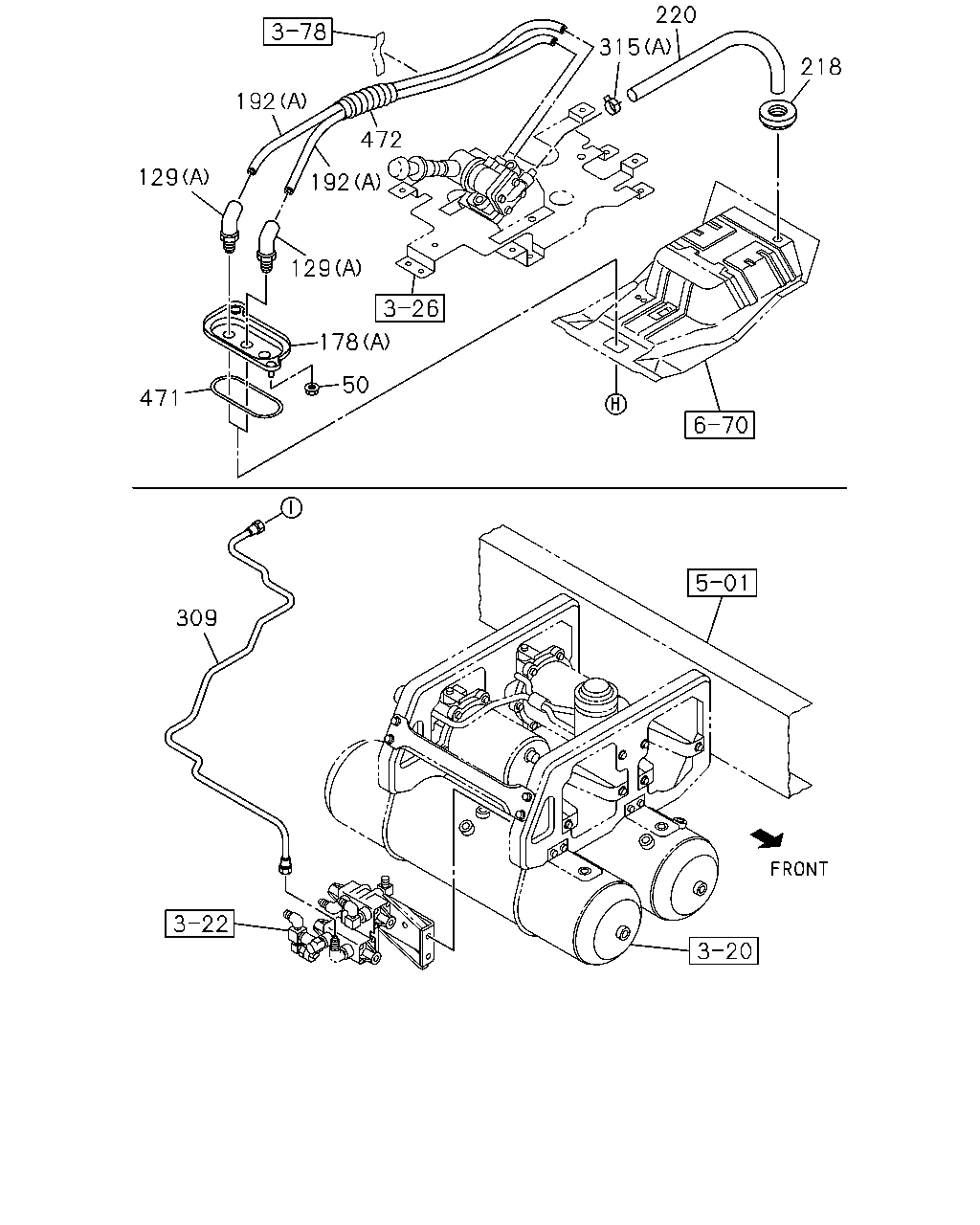

315 218 192 220 472 192 129 129 178 50 471 315 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
129	CONNECTOR; NYLON TUBE (A)	8-97611-963-1	02	1	0712-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0803-	●	●
178	BRACKET; UNION (A)	8-98017-054-1	01	1	0712-	●	●
178	BRACKET; UNION (B)	1-47475-611-4	01	1	0712-0802		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0712-0802	●
192	TUBE; NYLON (C)	8-98115-590-0	01	1	0803-0811	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●	●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	0712-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0712-	●	●
309	PIPE; AIR,MPV TO UNION L=937 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
309	PIPE; AIR,MPV TO UNION L=762 SERVICED BY L=800	1-47428-872-0	01	1	0803-	●
309	PIPE; AIR,MPV TO UNION L=1328 SERVICED BY L=1400	1-47428-878-0	01	1	0712-0802		●
309	PIPE; AIR,MPV TO UNION L=1180 SERVICED BY L=1250	1-47428-876-0	01	1	0803-		●
315	CLIP (C) ID=10 & 10	1-09709-277-1	01	1	0807-0811	●
315	CLIP (A) ID=14	8-94238-572-0	01	1	0712-	●	●
315	CLIP (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0807-0811	●	●
315	CLIP (E) L=350	1-09707-183-0	01	1	0812-	●	●
315	CLIP (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0812-	●	●
471	SEAL; BRKT	1-79738-832-0	01	1	0712-	●	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	0712-	●	●

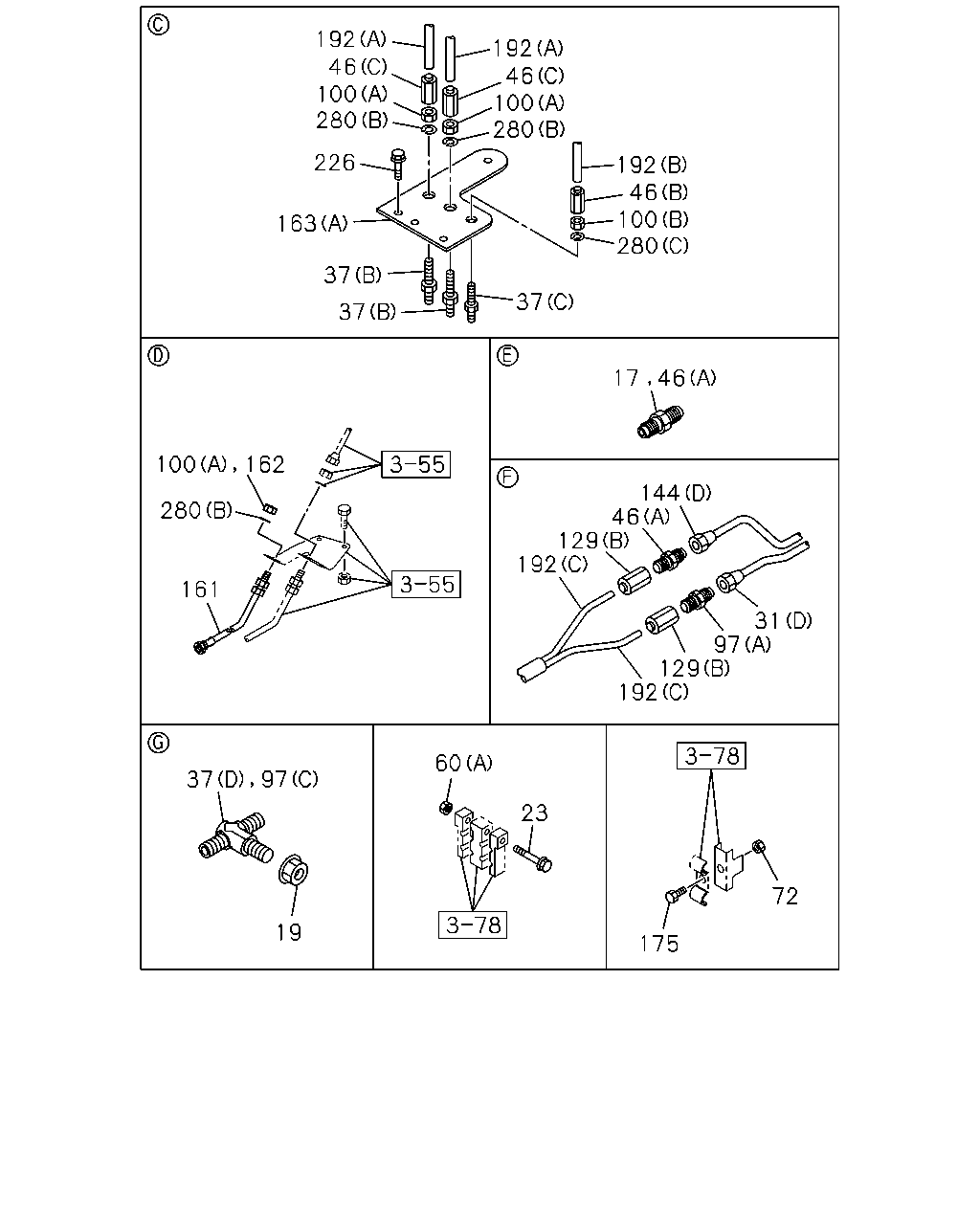

192 46 100 280 192 46 100 280 226 192 46 100 280 163 37 37 37 100 162 144 46 129 192 280 161 31 97 129 192 60 23 72 19 175 17 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	UNION; AIR PIPE M16 L=42	0-92123-010-0	01	1	0712-0802	●
17	UNION; AIR PIPE M16 L=42	0-92123-010-0	01	1	0712-0802	●
19	NUT; PIPE UNION M12	9-09840-280-0	01	1	0712-0802	●
19	NUT; PIPE UNION M12	0-91111-512-0	01	1	0712-0802		●
19	NUT; PIPE UNION M12	0-91111-512-0	01	1	0803-	●	●
19	NUT; PIPE UNION M16	0-91111-516-0	02	1	0712-0802		●
23	BOLT; UNION BRKT M8X70 FLANGE	0-28050-870-0	01	1	0712-0802	●
23	BOLT; UNION BRKT M8X50 FLANGE	0-28050-850-0	01	1	0803-	●	●
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
31	PIPE; AIR,UNION TO UNION (A) L=916 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0803	●	●
31	PIPE; AIR,UNION TO UNION (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0804-0811	●
31	PIPE; AIR,UNION TO UNION (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●	●
31	PIPE; AIR,UNION TO UNION (B) L=1715 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION (C) L=1838 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802		●
31	PIPE; AIR,UNION TO UNION (D) L=2253 SERVICED BY L=2500	1-47428-883-0	01	1	0804-0811		●
37	UNION; AIR PIPE (C) M12 L=66.5	0-92113-306-0	01	1	0712-0802	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	02	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0811-0812	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-0802	●	●
37	UNION; AIR PIPE (D) M16	1-09654-148-1	01	1	0712-0802	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0811-0812	●	●
46	NIPPLE; AIR PIPE (C) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0712-0802	●
46	NIPPLE; AIR PIPE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0712-0802	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	03	1	0803-0811	●	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0812-	●	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	02	1	0812-	●	●
46	NIPPLE; AIR PIPE (D) M16 2WAY	1-09650-182-1	02	1	0812-	●	●
60	NUT; NIPPLE,AIR PIPE (A) M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
60	NUT; NIPPLE,AIR PIPE (A) M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
60	NUT; NIPPLE,AIR PIPE (C) M12	9-09840-280-0	02	1	0812-0812	●	●
60	NUT; NIPPLE,AIR PIPE (C) M12	0-91111-512-0	02	1	0901-	●	●
60	NUT; NIPPLE,AIR PIPE (B) M16	0-91111-516-0	01	1	0712-0802		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0807-0811	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0803-	●	●
97	UNION; AIR PIPE (C) M16	1-09654-148-1	01	1	0803-	●	●
97	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	0712-0811		●
100	NUT; UNION (A) M16	0-91111-516-0	02	1	0712-0802	●
100	NUT; UNION (B) M12	9-09840-280-0	01	1	0712-0802	●
100	NUT; UNION (A) M16	0-91111-516-0	01	1	0712-0802	●	●
129	CONNECTOR; NYLON TUBE (A)	8-97611-963-1	02	1	0712-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0803-	●	●
144	PIPE; AIR,UNION TO UNION (A) L=1184 SERVICED BY L=1250	1-47428-876-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (A) L=1338 SERVICED BY L=1400	1-47428-878-0	01	1	0803-0811	●
144	PIPE; AIR,UNION TO UNION (E) L=2182 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
144	PIPE; AIR,UNION TO UNION (B) L=573 SERVICED BY L=600	1-47428-868-0	01	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION (B) L=1309 SERVICED BY L=1400	1-47428-878-0	01	1	0803-0811		●
144	PIPE; AIR,UNION TO UNION (E) L=2159 SERVICED BY L=2500	1-47428-883-0	01	1	0812-0908		●
144	PIPE; AIR,UNION TO UNION (E) L=2159 SERVICED BY L=2500	1-47428-883-0	01	1	0909-		●
144	PIPE; AIR,UNION TO UNION (C) L=2013 SERVICED BY L=2100	1-47428-882-0	01	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION (D) L=2211 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0811	●	●
144	PIPE; AIR,UNION TO UNION (D) L=1531 SERVICED BY L=1550	1-47428-879-0	01	1	0812-	●	●
161	HOSE; FLEX,QUICK RELEASE VLV L=490	1-09363-808-0	01	1	0712-0712	●
161	HOSE; FLEX,QUICK RELEASE VLV L=520	1-09363-605-0	01	1	0801-	●	●
161	HOSE; FLEX,QUICK RELEASE VLV L=680	1-09363-742-0	01	1	0712-0802		●
162	NUT; FLEX HOSE M16	0-91111-516-0	01	1	0803-	●	●
163	BRACKET; FLEX HOSE (A)	8-98098-182-0	01	1	0712-0802	●
163	BRACKET; FLEX HOSE (B)	8-98093-260-0	01	1	0712-	●	●
163	BRACKET; FLEX HOSE (B)	8-98106-706-0	01	1	0804-	●	●
175	BOLT; HOSE BRKT M8X40 FLANGE	0-28650-840-0	01	1	0712-0802	●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	01	1	0807-0811	●	●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0712-0802	●
192	TUBE; NYLON (C)	8-98115-590-0	01	1	0803-0811	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●	●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●
280	WASHER; LK (C) ID=12.2	0-91510-812-0	01	1	0712-0802	●
280	WASHER; LK (B) ID=16.2	0-91510-816-0	03	1	0712-0802	●
280	WASHER; LK (A) ID=16.2	0-91510-516-0	01	1	0712-0802		●

159 163 29 19 23 97 60 37 98 159 144 144 192 144 159 29 162 161 192 31 223 46 97 315 73 314 144 23 129 46 192 315 223 192 129 46 31 60 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	NUT; PIPE UNION M12	9-09840-280-0	01	1	0712-0802	●
19	NUT; PIPE UNION M12	0-91111-512-0	01	1	0712-0802		●
19	NUT; PIPE UNION M12	0-91111-512-0	01	1	0803-	●	●
19	NUT; PIPE UNION M16	0-91111-516-0	02	1	0712-0802		●
23	BOLT; UNION BRKT M8X70 FLANGE	0-28050-870-0	01	1	0712-0802	●
23	BOLT; UNION BRKT M8X50 FLANGE	0-28050-850-0	01	1	0803-	●	●
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
29	PIPE; AIR,UNION TO UNION (B) L=907 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION (A) L=2377 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION (F)	8-98111-622-0	01	1	0803-0803	●	●
29	PIPE; AIR,UNION TO UNION (F)	8-98111-622-0	01	1	0804-0811	●
29	PIPE; AIR,UNION TO UNION (G) L=2736 SERVICED BY L=2900	1-47428-885-0	01	1	0812-1012	●
29	PIPE; AIR,UNION TO UNION (G) L=2728 SERVICED BY L=2900	1-47428-885-0	01	1	1101-	●
29	PIPE; AIR,UNION TO UNION (C) L=2763 SERVICED BY L=2900	1-47428-885-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION (D) L=1349 SERVICED BY L=1400	1-47428-878-0	01	1	0712-0802		●
29	PIPE; AIR,UNION TO UNION (E) L=2900 SERVICED BY L=2900	1-47428-885-0	01	1	0712-0802		●
29	PIPE; AIR,UNION TO UNION (F) L=2541 SERVICED BY L=2600	1-47428-884-0	01	1	0804-0811		●
29	PIPE; AIR,UNION TO UNION (G) L=2734 SERVICED BY L=2900	1-47428-885-0	01	1	0812-0908		●
29	PIPE; AIR,UNION TO UNION (G) L=2728 SERVICED BY L=2900	1-47428-885-0	01	1	0909-		●
31	PIPE; AIR,UNION TO UNION (A) L=916 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0803	●	●
31	PIPE; AIR,UNION TO UNION (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0804-0811	●
31	PIPE; AIR,UNION TO UNION (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●	●
31	PIPE; AIR,UNION TO UNION (B) L=1715 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION (C) L=1838 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802		●
31	PIPE; AIR,UNION TO UNION (D) L=2253 SERVICED BY L=2500	1-47428-883-0	01	1	0804-0811		●
37	UNION; AIR PIPE (C) M12 L=66.5	0-92113-306-0	01	1	0712-0802	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	02	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0811-0812	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-0802	●	●
37	UNION; AIR PIPE (D) M16	1-09654-148-1	01	1	0712-0802	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0811-0812	●	●
46	NIPPLE; AIR PIPE (C) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0712-0802	●
46	NIPPLE; AIR PIPE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0712-0802	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	03	1	0803-0811	●	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0812-	●	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	02	1	0812-	●	●
46	NIPPLE; AIR PIPE (D) M16 2WAY	1-09650-182-1	02	1	0812-	●	●
60	NUT; NIPPLE,AIR PIPE (A) M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
60	NUT; NIPPLE,AIR PIPE (A) M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
60	NUT; NIPPLE,AIR PIPE (C) M12	9-09840-280-0	02	1	0812-0812	●	●
60	NUT; NIPPLE,AIR PIPE (C) M12	0-91111-512-0	02	1	0901-	●	●
60	NUT; NIPPLE,AIR PIPE (B) M16	0-91111-516-0	01	1	0712-0802		●
73	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0812-	●	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0803-	●	●
97	UNION; AIR PIPE (C) M16	1-09654-148-1	01	1	0803-	●	●
97	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	0712-0811		●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0712-0802	●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-	●	●
129	CONNECTOR; NYLON TUBE (A)	8-97611-963-1	02	1	0712-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0803-	●	●
144	PIPE; AIR,UNION TO UNION (A) L=1184 SERVICED BY L=1250	1-47428-876-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (A) L=1338 SERVICED BY L=1400	1-47428-878-0	01	1	0803-0811	●
144	PIPE; AIR,UNION TO UNION (E) L=2182 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
144	PIPE; AIR,UNION TO UNION (B) L=573 SERVICED BY L=600	1-47428-868-0	01	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION (B) L=1309 SERVICED BY L=1400	1-47428-878-0	01	1	0803-0811		●
144	PIPE; AIR,UNION TO UNION (E) L=2159 SERVICED BY L=2500	1-47428-883-0	01	1	0812-0908		●
144	PIPE; AIR,UNION TO UNION (E) L=2159 SERVICED BY L=2500	1-47428-883-0	01	1	0909-		●
144	PIPE; AIR,UNION TO UNION (C) L=2013 SERVICED BY L=2100	1-47428-882-0	01	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION (D) L=2211 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0811	●	●
144	PIPE; AIR,UNION TO UNION (D) L=1531 SERVICED BY L=1550	1-47428-879-0	01	1	0812-	●	●
159	PIPE; AIR,UNION TO FLEX HOSE L=1295 SERVICED BY L=1300	1-47428-877-0	01	1	0712-0802	●	●
159	PIPE; AIR,UNION TO FLEX HOSE	8-98111-625-0	01	1	0803-	●	●
161	HOSE; FLEX,QUICK RELEASE VLV L=490	1-09363-808-0	01	1	0712-0712	●
161	HOSE; FLEX,QUICK RELEASE VLV L=520	1-09363-605-0	01	1	0801-	●	●
161	HOSE; FLEX,QUICK RELEASE VLV L=680	1-09363-742-0	01	1	0712-0802		●
162	NUT; FLEX HOSE M16	0-91111-516-0	01	1	0803-	●	●
163	BRACKET; FLEX HOSE (A)	8-98098-182-0	01	1	0712-0802	●
163	BRACKET; FLEX HOSE (B)	8-98093-260-0	01	1	0712-	●	●
163	BRACKET; FLEX HOSE (B)	8-98106-706-0	01	1	0804-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0712-0802	●
192	TUBE; NYLON (C)	8-98115-590-0	01	1	0803-0811	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	0812-	●	●
314	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0812-	●	●
315	CLIP (C) ID=10 & 10	1-09709-277-1	01	1	0807-0811	●
315	CLIP (A) ID=14	8-94238-572-0	01	1	0712-	●	●
315	CLIP (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0807-0811	●	●
315	CLIP (E) L=350	1-09707-183-0	01	1	0812-	●	●
315	CLIP (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0812-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
