4-50 — FRONT SUSPENSION (#4881) — 127 parça

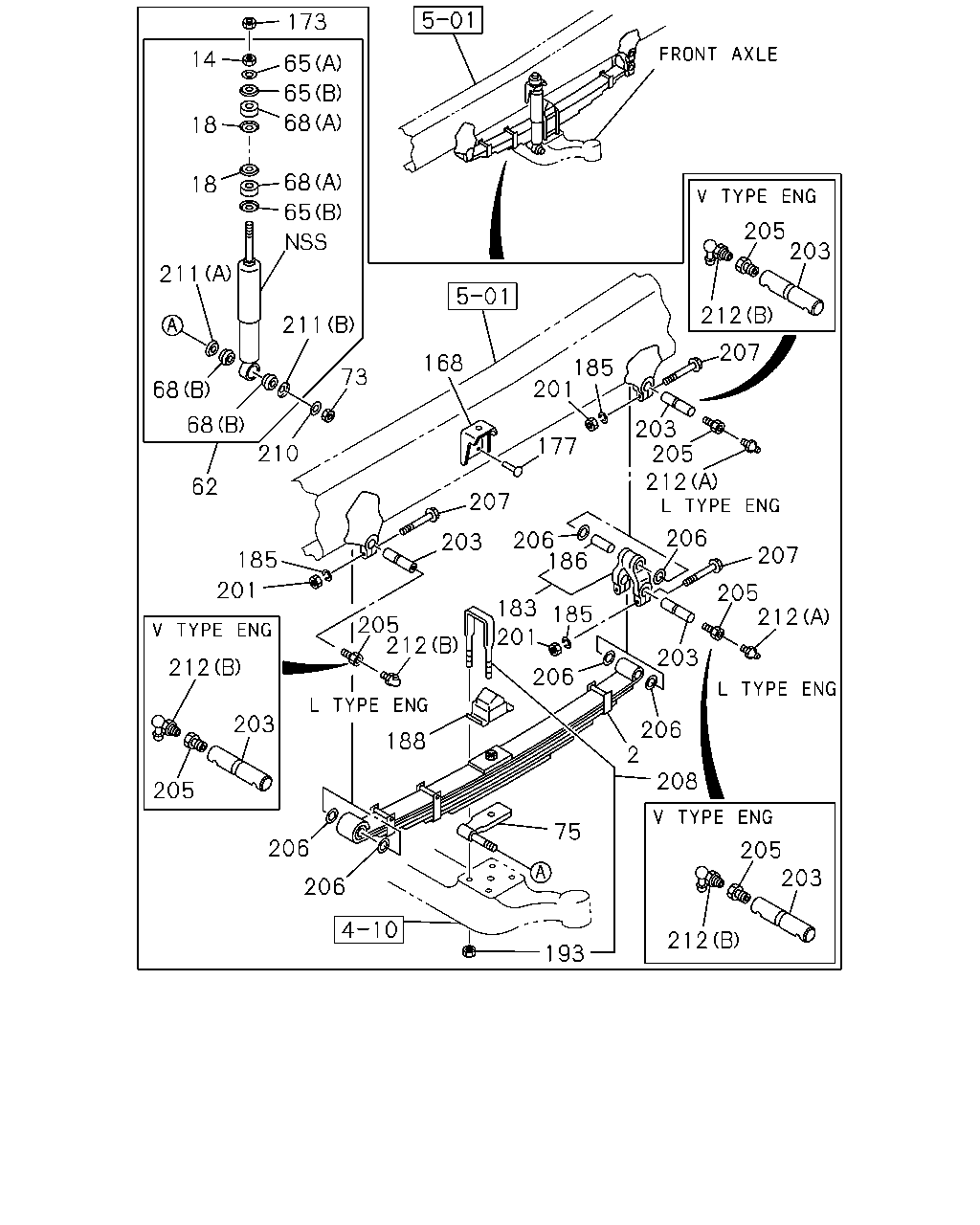

çizim 8275
173 14 65 65 68 18 68 18 65 205 203 211 212 211 207 168 185 201 73 68 68 203 205 212 177 210 207 62 206 206 186 203 207 185 201 205 212 183 205 212 185 201 203 212 206 203 206 2 188 208 205 75 206 205 203 206 212 193
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 10PE1S(60L) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-207-0 02 1 9601-9904
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) V TYPE ENG<91L> 		1-51130-207-0 02 1 9905-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 10PE1S(60L) EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-246-0 02 1 9601-9904
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. V TYPE ENG<91L> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-246-0 02 1 9905-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6WA1 TC-S(56L) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-434-0 02 1 9601-9904
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L TYPE ENG<90L> 		1-51130-434-0 02 1 9905-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6WA1 TC-S(56L) EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-463-0 02 1 9601-9904
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. L TYPE ENG<90L> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-463-0 02 1 9905-
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9601-
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 9601-
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		1-51630-417-0 02 1 9601-9904
62 ABSORBER ASM; SHOCK,FRT
10PE1S(60L) EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-417-0 02 1 9601-9904
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		1-51630-417-0 02 1 9905-
62 ABSORBER ASM; SHOCK,FRT
V TYPE ENG<91L> EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-417-0 02 1 9905-
62 ABSORBER ASM; SHOCK,FRT
6WA1 TC-S(56L) EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-447-0 02 1 9601-9904
62 ABSORBER ASM; SHOCK,FRT
L TYPE ENG<90L> EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-447-0 02 1 9905-
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 9601-
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 9601-
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 9601-
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 9601-
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 02 1 9601-
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-598-2 01 1 9601-0002
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-826-1 01 1 0003-
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-597-2 01 1 9601-0002
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-825-1 01 1 0003-
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9601-
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 9601-
177 RIVET; BRKT,S/ABS
D13X36 PLATED TAPER END 		1-09730-087-0 08 1 9601-9611
177 RIVET; BRKT,S/ABS
D13X36 PLATED TAPER END 		9-06771-336-0 08 1 9612-9904
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9601-
185 WASHER; LK,PIN
ID=12.2 		9-09150-812-0 12 1 9601-9601
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9602-9606
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9608-
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9601-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-081-0 02 1 9601-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-096-0 02 1 9601-
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9601-
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9601-9606
201 NUT; PIN LK
M12 FLANGE 		0-91150-212-0 12 1 9607-9608
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9609-
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 9601-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9601-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9601-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9601-9606
207 BOLT; SPR TO SHACKLE
M12X80 		0-28081-280-0 12 1 9607-9608
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9609-
208 U-BOLT SET; FRT SPRING
10PE1S(60L) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=230 		1-87870-269-1 04 1 9601-9904
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) V TYPE ENG<91L> L=230 		1-87870-269-1 04 1 9905-
208 U-BOLT SET; FRT SPRING
6WA1 TC-S(56L) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=210 		1-87870-380-0 04 1 9601-9904
208 U-BOLT SET; FRT SPRING
10PE1S(60L) EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=210 		1-87870-380-0 04 1 9601-9904
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L TYPE ENG<90L> L=210 		1-87870-380-0 04 1 9905-
208 U-BOLT SET; FRT SPRING
V TYPE ENG<91L> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=210 		1-87870-380-0 04 1 9905-
208 U-BOLT SET; FRT SPRING
6WA1 TC-S(56L) EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=190 		1-87870-163-2 04 1 9601-9904
208 U-BOLT SET; FRT SPRING
L TYPE ENG<90L> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=190 		1-87870-163-2 04 1 9905-
210 WASHER; S/ABS,OUTER
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 9601-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9601-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9601-
212 NIPPLE; GREASE,ELBOW
L TYPE ENG<90L> (A) PT1/8 STRAIGHT 		9-09031-010-0 04 1 9601-
212 NIPPLE; GREASE,ELBOW
L TYPE ENG<90L> (B) PT1/8 ELBOW 		9-09031-210-0 02 1 9601-
212 NIPPLE; GREASE,ELBOW
10PE1S(60L) (B) PT1/8 ELBOW 		9-09031-210-0 06 1 9601-9904
212 NIPPLE; GREASE,ELBOW
V TYPE ENG<91L> (B) PT1/8 ELBOW 		9-09031-210-0 06 1 9905-

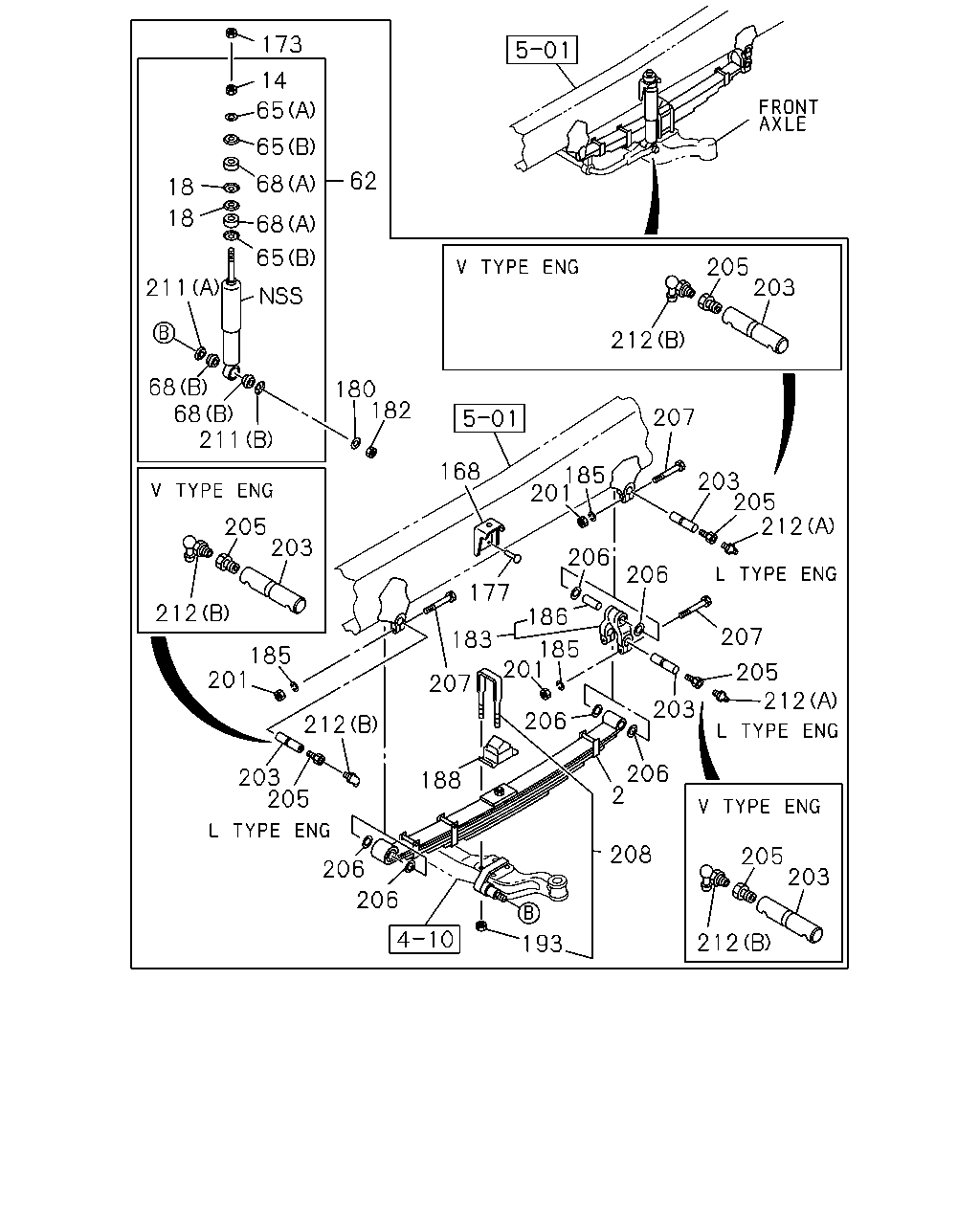

çizim 10407
173 14 65 65 62 68 18 18 68 65 205 203 211 212 68 68 211 180 182 207 168 185 201 203 205 212 205 203 206 206 177 186 212 207 183 185 201 185 201 205 212 207 203 206 212 206 2 203 205 188 208 205 203 206 206 212 193
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 10PE1S(60L) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-207-0 02 1 9601-9904
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) V TYPE ENG<91L> 		1-51130-207-0 02 1 9905-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 10PE1S(60L) EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-246-0 02 1 9601-9904
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. V TYPE ENG<91L> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-246-0 02 1 9905-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6WA1 TC-S(56L) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-434-0 02 1 9601-9904
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L TYPE ENG<90L> 		1-51130-434-0 02 1 9905-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6WA1 TC-S(56L) EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-463-0 02 1 9601-9904
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. L TYPE ENG<90L> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-463-0 02 1 9905-
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9601-
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 9601-
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		1-51630-417-0 02 1 9601-9904
62 ABSORBER ASM; SHOCK,FRT
10PE1S(60L) EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-417-0 02 1 9601-9904
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		1-51630-417-0 02 1 9905-
62 ABSORBER ASM; SHOCK,FRT
V TYPE ENG<91L> EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-417-0 02 1 9905-
62 ABSORBER ASM; SHOCK,FRT
6WA1 TC-S(56L) EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-447-0 02 1 9601-9904
62 ABSORBER ASM; SHOCK,FRT
L TYPE ENG<90L> EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-447-0 02 1 9905-
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 9601-
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 9601-
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 9601-
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 9601-
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9601-
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 9601-
177 RIVET; BRKT,S/ABS
D13X36 PLATED TAPER END 		1-09730-087-0 08 1 9601-9611
177 RIVET; BRKT,S/ABS
D13X36 PLATED TAPER END 		9-06771-336-0 08 1 9612-9904
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 9601-
182 NUT; S/ABS LWR
FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 02 1 9601-
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9601-
185 WASHER; LK,PIN
ID=12.2 		9-09150-812-0 12 1 9601-9601
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9602-9606
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9608-
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9601-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-081-0 02 1 9601-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-096-0 02 1 9601-
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9601-
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9601-9606
201 NUT; PIN LK
M12 FLANGE 		0-91150-212-0 12 1 9607-9608
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9609-
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 9601-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9601-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9601-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9601-9606
207 BOLT; SPR TO SHACKLE
M12X80 		0-28081-280-0 12 1 9607-9608
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9609-
208 U-BOLT SET; FRT SPRING
10PE1S(60L) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=230 		1-87870-269-1 04 1 9601-9904
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) V TYPE ENG<91L> L=230 		1-87870-269-1 04 1 9905-
208 U-BOLT SET; FRT SPRING
6WA1 TC-S(56L) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=210 		1-87870-380-0 04 1 9601-9904
208 U-BOLT SET; FRT SPRING
10PE1S(60L) EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=210 		1-87870-380-0 04 1 9601-9904
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L TYPE ENG<90L> L=210 		1-87870-380-0 04 1 9905-
208 U-BOLT SET; FRT SPRING
V TYPE ENG<91L> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=210 		1-87870-380-0 04 1 9905-
208 U-BOLT SET; FRT SPRING
6WA1 TC-S(56L) EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=190 		1-87870-163-2 04 1 9601-9904
208 U-BOLT SET; FRT SPRING
L TYPE ENG<90L> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=190 		1-87870-163-2 04 1 9905-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9601-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9601-
212 NIPPLE; GREASE,ELBOW
L TYPE ENG<90L> (A) PT1/8 STRAIGHT 		9-09031-010-0 04 1 9601-
212 NIPPLE; GREASE,ELBOW
L TYPE ENG<90L> (B) PT1/8 ELBOW 		9-09031-210-0 02 1 9601-
212 NIPPLE; GREASE,ELBOW
10PE1S(60L) (B) PT1/8 ELBOW 		9-09031-210-0 06 1 9601-9904
212 NIPPLE; GREASE,ELBOW
V TYPE ENG<91L> (B) PT1/8 ELBOW 		9-09031-210-0 06 1 9905-

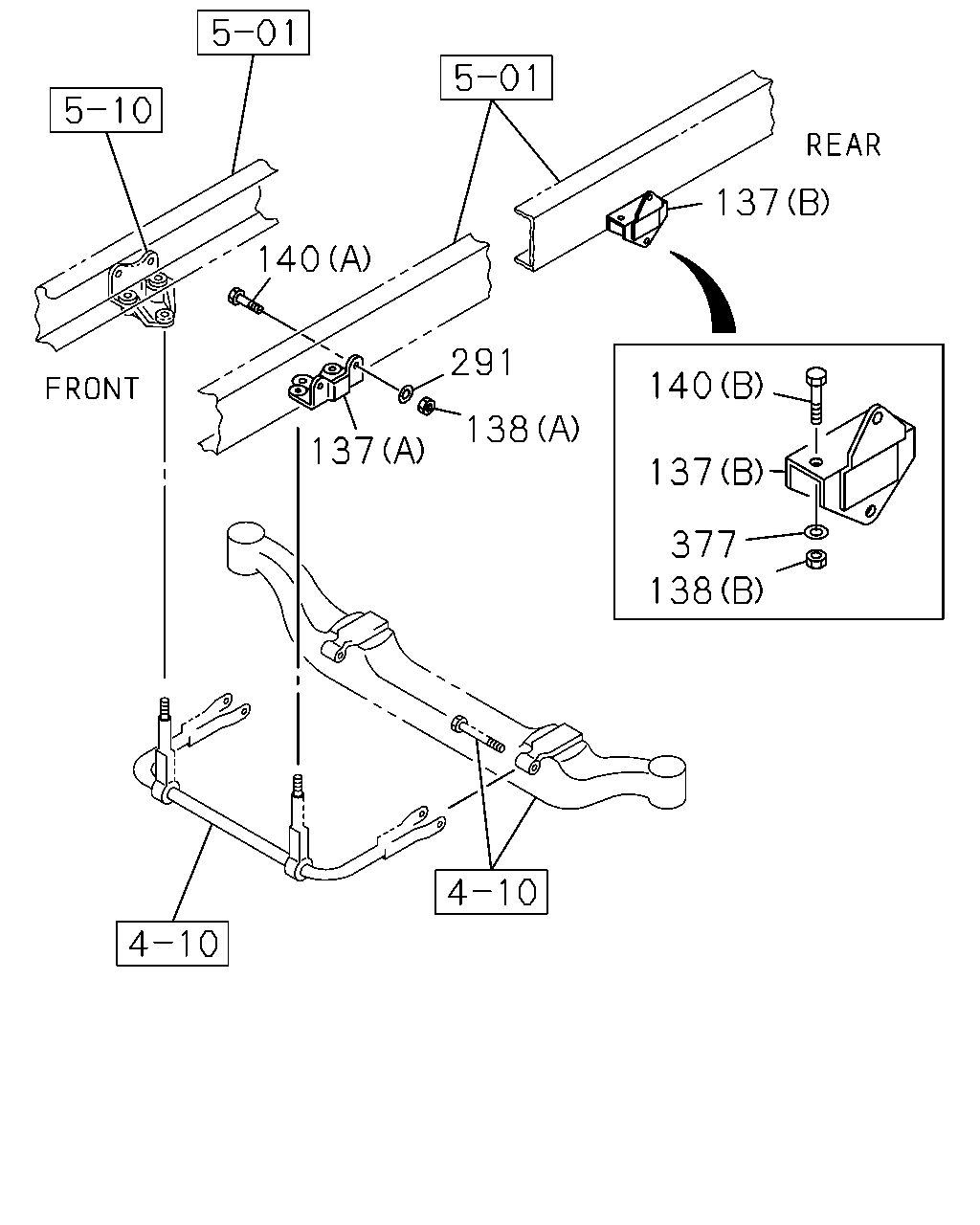

çizim 10875
137 140 291 140 138 137 137 377 138
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> (A) 		1-51781-111-0 01 1 9601-
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> REAR STABILIZER SHAFT<F61> (B) 		1-51781-074-0 02 1 9905-
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> (A) M14 		9-99110-514-0 02 1 9601-9904
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> EXC. REAR STABILIZER SHAFT<F61> (A) M14 		9-99110-514-0 02 1 9905-
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> REAR STABILIZER SHAFT<F61> (B) M14 		9-99110-514-0 08 1 9905-
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> (A) M14X50 		9-92061-450-0 04 1 9601-
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> REAR STABILIZER SHAFT<F61> (B) M14X40 		9-92061-440-0 06 1 9905-
291 WASHER; PL,BRKT
FRONT STABILIZER SHAFT<F59> ID=15 		9-09651-069-0 04 1 9601-9904
377 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> REAR STABILIZER SHAFT<F61> ID=15 		9-09651-069-0 06 1 9905-
