Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#48808) — 360 parça

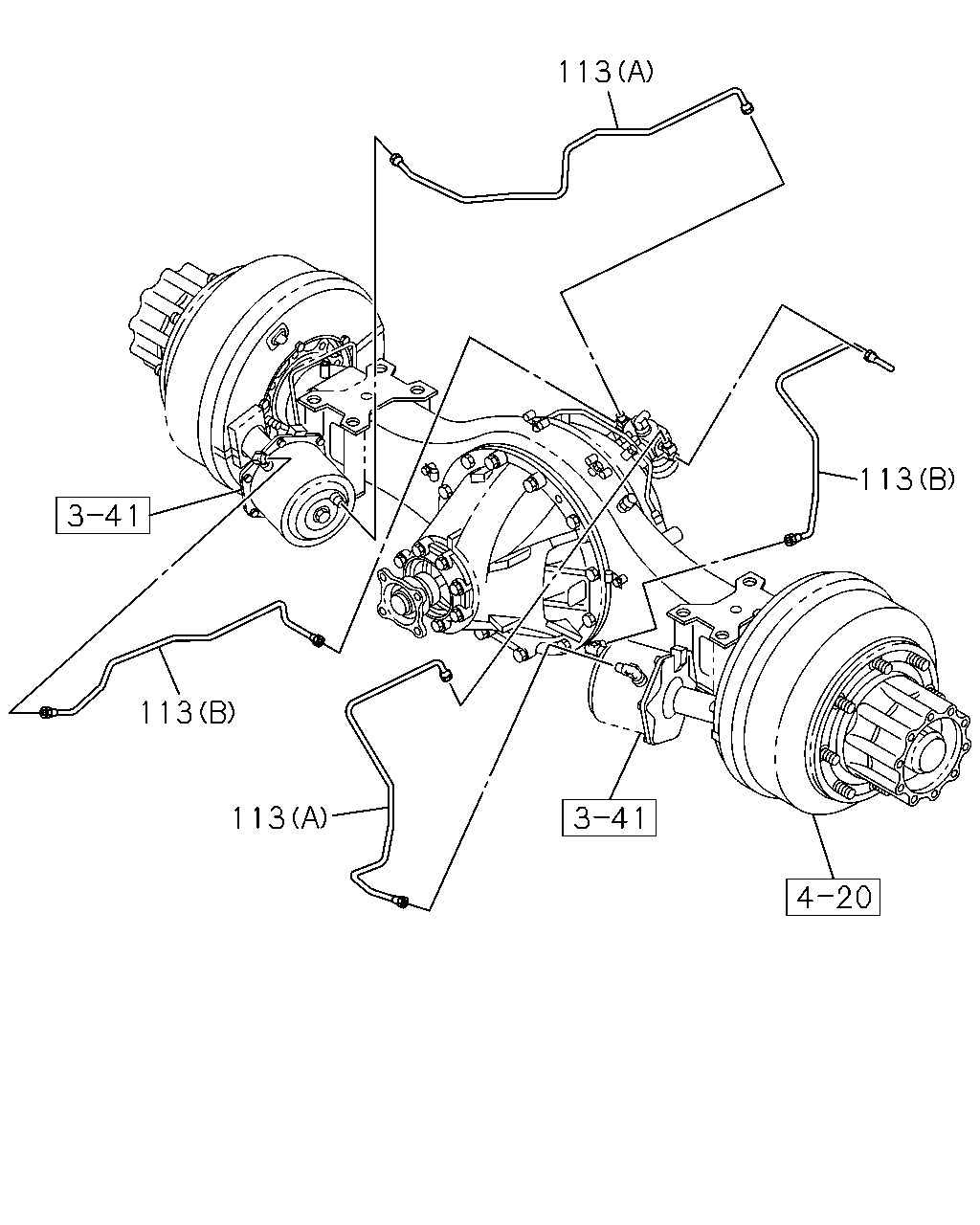

113 113 113 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB (A) L=1064	8-98088-416-0	01	1	0712-	●	●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB (A) L=972	8-98088-417-0	01	1	0712-	●	●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB (B)	8-98089-891-0	01	1	0712-	●	●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB (B)	8-98089-892-0	01	1	0712-	●	●

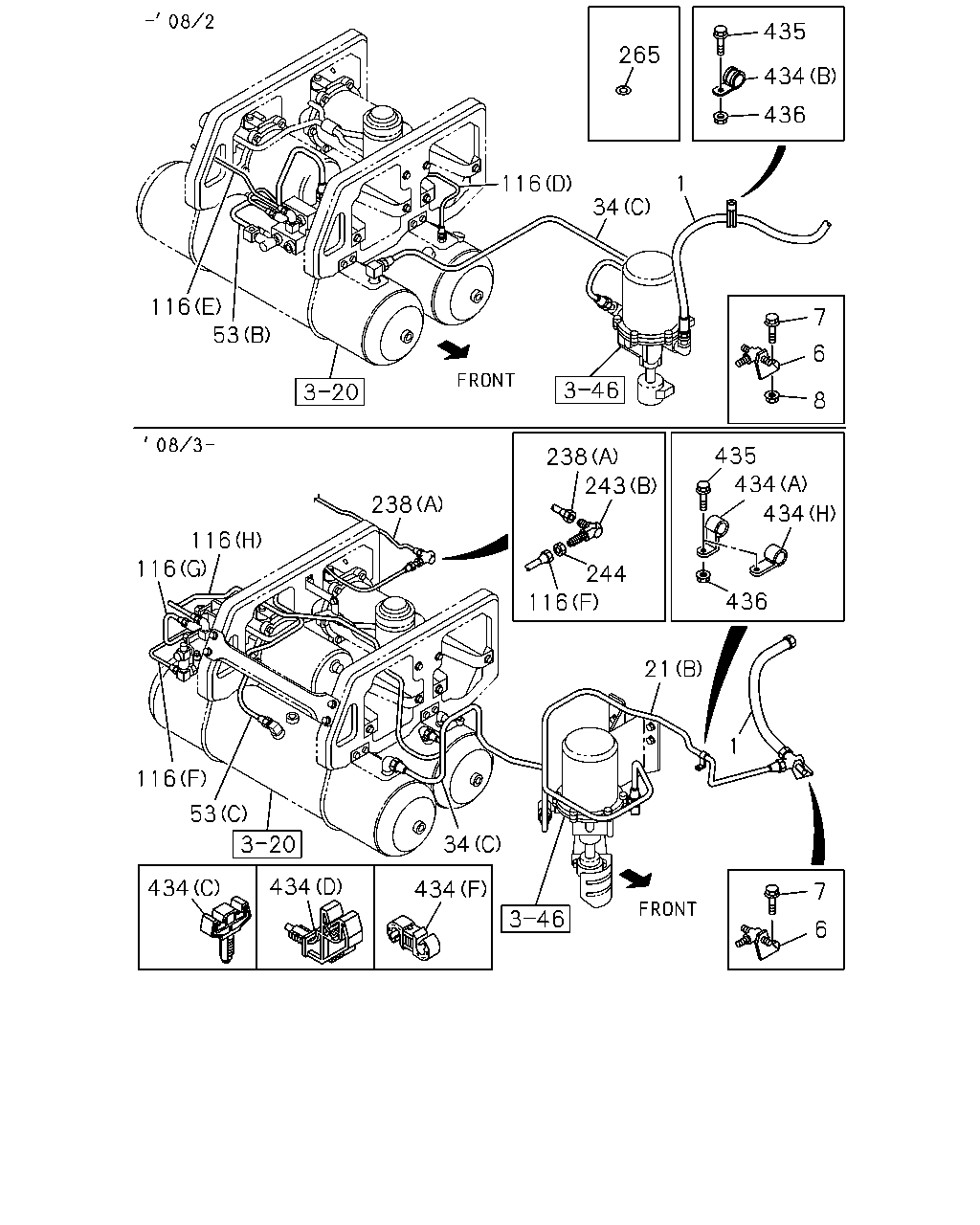

435 265 434 436 116 1 34 116 7 53 6 8 435 238 434 243 238 434 116 116 244 436 116 21 1 116 53 34 434 434 434 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK	8-97607-418-0	01	1	0712-0802	●
1	HOSE; FLEX,AIR TANK	8-97607-418-0	01	1	0803-	●	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	0712-0802		●
6	BRACKET; FLEX HOSE,AIR TANK	8-98076-344-0	01	1	0712-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91180-108-0	02	1	0712-0802	●	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1764	8-98111-600-0	01	1	0803-0811	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1748	8-98126-086-0	01	1	0812-	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1708	8-98111-601-0	01	1	0803-0805		●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1717	8-98123-625-0	01	1	0806-0811		●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1722	8-98126-087-0	01	1	0812-		●
34	PIPE; AIR (A) L=1717	8-98098-197-0	01	1	0712-0802	●
34	PIPE; AIR (A) L=639 SERVICED BY L=660	1-49115-480-0	01	1	0803-	●
34	PIPE; AIR (B) L=437	8-98098-198-0	01	1	0712-0802	●
34	PIPE; AIR (C) L=1711	8-98084-332-0	01	1	0712-0802		●
34	PIPE; AIR (C) L=1121	8-98108-558-1	01	1	0803-		●
53	PIPE; AIR,AIR TANK TO VALVE (A)	8-98098-222-0	01	1	0712-0802	●
53	PIPE; AIR,AIR TANK TO VALVE (C) L=732	8-98108-559-0	01	1	0803-	●	●
53	PIPE; AIR,AIR TANK TO VALVE (B)	8-98054-508-0	01	1	0712-0802		●
116	PIPE; AIR,PROTECTION VLV (A) L=1290 SERVICED BY L=1370	1-47428-818-0	01	1	0712-0802	●
116	PIPE; AIR,PROTECTION VLV (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	0803-	●
116	PIPE; AIR,PROTECTION VLV (B)	8-98098-223-0	01	1	0712-0802	●
116	PIPE; AIR,PROTECTION VLV (G)	8-98108-561-0	01	1	0803-	●	●
116	PIPE; AIR,PROTECTION VLV (C)	8-98098-224-0	01	1	0712-0802	●
116	PIPE; AIR,PROTECTION VLV (H)	8-98108-563-0	01	1	0803-	●	●
116	PIPE; AIR,PROTECTION VLV (D)	8-98054-506-0	01	1	0712-0802		●
116	PIPE; AIR,PROTECTION VLV (F) L=1008 SERVICED BY L=1100	1-47428-815-0	01	1	0803-		●
116	PIPE; AIR,PROTECTION VLV (E)	8-98054-507-0	01	1	0712-0802		●
238	PIPE; AIR,UNION TO UNION (A) L=1756 SERVICED BY L=1820	1-47428-822-0	01	1	0712-0802	●
238	PIPE; AIR,UNION TO UNION (A) L=1726 SERVICED BY L=1820	1-47428-822-0	01	1	0803-0811	●
238	PIPE; AIR,UNION TO UNION (A) L=1671 SERVICED BY L=1700	1-47428-821-0	01	1	0812-1003	●
238	PIPE; AIR,UNION TO UNION (A) L=1680 SERVICED BY L=1700	1-47428-821-0	01	1	1004-	●
238	PIPE; AIR,UNION TO UNION (B) L=801 SERVICED BY L=900	1-47428-813-0	01	1	0803-	●	●
238	PIPE; AIR,UNION TO UNION (A) L=1319	8-98111-261-1	01	1	0803-0811		●
238	PIPE; AIR,UNION TO UNION (A) L=1309 SERVICED BY L=1370	1-47428-818-0	01	1	0812-		●
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0803-	●	●
243	UNION; AIR PIPE (B) M12 ELBOW	0-92125-206-0	01	1	0803-	●	●
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0712-0802		●
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0803-	●	●
265	GASKET; FLEX TUBE ID=11 OD=18	9-09572-510-0	06	1	0712-0802		●
434	CLIP (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802	●
434	CLIP (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-0811	●	●
434	CLIP (H) ID=16 L=20	0-95235-536-0	01	1	0812-	●	●
434	CLIP (E) L=250	5-09707-030-1	01	1	0906-	●
434	CLIP (B) ID=35 L=33	1-09700-945-0	01	1	0712-0802	●	●
434	CLIP (G) ID=7 L=20	0-95234-635-0	01	1	0803-	●	●
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	0803-0803	●	●
434	CLIP (D) ID=6.35	1-09701-247-1	02	1	0804-0811	●	●
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	0812-	●	●
434	CLIP (A) ID=10 & 15	1-09709-279-1	01	1	0803-0811	●	●
434	CLIP (A) ID=10 & 15	1-09709-279-1	01	1	0812-	●
434	CLIP (F) ID=12 & 15	1-09709-281-1	01	1	0803-	●	●
434	CLIP (C)	8-98012-254-1	01	1	0804-	●	●
434	CLIP (E) L=600	1-09707-107-1	01	1	0906-	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-0802	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-0802	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-	●	●

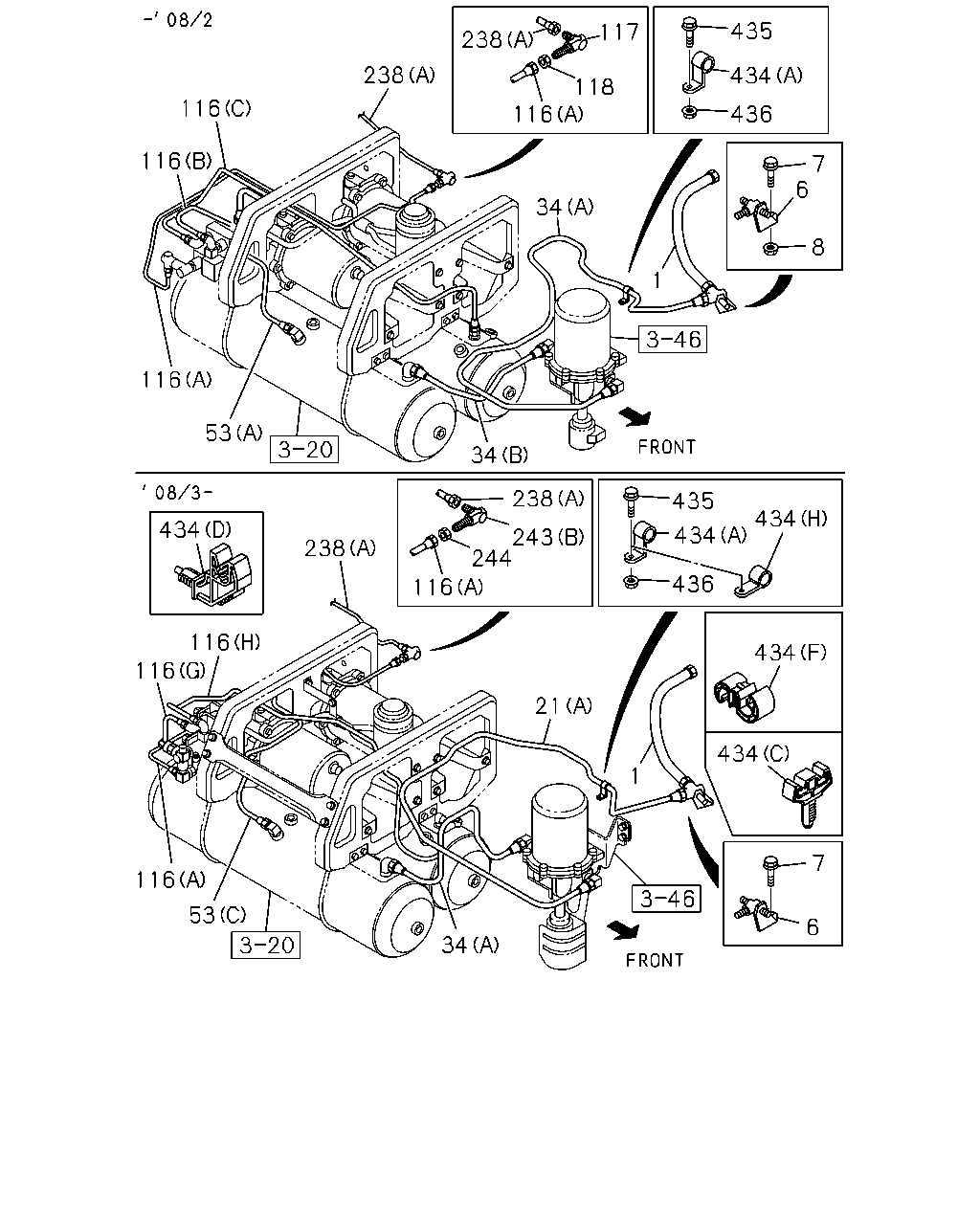

435 117 238 238 434 118 116 436 116 116 7 6 34 8 1 116 53 34 238 435 434 434 434 243 244 238 436 116 116 434 116 21 434 1 7 116 53 6 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK	8-97607-418-0	01	1	0712-0802	●
1	HOSE; FLEX,AIR TANK	8-97607-418-0	01	1	0803-	●	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	0712-0802		●
6	BRACKET; FLEX HOSE,AIR TANK	8-98076-344-0	01	1	0712-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91180-108-0	02	1	0712-0802	●	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1764	8-98111-600-0	01	1	0803-0811	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1748	8-98126-086-0	01	1	0812-	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1708	8-98111-601-0	01	1	0803-0805		●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1717	8-98123-625-0	01	1	0806-0811		●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1722	8-98126-087-0	01	1	0812-		●
34	PIPE; AIR (A) L=1717	8-98098-197-0	01	1	0712-0802	●
34	PIPE; AIR (A) L=639 SERVICED BY L=660	1-49115-480-0	01	1	0803-	●
34	PIPE; AIR (B) L=437	8-98098-198-0	01	1	0712-0802	●
34	PIPE; AIR (C) L=1711	8-98084-332-0	01	1	0712-0802		●
34	PIPE; AIR (C) L=1121	8-98108-558-1	01	1	0803-		●
53	PIPE; AIR,AIR TANK TO VALVE (A)	8-98098-222-0	01	1	0712-0802	●
53	PIPE; AIR,AIR TANK TO VALVE (C) L=732	8-98108-559-0	01	1	0803-	●	●
53	PIPE; AIR,AIR TANK TO VALVE (B)	8-98054-508-0	01	1	0712-0802		●
116	PIPE; AIR,PROTECTION VLV (A) L=1290 SERVICED BY L=1370	1-47428-818-0	01	1	0712-0802	●
116	PIPE; AIR,PROTECTION VLV (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	0803-	●
116	PIPE; AIR,PROTECTION VLV (B)	8-98098-223-0	01	1	0712-0802	●
116	PIPE; AIR,PROTECTION VLV (G)	8-98108-561-0	01	1	0803-	●	●
116	PIPE; AIR,PROTECTION VLV (C)	8-98098-224-0	01	1	0712-0802	●
116	PIPE; AIR,PROTECTION VLV (H)	8-98108-563-0	01	1	0803-	●	●
116	PIPE; AIR,PROTECTION VLV (D)	8-98054-506-0	01	1	0712-0802		●
116	PIPE; AIR,PROTECTION VLV (F) L=1008 SERVICED BY L=1100	1-47428-815-0	01	1	0803-		●
116	PIPE; AIR,PROTECTION VLV (E)	8-98054-507-0	01	1	0712-0802		●
117	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	0712-0802	●
118	NUT; UNION M12	9-09840-280-0	02	1	0712-0802	●
238	PIPE; AIR,UNION TO UNION (A) L=1756 SERVICED BY L=1820	1-47428-822-0	01	1	0712-0802	●
238	PIPE; AIR,UNION TO UNION (A) L=1726 SERVICED BY L=1820	1-47428-822-0	01	1	0803-0811	●
238	PIPE; AIR,UNION TO UNION (A) L=1671 SERVICED BY L=1700	1-47428-821-0	01	1	0812-1003	●
238	PIPE; AIR,UNION TO UNION (A) L=1680 SERVICED BY L=1700	1-47428-821-0	01	1	1004-	●
238	PIPE; AIR,UNION TO UNION (B) L=801 SERVICED BY L=900	1-47428-813-0	01	1	0803-	●	●
238	PIPE; AIR,UNION TO UNION (A) L=1319	8-98111-261-1	01	1	0803-0811		●
238	PIPE; AIR,UNION TO UNION (A) L=1309 SERVICED BY L=1370	1-47428-818-0	01	1	0812-		●
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0803-	●	●
243	UNION; AIR PIPE (B) M12 ELBOW	0-92125-206-0	01	1	0803-	●	●
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0712-0802		●
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0803-	●	●
434	CLIP (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802	●
434	CLIP (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-0811	●	●
434	CLIP (H) ID=16 L=20	0-95235-536-0	01	1	0812-	●	●
434	CLIP (E) L=250	5-09707-030-1	01	1	0906-	●
434	CLIP (B) ID=35 L=33	1-09700-945-0	01	1	0712-0802	●	●
434	CLIP (G) ID=7 L=20	0-95234-635-0	01	1	0803-	●	●
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	0803-0803	●	●
434	CLIP (D) ID=6.35	1-09701-247-1	02	1	0804-0811	●	●
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	0812-	●	●
434	CLIP (A) ID=10 & 15	1-09709-279-1	01	1	0803-0811	●	●
434	CLIP (A) ID=10 & 15	1-09709-279-1	01	1	0812-	●
434	CLIP (F) ID=12 & 15	1-09709-281-1	01	1	0803-	●	●
434	CLIP (C)	8-98012-254-1	01	1	0804-	●	●
434	CLIP (E) L=600	1-09707-107-1	01	1	0906-	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-0802	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-0802	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-	●	●

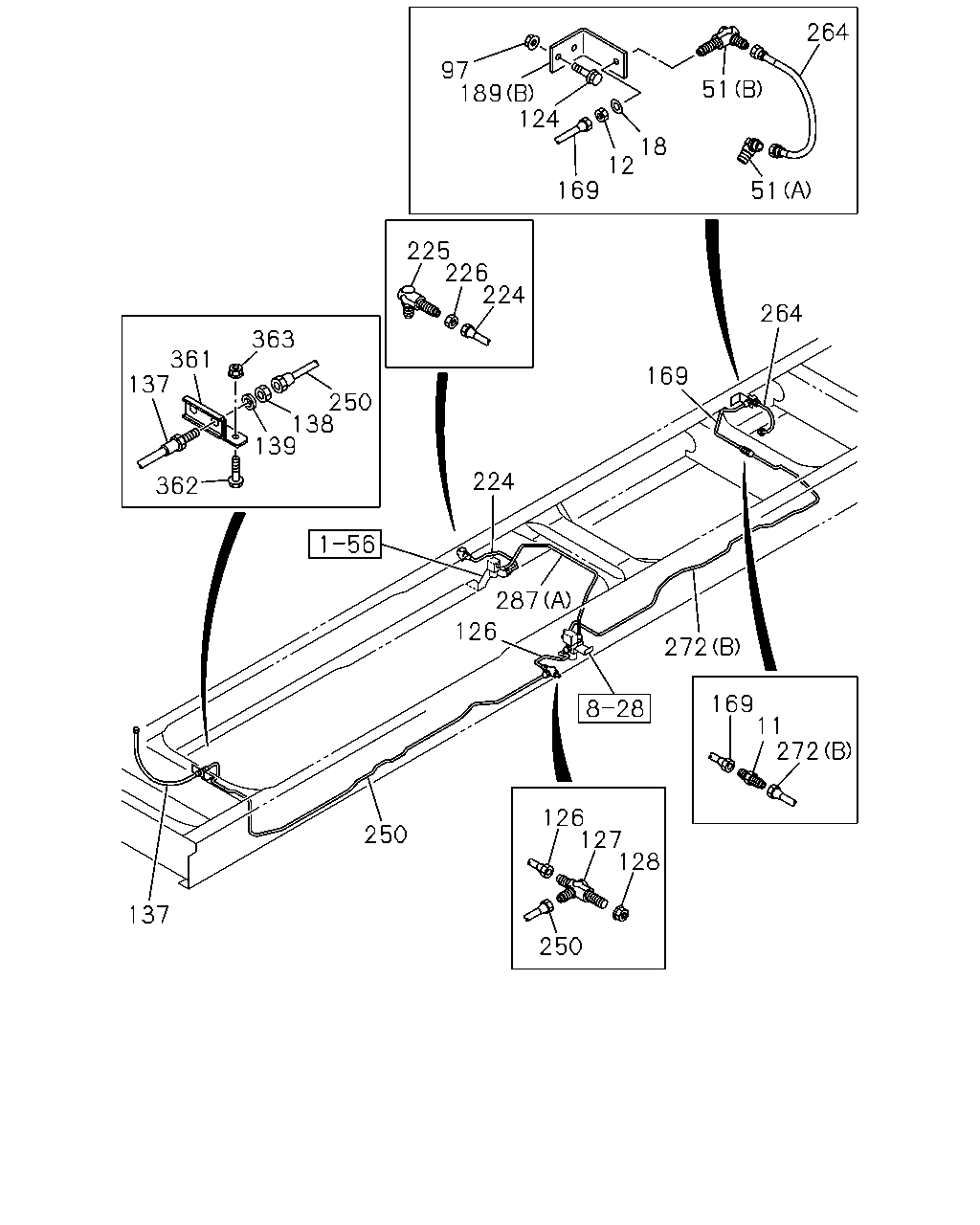

264 97 189 124 51 18 12 169 51 225 226 224 264 363 361 137 169 250 138 139 224 362 287 126 272 169 11 272 126 127 128 250 137 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	UNION; AIR PIPE M12 L=40	0-92113-006-0	01	1	0712-0802		●
12	NUT; UNION M12	0-91111-512-0	01	1	0712-0802	●	●
12	NUT; UNION M12	9-09840-280-0	01	1	0804-	●	●
18	WASHER; LK,UNION ID=12.2	0-91510-812-0	01	1	0712-0802	●	●
51	UNION (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0712-0802	●
51	UNION (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0803-0803	●	●
51	UNION (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0804-	●
51	UNION (B) M12 ELBOW	0-92125-206-0	01	1	0712-0802		●
51	UNION (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0802		●
51	UNION (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0804-		●
97	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
124	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0712-	●	●
126	PIPE; AIR,UNION TO UNION L=402	8-98054-028-0	01	1	0712-0802		●
127	UNION; AIR PIPE M12	0-92138-306-0	01	1	0712-0802		●
128	NUT; PIPE UNION M12	0-91111-512-0	01	1	0712-0802		●
137	HOSE; FLEX,AIR PRESSURE GAGE L=560	1-09363-654-0	01	1	0712-0802		●
138	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	0712-0802		●
139	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	0-91510-512-0	01	1	0712-0802		●
169	PIPE; AIR,UNION TO FLEX HOSE L=503 SERVICED BY L=550	1-47428-808-0	01	1	0712-0802		●
189	BRACKET; FLEX HOSE (A)	8-98034-744-0	01	1	0712-0802	●
189	BRACKET; FLEX HOSE (A)	8-98034-744-0	01	1	0803-1005	●	●
189	BRACKET; FLEX HOSE (A)	8-98077-571-0	01	1	1006-	●	●
189	BRACKET; FLEX HOSE (B)	1-47471-361-0	01	1	0712-0802		●
224	PIPE; AIR,UNION TO FLEX HOSE L=391	8-97616-770-0	01	1	0712-0802		●
225	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	0712-0802		●
226	NUT; UNION M12	0-91111-512-0	01	1	0712-0802		●
250	PIPE; AIR,UNION TO FLEX HOSE L=2562 SERVICED BY L=2650	1-47428-827-0	01	1	0712-0802		●
264	HOSE; FLEX L=360	1-09363-823-0	01	1	0712-0802	●
264	HOSE; FLEX L=430	1-09363-623-0	01	1	0803-0803	●	●
264	HOSE; FLEX L=430	1-09363-623-0	01	1	0804-	●
264	HOSE; FLEX L=480	1-09363-659-0	01	1	0712-0802		●
264	HOSE; FLEX L=280	1-09363-610-0	01	1	0804-		●
272	PIPE; AIR,MAG VLV TO UNION (A) L=1424 SERVICED BY L=1500	1-47428-819-0	01	1	0712-0802	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> (C) L=2664 SERVICED BY L=2900	1-47428-828-0	01	1	0803-0803	●	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> (C) L=2664 SERVICED BY L=2900	1-47428-828-0	01	1	0804-0811	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> (C) L=2684 SERVICED BY L=2900	1-47428-828-0	01	1	0812-	●	●
272	PIPE; AIR,MAG VLV TO UNION (B) L=2100 SERVICED BY L=2200	1-47428-824-0	01	1	0712-0802		●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2604 SERVICED BY L=2650	1-47428-827-0	01	1	0803-0803	●	●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2604 SERVICED BY L=2650	1-47428-827-0	01	1	0804-0811	●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2624 SERVICED BY L=2650	1-47428-827-0	01	1	0812-0905	●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2624 SERVICED BY L=2650	1-47428-827-0	01	1	0906-	●	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> (C) L=2685 SERVICED BY L=2900	1-47428-828-0	01	1	0804-0811		●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2626 SERVICED BY L=2650	1-47428-827-0	01	1	0804-0811		●
287	PIPE; AIR,MAG VLV (A) L=1240 SERVICED BY L=1250	1-47428-817-0	01	1	0803-0803	●	●
287	PIPE; AIR,MAG VLV (A) L=1240 SERVICED BY L=1250	1-47428-817-0	01	1	0804-0811	●
287	PIPE; AIR,MAG VLV (A) L=1240 SERVICED BY L=1250	1-47428-817-0	01	1	0812-	●	●
287	PIPE; AIR,MAG VLV (A) L=964 SERVICED BY L=1000	1-47428-814-0	01	1	0712-0802		●
287	PIPE; AIR,MAG VLV (B) L=1156 SERVICED BY L=1200	1-47428-816-0	01	1	0803-0803	●	●
287	PIPE; AIR,MAG VLV (B) L=1156 SERVICED BY L=1200	1-47428-816-0	01	1	0804-	●
287	PIPE; AIR,MAG VLV (B) L=1189 SERVICED BY L=1200	1-47428-816-0	01	1	0804-		●
287	PIPE; AIR,MAG VLV (A) L=1219 SERVICED BY L=1250	1-47428-817-0	01	1	0804-0811		●
361	BRACKET; FLEX HOSE,AIR GOV	1-47476-781-0	01	1	0712-0802		●
362	BOLT; BRKT,FLEX HOSE,AIR GOV M8X25 FLANGE	0-28650-825-0	02	1	0712-0802		●
363	NUT; BRKT,FLEX HOSE,AIR GOV M8 FLANGE	0-91180-108-0	02	1	0712-0802		●

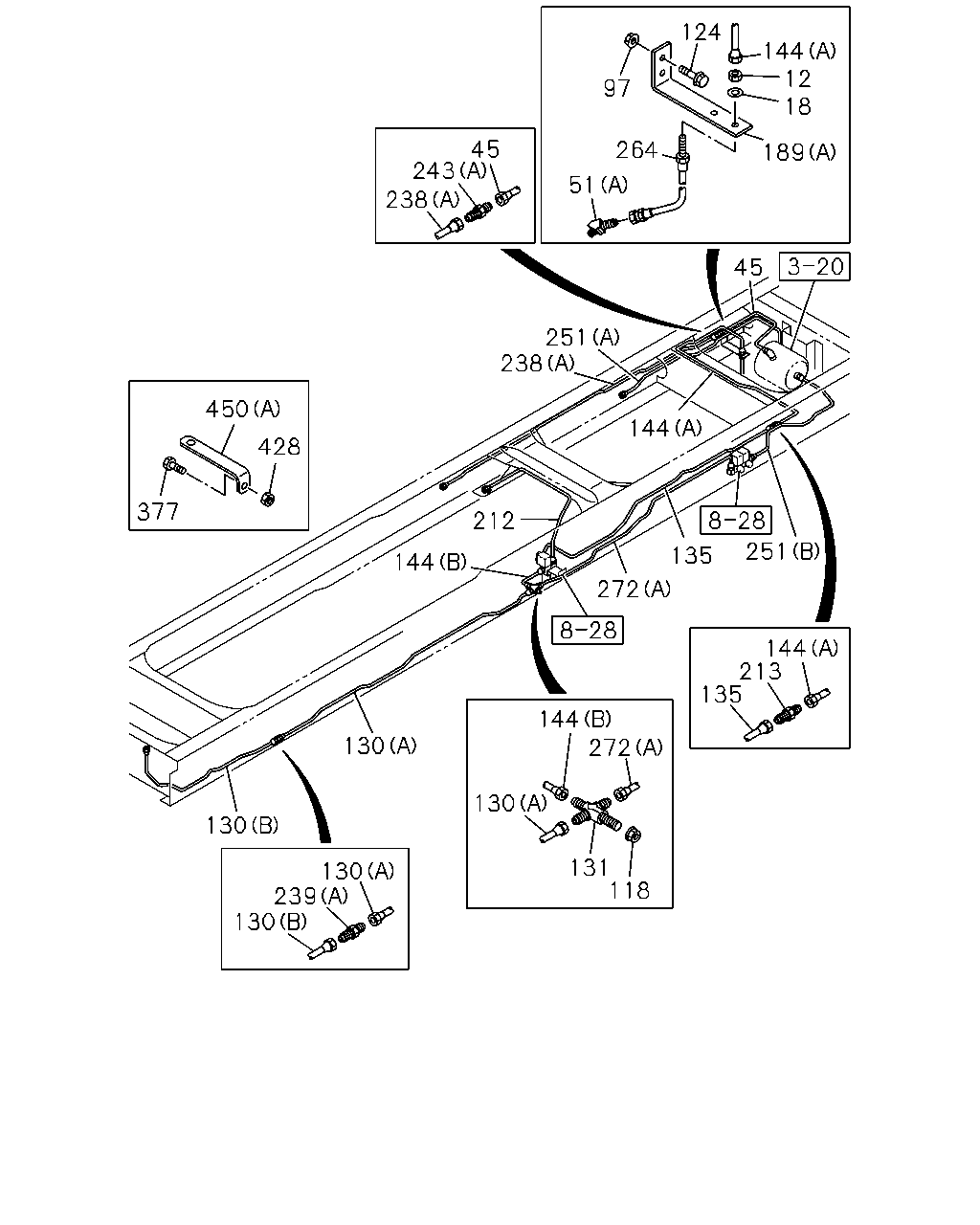

124 144 12 18 97 45 243 264 189 51 238 45 251 238 450 144 428 377 212 251 135 144 272 144 213 135 144 272 130 130 130 131 118 130 239 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NUT; UNION M12	0-91111-512-0	01	1	0712-0802	●	●
12	NUT; UNION M12	9-09840-280-0	01	1	0804-	●	●
18	WASHER; LK,UNION ID=12.2	0-91510-812-0	01	1	0712-0802	●	●
45	PIPE; AIR,UNION TO AIR TANK L=715 SERVICED BY L=800	1-47428-812-0	01	1	0712-0802	●
45	PIPE; AIR,UNION TO AIR TANK L=810 SERVICED BY L=900	1-47428-813-0	01	1	0803-0803	●	●
45	PIPE; AIR,UNION TO AIR TANK L=810 SERVICED BY L=900	1-47428-813-0	01	1	0804-	●
45	PIPE; AIR,UNION TO AIR TANK L=813 SERVICED BY L=900	1-47428-813-0	01	1	0804-		●
51	UNION (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0712-0802	●
51	UNION (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0803-0803	●	●
51	UNION (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0804-	●
51	UNION (B) M12 ELBOW	0-92125-206-0	01	1	0712-0802		●
51	UNION (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0802		●
51	UNION (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0804-		●
97	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
118	NUT; UNION M12	9-09840-280-0	02	1	0712-0802	●
124	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0712-	●	●
130	PIPE; AIR,UNION TO UNION (B) L=966 SERVICED BY L=1000	1-47428-814-0	01	1	0712-0802	●
130	PIPE; AIR,UNION TO UNION (A) L=1688 SERVICED BY L=1700	1-47428-821-0	01	1	0712-0802	●
131	UNION; AIR PIPE M12	0-92138-306-0	01	1	0712-0802	●
135	PIPE; AIR,UNION TO UNION L=1447 SERVICED BY L=1500	1-47428-819-0	01	1	0712-0802	●
135	PIPE; AIR,UNION TO UNION L=1155 SERVICED BY L=1200	1-47428-816-0	01	1	0803-0803	●	●
135	PIPE; AIR,UNION TO UNION L=1155 SERVICED BY L=1200	1-47428-816-0	01	1	0804-0912	●
135	PIPE; AIR,UNION TO UNION L=1202 SERVICED BY L=1250	1-47428-817-0	01	1	1001-	●
135	PIPE; AIR,UNION TO UNION L=1173 SERVICED BY L=1200	1-47428-816-0	01	1	0804-0912		●
135	PIPE; AIR,UNION TO UNION L=1220 SERVICED BY L=1250	1-47428-817-0	01	1	1001-		●
144	PIPE; AIR,UNION TO UNION (A) L=1274 SERVICED BY L=1370	1-47428-818-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (B) L=227	8-98084-353-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (C) L=1579 SERVICED BY L=1620	1-47428-820-0	01	1	0803-	●	●
189	BRACKET; FLEX HOSE (A)	8-98034-744-0	01	1	0712-0802	●
189	BRACKET; FLEX HOSE (A)	8-98034-744-0	01	1	0803-1005	●	●
189	BRACKET; FLEX HOSE (A)	8-98077-571-0	01	1	1006-	●	●
189	BRACKET; FLEX HOSE (B)	1-47471-361-0	01	1	0712-0802		●
212	PIPE; AIR,UNION TO UNION L=939 SERVICED BY L=1000	1-47428-814-0	01	1	0712-0802	●
213	UNION; AIR PIPE M12 L=40	0-92113-006-0	01	1	0712-0802	●
213	UNION; AIR PIPE M12 L=40	0-92113-006-0	01	1	0803-	●	●
238	PIPE; AIR,UNION TO UNION (A) L=1756 SERVICED BY L=1820	1-47428-822-0	01	1	0712-0802	●
238	PIPE; AIR,UNION TO UNION (A) L=1726 SERVICED BY L=1820	1-47428-822-0	01	1	0803-0811	●
238	PIPE; AIR,UNION TO UNION (A) L=1671 SERVICED BY L=1700	1-47428-821-0	01	1	0812-1003	●
238	PIPE; AIR,UNION TO UNION (A) L=1680 SERVICED BY L=1700	1-47428-821-0	01	1	1004-	●
238	PIPE; AIR,UNION TO UNION (B) L=801 SERVICED BY L=900	1-47428-813-0	01	1	0803-	●	●
238	PIPE; AIR,UNION TO UNION (A) L=1319	8-98111-261-1	01	1	0803-0811		●
238	PIPE; AIR,UNION TO UNION (A) L=1309 SERVICED BY L=1370	1-47428-818-0	01	1	0812-		●
239	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
239	UNION; AIR PIPE (B) M12 2WAY	1-09654-059-2	01	1	0803-	●	●
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0803-	●	●
243	UNION; AIR PIPE (B) M12 ELBOW	0-92125-206-0	01	1	0803-	●	●
251	PIPE; AIR,UNION TO MAG VLV (B) L=845 SERVICED BY L=900	1-47428-813-0	01	1	0712-0802	●
251	PIPE; AIR,UNION TO MAG VLV (A) L=1205 SERVICED BY L=1250	1-47428-817-0	01	1	0712-0802	●
251	PIPE; AIR,UNION TO MAG VLV (C) L=1136 SERVICED BY L=1200	1-47428-816-0	01	1	0803-0811	●	●
251	PIPE; AIR,UNION TO MAG VLV (C) L=1127 SERVICED BY L=1200	1-47428-816-0	01	1	0812-	●	●
264	HOSE; FLEX L=360	1-09363-823-0	01	1	0712-0802	●
264	HOSE; FLEX L=430	1-09363-623-0	01	1	0803-0803	●	●
264	HOSE; FLEX L=430	1-09363-623-0	01	1	0804-	●
264	HOSE; FLEX L=480	1-09363-659-0	01	1	0712-0802		●
264	HOSE; FLEX L=280	1-09363-610-0	01	1	0804-		●
272	PIPE; AIR,MAG VLV TO UNION (A) L=1424 SERVICED BY L=1500	1-47428-819-0	01	1	0712-0802	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> (C) L=2664 SERVICED BY L=2900	1-47428-828-0	01	1	0803-0803	●	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> (C) L=2664 SERVICED BY L=2900	1-47428-828-0	01	1	0804-0811	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> (C) L=2684 SERVICED BY L=2900	1-47428-828-0	01	1	0812-	●	●
272	PIPE; AIR,MAG VLV TO UNION (B) L=2100 SERVICED BY L=2200	1-47428-824-0	01	1	0712-0802		●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2604 SERVICED BY L=2650	1-47428-827-0	01	1	0803-0803	●	●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2604 SERVICED BY L=2650	1-47428-827-0	01	1	0804-0811	●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2624 SERVICED BY L=2650	1-47428-827-0	01	1	0812-0905	●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2624 SERVICED BY L=2650	1-47428-827-0	01	1	0906-	●	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> (C) L=2685 SERVICED BY L=2900	1-47428-828-0	01	1	0804-0811		●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2626 SERVICED BY L=2650	1-47428-827-0	01	1	0804-0811		●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	0712-0802	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	02	1	0803-	●	●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
450	BRACKET; CLIP (A) L=95	1-82699-085-0	01	1	0712-0802	●
450	BRACKET; CLIP (A) L=95	1-82699-085-0	01	1	0803-0811	●	●
450	BRACKET; CLIP (A) L=115 B=25	1-47476-758-0	01	1	0812-	●	●
450	BRACKET; CLIP (B)	8-98074-610-0	01	1	0803-0811	●	●
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	0812-	●	●

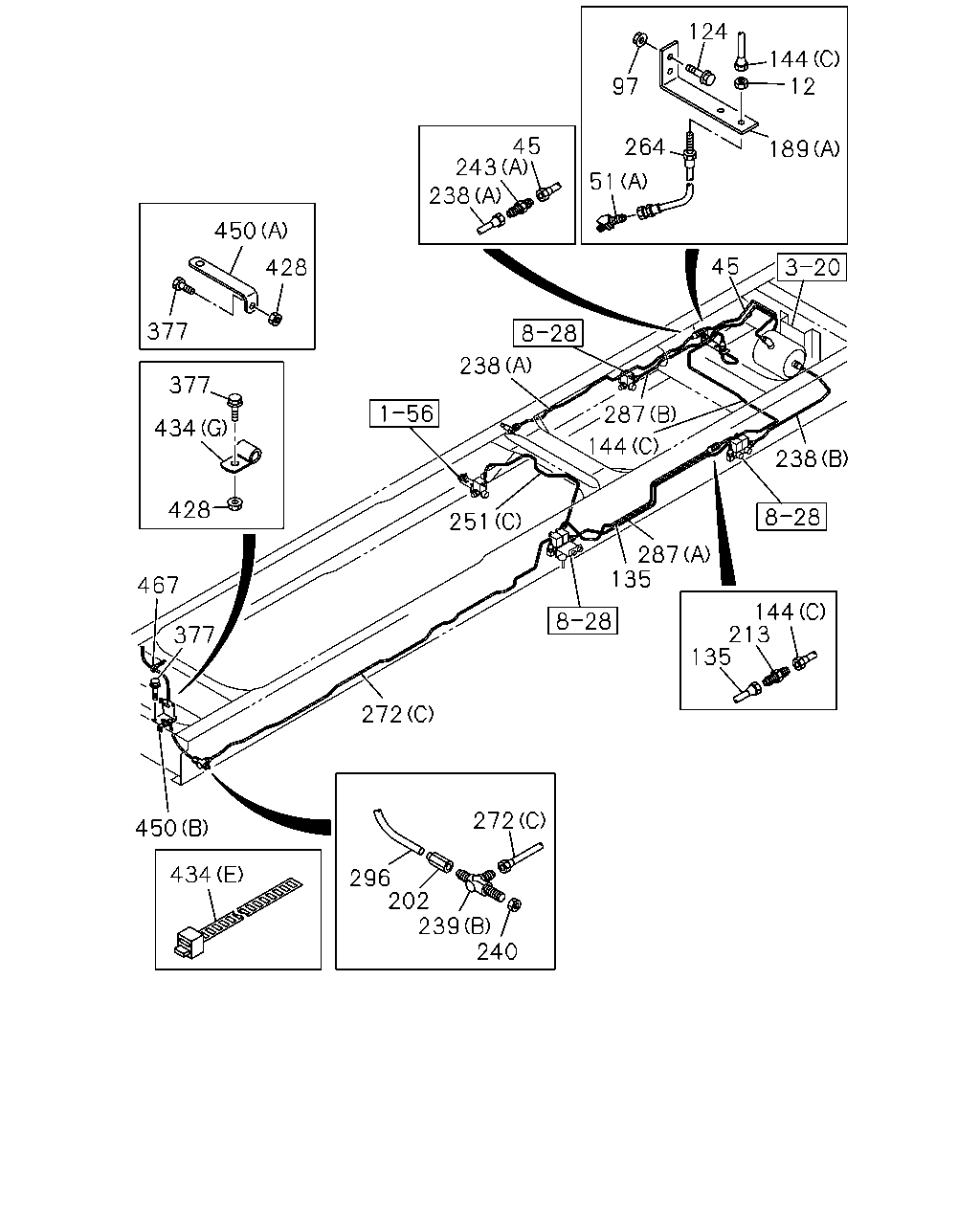

124 144 12 97 45 243 238 264 189 51 450 45 428 377 238 377 287 434 144 238 428 251 287 135 467 144 213 135 377 272 272 450 434 296 202 239 240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NUT; UNION M12	0-91111-512-0	01	1	0712-0802	●	●
12	NUT; UNION M12	9-09840-280-0	01	1	0804-	●	●
45	PIPE; AIR,UNION TO AIR TANK L=715 SERVICED BY L=800	1-47428-812-0	01	1	0712-0802	●
45	PIPE; AIR,UNION TO AIR TANK L=810 SERVICED BY L=900	1-47428-813-0	01	1	0803-0803	●	●
45	PIPE; AIR,UNION TO AIR TANK L=810 SERVICED BY L=900	1-47428-813-0	01	1	0804-	●
45	PIPE; AIR,UNION TO AIR TANK L=813 SERVICED BY L=900	1-47428-813-0	01	1	0804-		●
51	UNION (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0712-0802	●
51	UNION (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0803-0803	●	●
51	UNION (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0804-	●
51	UNION (B) M12 ELBOW	0-92125-206-0	01	1	0712-0802		●
51	UNION (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0802		●
51	UNION (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0804-		●
97	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
124	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0712-	●	●
135	PIPE; AIR,UNION TO UNION L=1447 SERVICED BY L=1500	1-47428-819-0	01	1	0712-0802	●
135	PIPE; AIR,UNION TO UNION L=1155 SERVICED BY L=1200	1-47428-816-0	01	1	0803-0803	●	●
135	PIPE; AIR,UNION TO UNION L=1155 SERVICED BY L=1200	1-47428-816-0	01	1	0804-0912	●
135	PIPE; AIR,UNION TO UNION L=1202 SERVICED BY L=1250	1-47428-817-0	01	1	1001-	●
135	PIPE; AIR,UNION TO UNION L=1173 SERVICED BY L=1200	1-47428-816-0	01	1	0804-0912		●
135	PIPE; AIR,UNION TO UNION L=1220 SERVICED BY L=1250	1-47428-817-0	01	1	1001-		●
144	PIPE; AIR,UNION TO UNION (A) L=1274 SERVICED BY L=1370	1-47428-818-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (B) L=227	8-98084-353-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (C) L=1579 SERVICED BY L=1620	1-47428-820-0	01	1	0803-	●	●
189	BRACKET; FLEX HOSE (A)	8-98034-744-0	01	1	0712-0802	●
189	BRACKET; FLEX HOSE (A)	8-98034-744-0	01	1	0803-1005	●	●
189	BRACKET; FLEX HOSE (A)	8-98077-571-0	01	1	1006-	●	●
189	BRACKET; FLEX HOSE (B)	1-47471-361-0	01	1	0712-0802		●
202	ADAPTER DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0803-	●	●
213	UNION; AIR PIPE M12 L=40	0-92113-006-0	01	1	0712-0802	●
213	UNION; AIR PIPE M12 L=40	0-92113-006-0	01	1	0803-	●	●
238	PIPE; AIR,UNION TO UNION (A) L=1756 SERVICED BY L=1820	1-47428-822-0	01	1	0712-0802	●
238	PIPE; AIR,UNION TO UNION (A) L=1726 SERVICED BY L=1820	1-47428-822-0	01	1	0803-0811	●
238	PIPE; AIR,UNION TO UNION (A) L=1671 SERVICED BY L=1700	1-47428-821-0	01	1	0812-1003	●
238	PIPE; AIR,UNION TO UNION (A) L=1680 SERVICED BY L=1700	1-47428-821-0	01	1	1004-	●
238	PIPE; AIR,UNION TO UNION (B) L=801 SERVICED BY L=900	1-47428-813-0	01	1	0803-	●	●
238	PIPE; AIR,UNION TO UNION (A) L=1319	8-98111-261-1	01	1	0803-0811		●
238	PIPE; AIR,UNION TO UNION (A) L=1309 SERVICED BY L=1370	1-47428-818-0	01	1	0812-		●
239	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
239	UNION; AIR PIPE (B) M12 2WAY	1-09654-059-2	01	1	0803-	●	●
240	NUT; UNION,AIR PIPE M12 FLANGE	0-91180-212-0	01	1	0803-0804	●	●
240	NUT; UNION,AIR PIPE M12	0-91111-512-0	01	1	0805-	●	●
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0803-	●	●
243	UNION; AIR PIPE (B) M12 ELBOW	0-92125-206-0	01	1	0803-	●	●
251	PIPE; AIR,UNION TO MAG VLV (B) L=845 SERVICED BY L=900	1-47428-813-0	01	1	0712-0802	●
251	PIPE; AIR,UNION TO MAG VLV (A) L=1205 SERVICED BY L=1250	1-47428-817-0	01	1	0712-0802	●
251	PIPE; AIR,UNION TO MAG VLV (C) L=1136 SERVICED BY L=1200	1-47428-816-0	01	1	0803-0811	●	●
251	PIPE; AIR,UNION TO MAG VLV (C) L=1127 SERVICED BY L=1200	1-47428-816-0	01	1	0812-	●	●
264	HOSE; FLEX L=360	1-09363-823-0	01	1	0712-0802	●
264	HOSE; FLEX L=430	1-09363-623-0	01	1	0803-0803	●	●
264	HOSE; FLEX L=430	1-09363-623-0	01	1	0804-	●
264	HOSE; FLEX L=480	1-09363-659-0	01	1	0712-0802		●
264	HOSE; FLEX L=280	1-09363-610-0	01	1	0804-		●
272	PIPE; AIR,MAG VLV TO UNION (A) L=1424 SERVICED BY L=1500	1-47428-819-0	01	1	0712-0802	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> (C) L=2664 SERVICED BY L=2900	1-47428-828-0	01	1	0803-0803	●	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> (C) L=2664 SERVICED BY L=2900	1-47428-828-0	01	1	0804-0811	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> (C) L=2684 SERVICED BY L=2900	1-47428-828-0	01	1	0812-	●	●
272	PIPE; AIR,MAG VLV TO UNION (B) L=2100 SERVICED BY L=2200	1-47428-824-0	01	1	0712-0802		●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2604 SERVICED BY L=2650	1-47428-827-0	01	1	0803-0803	●	●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2604 SERVICED BY L=2650	1-47428-827-0	01	1	0804-0811	●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2624 SERVICED BY L=2650	1-47428-827-0	01	1	0812-0905	●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2624 SERVICED BY L=2650	1-47428-827-0	01	1	0906-	●	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> (C) L=2685 SERVICED BY L=2900	1-47428-828-0	01	1	0804-0811		●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2626 SERVICED BY L=2650	1-47428-827-0	01	1	0804-0811		●
287	PIPE; AIR,MAG VLV (A) L=1240 SERVICED BY L=1250	1-47428-817-0	01	1	0803-0803	●	●
287	PIPE; AIR,MAG VLV (A) L=1240 SERVICED BY L=1250	1-47428-817-0	01	1	0804-0811	●
287	PIPE; AIR,MAG VLV (A) L=1240 SERVICED BY L=1250	1-47428-817-0	01	1	0812-	●	●
287	PIPE; AIR,MAG VLV (A) L=964 SERVICED BY L=1000	1-47428-814-0	01	1	0712-0802		●
287	PIPE; AIR,MAG VLV (B) L=1156 SERVICED BY L=1200	1-47428-816-0	01	1	0803-0803	●	●
287	PIPE; AIR,MAG VLV (B) L=1156 SERVICED BY L=1200	1-47428-816-0	01	1	0804-	●
287	PIPE; AIR,MAG VLV (B) L=1189 SERVICED BY L=1200	1-47428-816-0	01	1	0804-		●
287	PIPE; AIR,MAG VLV (A) L=1219 SERVICED BY L=1250	1-47428-817-0	01	1	0804-0811		●
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0803-	●	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	0712-0802	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	02	1	0803-	●	●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
434	CLIP (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802	●
434	CLIP (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-0811	●	●
434	CLIP (H) ID=16 L=20	0-95235-536-0	01	1	0812-	●	●
434	CLIP (E) L=250	5-09707-030-1	01	1	0906-	●
434	CLIP (B) ID=35 L=33	1-09700-945-0	01	1	0712-0802	●	●
434	CLIP (G) ID=7 L=20	0-95234-635-0	01	1	0803-	●	●
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	0803-0803	●	●
434	CLIP (D) ID=6.35	1-09701-247-1	02	1	0804-0811	●	●
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	0812-	●	●
434	CLIP (A) ID=10 & 15	1-09709-279-1	01	1	0803-0811	●	●
434	CLIP (A) ID=10 & 15	1-09709-279-1	01	1	0812-	●
434	CLIP (F) ID=12 & 15	1-09709-281-1	01	1	0803-	●	●
434	CLIP (C)	8-98012-254-1	01	1	0804-	●	●
434	CLIP (E) L=600	1-09707-107-1	01	1	0906-	●	●
450	BRACKET; CLIP (A) L=95	1-82699-085-0	01	1	0712-0802	●
450	BRACKET; CLIP (A) L=95	1-82699-085-0	01	1	0803-0811	●	●
450	BRACKET; CLIP (A) L=115 B=25	1-47476-758-0	01	1	0812-	●	●
450	BRACKET; CLIP (B)	8-98074-610-0	01	1	0803-0811	●	●
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	0812-	●	●
467	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	0805-0811	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
