◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11421 - FTS(AUST)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#48807) — 51 parça

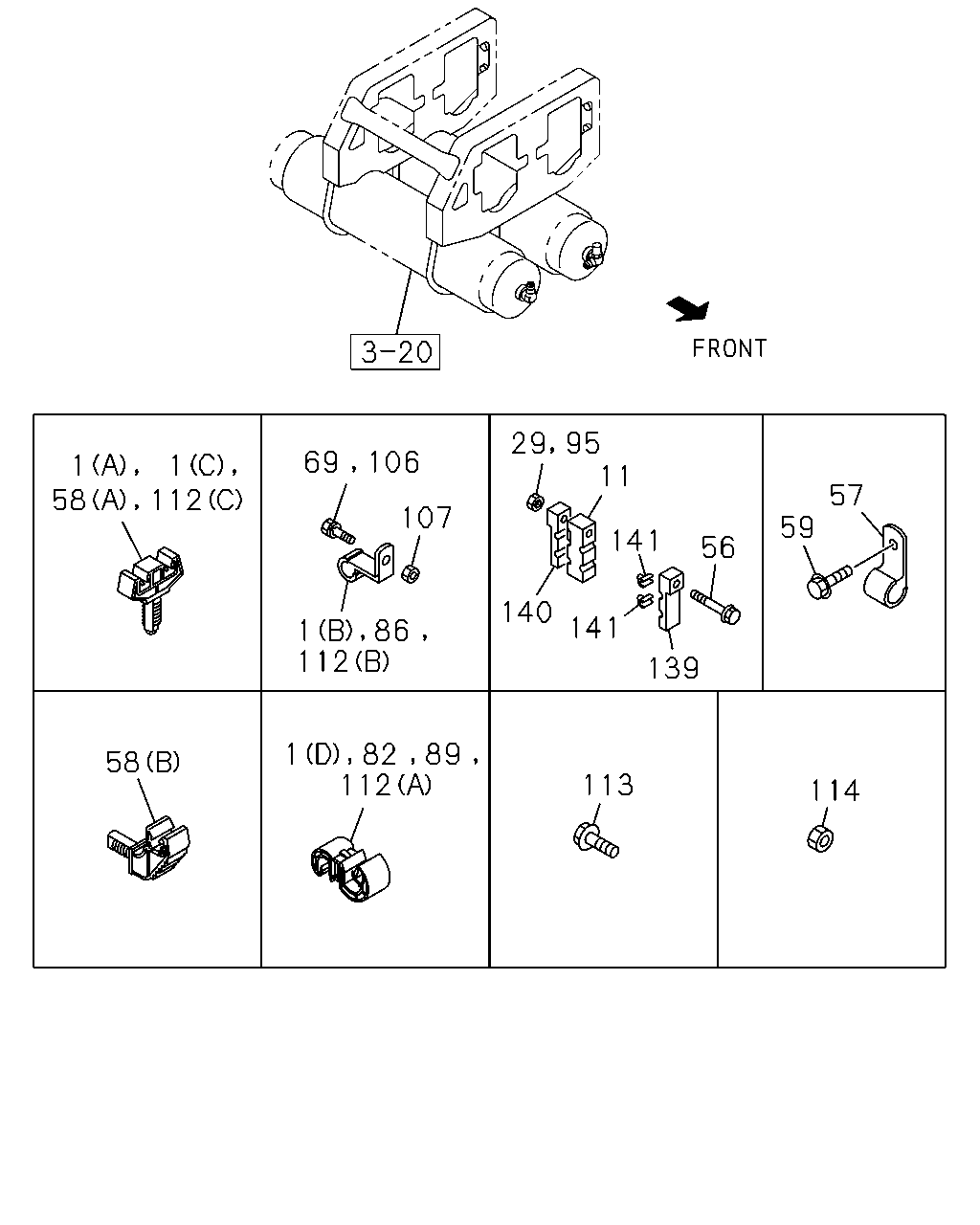

çizim 25343
11 69 106 1 112 1 58 57 107 59 141 56 140 141 112 139 112 58 113 114 95 29 89 82 1 1 86
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLIP; OIL PIPE TO BODY
(B) ID=6 H=20 L=20 		1-09700-603-0 03 1 0712-0802 ●
1 CLIP; OIL PIPE TO BODY
(C) ID=6.35 		1-09701-247-1 04 1 0803-0810 ● ●
1 CLIP; OIL PIPE TO BODY
(C) ID=6.35 		1-09701-247-1 05 1 0811- ● ●
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 05 1 0712-0802 ●
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 03 1 0803-0803 ● ●
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 03 1 0804- ●
1 CLIP; OIL PIPE TO BODY
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 0712-0802 ●
1 CLIP; OIL PIPE TO BODY
(D) ID=6.35 & 6.35 		1-09709-273-1 01 1 0803- ● ●
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 02 1 0712-0802 ●
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 02 1 0803- ● ●
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 04 1 0804- ●
11 CLIP; OIL PIPE
ID=10 		1-09709-242-0 01 1 0712-0802 ●
11 CLIP; OIL PIPE
ID=10 		1-09709-242-0 02 1 0803- ● ●
29 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0803-0806 ● ●
29 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0811- ● ●
56 BOLT; CLIP
M8X70 FLANGE 		0-28050-870-0 01 1 0712-0802 ●
56 BOLT; CLIP
M8X70 FLANGE 		0-28050-870-0 02 1 0803- ● ●
57 CLIP; BRK PIPE,RR AXLE
ID=7 L=20 		0-95234-635-0 07 1 0712- ● ●
58 CLIP; OIL PIPE
(A) ID=6.35 		1-09701-247-1 05 1 0712-0802 ●
58 CLIP; OIL PIPE
(B) 		8-98012-254-1 03 1 0712-0802 ●
58 CLIP; OIL PIPE
(B) 		8-98012-254-1 04 1 0803- ● ●
59 BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE 		0-28050-810-0 07 1 0712- ● ●
69 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
69 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0811 ● ●
69 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 04 1 0812- ●
69 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
82 CLIP; OIL PIPE
ID=6.35 & 10.0 		1-09709-274-1 02 1 0712-0804 ●
82 CLIP; OIL PIPE
ID=6.35 & 10.0 		1-09709-274-1 03 1 0805-0811 ●
86 CLIP; OIL PIPE
ID=6 H=20 L=20 		1-09700-603-0 02 1 0712-0802 ●
86 CLIP; OIL PIPE
ID=6 H=20 L=20 		1-09700-603-0 02 1 0803-0811 ● ●
86 CLIP; OIL PIPE
ID=6 H=20 L=20 		1-09700-603-0 04 1 0812- ●
86 CLIP; OIL PIPE
ID=6 H=20 L=20 		1-09700-603-0 02 1 0812- ●
89 CLIP; OIL PIPE
ID=6.35 & 6.35 		1-09709-273-1 02 1 0712-0802 ●
95 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
106 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 03 1 0712-0802 ●
106 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
107 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 03 1 0712-0802 ●
107 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
112 CLIP; OIL PIPE
(A) ID=6.35 & 6.35 		1-09709-273-1 01 1 0712-0802 ●
112 CLIP; OIL PIPE
(A) ID=6.35 & 6.35 		1-09709-273-1 01 1 0803- ● ●
112 CLIP; OIL PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 0712-0802 ●
112 CLIP; OIL PIPE
(C) 		8-98012-254-1 03 1 0803- ● ●
112 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 01 1 0712-0802 ●
113 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
114 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
139 CLIP; UPR
ID=10 & 10 		1-09709-241-0 01 1 0712-0802 ●
139 CLIP; UPR
ID=10 & 10 		1-09709-241-0 02 1 0803- ● ●
140 CLIP; LWR
ID=10 & 10 		1-09709-241-0 01 1 0712-0802 ●
140 CLIP; LWR
ID=10 & 10 		1-09709-241-0 02 1 0803- ● ●
141 COLLAR
ID=6 		1-47459-010-0 04 1 0712-0802 ●
141 COLLAR
ID=6 		1-47459-010-0 08 1 0803- ● ●
