3-55 — BRAKE PIPING; OIL,REAR (#48806) — 34 parça

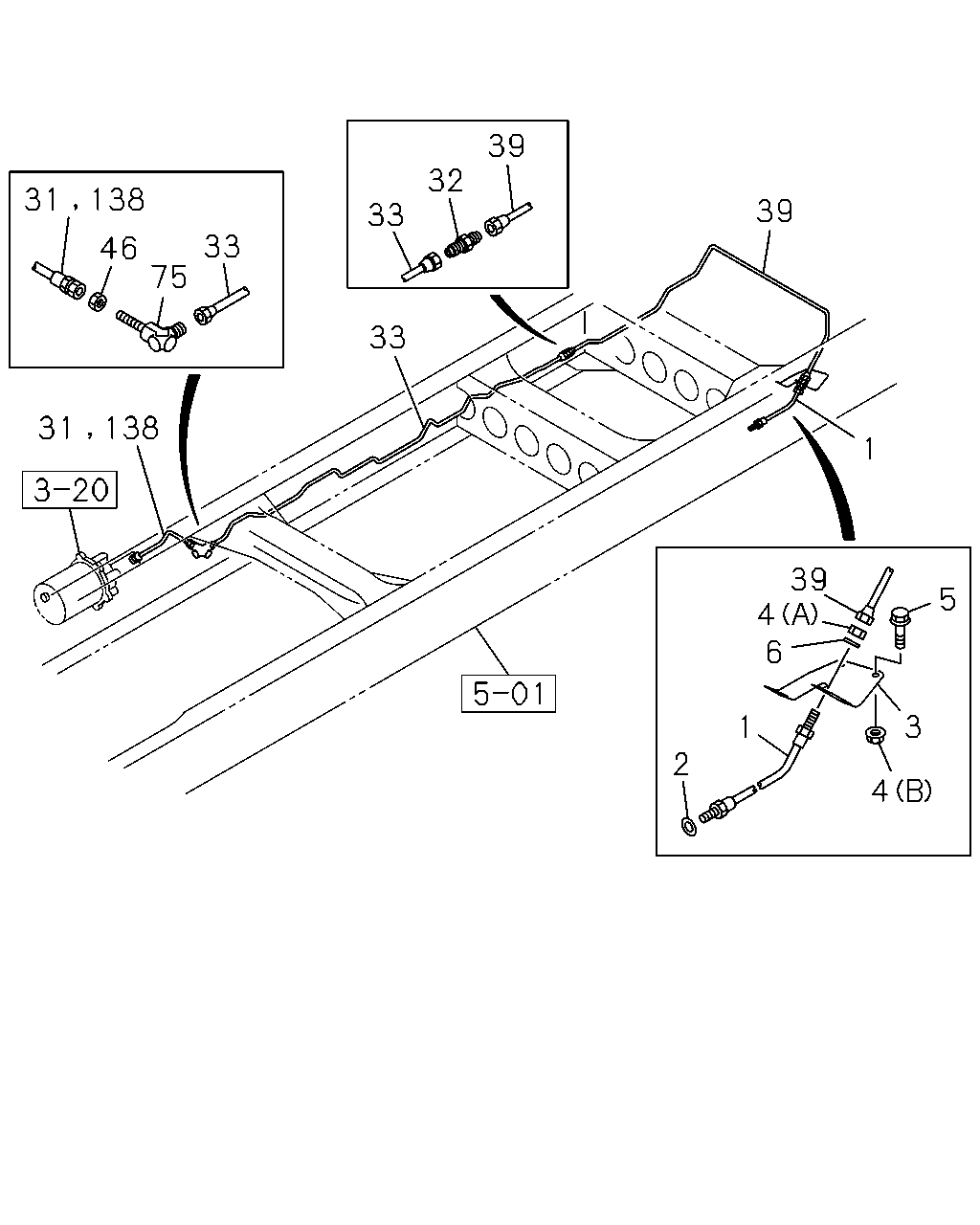

çizim 23116
39 32 31 138 39 33 33 46 75 33 31 138 1 39 4 6 5 3 1 2 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
L=730 		0-05312-730-0 01 1 0712-0901 ● ●
1 HOSE; FLEX,RR BRK
L=730 		0-05212-730-0 01 1 0902- ● ●
2 GASKET; FLEX HOSE,RR BRK
ID=9 OD=17 		9-09920-472-0 01 1 0712- ● ●
3 BRACKET; FLEX HOSE,RR BRK 1-47478-271-0 01 1 0712-0810 ● ●
3 BRACKET; FLEX HOSE,RR BRK 8-98093-620-0 01 1 0811- ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
(A) M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
(B) M12 		9-09840-280-0 01 1 0712- ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 0803- ● ●
6 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 01 1 0712-0802 ● ●
31 PIPE; OIL,AIR MASTER TO UNION
L=305 		8-98054-041-0 01 1 0712-0802 ●
32 UNION; OIL PIPE
M12 L=40 		0-92113-006-0 01 1 0712- ● ●
33 PIPE; OIL,UNION TO UNION
L=2013 SERVICED BY L=2200 		1-47428-740-0 01 1 0712-0802 ●
33 PIPE; OIL,UNION TO UNION
L=2108 SERVICED BY L=2200 		1-47428-740-0 01 1 0803-0803 ● ●
33 PIPE; OIL,UNION TO UNION
L=2108 SERVICED BY L=2200 		1-47428-740-0 01 1 0804-0811 ●
33 PIPE; OIL,UNION TO UNION
L=2044 SERVICED BY L=2200 		1-47428-740-0 01 1 0812-1003 ●
33 PIPE; OIL,UNION TO UNION
L=2052 		8-98167-793-1 01 1 1004- ●
33 PIPE; OIL,UNION TO UNION
L=1653 SERVICED BY L=1700 		1-47428-737-0 01 1 0712-0802 ●
33 PIPE; OIL,UNION TO UNION
L=2025 SERVICED BY L=2200 		1-47428-740-0 01 1 0804-0811 ●
33 PIPE; OIL,UNION TO UNION
L=2025 SERVICED BY L=2200 		1-47428-740-0 01 1 0812- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=1778 SERVICED BY L=1820 		1-47428-738-0 01 1 0712-0802 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=1835 SERVICED BY L=2000 		1-47428-739-0 01 1 0803-0811 ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=1807 SERVICED BY L=1820 		1-47428-738-0 01 1 0812- ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=1772 SERVICED BY L=1820 		1-47428-738-0 01 1 0712-0802 ●
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 0712-0802 ●
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 0803- ● ●
46 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 0712-0802 ●
75 UNION; OIL PIPE
M12 ELBOW 		0-92125-206-0 01 1 0712- ● ●
138 PIPE; HYDRAULIC UNIT
L=272 		8-98084-367-0 01 1 0712-0802 ●
138 PIPE; HYDRAULIC UNIT
L=413 		8-98108-551-0 01 1 0803-0811 ●
138 PIPE; HYDRAULIC UNIT
L=531 SERVICED BY L=550 		1-47428-724-0 01 1 0812- ●
138 PIPE; HYDRAULIC UNIT
L=843 SERVICED BY L=900 		1-47428-729-0 01 1 0803- ●

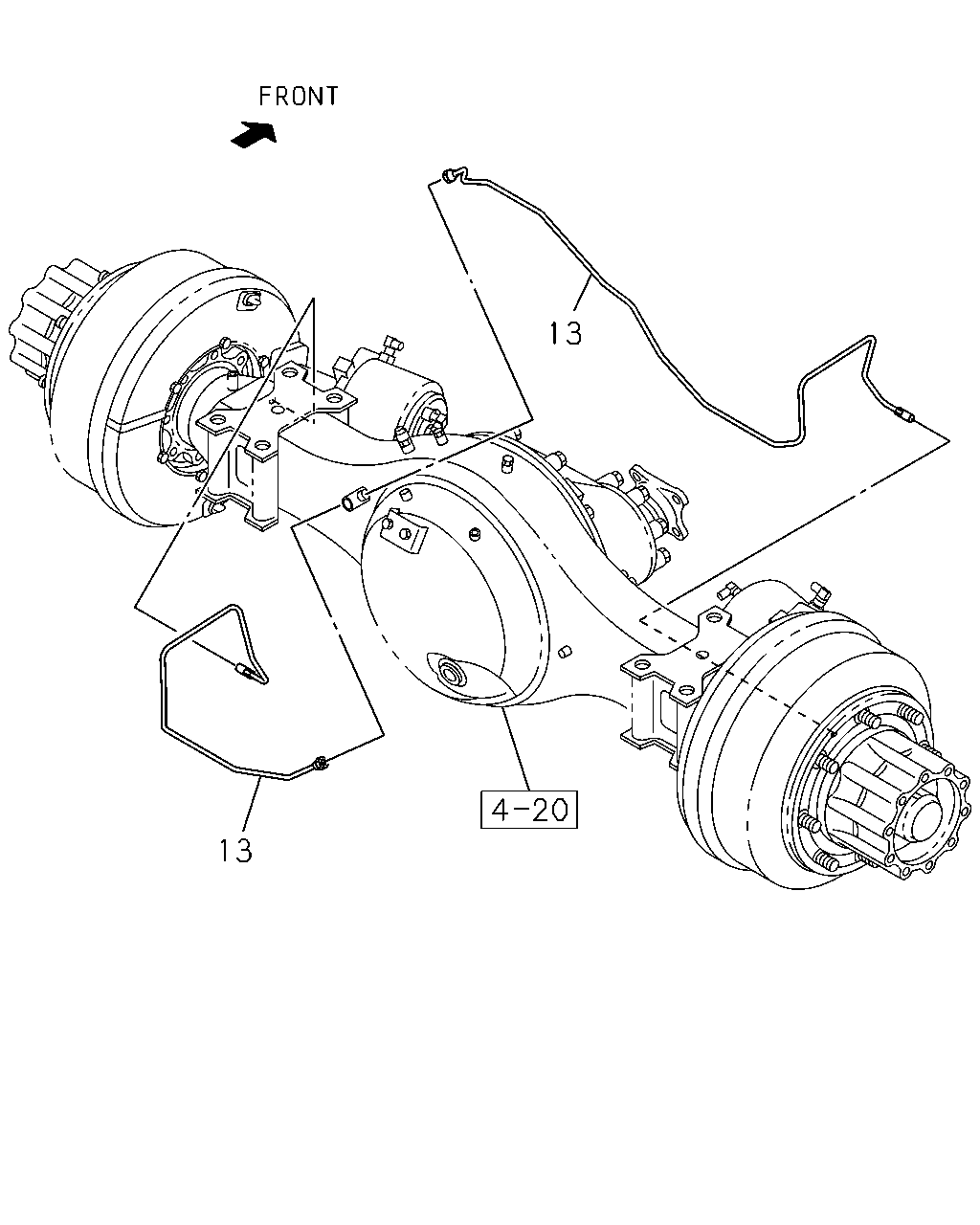

çizim 25372
13 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; BRK,RR AXLE 8-98081-701-0 01 1 0712- ● ●
13 PIPE; BRK,RR AXLE 8-98081-703-0 01 1 0712- ● ●
