3-34 — BRAKE VALVE; AIR (#48802) — 21 parça

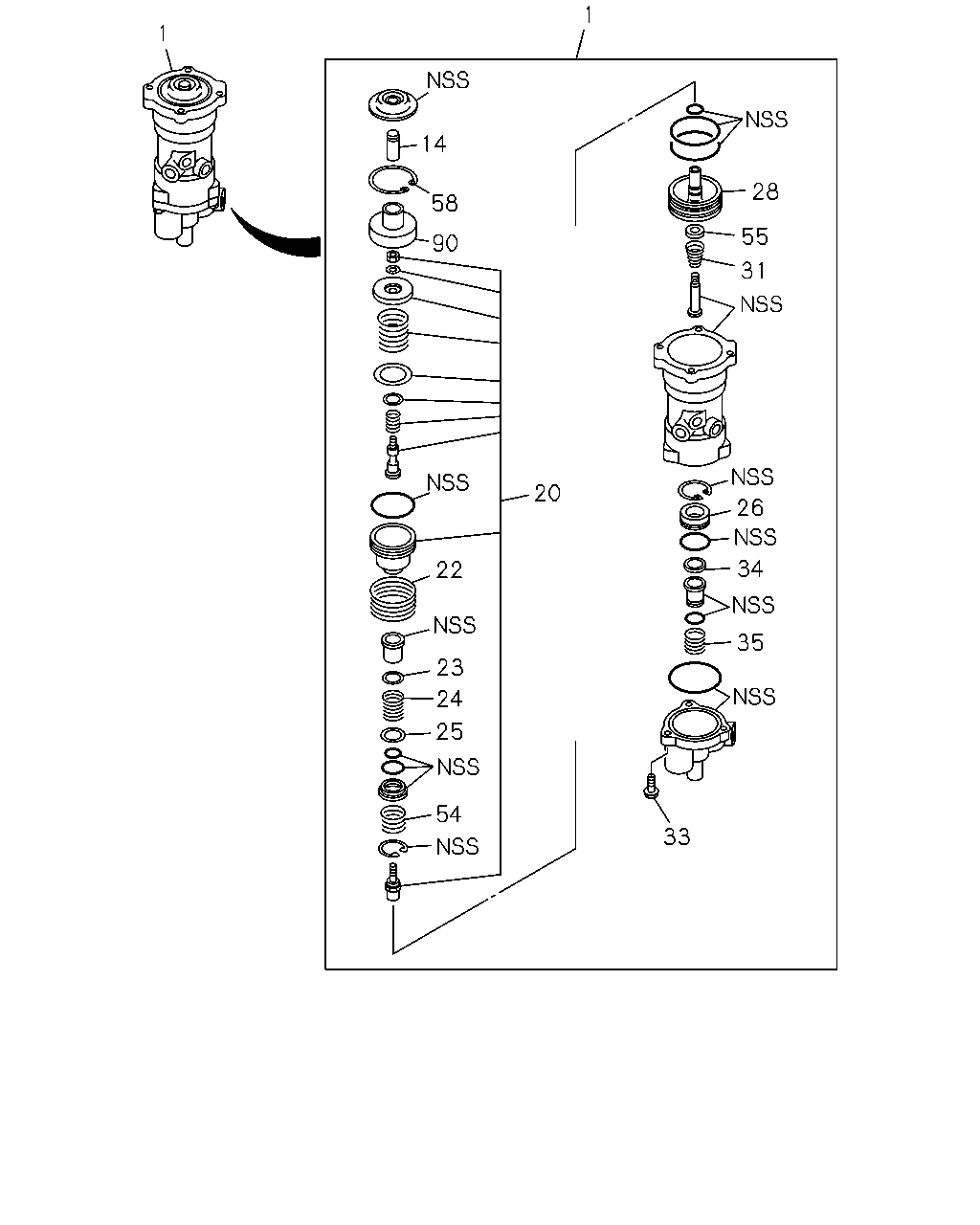

çizim 25528
1 1 14 28 58 55 90 31 20 26 34 22 35 23 24 25 54 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; BRK 1-48100-924-0 01 1 0712-1211 ● ●
1 VALVE; BRK 8-98222-789-0 01 1 1212- ● ●
14 PLUNGER; BRK VLV 1-48119-641-0 01 1 0712- ● ●
20 PISTON; UPR,BRK VLV 1-48119-644-0 01 1 0712- ● ●
22 SPRING; PISTON,LWR,BRK VLV 1-48123-076-0 01 1 0712- ● ●
23 WASHER; UPR,BRK VLV 1-48129-299-0 01 1 0712- ● ●
24 SPRING; UPR,BRK VLV 1-48123-077-0 01 1 0712- ● ●
25 WASHER; PISTON,BRK VLV 1-48129-300-0 01 1 0712- ● ●
26 RETAINER; VLV,BRK VLV 1-48129-308-0 01 1 0712- ● ●
28 PISTON; LWR,BRK VLV 1-48129-302-0 01 1 0712- ● ●
31 SPRING; VLV,BRK VLV 1-48123-079-0 01 1 0712- ● ●
33 BOLT; BODY,BRK VLV 1-48119-213-0 03 1 0712- ● ●
34 RETAINER; VLV,BRK VLV 1-48129-307-0 01 1 0712- ● ●
35 SPRING; VLV,BRK VLV 1-48123-078-0 01 1 0712- ● ●
54 SPRING; PISTON,UPR,BRK VLV 1-48123-075-0 01 1 0712- ● ●
55 RETAINER; PLATE,BRK VLV 1-48129-305-0 01 1 0712- ● ●
58 RING; RET,EXH,BRK VLV 1-48219-198-0 01 1 0712- ● ●
90 GUIDE; PLUNGER 1-48119-642-0 01 1 0712- ● ●
çizim 25775
2 58
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; BRK VLV 1-85576-454-0 01 1 0712-1211 ● ●
2 REPAIR KIT; BRK VLV 8-98222-820-0 01 1 1212- ● ●
58 RING; RET,EXH,BRK VLV 1-48219-198-0 01 1 0712- ● ●
