4-42 — POWER STEERING OIL PUMP (#4880) — 50 parça

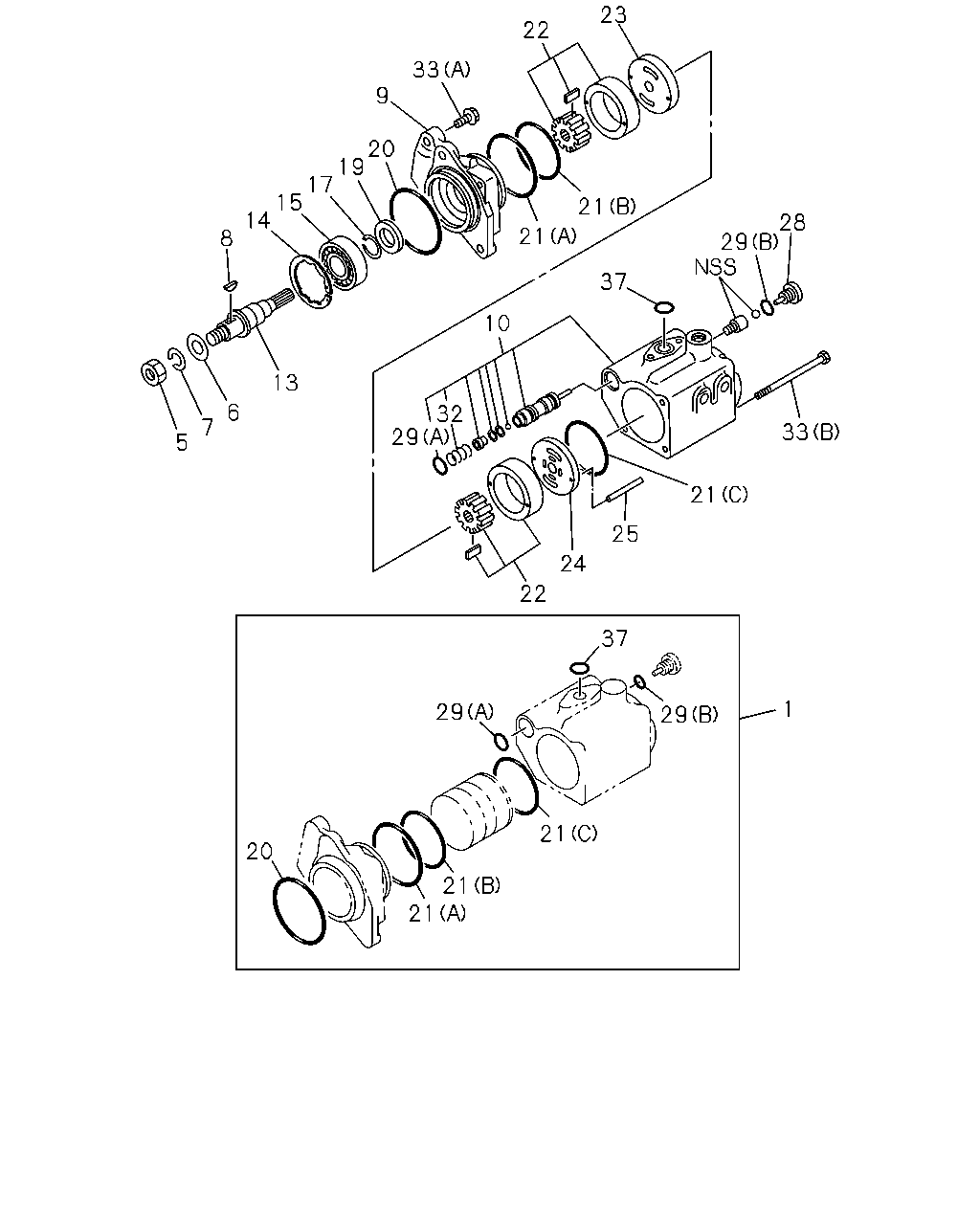

çizim 8274
23 22 33 9 20 19 17 15 14 21 28 29 21 8 37 10 13 6 32 29 7 33 5 21 25 24 22 37 1 29 29 21 20 21 21
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-85574-049-0 01 1 -
5 NUT; SHAFT,P/S PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		9-88510-424-0 01 1 -
6 WASHER; PL,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-293-0 01 1 -
7 WASHER; SHAFT
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		9-88510-425-0 01 1 -
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		9-19519-036-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 1-19500-447-0 		1-19511-130-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: B = 1-19500-563-0 		1-19511-166-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19511-131-0 01 1 -
13 SHAFT KIT; RET
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19521-018-0 01 1 -
14 RING; RET,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-135-0 01 1 -
15 BEARING; BALL,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19515-004-0 01 1 -
17 RING; RET
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-177-0 01 1 -
19 SEAL; OIL,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-252-0 01 1 -
21 GASKET; FRT COVER TO BODY
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-314-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-311-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-234-0 01 1 -
24 PLATE ASM; THRUST
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-312-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		9-88510-421-0 02 1 -
28 PLUG; DRAIN,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-230-0 01 1 -
29 GASKET; PLUG TO VLV
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		9-88510-248-0 01 1 -
32 SPRING; OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		9-19529-013-0 01 1 -
33 BOLT; COVER
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-245-0 04 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-292-0 01 1 -

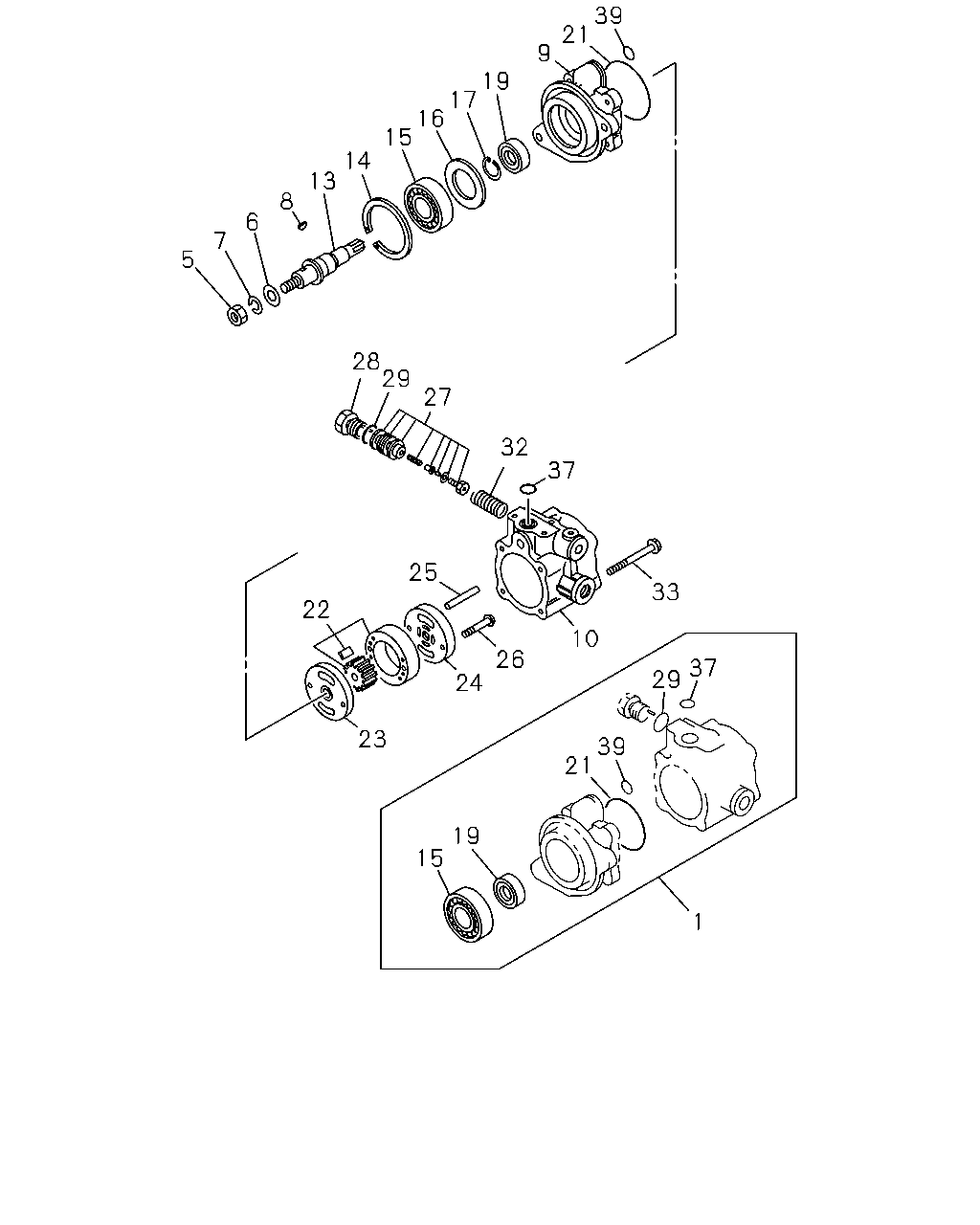

çizim 41533
39 21 9 19 17 16 15 14 13 8 6 7 5 28 29 27 32 37 25 33 22 10 26 37 29 24 23 39 21 19 15 1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-85574-049-0 01 1 -
5 NUT; SHAFT,P/S PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		9-88510-424-0 01 1 -
6 WASHER; PL,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-293-0 01 1 -
7 WASHER; SHAFT
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		9-88510-425-0 01 1 -
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		9-19519-036-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 1-19500-447-0 		1-19511-130-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: B = 1-19500-563-0 		1-19511-166-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19511-131-0 01 1 -
13 SHAFT KIT; RET
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19521-018-0 01 1 -
14 RING; RET,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-135-0 01 1 -
15 BEARING; BALL,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19515-004-0 01 1 -
16 RING; RET,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		9-19519-078-0 01 1 -
17 RING; RET
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-177-0 01 1 -
19 SEAL; OIL,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-252-0 01 1 -
21 GASKET; FRT COVER TO BODY
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-314-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-311-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-234-0 01 1 -
24 PLATE ASM; THRUST
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-312-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		9-88510-421-0 02 1 -
26 SCREW; PLATE
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-142-0 02 1 -
27 VALVE ASM; OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-183-1 01 1 -
28 PLUG; DRAIN,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-230-0 01 1 -
29 GASKET; PLUG TO VLV
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		9-88510-248-0 01 1 -
32 SPRING; OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		9-19529-013-0 01 1 -
33 BOLT; COVER
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-245-0 04 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-292-0 01 1 -
39 GASKET; OIL PUMP
ASM PART: A = 1-19500-447-0, B = 1-19500-563-0 		1-19519-313-0 01 1 -
