3-22 — AIR CONTROL PARTS (#48799) — 30 parça

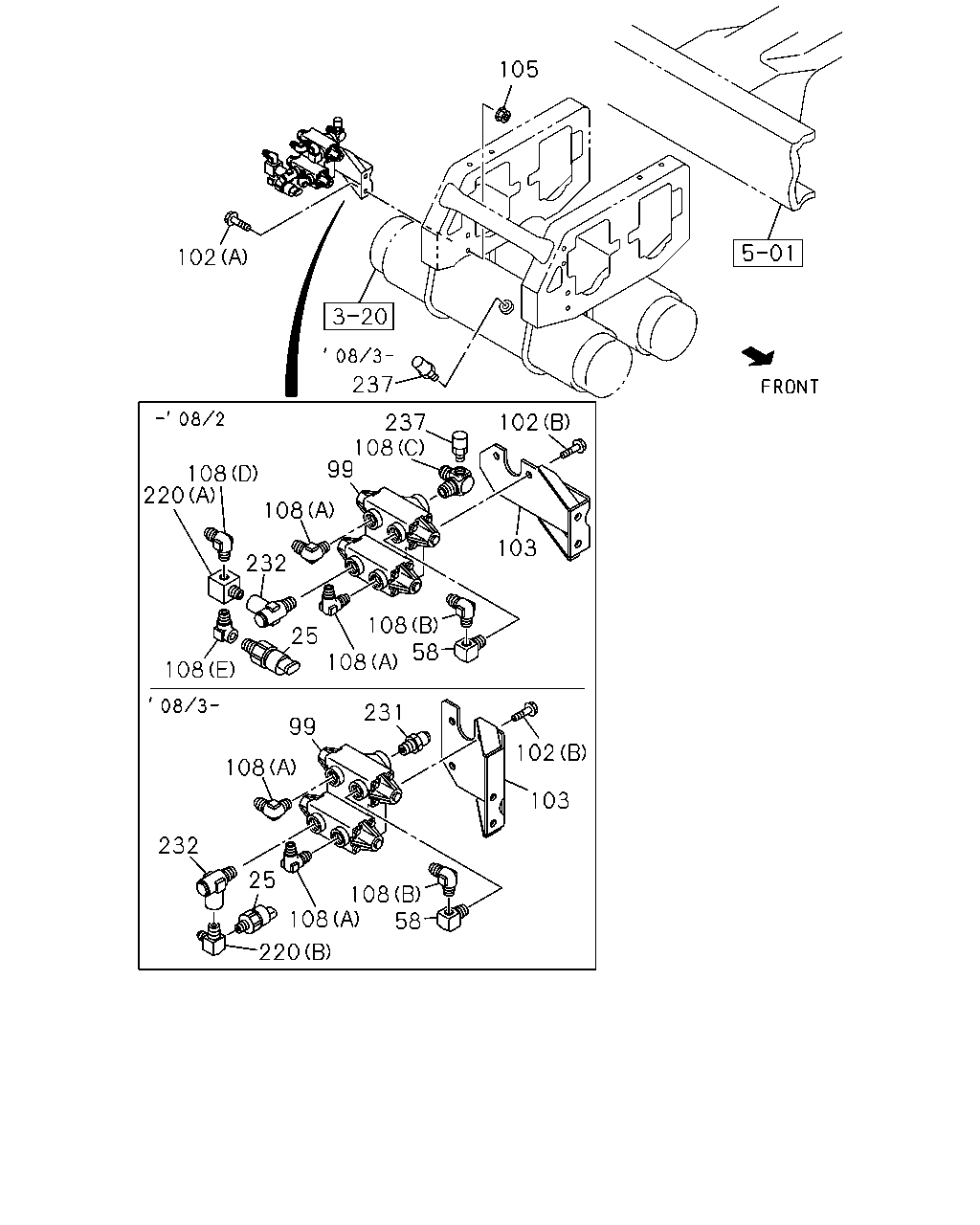

çizim 25432
105 102 237 237 108 99 102 108 220 108 103 232 108 58 25 108 108 231 99 102 108 103 232 25 108 58 108 220
BalonParca AdiParca NoAdetTipApplied Date A B
25 SWITCH; PRESSURE
STAMP 5.5 		8-97609-249-0 01 1 0712- ● ●
58 ADAPTER
PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712- ● ●
99 VALVE; PROTECTION 1-48110-294-2 01 1 0712- ● ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ● ●
102 BOLT; PROTECTION VALVE
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ● ●
103 BRACKET; PROTECTION VALVE 8-98098-183-0 01 1 0712-0802 ●
103 BRACKET; PROTECTION VALVE 8-98111-527-1 01 1 0803- ● ●
103 BRACKET; PROTECTION VALVE 8-97615-744-0 01 1 0712-0802 ●
105 NUT; BRKT,VALVE
M10 FLANGE 		0-91180-210-0 02 1 0712-0803 ● ●
108 CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0712- ● ●
108 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0712- ● ●
108 CONNECTOR; ELBOW
(C) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0712-0802 ● ●
108 CONNECTOR; ELBOW
(E) PT1/4 2WAY 		1-09660-693-0 01 1 0712-0802 ● ●
108 CONNECTOR; ELBOW
(D) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0712-0802 ●
220 CONNECTOR; 3WAY
(A) 		1-09656-734-0 01 1 0712-0802 ●
220 CONNECTOR; 3WAY
(B) 		1-09656-698-0 01 1 0803- ● ●
220 CONNECTOR; 3WAY
(A) 		1-09656-708-0 01 1 0712-0802 ●
231 CONNECTOR; NYLON TUBE
M20 & PT1/2 STRAIGHT 		1-09650-249-1 01 1 0803- ● ●
232 VALVE; CHECK 8-98032-527-0 01 1 0712- ● ●
237 VALVE; SAFETY 1-48320-012-2 01 1 0712- ● ●

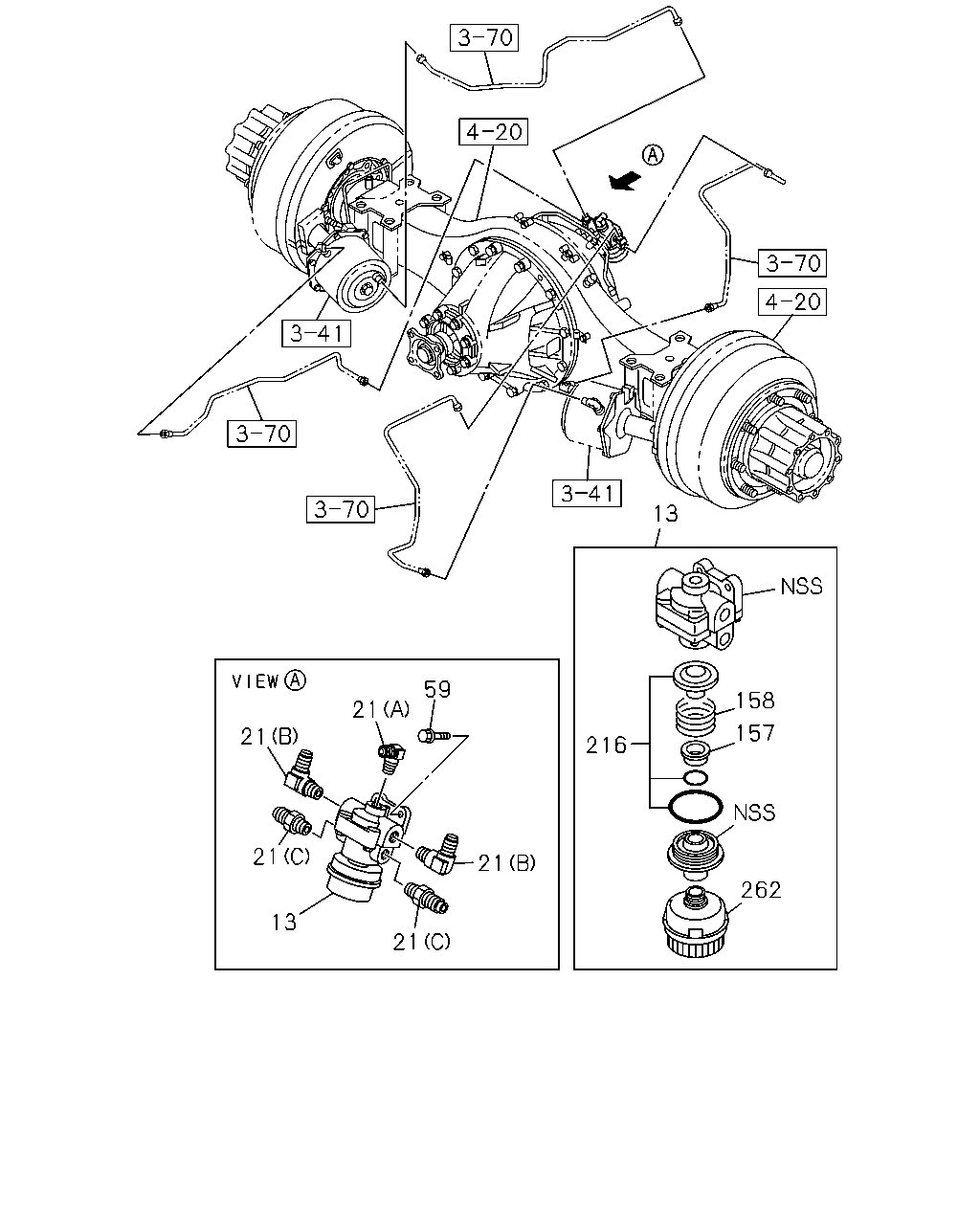

çizim 25524
13 216 158 157 262 21 21 13 21 21 21 59
BalonParca AdiParca NoAdetTipApplied Date A B
13 VALVE ASM; QUICK RELEASE 1-48410-781-2 01 1 0712- ● ●
21 CONNECTOR; QUICK RELEASE VLV
(C) M14 & PT1/4 STRAIGHT 		1-09650-332-1 02 1 0712- ● ●
21 CONNECTOR; QUICK RELEASE VLV
(B) M14 & PT3/8 ELBOW 		1-09650-437-0 02 1 0712- ● ●
21 CONNECTOR; QUICK RELEASE VLV
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0712- ● ●
59 BOLT; RELEASE VALVE FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0906 ● ●
59 BOLT; RELEASE VALVE FIX
M8X20 FLANGE 		0-28050-820-0 02 1 0907- ● ●
157 RETAINER; VALVE 1-48419-036-0 01 1 0810- ● ●
158 SPRING; VALVE 9-48419-003-0 01 1 0810- ● ●
216 REPAIR KIT; QUICK RELEASE VLV 1-85579-062-0 01 1 0810- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0810- ● ●
