◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11421 - FTS(AUST)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#48798) — 154 parça

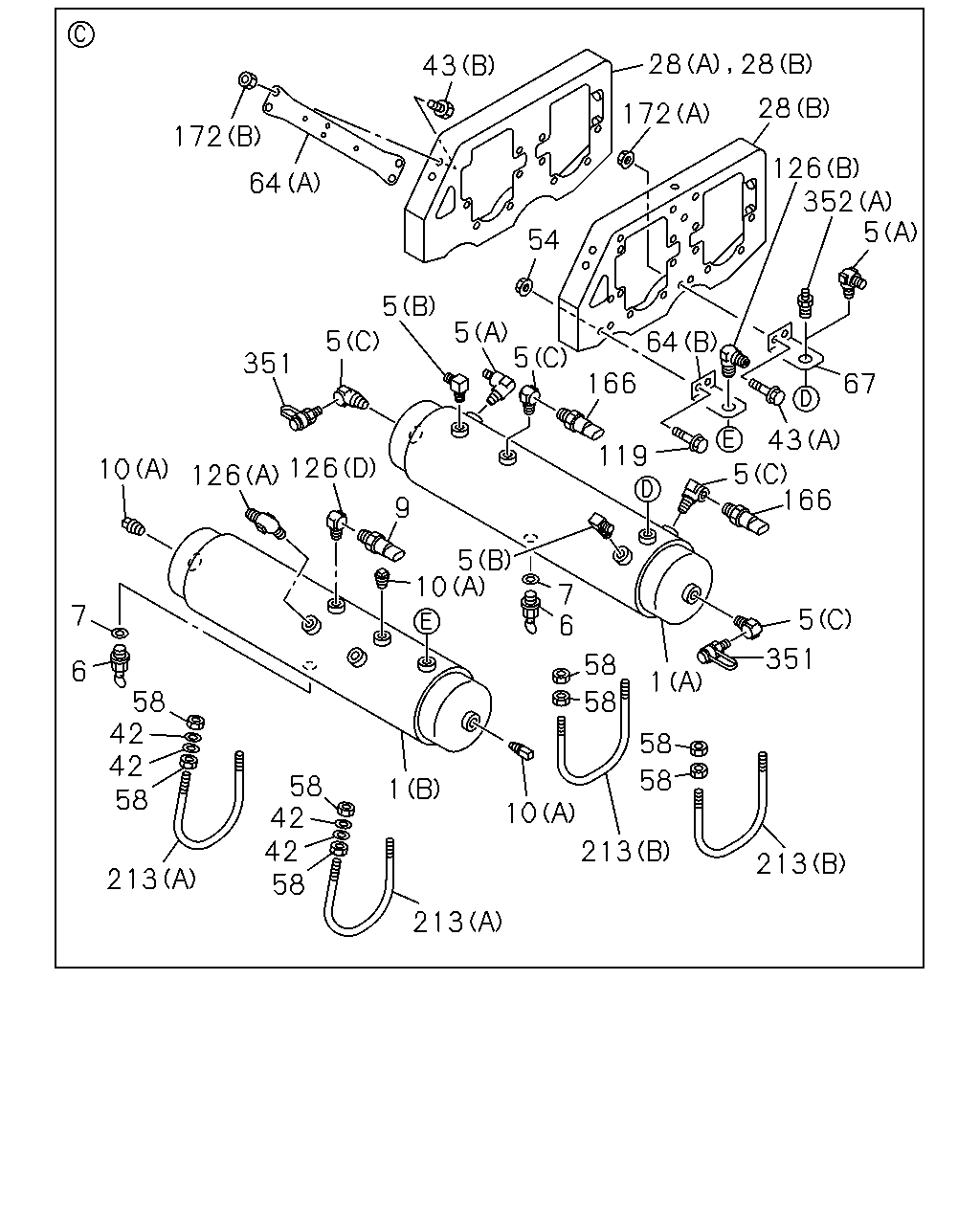

çizim 98964
28 28 43 172 28 172 126 352 5 64 54 64 5 5 5 5 351 166 67 43 5 166 119 126 10 126 9 5 10 7 6 7 5 351 58 6 1 58 42 42 58 58 58 58 58 42 42 58 1 10 213 213 213 213
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(C) 		8-98090-803-1 01 1 0712-0712 ●
1 TANK ASM; AIR
(C) 		8-98090-803-1 01 1 0801-0906 ● ●
1 TANK ASM; AIR
(C) 		8-98081-870-1 01 1 0907- ● ●
1 TANK ASM; AIR
(B) 		1-48330-598-0 01 1 0712- ● ●
1 TANK ASM; AIR
(A) 		1-48370-541-0 01 1 0712- ● ●
5 UNION; AIR TANK
(D) M12 & PT3/8 ELBOW 		1-09650-436-0 02 1 0712-0712 ●
5 UNION; AIR TANK
(D) M12 & PT3/8 ELBOW 		1-09650-436-0 02 1 0801- ● ●
5 UNION; AIR TANK
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0712-0802 ● ●
5 UNION; AIR TANK
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0803- ● ●
5 UNION; AIR TANK
(B) 		1-09650-449-1 02 1 0712-0802 ● ●
5 UNION; AIR TANK
(B) 		8-98111-509-0 02 1 0803- ● ●
5 UNION; AIR TANK
(C) PT1/4 2WAY 		1-09660-693-0 02 1 0712-0802 ● ●
5 UNION; AIR TANK
(C) PT1/4 2WAY 		1-09660-693-0 04 1 0803- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0712-0712 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 0712- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0712-0712 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0712- ● ●
9 SWITCH; LOW PRESSURE GAGE,AIR TANK 8-97615-622-0 01 1 0712- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0712-0712 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0801- ● ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 03 1 0712- ● ●
28 BRACKET; AIR TANK
(B) 		1-53318-338-6 02 1 0712-0802 ●
28 BRACKET; AIR TANK
(B) 		1-53318-338-6 02 1 0803- ● ●
28 BRACKET; AIR TANK
(C) 		8-98088-205-0 01 1 0712-0712 ●
28 BRACKET; AIR TANK
(C) 		8-98100-165-3 01 1 0801- ● ●
28 BRACKET; AIR TANK
(B) 		1-53318-338-6 01 1 0712-0802 ●
28 BRACKET; AIR TANK
(A) 		1-53318-378-1 01 1 0712-0802 ●
42 WASHER; PL
ID=8.4 OD=18 		0-91610-608-0 04 1 0712- ● ●
43 BOLT; STAY,AIR TANK,MAIN
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
43 BOLT; STAY,AIR TANK,MAIN
(B) M10X25 FLANGE 		0-28651-025-0 04 1 0712- ● ●
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
58 NUT; BAND,AIR TANK
M8 		0-91110-508-0 16 1 0712- ● ●
64 STAY; AIR TANK,MAIN
(A) 		1-53318-293-1 01 1 0712- ● ●
64 STAY; AIR TANK,MAIN
(B) 		8-94301-490-0 01 1 0712- ● ●
67 STAY; SUB TANK 1-48317-349-0 01 1 0712-0802 ● ●
67 STAY; SUB TANK 8-97614-753-0 01 1 0803- ● ●
119 BOLT; STAY
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
126 CONNECTOR; ELBOW
(B) M20 & PT3/4 ELBOW 		8-98067-083-1 01 1 0712-0802 ●
126 CONNECTOR; ELBOW
(B) M20 & PT3/4 ELBOW 		8-98067-083-1 01 1 0803- ● ●
126 CONNECTOR; ELBOW
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 01 1 0712- ● ●
126 CONNECTOR; ELBOW
(B) M20 & PT3/4 		1-09650-261-2 01 1 0712-0802 ●
126 CONNECTOR; ELBOW
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0803- ● ●
126 CONNECTOR; ELBOW
(C) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0712-0802 ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK 8-97615-622-0 02 1 0712- ● ●
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE 		0-91180-210-0 04 1 0712- ● ●
213 BOLT; U AIR TANK
(A) L=97.5 		1-48317-323-1 02 1 0712- ● ●
213 BOLT; U AIR TANK
(B) L=195 		1-48317-367-2 02 1 0712- ● ●
351 CONNECTOR; TEST 1-47459-013-1 02 1 0712- ● ●
352 CONNECTOR; STRAIGHT
(B) 		1-09650-283-1 01 1 0712-0712 ●
352 CONNECTOR; STRAIGHT
(B) 		1-09650-283-1 01 1 0801- ● ●
352 CONNECTOR; STRAIGHT
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 0712-0802 ● ●

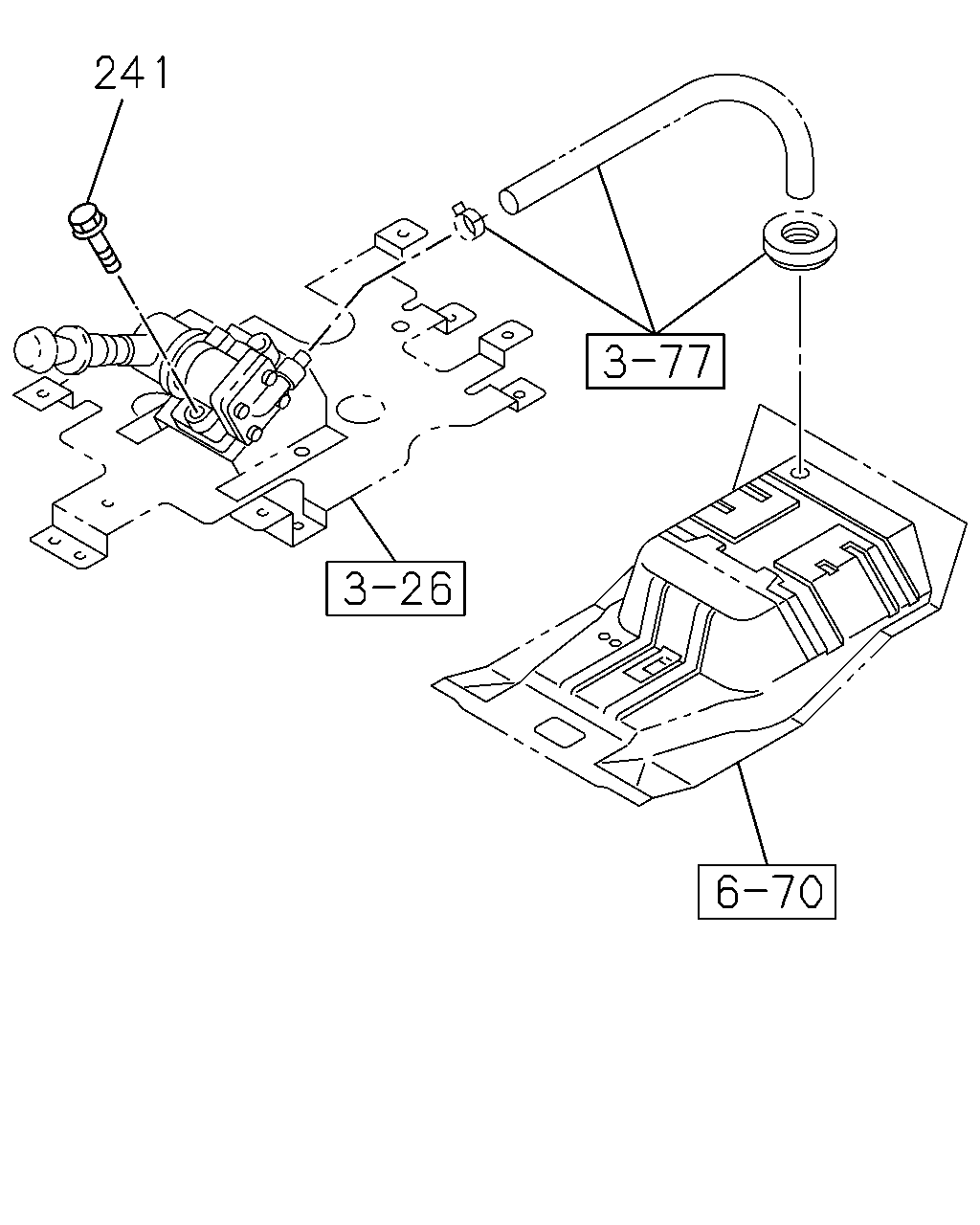

çizim 99039
241
BalonParca AdiParca NoAdetTipApplied Date A B
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 0712- ● ●

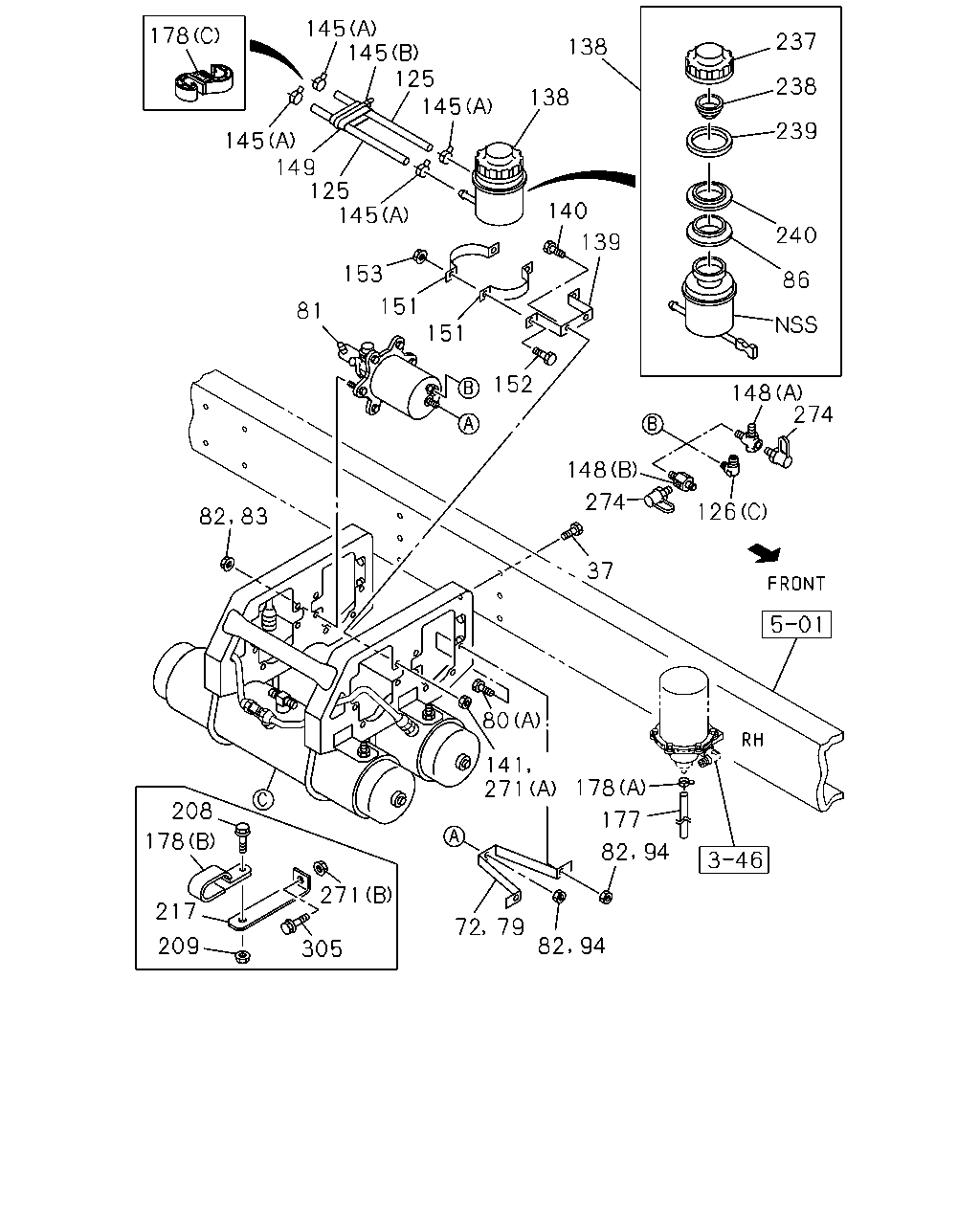

çizim 99160
145 145 125 145 178 237 138 238 138 239 145 149 125 145 140 240 139 153 86 151 81 151 152 148 274 148 274 126 37 80 141 271 178 208 177 178 271 217 72 79 209 305 82 82 94 94 83 82
BalonParca AdiParca NoAdetTipApplied Date A B
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 06 1 0712- ● ●
72 BRACKET; AIR MASTER 1-53318-347-0 02 1 0803-0805 ● ●
72 BRACKET; AIR MASTER 8-98120-254-0 02 1 0806- ● ●
79 STAY; AIR MASTER TO BRKT 1-53318-347-0 02 1 0712-0802 ● ●
80 BOLT; BRKT
(B) M10X20 FLANGE 		0-28651-020-0 04 1 0712-0802 ●
80 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 03 1 0803- ● ●
80 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0712- ● ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-665-1 02 1 0712- ● ●
82 NUT; STAY,AIR MASTER BRKT
M10 FLANGE 		0-91180-210-0 12 1 0712-0802 ●
82 NUT; STAY,AIR MASTER BRKT
M10 FLANGE 		0-91180-210-0 10 1 0712-0802 ●
83 NUT; AIR MASTER
M10 FLANGE 		0-91180-210-0 08 1 0803- ● ●
86 SEAL; DUST 1-47529-019-0 01 1 0712- ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 0712-0802 ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 10 1 0803-0811 ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 06 1 0812- ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 0803- ● ●
125 HOSE; OIL TANK TO AIR MASTER 8-98098-558-0 01 1 0712-0802 ●
125 HOSE; OIL TANK TO AIR MASTER 8-98098-558-0 01 1 0803- ● ●
125 HOSE; OIL TANK TO AIR MASTER
L=270 SERVICED BY L=1800 		1-09360-320-0 01 1 0712-0802 ● ●
125 HOSE; OIL TANK TO AIR MASTER
L=445 SERVICED BY L=1800 		1-09360-320-0 01 1 0803-0803 ● ●
125 HOSE; OIL TANK TO AIR MASTER
L=270 SERVICED BY L=1800 		1-09360-320-0 01 1 0804- ● ●
125 HOSE; OIL TANK TO AIR MASTER
L=445 SERVICED BY L=1800 		1-09360-320-0 01 1 0712-0802 ●
126 CONNECTOR; ELBOW
(B) M20 & PT3/4 ELBOW 		8-98067-083-1 01 1 0712-0802 ●
126 CONNECTOR; ELBOW
(B) M20 & PT3/4 ELBOW 		8-98067-083-1 01 1 0803- ● ●
126 CONNECTOR; ELBOW
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 01 1 0712- ● ●
126 CONNECTOR; ELBOW
(B) M20 & PT3/4 		1-09650-261-2 01 1 0712-0802 ●
126 CONNECTOR; ELBOW
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0803- ● ●
126 CONNECTOR; ELBOW
(C) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0712-0802 ●
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 0712- ● ●
139 BRACKET; OIL TANK 1-47537-081-2 01 1 0712- ● ●
140 BOLT; OIL TANK TO BRKT
M10X20 FLANGE 		0-28651-020-0 02 1 0712- ● ●
141 NUT; OIL TANK TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712-0802 ● ●
145 CLIP; OIL TANK TO AIR MASTER HOSE
(A) ID=14 		1-09704-102-0 04 1 0712- ● ●
145 CLIP; OIL TANK TO AIR MASTER HOSE
(B) L=140 		5-09707-031-1 01 1 0712-0802 ● ●
148 CONNECTOR; AIR MASTER
(A) 		1-09656-462-1 02 1 0712-0802 ●
148 CONNECTOR; AIR MASTER
(A) 		1-09656-462-1 01 1 0803- ● ●
148 CONNECTOR; AIR MASTER
(B) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 0803- ● ●
149 SLEEVE; RUBBER,HOSE
ID=23 OD=27 L=40 		1-09337-015-0 01 1 0712-0802 ● ●
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 0712- ● ●
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
177 HOSE; RUBBER,DRAIN
L=55 SERVICED BY L=3000 		0-03566-300-0 01 1 0712- ● ●
178 CLIP; HOSE
(A) ID=21 		8-94242-034-0 02 1 0712- ● ●
178 CLIP; HOSE
(C) ID=12 & 12 		1-09709-280-1 01 1 0803- ● ●
178 CLIP; HOSE
(B) 		9-09917-171-0 01 1 0803- ● ●
208 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803- ● ●
209 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803- ● ●
217 BRACKET; RUBBER HOSE
L=112 		1-47475-694-1 01 1 0803- ● ●
237 CAP; OIL TANK 1-47525-030-0 01 1 0712- ● ●
238 PLATE; BAFFLE 1-47529-022-0 01 1 0712- ● ●
239 FILTER; DUST 1-47529-017-0 01 1 0712- ● ●
240 HOLDER; FILTER 1-47529-018-0 01 1 0712- ● ●
271 NUT; BRKT,HOSE
(B) M8 FLANGE 		0-91180-108-0 01 1 0803- ● ●
271 NUT; BRKT,HOSE
(A) M10 FLANGE 		0-91180-210-0 02 1 0803- ● ●
274 CONNECTOR; VLV 1-47459-013-0 02 1 0712-0802 ●
274 CONNECTOR; VLV 1-47459-013-1 02 1 0803- ● ●
305 BOLT; BRKT,HOSE
M8X20 FLANGE 		0-28650-820-0 01 1 0803- ● ●

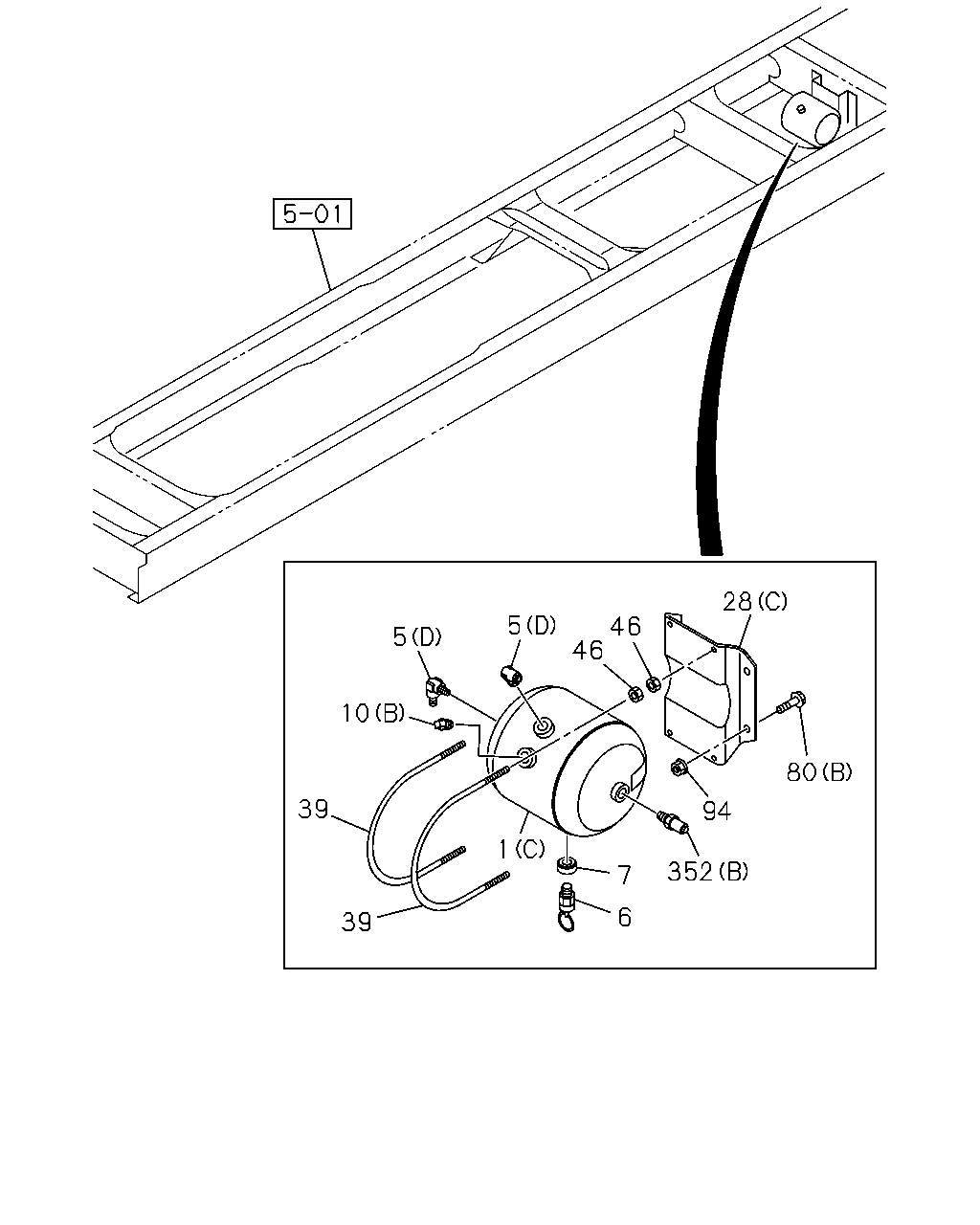

çizim 99164
28 5 46 46 5 10 80 39 94 1 352 7 6 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(C) 		8-98090-803-1 01 1 0712-0712 ●
1 TANK ASM; AIR
(C) 		8-98090-803-1 01 1 0801-0906 ● ●
1 TANK ASM; AIR
(C) 		8-98081-870-1 01 1 0907- ● ●
1 TANK ASM; AIR
(B) 		1-48330-598-0 01 1 0712- ● ●
1 TANK ASM; AIR
(A) 		1-48370-541-0 01 1 0712- ● ●
5 UNION; AIR TANK
(D) M12 & PT3/8 ELBOW 		1-09650-436-0 02 1 0712-0712 ●
5 UNION; AIR TANK
(D) M12 & PT3/8 ELBOW 		1-09650-436-0 02 1 0801- ● ●
5 UNION; AIR TANK
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0712-0802 ● ●
5 UNION; AIR TANK
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0803- ● ●
5 UNION; AIR TANK
(B) 		1-09650-449-1 02 1 0712-0802 ● ●
5 UNION; AIR TANK
(B) 		8-98111-509-0 02 1 0803- ● ●
5 UNION; AIR TANK
(C) PT1/4 2WAY 		1-09660-693-0 02 1 0712-0802 ● ●
5 UNION; AIR TANK
(C) PT1/4 2WAY 		1-09660-693-0 04 1 0803- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0712-0712 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 0712- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0712-0712 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0712- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0712-0712 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0801- ● ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 03 1 0712- ● ●
28 BRACKET; AIR TANK
(B) 		1-53318-338-6 02 1 0712-0802 ●
28 BRACKET; AIR TANK
(B) 		1-53318-338-6 02 1 0803- ● ●
28 BRACKET; AIR TANK
(C) 		8-98088-205-0 01 1 0712-0712 ●
28 BRACKET; AIR TANK
(C) 		8-98100-165-3 01 1 0801- ● ●
28 BRACKET; AIR TANK
(B) 		1-53318-338-6 01 1 0712-0802 ●
28 BRACKET; AIR TANK
(A) 		1-53318-378-1 01 1 0712-0802 ●
39 U-BOLT; AIR TANK
L=210 		1-48317-458-1 02 1 0712-0712 ●
39 U-BOLT; AIR TANK
L=210 		1-48317-458-1 02 1 0801- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0712-0712 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0801- ● ●
80 BOLT; BRKT
(B) M10X20 FLANGE 		0-28651-020-0 04 1 0712-0802 ●
80 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 03 1 0803- ● ●
80 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0712- ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 0712-0802 ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 10 1 0803-0811 ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 06 1 0812- ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 0803- ● ●
352 CONNECTOR; STRAIGHT
(B) 		1-09650-283-1 01 1 0712-0712 ●
352 CONNECTOR; STRAIGHT
(B) 		1-09650-283-1 01 1 0801- ● ●
352 CONNECTOR; STRAIGHT
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 0712-0802 ● ●
