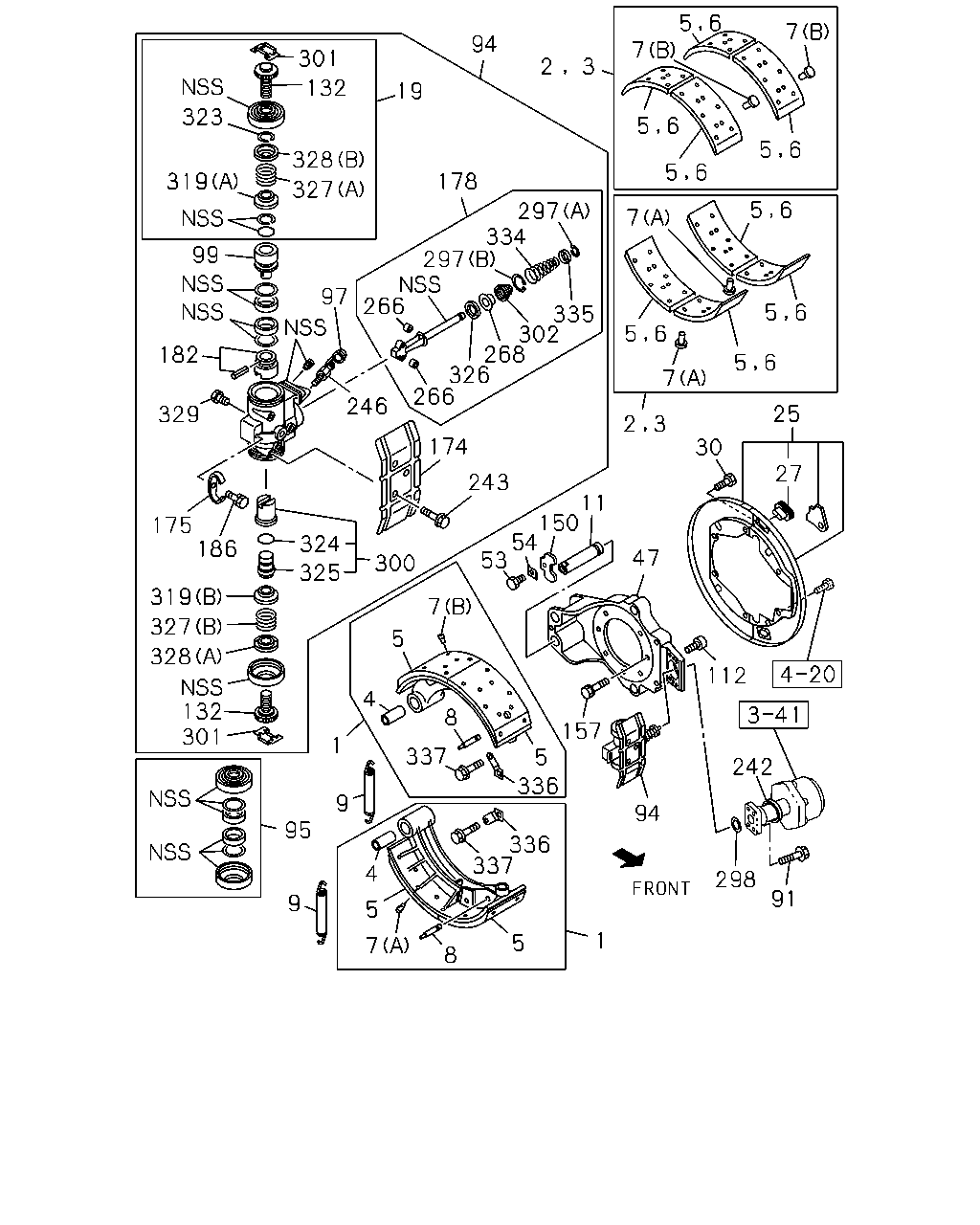

3-05 — REAR WHEEL BRAKE (#48795) — 67 parça
çizim 98973
7 7 94 301 2 3 132 19 323 328 178 319 327 297 334 297 266 7 99 97 335 302 268 326 266 182 7 246 25 329 174 30 27 243 11 150 54 53 175 186 324 47 300 325 319 7 327 5 328 132 301 4 8 157 1 337 5 242 336 9 94 95 336 337 4 298 91 9 5 1 5 7 8 5 6 6 5 6 5 5 6 5 6 6 5 6 5 6 5 2 3 112
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
LEADING 		1-47170-500-0 01 1 0712- ● ●
1 SHOE; BRK,RR
TRAILING 		1-47170-501-0 01 1 0712- ● ●
1 SHOE; BRK,RR
LEADING 		1-47170-502-0 01 1 0712- ● ●
1 SHOE; BRK,RR
TRAILING 		1-47170-503-0 01 1 0712- ● ●
2 LINING SET; RR BRK,STANDARD
LEADING 		1-88311-390-0 01 1 0712- ● ●
2 LINING SET; RR BRK,STANDARD
TRAILING 		1-88311-394-0 01 1 0712- ● ●
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88311-391-0 01 1 0712- ● ●
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88311-395-0 01 1 0712- ● ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-011-0 04 1 0712- ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-812-0 08 1 0712- ● ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-813-0 08 1 0712- ● ●
7 RIVET; LINING,RR BRK
(B) TRAILING L=18.5 		1-09732-034-0 40 1 0712- ● ●
7 RIVET; LINING,RR BRK
(A) LEADING L=15.5 		1-09732-053-0 40 1 0712- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-134-0 04 1 0712- ● ●
9 SPRING; RETURN,BRK SHOE 1-09583-359-0 04 1 0712- ● ●
11 PIN; ANCHOR,RR WHEEL BRK
L=106.5 		1-47131-038-0 04 1 0712- ● ●
19 ADJUSTER; RR BRK 1-47623-029-1 02 1 0712- ● ●
25 COVER SET; RR BRK DRUM 1-47151-805-0 01 1 0712- ● ●
25 COVER SET; RR BRK DRUM 1-47151-848-0 01 1 0712- ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0712- ● ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0712- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-357-0 01 1 0712- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-358-0 01 1 0712- ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0712- ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0712- ● ●
91 BOLT; CHAMBER
M10X45 W/LK WASHER 		0-50051-045-0 08 1 0712-0906 ● ●
91 BOLT; CHAMBER
M10X45 W/LK WASHER 		0-50551-045-0 08 1 0907- ● ●
94 CYLINDER; WHEEL,RR BRK 1-47601-205-0 01 1 0712- ● ●
94 CYLINDER; WHEEL,RR BRK 1-47601-206-0 01 1 0712- ● ●
95 CUP SET; RR WHEEL CYL 1-87830-947-0 02 1 0712- ● ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 0712- ● ●
99 PISTON; RR WHEEL CYL 1-47624-354-0 02 1 0712- ● ●
112 BOLT; WHEEL CYL SETTING 1-47634-008-0 04 1 0712- ● ●
132 SCREW; ADJ,RR BRK 1-47623-031-2 04 1 0712- ● ●
150 PLATE; LK,ANCHOR PIN 1-47133-005-0 02 1 0712- ● ●
157 BOLT; RR BRK SET
M14X50 		1-09040-066-0 02 1 0712- ● ●
174 COVER; CYL,RR WHEEL CYL 1-47619-152-0 02 1 0712- ● ●
175 HANGER; RR WHEEL BRK 1-47619-145-0 02 1 0712- ● ●
178 WEDGE; RR WHEEL CYL 1-47640-009-0 02 1 0712- ● ●
182 TAPPET; RR WHEEL CYL 1-47629-168-0 02 1 0712- ● ●
186 BOLT; HANGER
M8X16 W/LK WASHER 		0-50540-816-0 02 1 0712- ● ●
242 SEAL 1-47159-186-0 04 1 0712- ● ●
243 BOLT; WHEEL CYL COVER SETTING
M6X10 		9-01900-610-0 06 1 0712- ● ●
246 BLEEDER 1-47615-002-0 02 1 0712- ● ●
266 ROLLER; WEDGE 1-47643-005-0 04 1 0712- ● ●
268 RETAINER; WEDGE 1-47649-028-0 02 1 0712- ● ●
297 RING; SNAP
(B) 		1-47649-031-0 02 1 0712- ● ●
297 RING; SNAP
(A) 		1-47649-034-1 02 1 0712- ● ●
298 GASKET 1-48259-231-0 02 1 0712- ● ●
300 SLEEVE 1-47629-207-1 02 1 0712- ● ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 0712- ● ●
302 BOOT; ROD 1-47649-022-0 02 1 0712- ● ●
319 RING; DRIVE
(A) 		1-47629-199-0 02 1 0712- ● ●
319 RING; DRIVE
(B) 		1-47629-200-0 02 1 0712- ● ●
323 RING; SNAP,SLEEVE 1-47629-190-0 02 1 0712- ● ●
324 RING; RETAINER 1-47629-210-0 02 1 0712- ● ●
325 SLEEVE; ADJ 1-47629-208-1 02 1 0712- ● ●
326 RETAINER; ROD 1-47649-026-0 02 1 0712- ● ●
327 SPRING; ADJ
(A) 		1-47629-195-0 02 1 0712- ● ●
327 SPRING; ADJ
(B) 		1-47629-196-0 02 1 0712- ● ●
328 CAGE; SPRING
(B) 		1-47629-191-0 02 1 0712- ● ●
328 CAGE; SPRING
(A) 		1-47629-192-0 02 1 0712- ● ●
329 SCREW; LOCATING 1-47619-149-1 04 1 0712- ● ●
334 SPRING; ROD 1-47649-024-0 02 1 0712- ● ●
335 RETAINER; SPRING 1-47649-020-0 02 1 0712- ● ●
336 PLATE; PIVOT 1-47119-132-0 04 1 0712- ● ●
337 BOLT; PLATE
M8X12 W/LK WASHER 		0-50540-812-0 04 1 0712- ● ●
