2-61 — TRANSFER CASE AND GEAR SHIFTER (#48794) — 40 parça

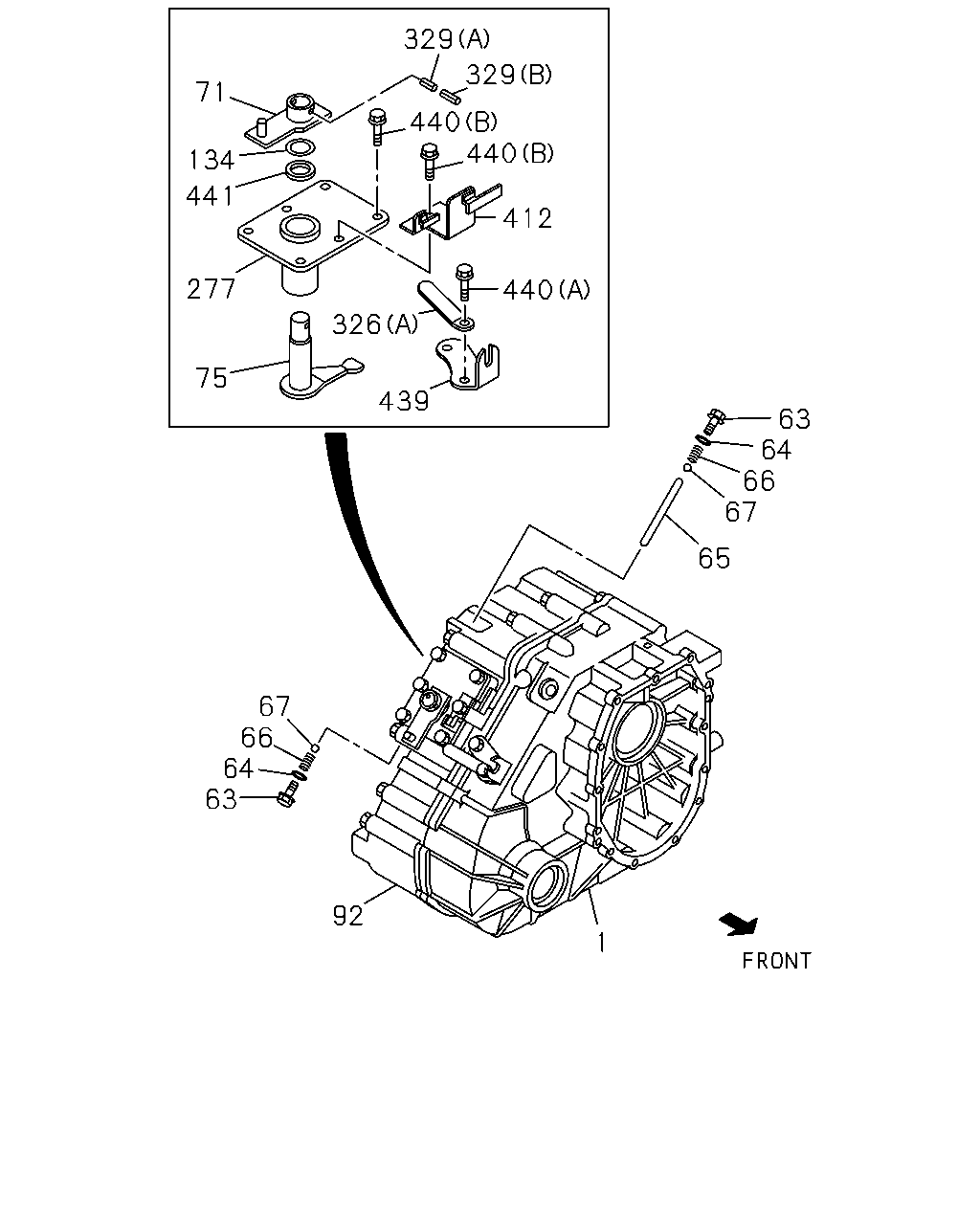

çizim 56230
329 329 71 440 440 134 441 412 277 440 326 75 439 63 64 66 67 65 67 66 64 63 92 1
BalonParca AdiParca NoAdetTipApplied Date
1 04.510 CASE; TRANSFER 8-97326-886-0 01 1 0505-
63 04.510 PLUG; DETENT SPRING 8-97326-926-0 02 1 0505-
64 04.515 GASKET; DETENT SPRING PLUG
04.510 		8-97326-925-0 02 1 0505-
65 04.309 ROD; INTER LOCK,SHIFT ROD 8-97326-924-0 01 1 0505-
66 04.198 SPRING; DETENT,SHIFT ROD 8-97326-927-0 02 1 0505-
67 04.262 BALL; DETENT,SHIFT ROD,TRANSFER 8-97326-928-0 02 1 0505-
71 04.246 LEVER ASM; L-H CONT,EXTERNAL 8-97328-674-0 01 1 0505-
75 04.246 LEVER ASM; L-H CONT,INTERNAL 8-97326-875-1 01 1 0505-
92 04.552 COVER; RR,TRANSFER 8-97326-884-0 01 1 0505-
134 04.319 WASHER; PL 8-97326-876-0 01 1 0505-
277 04.552 COVER; SHIFT ROD,TRANSFER 8-97326-879-0 01 1 0505-
326 04.128 CLIP; HARNESS
02.698 (B) ID=8 		8-94107-659-0 01 1 0505-0804
326 04.128 CLIP; HARNESS
02.559 (B) ID=8 		8-97329-633-0 01 1 0805-
326 04.128 CLIP; HARNESS
04.930 (A) L=91 ID=8.5 		8-94329-956-0 01 1 0505-
329 04.107 PIN; SPRING,SHIFT ROD
(B) 		8-97326-867-0 01 1 0505-
329 04.107 PIN; SPRING,SHIFT ROD
(A) 		8-97326-868-0 01 1 0505-
412 04.555 BRACKET; SW CONN 8-97327-662-1 01 1 0505-
439 04.555 BRACKET; SHIFT 8-97328-672-0 01 1 0505-
440 04.319 BOLT; W/WASHER
(A) 		8-97326-865-0 02 1 0505-
440 04.319 BOLT; W/WASHER
(B) 		8-97326-877-0 06 1 0505-
441 04.319 SEAL; OIL 8-97326-878-0 01 1 0505-

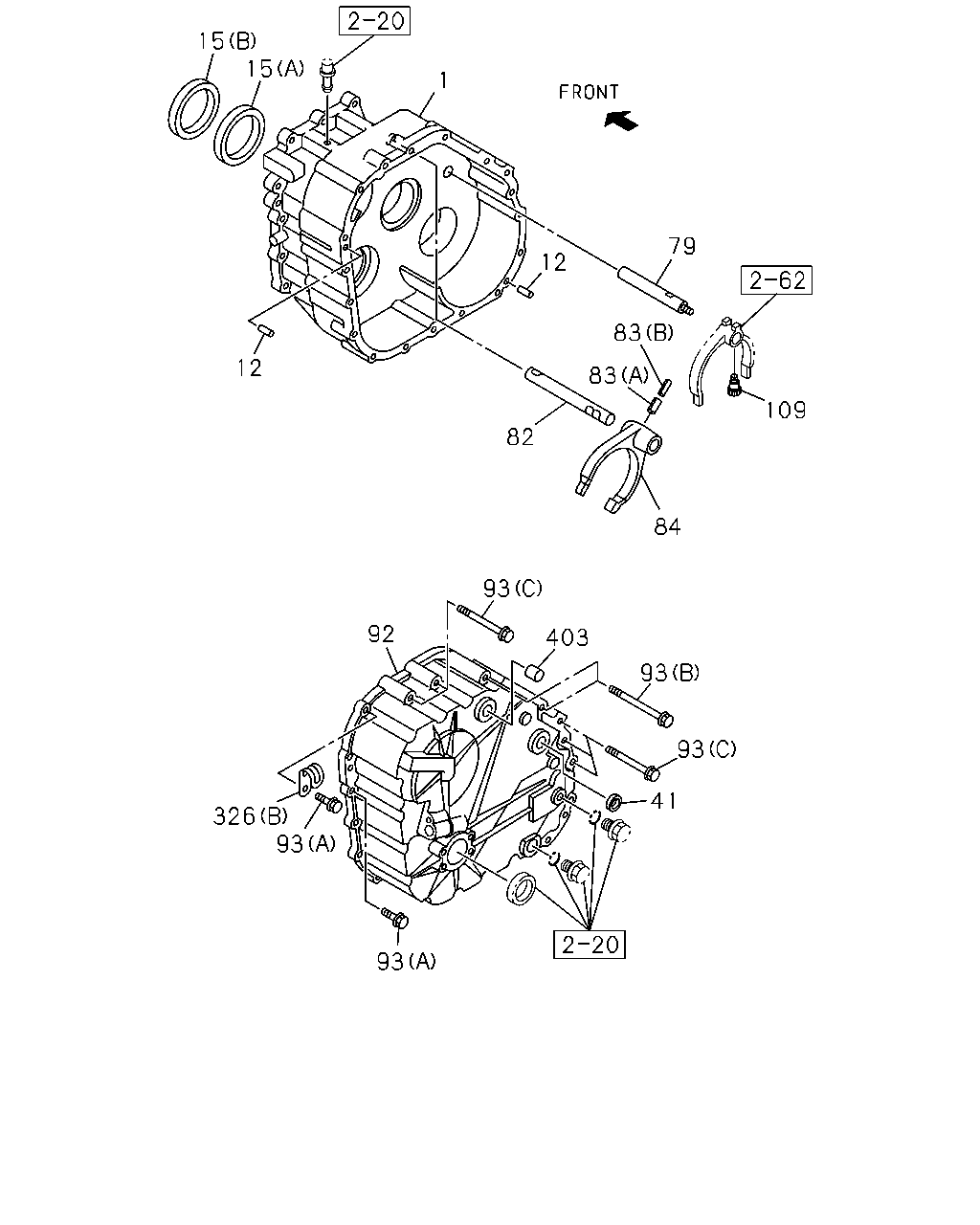

çizim 58222
15 15 1 79 12 83 12 83 109 82 84 93 92 403 93 93 41 326 93 93
BalonParca AdiParca NoAdetTipApplied Date
1 04.510 CASE; TRANSFER 8-97326-886-0 01 1 0505-
12 04.510 PIN; STRAIGHT,TRANSFER CASE 8-97326-880-0 02 1 0505-
15 04.515 SEAL; OIL,INPUT & FRT OUTPUT
(A) 		8-97326-934-0 02 1 0505-
15 04.515 SEAL; OIL,INPUT & FRT OUTPUT
(B) 		8-97327-114-0 01 1 0505-
41 04.515 SEAL; OIL,SHIFT ROD 8-97326-887-0 01 1 0505-
79 04.309 ROD; SHIFT,NEUTRAL & FRT DRIVE 8-97357-217-0 01 1 0505-
82 04.309 ROD; SHIFT,LOW & HIGH 8-97326-930-0 01 1 0505-
83 04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK
(B) 		8-97326-931-0 01 1 0505-
83 04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK
(A) 		8-97326-932-0 01 1 0505-
84 04.555 FORK; SHIFT,LOW & HIGH 8-97326-933-0 01 1 0505-
92 04.552 COVER; RR,TRANSFER 8-97326-884-0 01 1 0505-
93 04.552 BOLT; TRANSFER CASE TO RR COVER
(B) M10X100 FLANGE 		8-97326-881-0 02 1 0505-
93 04.552 BOLT; TRANSFER CASE TO RR COVER
(C) M10X70 FLANGE 		8-97326-882-0 05 1 0505-
93 04.552 BOLT; TRANSFER CASE TO RR COVER
(A) M10X40 FLANGE 		8-97326-883-0 11 1 0505-
109 04.319 BOLT; TAPER,TRANSFER CASE
04.302 		1-09052-034-2 01 1 0505-
326 04.128 CLIP; HARNESS
02.698 (B) ID=8 		8-94107-659-0 01 1 0505-0804
326 04.128 CLIP; HARNESS
02.559 (B) ID=8 		8-97329-633-0 01 1 0805-
326 04.128 CLIP; HARNESS
04.930 (A) L=91 ID=8.5 		8-94329-956-0 01 1 0505-
403 04.552 PLUG 8-97326-929-0 01 1 0505-
