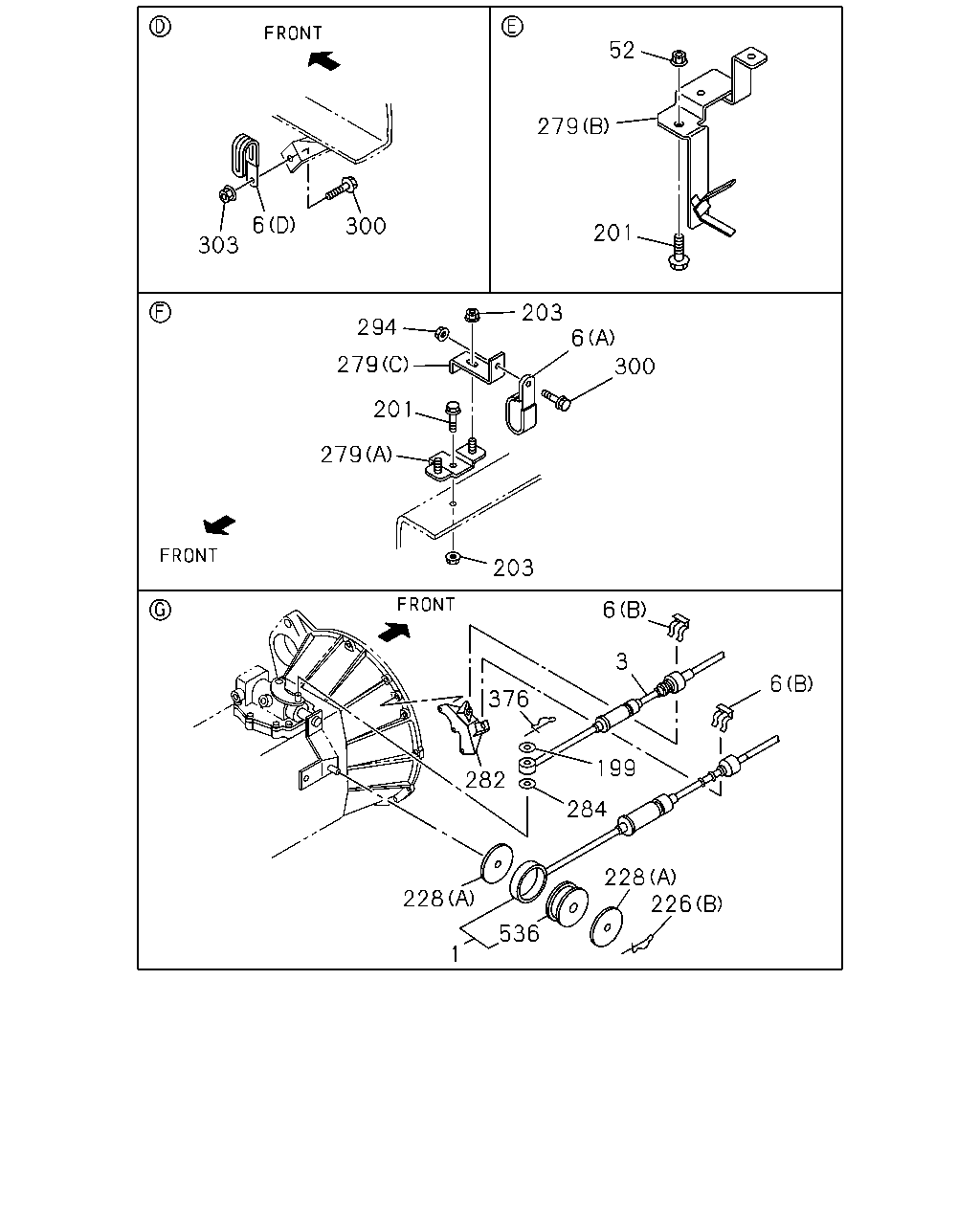

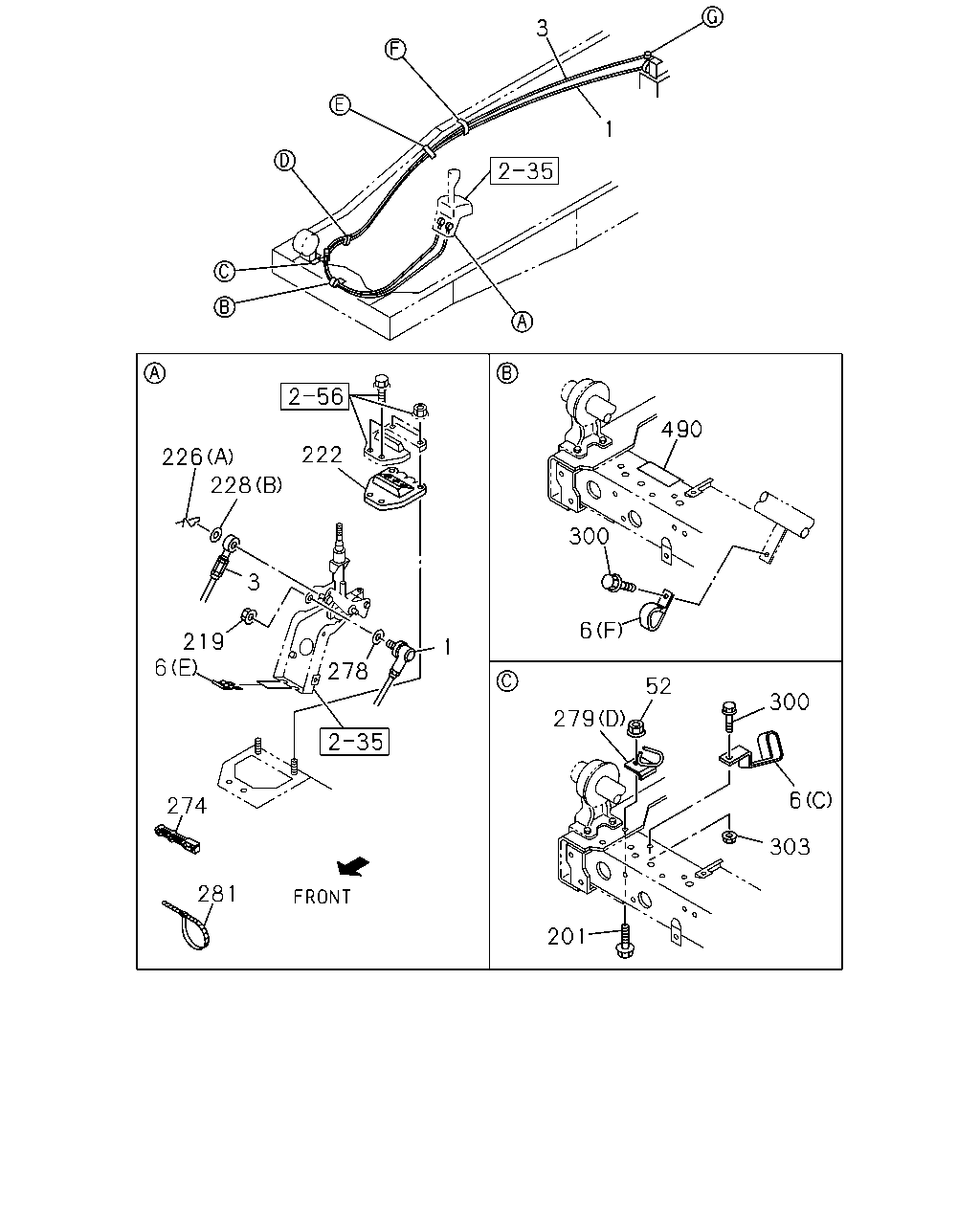

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#48792) — 97 parça

3 1 490 222 226 228 300 3 6 219 6 1 278 52 300 279 6 274 303 281 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.854 CABLE; SHIFT,TRANS CONT L=3150	8-97374-195-0	01	1	0505-
3	00.852 CABLE; SELECT,TRANS CONT L=3245	8-97374-196-1	01	1	0505-
6	04.047 CLIP; CABLE (A) WO/SCREW	1-09700-988-0	01	1	0505-
6	04.047 CLIP; CABLE 00.854 (B) ID=22.2	1-09701-209-1	01	1	0505-
6	04.047 CLIP; CABLE 04.785 (C)	8-94133-416-2	01	1	0505-
6	04.047 CLIP; CABLE 03.162 (D) ID=16.5	8-94240-646-1	01	1	0505-
6	04.047 CLIP; CABLE (E)	8-97011-448-0	02	1	0505-
6	04.047 CLIP; CABLE (F)	8-97036-333-1	01	1	0505-
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0505-
52	04.047 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0505-0602
52	04.047 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
52	04.047 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	0505-0602
52	04.047 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-
201	04.032 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0505-0512
201	04.032 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
201	04.032 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0505-0506
201	04.032 BOLT; BRKT 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0507-0512
201	04.032 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0601-
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	0505-
222	04.010 GROMMET; CABLE	8-97091-890-0	01	1	0505-
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0505-
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0505-
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0505-
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0505-0605
228	04.047 WASHER; PL,SHIFT CABLE 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-
274	04.008 CLIP; CONT CABLE EXC. MANUAL TILT CAB<RWZ>	8-97093-491-1	01	1	0505-
278	00.854 WASHER; LK,SHIFT WIRE 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0505-0604
278	00.854 WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0605-
279	04.047 BRACKET; CABLE TO FRAME (A)	8-97028-496-1	01	1	0505-
279	04.047 BRACKET; CABLE TO FRAME (B)	8-97066-367-2	01	1	0505-
279	04.047 BRACKET; CABLE TO FRAME (C)	8-97089-179-0	01	1	0505-
279	04.047 BRACKET; CABLE TO FRAME (D)	8-98004-932-0	01	1	0505-0506
279	04.047 BRACKET; CABLE TO FRAME (D)	8-98021-169-0	01	1	0507-
281	04.042 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0505-
300	00.854 BOLT; CLIP 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0505-0512
300	00.854 BOLT; CLIP 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0505-0512
300	00.854 BOLT; CLIP 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-
300	00.854 BOLT; CLIP 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0505-0512
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0505-0512
300	00.854 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
300	00.854 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0505-0602
303	00.855 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
303	00.855 NUT; CLIP 01.062 M6 FLANGE	0-91150-206-0	01	1	0505-0602
303	00.855 NUT; CLIP 01.540 M6 FLANGE	0-91180-206-0	01	1	0603-
490	04.010 PROTECTOR; EDGE 04.785 L=200	8-97096-423-0	01	1	0505-

52 279 6 300 201 303 203 6 294 279 300 201 279 203 6 3 6 376 199 282 284 228 226 228 536 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.854 CABLE; SHIFT,TRANS CONT L=3150	8-97374-195-0	01	1	0505-
3	00.852 CABLE; SELECT,TRANS CONT L=3245	8-97374-196-1	01	1	0505-
6	04.047 CLIP; CABLE (A) WO/SCREW	1-09700-988-0	01	1	0505-
6	04.047 CLIP; CABLE 00.854 (B) ID=22.2	1-09701-209-1	01	1	0505-
6	04.047 CLIP; CABLE 04.785 (C)	8-94133-416-2	01	1	0505-
6	04.047 CLIP; CABLE 03.162 (D) ID=16.5	8-94240-646-1	01	1	0505-
6	04.047 CLIP; CABLE (E)	8-97011-448-0	02	1	0505-
6	04.047 CLIP; CABLE (F)	8-97036-333-1	01	1	0505-
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0505-
52	04.047 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0505-0602
52	04.047 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
52	04.047 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	0505-0602
52	04.047 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-
199	04.012 WASHER; PL,SELECT 16.674 ID=8.4	9-09160-508-0	01	1	0505-0605
199	04.012 WASHER; PL,SELECT 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0606-
201	04.032 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0505-0512
201	04.032 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
201	04.032 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0505-0506
201	04.032 BOLT; BRKT 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0507-0512
201	04.032 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0601-
203	04.032 NUT; BRKT FIX 07.633 M8 FLANGE	0-91150-108-0	02	1	0505-0602
203	04.032 NUT; BRKT FIX 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0505-
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0505-
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0505-
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0505-0605
228	04.047 WASHER; PL,SHIFT CABLE 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-
279	04.047 BRACKET; CABLE TO FRAME (A)	8-97028-496-1	01	1	0505-
279	04.047 BRACKET; CABLE TO FRAME (B)	8-97066-367-2	01	1	0505-
279	04.047 BRACKET; CABLE TO FRAME (C)	8-97089-179-0	01	1	0505-
279	04.047 BRACKET; CABLE TO FRAME (D)	8-98004-932-0	01	1	0505-0506
279	04.047 BRACKET; CABLE TO FRAME (D)	8-98021-169-0	01	1	0507-
282	04.010 BRACKET; TRANS SIDE	8-97350-449-0	01	1	0505-
284	00.854 WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0505-
294	00.854 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0505-0602
294	00.854 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-
300	00.854 BOLT; CLIP 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0505-0512
300	00.854 BOLT; CLIP 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0505-0512
300	00.854 BOLT; CLIP 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-
300	00.854 BOLT; CLIP 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0505-0512
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0505-0512
300	00.854 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
300	00.854 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0505-0602
303	00.855 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
303	00.855 NUT; CLIP 01.062 M6 FLANGE	0-91150-206-0	01	1	0505-0602
303	00.855 NUT; CLIP 01.540 M6 FLANGE	0-91180-206-0	01	1	0603-
376	04.047 PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0505-
536	00.854 DAMPER; CABLE	8-98097-681-0	01	1	0505-
