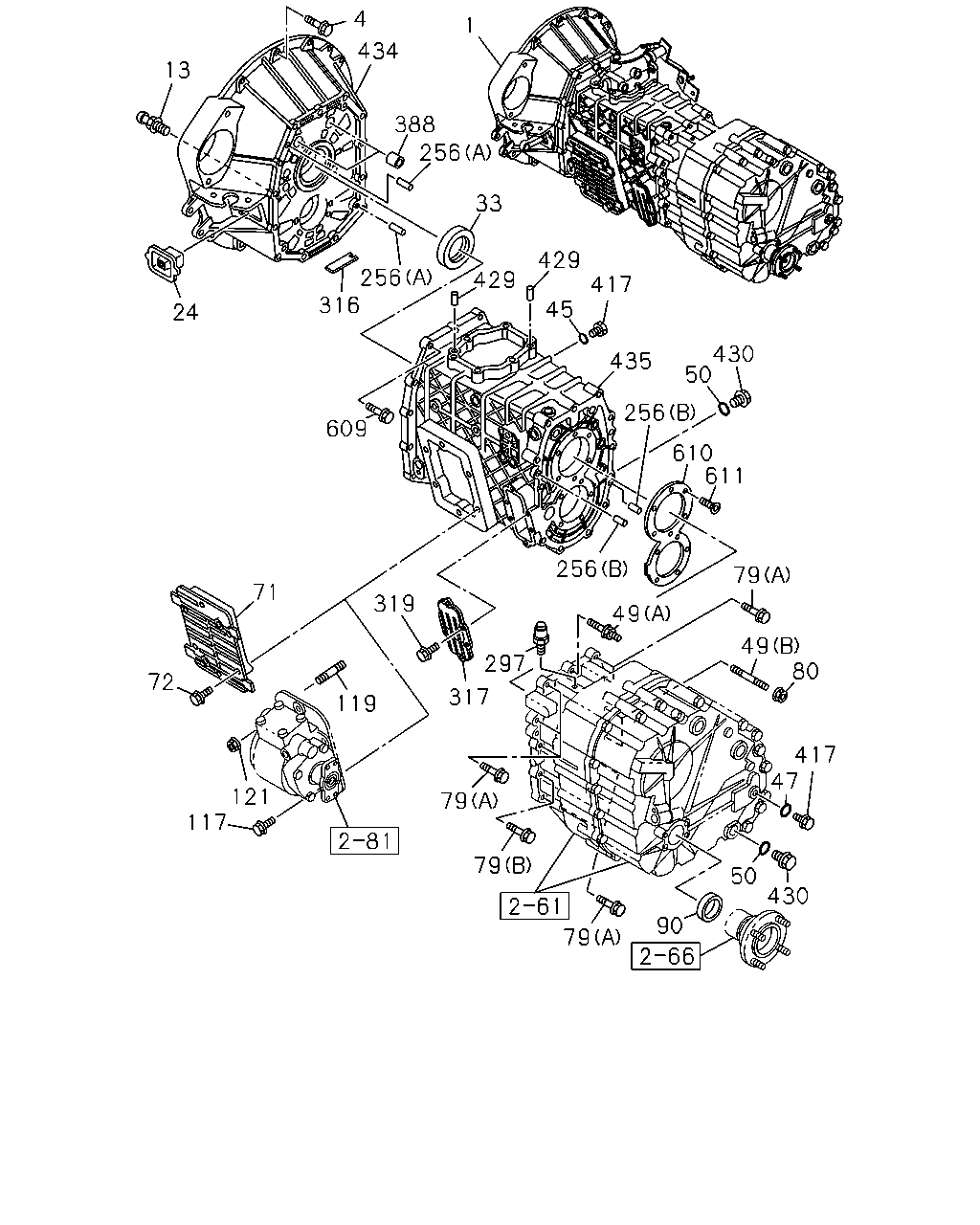

1 |
04.003 TRANSMISSION ASM; MANUAL
POWER TAKE OFF CONTROL ELECTRIC(7GR)
|
8-97374-848-0 |
01 |
1 |
0505- |
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)
|
8-97374-848-0 |
01 |
1 |
0505- |
| |
4 |
00.683 BOLT; FLYWHEEL HSG
00.029
M10X35 L=65
|
8-97178-725-0 |
02 |
1 |
0803- |
| |
4 |
00.683 BOLT; FLYWHEEL HSG
04.525
M10X30 FLANGE
|
0-28181-030-0 |
02 |
1 |
0505-0512 |
| |
4 |
00.683 BOLT; FLYWHEEL HSG
04.525
M10X30 FLANGE
|
0-28181-030-0 |
02 |
1 |
0505-0512 |
| |
4 |
00.683 BOLT; FLYWHEEL HSG
09.171
M10X30 FLANGE
|
0-28151-030-0 |
02 |
1 |
0601- |
| |
4 |
00.683 BOLT; FLYWHEEL HSG
09.171
M10X30 FLANGE
|
0-28151-030-0 |
02 |
1 |
0601- |
| |
4 |
00.683 BOLT; FLYWHEEL HSG
04.510
M10X35 FLANGE
|
0-28181-035-0 |
03 |
1 |
0505-0512 |
| |
4 |
00.683 BOLT; FLYWHEEL HSG
03.670
M10X35 FLANGE
|
0-28151-035-0 |
03 |
1 |
0601-0802 |
| |
4 |
00.683 BOLT; FLYWHEEL HSG
03.670
M10X35 FLANGE
|
0-28151-035-0 |
01 |
1 |
0803- |
| |
4 |
00.683 BOLT; FLYWHEEL HSG
08.900
M10X50 FLANGE
|
0-28181-050-0 |
02 |
1 |
0505-0512 |
| |
4 |
00.683 BOLT; FLYWHEEL HSG
02.042
M10X50 FLANGE
|
0-28151-050-0 |
02 |
1 |
0601- |
| |
13 |
04.302 SUPPORT; SHIFT FORK
|
8-97255-384-1 |
01 |
1 |
0505- |
| |
24 |
00.797 COVER; CHECK HOLE,DUST
|
8-97255-201-0 |
01 |
1 |
0505- |
| |
33 |
04.318 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
|
8-97253-550-0 |
01 |
1 |
0505- |
| |
45 |
04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T).
ID=17
|
8-97115-712-0 |
01 |
1 |
0505- |
| |
47 |
04.510 GASKET; FILLER PLUG,TRANSFER CAS
04.105
ID=17
|
8-97115-712-0 |
01 |
1 |
0505- |
| |
49 |
04.510 STUD; TRANSFER CASE
04.319
(A)
M10X15,M10X40 L=65
|
8-97309-013-0 |
01 |
1 |
0505-0604 |
| |
49 |
04.510 STUD; TRANSFER CASE
(A)
M10X15,M10X40 L=65
|
8-97365-379-0 |
01 |
1 |
0605- |
| |
49 |
04.510 STUD; TRANSFER CASE
00.685
(B)
M10X35 L=50
|
9-04411-035-0 |
02 |
1 |
0505-0604 |
| |
49 |
04.510 STUD; TRANSFER CASE
03.275
(B)
M10X35 L=50
|
0-44011-035-0 |
02 |
1 |
0605- |
| |
50 |
04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
ID=17
|
8-97115-712-0 |
03 |
1 |
0505- |
| |
71 |
04.439 COVER; SIDE,TRANS CASE
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)
|
8-97252-625-0 |
01 |
1 |
0505- |
| |
72 |
04.439 BOLT; SIDE COVER
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)
00.206
M10X20 FLANGE
|
8-97254-833-0 |
06 |
1 |
0505-0604 |
| |
72 |
04.439 BOLT; SIDE COVER
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)
00.206
M10X20 FLANGE
|
8-98014-142-0 |
06 |
1 |
0605- |
| |
79 |
04.510 BOLT; TRANSFER CASE
(A)
M10X40 FLANGE
|
0-28181-040-0 |
08 |
1 |
0505-0512 |
| |
79 |
04.510 BOLT; TRANSFER CASE
09.171
(A)
M10X40 FLANGE
|
0-28151-040-0 |
08 |
1 |
0601- |
| |
79 |
04.510 BOLT; TRANSFER CASE
04.317
(B)
M10X40 FLANGE
|
8-97305-392-0 |
02 |
1 |
0505-0604 |
| |
79 |
04.510 BOLT; TRANSFER CASE
(B)
M10X40 FLANGE
|
8-97365-377-0 |
02 |
1 |
0605- |
| |
80 |
04.510 NUT; TRANSFER CASE
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0505-0602 |
| |
80 |
04.510 NUT; TRANSFER CASE
04.085
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603- |
| |
90 |
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
NOK
|
8-97253-552-1 |
01 |
1 |
0505- |
| |
117 |
04.439 BOLT; PTO FIX
POWER TAKE OFF CONTROL ELECTRIC(7GR)
08.900
M10X30 FLANGE
|
0-28781-030-0 |
03 |
1 |
0505-0512 |
| |
117 |
04.439 BOLT; PTO FIX
POWER TAKE OFF CONTROL ELECTRIC(7GR)
00.780
M10X30 FLANGE
|
0-28751-030-0 |
03 |
1 |
0601- |
| |
119 |
04.439 STUD; PTO FIX
POWER TAKE OFF CONTROL ELECTRIC(7GR)
03.275
M10X25 L=40
|
9-04411-025-0 |
03 |
1 |
0505-0604 |
| |
119 |
04.439 STUD; PTO FIX
POWER TAKE OFF CONTROL ELECTRIC(7GR)
03.342
M10X25 L=40
|
0-44011-025-0 |
03 |
1 |
0605- |
| |
121 |
04.439 NUT; PTO FIX
POWER TAKE OFF CONTROL ELECTRIC(7GR)
08.917
M10 FLANGE
|
0-91150-210-0 |
03 |
1 |
0505-0602 |
| |
121 |
04.439 NUT; PTO FIX
POWER TAKE OFF CONTROL ELECTRIC(7GR)
04.085
M10 FLANGE
|
0-91180-210-0 |
03 |
1 |
0603- |
| |
256 |
04.317 PIN; KNOCK
04.510
(A)
OD=10 L=20
|
8-97135-423-0 |
02 |
1 |
0505- |
| |
256 |
04.317 PIN; KNOCK
00.862
(B)
ID=6 L=12
|
9-08160-612-0 |
02 |
1 |
0505- |
| |
297 |
04.104 BREATHER; AIR,TRANSFER CASE
04.510
|
8-97258-213-0 |
01 |
1 |
0505-0604 |
| |
297 |
04.104 BREATHER; AIR,TRANSFER CASE
|
8-98031-520-0 |
01 |
1 |
0605- |
| |
316 |
04.105 MAGNET; TRANS CASE
|
8-94249-524-2 |
01 |
1 |
0505- |
| |
317 |
04.109 COVER; CASE
|
8-97252-626-0 |
01 |
1 |
0505- |
| |
319 |
04.109 BOLT; COVER
07.010
M8X20 FLANGE
|
0-28080-820-0 |
06 |
1 |
0505-0512 |
| |
319 |
04.109 BOLT; COVER
04.338
M8X20 FLANGE
|
0-28050-820-0 |
06 |
1 |
0601- |
| |
388 |
00.683 BUSHING; CLU HSG
|
8-97241-326-2 |
02 |
1 |
0505- |
| |
417 |
04.105 PLUG; OIL FILLER,TRANS
08.971
|
8-94310-917-0 |
02 |
1 |
0505-0604 |
| |
417 |
04.105 PLUG; OIL FILLER,TRANS
|
8-97365-373-0 |
02 |
1 |
0605- |
| |
429 |
04.105 PIN; STRAIGHT
04.510
OD=10 L=20
|
8-97135-423-0 |
02 |
1 |
0505- |
| |
430 |
04.105 PLUG; OIL DRAIN
|
9-09662-004-0 |
03 |
1 |
0505-0604 |
| |
430 |
04.105 PLUG; OIL DRAIN
|
8-97365-374-0 |
03 |
1 |
0605- |
| |
434 |
00.683 HOUSING; CLU
|
8-97310-346-2 |
01 |
1 |
0505- |
| |
435 |
04.103 CASE; TRANS
|
8-97379-374-0 |
01 |
1 |
0505- |
| |
609 |
04.104 BOLT; HSG TO CASE
04.510
M10X40 FLANGE
|
0-28181-040-0 |
13 |
1 |
0505-0512 |
| |
609 |
04.104 BOLT; HSG TO CASE
09.171
M10X40 FLANGE
|
0-28151-040-0 |
13 |
1 |
0601- |
| |
610 |
04.412 RETAINER; BRG
|
8-97241-315-1 |
01 |
1 |
0505- |
| |
611 |
04.104 SCREW
M10X27
|
8-97254-834-2 |
11 |
1 |
0505-0604 |
| |
611 |
04.104 SCREW
M10X27 TORQUES
|
8-97365-354-0 |
11 |
1 |
0605- |
