Isuzu WW
▶
TRUCKS
▶
NPS
▶
51036 - NPS-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶

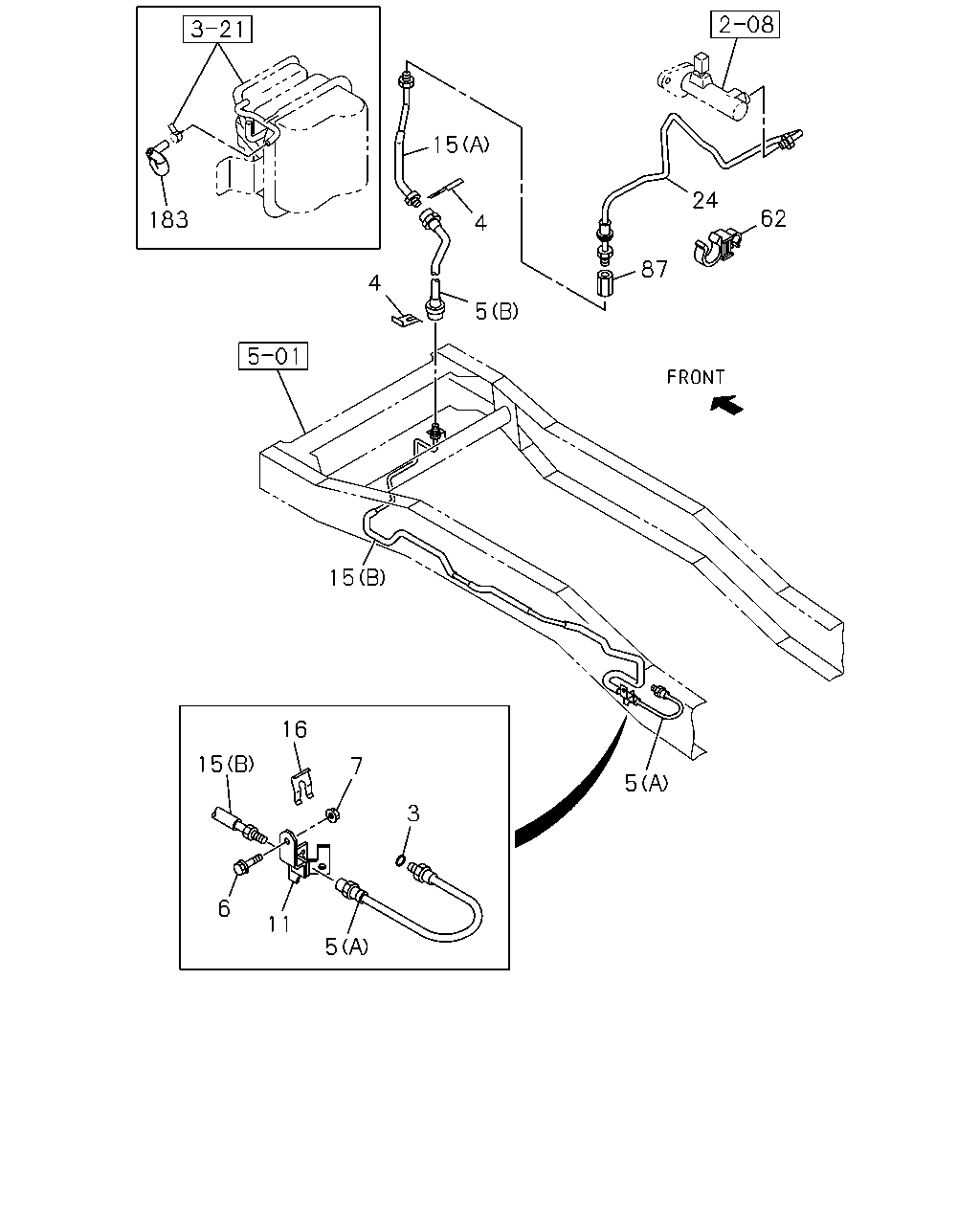

2-05 — CLUTCH PIPING
(#48782) — 22 parça
15
24
62
183
4
87
4
5
15
16
15
7
5
3
6
11
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
00.785 GASKET; FLEX HOSE,CLU
9-09920-873-1
01
1
0505-
4
00.785 CLIP; FLEX HOSE,CLU CONT
8-94167-006-0
02
1
0505-0610
4
00.785 CLIP; FLEX HOSE,CLU CONT
04.681
8-97365-304-0
02
1
0611-
5
00.785 HOSE; FLEX,CLU PIPE
(B)
8-94248-702-2
01
1
0505-0609
5
00.785 HOSE; FLEX,CLU PIPE
(B)
8-98004-775-0
01
1
0610-0706
5
00.785 HOSE; FLEX,CLU PIPE
(B)
8-98090-655-0
01
1
0707-
5
00.785 HOSE; FLEX,CLU PIPE
(A)
8-97047-058-1
01
1
0505-
6
00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE
0-28680-825-0
01
1
0505-0512
6
00.785 BOLT; BRKT,FLEX HOSE
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0601-
7
00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE
0-91150-108-0
01
1
0505-0602
7
00.785 NUT; FLEX HOSE,CLU CONT
01.062 M8 FLANGE
0-91180-108-0
01
1
0603-
11
00.785 BRACKET; FLEX HOSE,CLU
8-97114-778-1
01
1
0505-
15
00.785 PIPE; CLU,FLEX HOSE
(A)
8-97328-482-0
01
1
0505-
15
00.785 PIPE; CLU,FLEX HOSE
(B)
8-97374-197-0
01
1
0505-
16
00.785 CLIP; FLEX HOSE
8-94167-006-0
01
1
0505-0610
16
00.785 CLIP; FLEX HOSE
04.681
8-97365-304-0
01
1
0611-
24
00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T)
8-97118-570-0
01
1
0505-
24
00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T)
8-97070-293-3
01
1
0505-
62
00.785 CLIP; CLU PIPE
03.483 ID=6 & 10.5
1-09709-218-0
01
1
0505-
87
00.785 UNION; OIL PIPE
M12 STRAIGHT
9-99227-006-0
01
1
0505-0607
87
00.785 UNION; OIL PIPE
M12 STRAIGHT
0-92107-006-0
01
1
0608-
183
00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
8-98009-419-0
01
1
0505-
