◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#4878) — 56 parça

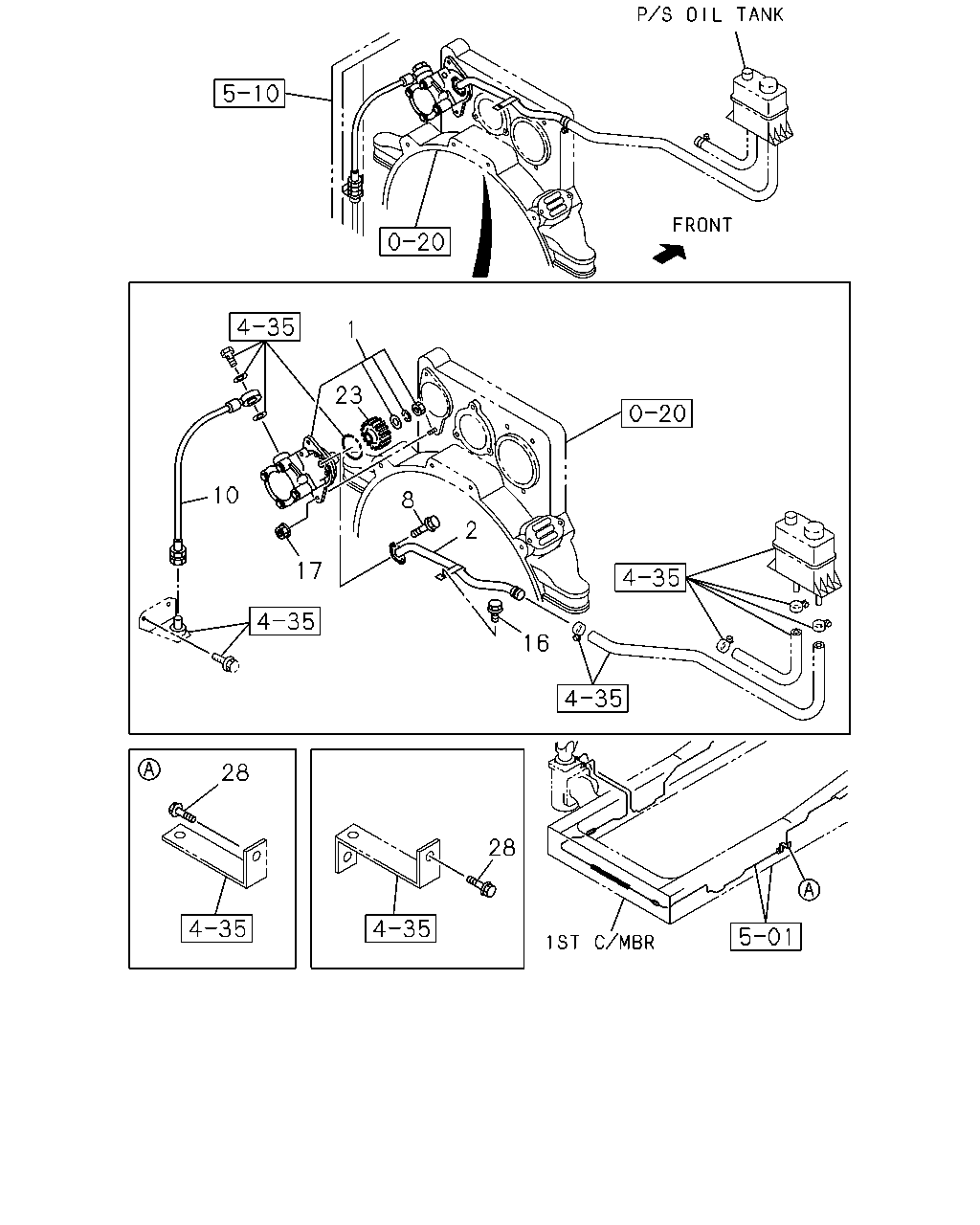

çizim 10821
1 23 10 8 2 17 16 28 28
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-447-0 01 1 9601-9603
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-447-0 01 1 9605-9904
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY> 		1-19500-447-2 01 1 9905-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> 		1-19500-563-2 01 1 9905-
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> 		1-13313-568-0 01 1 9601-9608
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> 		1-13313-692-0 01 1 9609-9904
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> EXC. STRG VARIABLE CONTROL<TFY> 		1-13313-692-0 01 1 9905-0001
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> 		1-13313-692-0 01 1 0002-
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> STRG VARIABLE CONTROL<TFY> 		1-13313-573-0 01 1 9905-0001
8 BOLT; OIL PIPE
L TYPE ENG<90L> M8X16 FLANGE 		0-28080-816-0 02 1 9601-
8 BOLT; OIL PIPE
V TYPE ENG<91L> M8X12 FLANGE 		0-28080-812-0 02 1 9601-9904
8 BOLT; OIL PIPE
V TYPE ENG<91L> STRG VARIABLE CONTROL<TFY> M8X20 FLANGE 		0-28080-820-0 02 1 9905-0001
8 BOLT; OIL PIPE
V TYPE ENG<91L> EXC. STRG VARIABLE CONTROL<TFY> M8X12 FLANGE 		0-28080-812-0 02 1 9905-0001
8 BOLT; OIL PIPE
V TYPE ENG<91L> M8X12 FLANGE 		0-28080-812-0 02 1 0002-
10 HOSE; FLEX,P/S OIL PUMP,INL
L TYPE ENG<90L> L=430 		0-09671-430-0 01 1 9601-
10 HOSE; FLEX,P/S OIL PUMP,INL
V TYPE ENG<91L> L=510 		1-09364-893-0 01 1 9601-9810
10 HOSE; FLEX,P/S OIL PUMP,INL
V TYPE ENG<91L> L=510 		1-09365-044-0 01 1 9811-
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> M6X35 FLANGE 		0-28680-635-0 02 1 9601-
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> M8X14 FLANGE 		0-28080-814-0 01 1 9601-
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91150-110-0 02 1 9601-9603
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91150-110-0 02 1 9605-
23 GEAR; OIL PUMP
L TYPE ENG<90L> Z=20 		1-19581-023-2 01 1 9601-9910
23 GEAR; OIL PUMP
L TYPE ENG<90L> Z=20 		1-19581-038-0 01 1 9911-
23 GEAR; OIL PUMP
V TYPE ENG<91L> Z=20 		1-19581-011-2 01 1 9601-9603
23 GEAR; OIL PUMP
V TYPE ENG<91L> Z=20 		1-19581-011-1 01 1 9605-
28 BOLT; BRKT,FLEX HOSE,P/S
M8X25 FLANGE 		0-28080-825-0 02 1 9601-9606
28 BOLT; BRKT,FLEX HOSE,P/S
M8X30 FLANGE 		0-28680-830-0 02 1 9607-
28 BOLT; BRKT,FLEX HOSE,P/S
V TYPE ENG<91L> M8X30 FLANGE 		0-28680-830-0 01 1 9905-

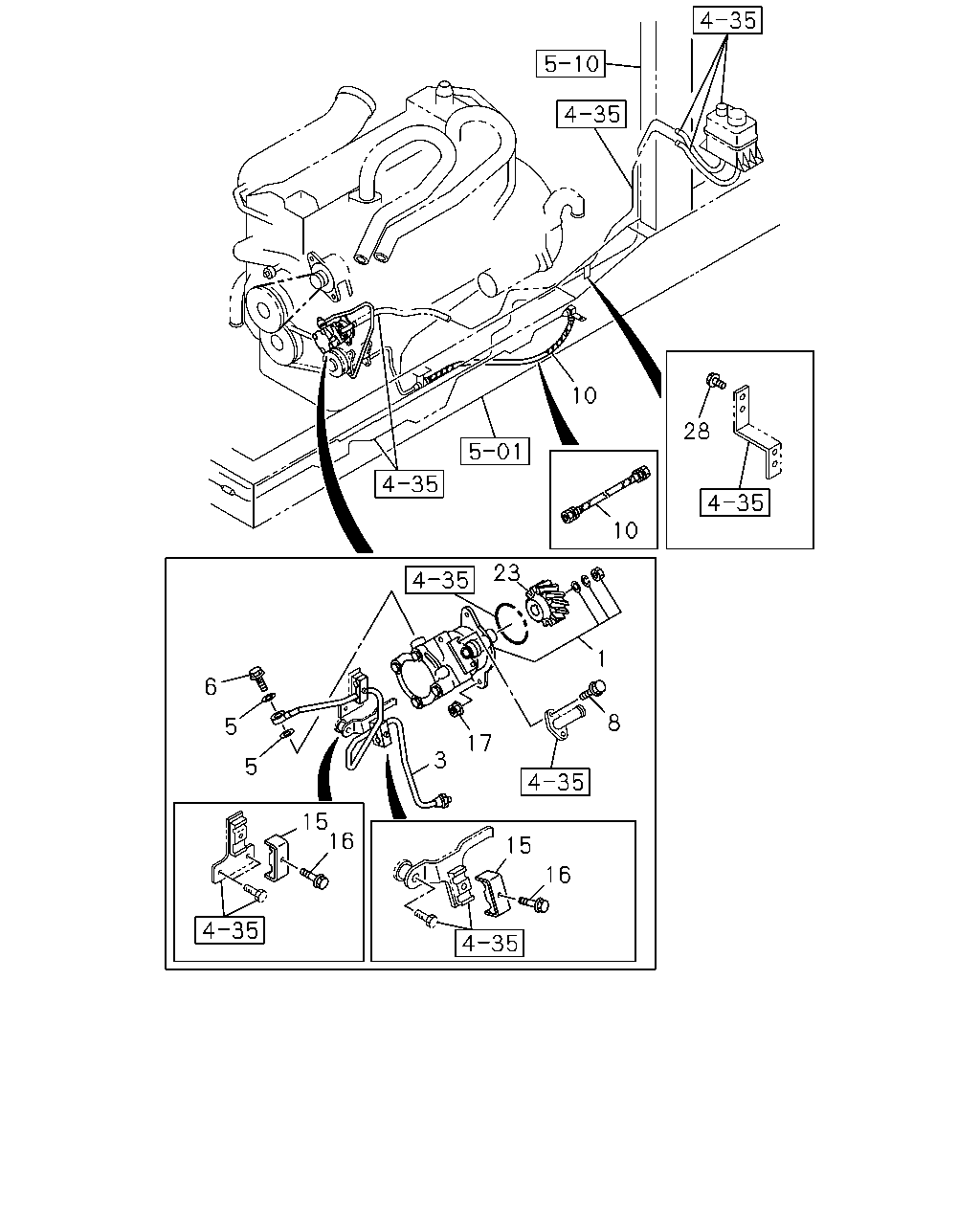

çizim 42201
10 28 10 23 1 6 8 5 17 3 5 15 16 15 16
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-447-0 01 1 9601-9603
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-447-0 01 1 9605-9904
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY> 		1-19500-447-2 01 1 9905-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> 		1-19500-563-2 01 1 9905-
3 PIPE; OIL,CHARGE,P/S
L TYPE ENG<90L> 		1-13313-640-0 01 1 9601-9604
3 PIPE; OIL,CHARGE,P/S
L TYPE ENG<90L> 		1-13313-637-1 01 1 9605-
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). L TYPE ENG<90L> ID=18.2 OD=24.4 		1-09630-087-0 02 1 9601-
6 BOLT; EYE,P/S PIPE
L TYPE ENG<90L> M18X36 		1-09675-174-0 01 1 9601-
8 BOLT; OIL PIPE
L TYPE ENG<90L> M8X16 FLANGE 		0-28080-816-0 02 1 9601-
8 BOLT; OIL PIPE
V TYPE ENG<91L> M8X12 FLANGE 		0-28080-812-0 02 1 9601-9904
8 BOLT; OIL PIPE
V TYPE ENG<91L> STRG VARIABLE CONTROL<TFY> M8X20 FLANGE 		0-28080-820-0 02 1 9905-0001
8 BOLT; OIL PIPE
V TYPE ENG<91L> EXC. STRG VARIABLE CONTROL<TFY> M8X12 FLANGE 		0-28080-812-0 02 1 9905-0001
8 BOLT; OIL PIPE
V TYPE ENG<91L> M8X12 FLANGE 		0-28080-812-0 02 1 0002-
10 HOSE; FLEX,P/S OIL PUMP,INL
L TYPE ENG<90L> L=430 		0-09671-430-0 01 1 9601-
10 HOSE; FLEX,P/S OIL PUMP,INL
V TYPE ENG<91L> L=510 		1-09364-893-0 01 1 9601-9810
10 HOSE; FLEX,P/S OIL PUMP,INL
V TYPE ENG<91L> L=510 		1-09365-044-0 01 1 9811-
15 CLIP; OIL PIPE SUCTION
L TYPE ENG<90L> 		1-09701-195-2 02 1 9601-
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> M6X35 FLANGE 		0-28680-635-0 02 1 9601-
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> M8X14 FLANGE 		0-28080-814-0 01 1 9601-
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91150-110-0 02 1 9601-9603
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91150-110-0 02 1 9605-
23 GEAR; OIL PUMP
L TYPE ENG<90L> Z=20 		1-19581-023-2 01 1 9601-9910
23 GEAR; OIL PUMP
L TYPE ENG<90L> Z=20 		1-19581-038-0 01 1 9911-
23 GEAR; OIL PUMP
V TYPE ENG<91L> Z=20 		1-19581-011-2 01 1 9601-9603
23 GEAR; OIL PUMP
V TYPE ENG<91L> Z=20 		1-19581-011-1 01 1 9605-
28 BOLT; BRKT,FLEX HOSE,P/S
M8X25 FLANGE 		0-28080-825-0 02 1 9601-9606
28 BOLT; BRKT,FLEX HOSE,P/S
M8X30 FLANGE 		0-28680-830-0 02 1 9607-
28 BOLT; BRKT,FLEX HOSE,P/S
V TYPE ENG<91L> M8X30 FLANGE 		0-28680-830-0 01 1 9905-
