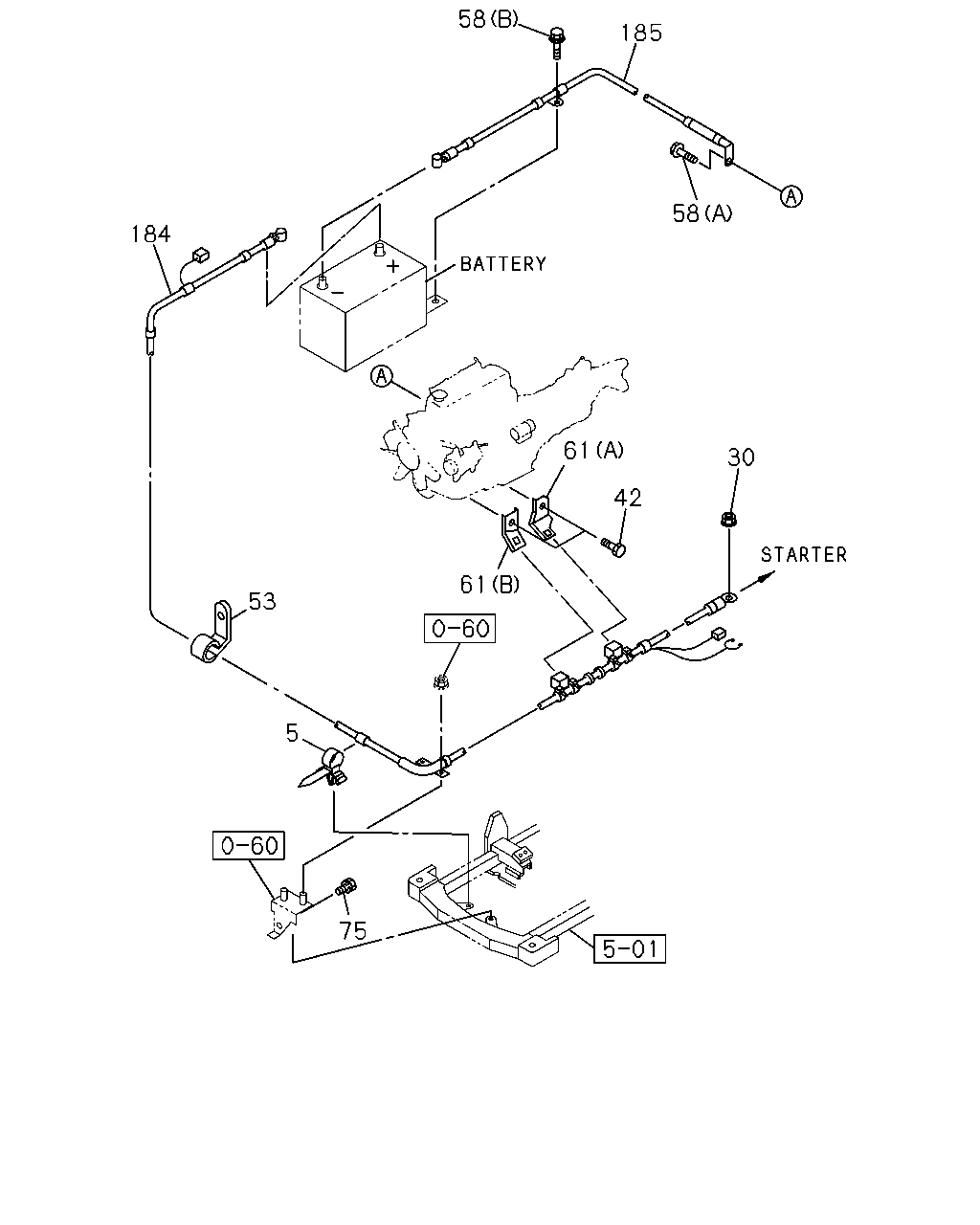

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#48779) — 18 parça

58 185 58 184 61 30 42 61 53 5 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; BATTERY CABLE TO BODY L=172 THA	8-94232-620-0	01	1	0009-	●	●
30	NUT; CABLE,STARTER TO BATTERY THA	8-97920-225-0	01	1	0009-	●	●
42	BOLT; BRKT,BATTERY CABLE M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> M6X14 W/LK WASHER	0-50040-614-0	02	1	0009-	●	●
53	CLIP; CABLE TO HARNESS BRKT M/T MSG 5 SPEED<M75> THA	8-97912-104-0	02	1	0009-		●
58	BOLT; CABLE,BATTERY (A) M10X16 FLANGE	0-28081-016-0	01	1	0009-	●	●
58	BOLT; CABLE,BATTERY (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0009-	●	●
61	BRACKET; BATTERY CABLE M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> (B) THA	8-97918-463-0	01	1	0009-	●	●
61	BRACKET; BATTERY CABLE M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> (A) THA	8-97918-464-2	01	1	0009-	●	●
75	BOLT; BRKT M6X16 FLANGE	0-28480-616-0	01	1	0009-	●	●
107	CLIP; BAND L=140 THA	8-97920-656-0	02	1	0010-	●
184	HARNESS; CABLE,BATTERY (+) SHIFT ON THE FLY<7EX> THA	8-97920-819-3	01	1	0009-0011	●
184	HARNESS; CABLE,BATTERY (+) 4X4<TFS***> THA	8-97920-819-3	01	1	0012-	●
184	HARNESS; CABLE,BATTERY (+) THA	8-97920-818-0	01	1	0009-		●
184	HARNESS; CABLE,BATTERY (+) 4X2<TFB***> A/T AISIN<RMD> THA	8-97920-804-4	01	1	0009-	●
184	HARNESS; CABLE,BATTERY (+) 4X2<TFB***> M/T MUA 5 SPEED<RMN> THA	8-97920-817-3	01	1	0009-0011	●
184	HARNESS; CABLE,BATTERY (+) 4X4<TFS***> EXC. SHIFT ON THE FLY<7EX> THA	8-97920-817-3	01	1	0009-0011	●
184	HARNESS; CABLE,BATTERY (+) 4X2<TFB***> M/T MUA 5 SPEED<RMN> THA	8-97920-817-3	01	1	0012-	●
185	HARNESS; CABLE,BATTERY (-) THA	8-97920-815-0	01	1	0009-	●	●
