0-60 — ENGINE ELECTRICAL CONTROL PARTS (#48778) — 53 parça

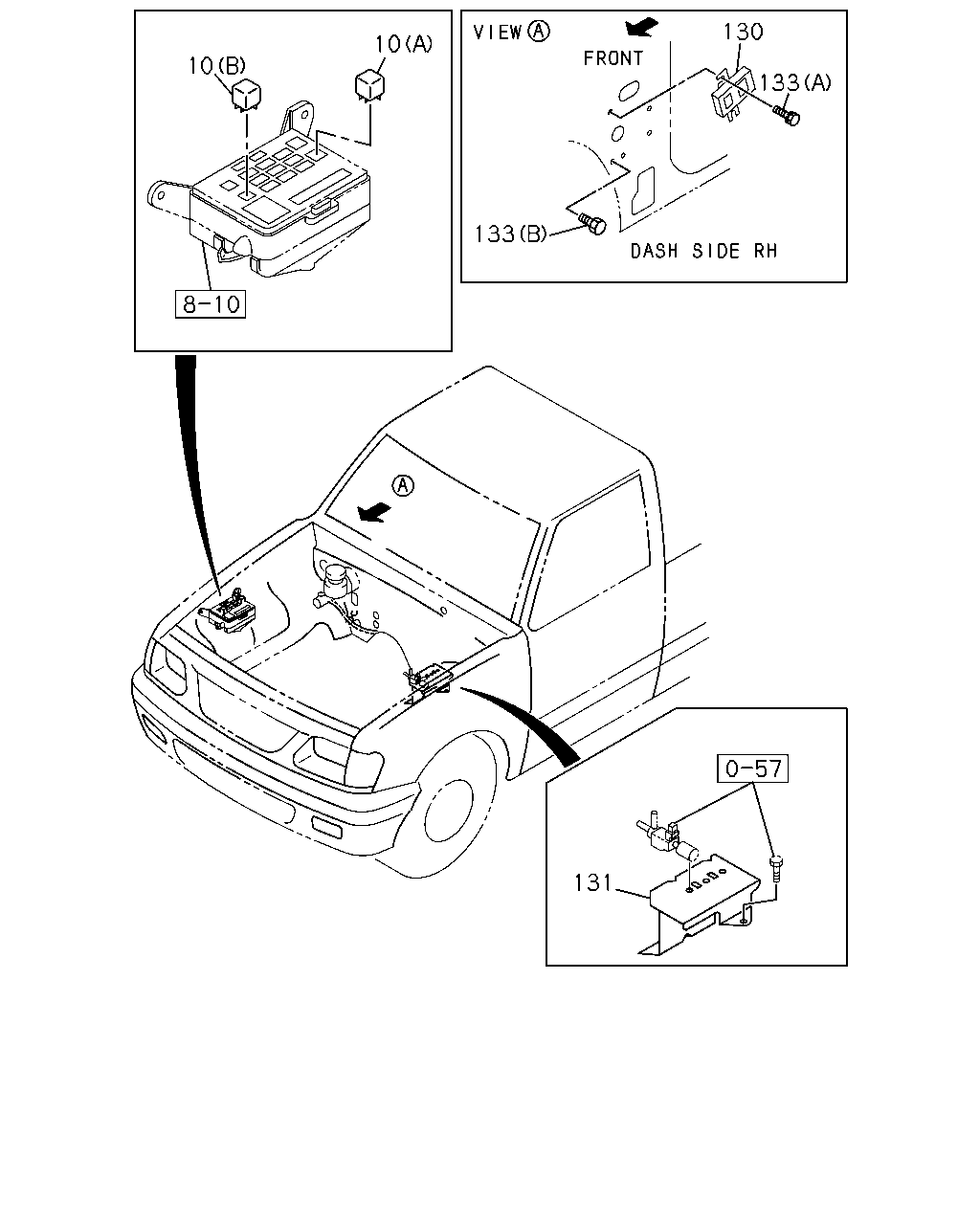

çizim 10338
130 10 10 133 133 131
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
(B) 12V 20A THA 		8-97060-926-1 01 1 0009- ●
10 RELAY; STARTER
(A) 12V 35A 		8-97180-794-1 01 1 0009- ● ●
10 RELAY; STARTER
(B) 12V 20A 		8-97173-037-1 01 1 0009- ●
130 CONTROLLER; EGR 8-97214-154-0 01 1 0009- ●
131 BRACKET; EGR
THA 		8-97912-768-1 01 1 0009- ●
131 BRACKET; EGR
THA 		8-97920-046-2 01 1 0009- ●
133 BOLT; EGR CONTROLLER
(A) M6X16 FLANGE 		0-28480-616-0 02 1 0009- ●
133 BOLT; EGR CONTROLLER
(B) M6X16 		8-97012-496-0 02 1 0009- ● ●

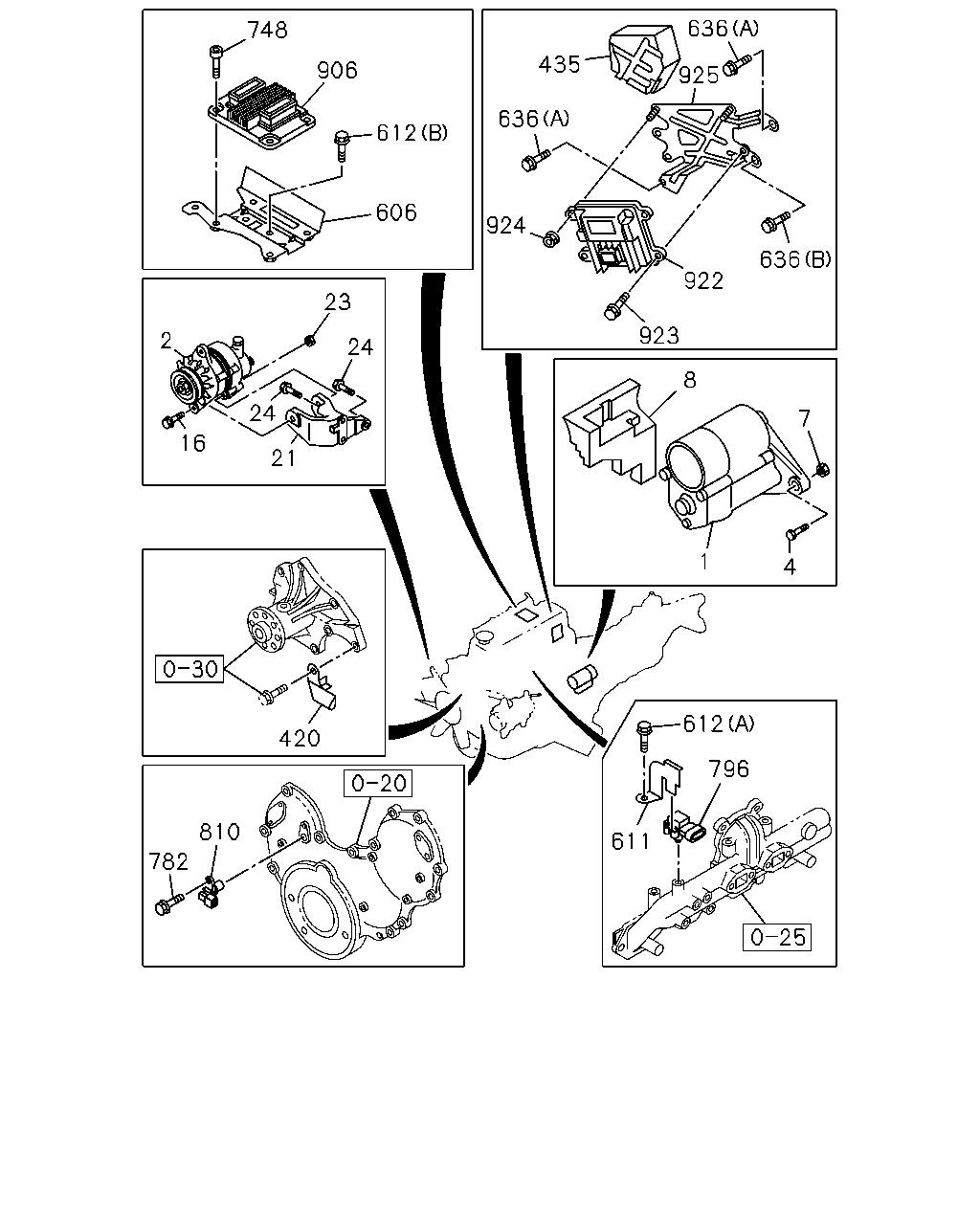

çizim 50784
636 748 435 906 925 636 612 606 924 636 922 23 923 2 24 8 24 21 7 16 1 4 612 420 796 810 782 611
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97941-023-0 01 1 0009- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. A/T AISIN<RMD> 12V 2.0KW DENSO THA 		8-97941-023-0 01 1 0009- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. M/T MUA 5 SPEED<RMN> 12V 2.0KW HITACHI THA 		8-97941-018-2 01 1 0009- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. SPECIAL PACKAGE<7BB> 12V 70A THA 		8-97941-597-2 01 1 0009- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. SPECIAL PACKAGE<7BB> 12V 40A THA 		8-97941-845-1 01 1 0009- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. M/T MUA 5 SPEED<RMN> 12V 60A THA 		8-97941-426-2 01 1 0009- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. A/T AISIN<RMD> 12V 70A THA 		8-97941-741-2 01 1 0009- ●
4 BOLT; STARTER
M12X60 THA 		8-97161-846-0 02 1 0009- ● ●
7 NUT; STARTER
M12 FLANGE 		0-91150-112-0 02 1 0009- ● ●
8 SPACER; STARTER
THA 		8-97942-635-0 01 1 0112- ●
8 SPACER; STARTER 8-97239-303-4 01 1 0009-0203 ●
8 SPACER; STARTER 8-97239-303-4 02 1 0204- ●
16 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 0009- ● ●
21 BRACKET; GEN
THA 		8-97912-659-0 01 1 0009- ● ●
23 NUT; GEN
M10 FLANGE 		0-91150-210-0 01 1 0009- ● ●
24 BOLT; GEN BRKT
M10X35 W/LK WASHER 		0-50041-035-0 01 1 0009- ● ●
24 BOLT; GEN BRKT
M10X70 W/LK WASHER THA 		0-50041-070-0 02 1 0009- ● ●
420 BRACKET; HARNESS
THA 		8-97920-750-3 01 1 0009- ●
435 RUBBER; CUSHION
THA 		8-97942-630-0 01 1 0112- ●
435 RUBBER; CUSHION 8-97239-302-1 01 1 0009-0203 ●
435 RUBBER; CUSHION 8-97239-302-1 02 1 0204- ●
606 BRACKET; CONT UNIT
THA 		8-97921-240-0 01 1 0009- ●
611 BRACKET; SENSOR
THA 		8-97920-607-1 01 1 0009- ●
612 BOLT; BRKT
(A) M6X10 FLANGE 		0-28080-610-0 01 1 0009- ●
612 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 02 1 0009- ●
636 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0009- ●
636 BOLT; BRKT
(B) M14X25 FLANGE 		0-28681-425-0 01 1 0009- ●
748 BOLT; CONT UNIT
M6X20 HEX SOCKET 		9-05820-620-0 04 1 0009- ●
782 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 0009- ●
796 SENSOR; MAP 8-97180-655-0 01 1 0009- ●
810 SENSOR; CRANK ANGLE 8-97180-388-0 01 1 0009- ●
906 CONTROL UNIT; FUEL INJ
M/T MUA 5 SPEED<RMN> 		8-97226-373-7 01 1 0009- ●
906 CONTROL UNIT; FUEL INJ
A/T AISIN<RMD> 		8-97232-622-9 01 1 0009- ●
922 DRIVE UNIT; INJ PUMP 8-97189-136-0 01 1 0009- ●
923 BOLT; DRIVE UNIT
M6X25 FLANGE 		0-28680-625-0 02 1 0009- ●
924 NUT; DRIVE UNIT
M6 FLANGE 		0-91150-106-0 02 1 0009- ●
925 BRACKET; DRIVE UNIT
THA 		8-97920-067-1 01 1 0009- ●

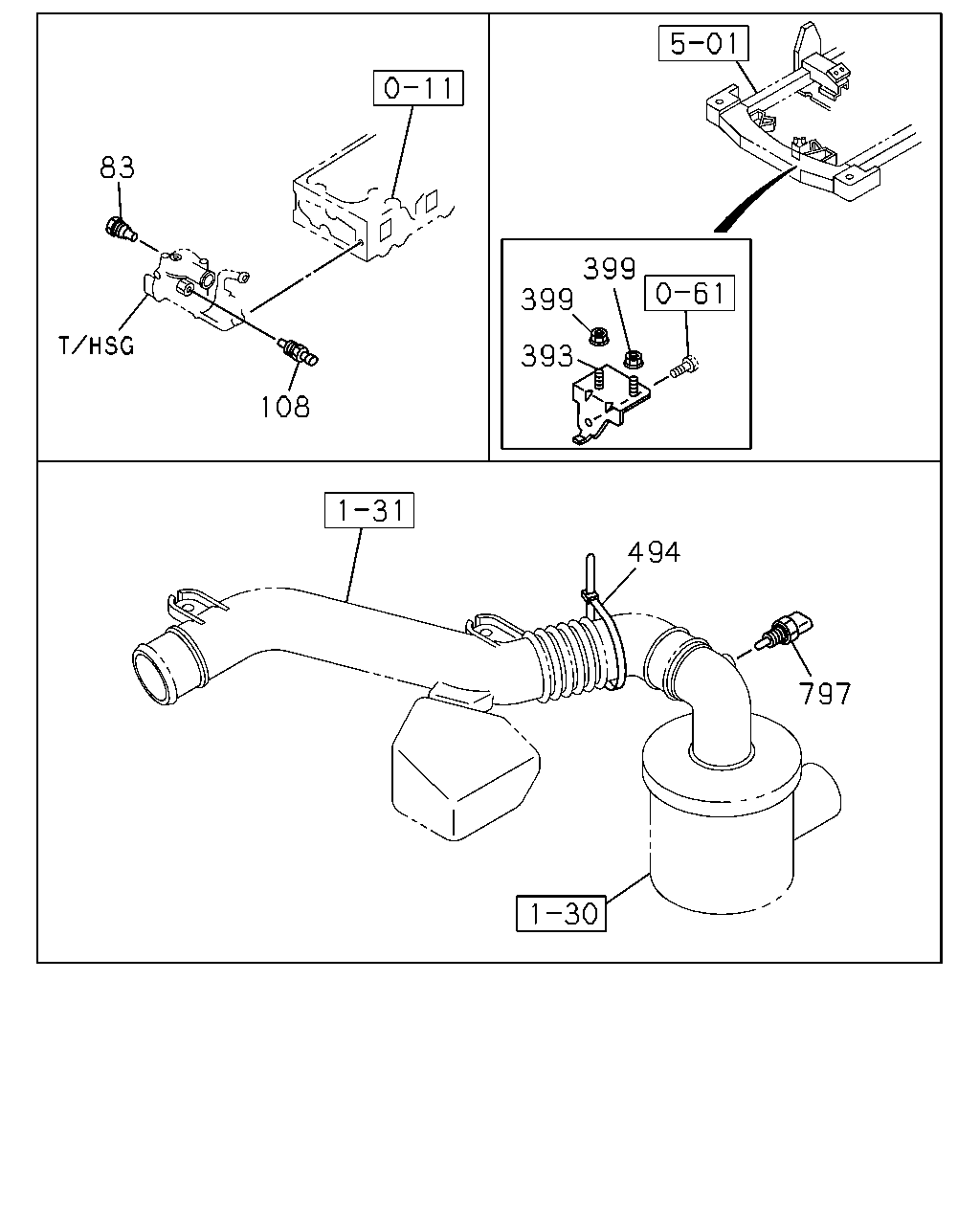

çizim 51907
83 399 399 393 108 494 797
BalonParca AdiParca NoAdetTipApplied Date A B
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0009- ● ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0009- ● ●
108 SWITCH; THERMO 8-12146-312-0 01 1 0009-0108 ●
108 SWITCH; THERMO 8-15326-386-0 01 1 0109- ●
393 BRACKET; HARNESS TO BODY
THA 		8-97918-462-0 01 1 0009- ● ●
399 NUT; CLIP
M6 FLANGE 		5-09440-004-0 02 1 0009- ● ●
494 CLIP; BAND
L=300 		8-94151-373-0 01 1 0009- ●
797 SENSOR; MAT 8-12146-830-0 01 1 0009- ●
