0-57 — EMISSION PIPING (#48777) — 89 parça

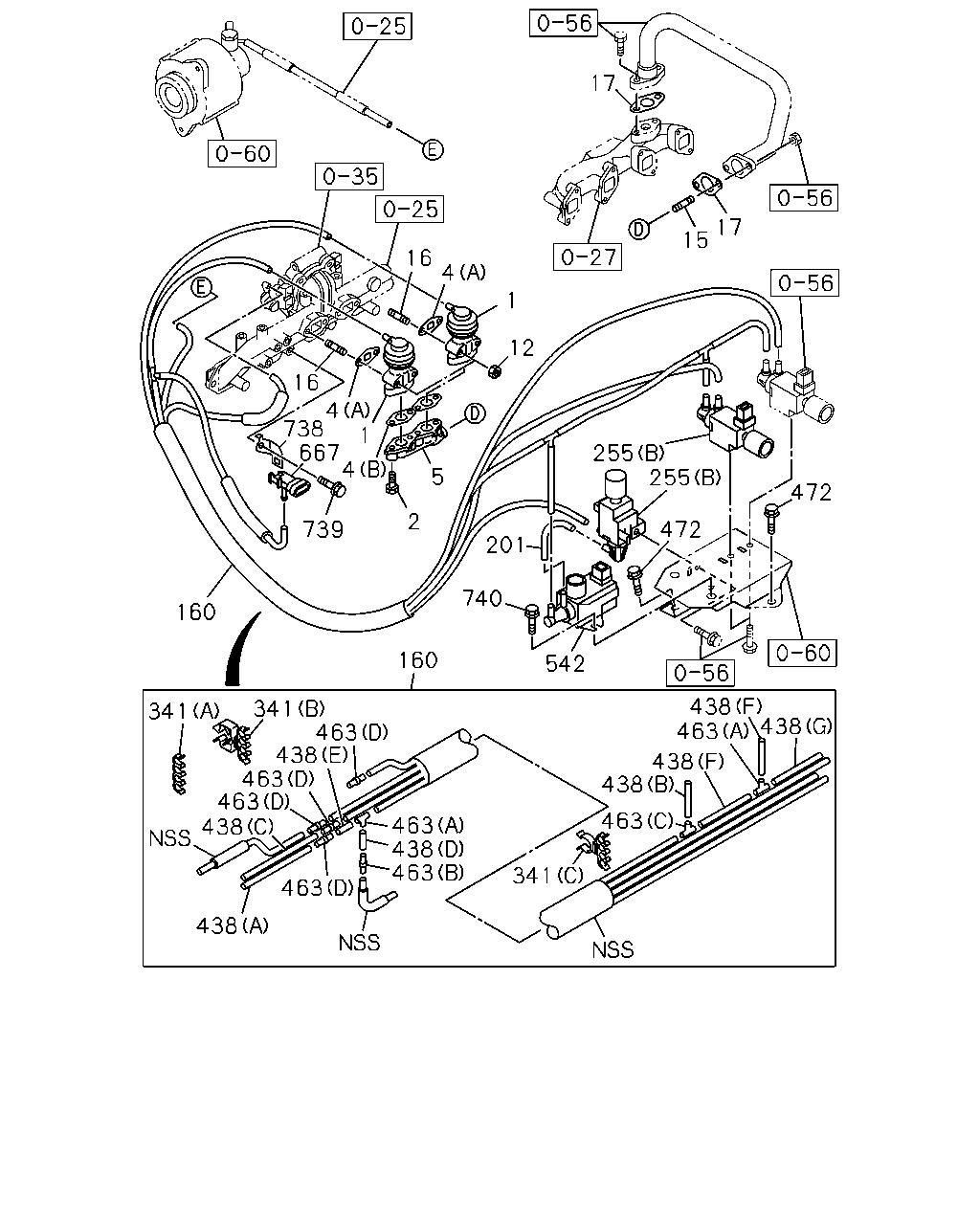

çizim 11951
17 17 15 16 4 1 16 4 738 1 667 4 12 255 255 5 472 739 2 472 201 740 160 160 542 438 463 438 438 438 341 341 463 438 463 463 438 463 463 438 463 341 463 438
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; EGR 8-97132-802-4 02 1 0009- ● ●
2 BOLT; EGR VLV
M8X40 FLANGE 		0-28080-840-0 04 1 0009- ● ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-94379-754-0 01 1 0009- ● ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) THA 		8-97910-300-0 02 1 0009- ● ●
5 ADAPTER ASM 8-97124-595-0 01 1 0009- ●
5 ADAPTER ASM 8-97248-233-1 01 1 0009- ●
12 NUT; EGR VLV
M8 FLANGE 		0-91150-208-0 04 1 0009- ● ●
15 STUD; EGR PIPE
M8X25 L=37 		9-04110-825-0 02 1 0009- ● ●
16 STUD; EGR VLV
M8X45 L=57 		8-94105-162-1 04 1 0009- ● ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97912-689-0 02 1 0009-0108 ● ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97922-182-0 02 1 0109-0111 ● ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97942-749-0 02 1 0112-0201 ● ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97912-689-0 02 1 0202- ● ●
160 HOSE; EGR VLV 8-97250-383-2 01 1 0009- ●
160 HOSE; EGR VLV 8-97249-302-3 01 1 0009- ●
201 HOSE; VSV
L=240 SERVICED BY L=3000 		0-04943-300-0 01 1 0009- ●
255 VALVE; VAC SW,EGR CONT
(A) 		8-97043-750-0 01 1 0009- ●
255 VALVE; VAC SW,EGR CONT
(B) 		8-97171-030-0 01 1 0009- ● ●
255 VALVE; VAC SW,EGR CONT
(B) 		8-97171-030-0 01 1 0009- ●
341 CLIP; RUBBER HOSE
(A) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 0009- ●
341 CLIP; RUBBER HOSE
(B) 		8-94366-035-0 02 1 0009- ●
341 CLIP; RUBBER HOSE
(A) 4XID=6.8 		8-94132-799-0 01 1 0009- ●
341 CLIP; RUBBER HOSE
(B) 4XID=7 		8-94368-497-0 01 1 0009- ●
341 CLIP; RUBBER HOSE
(C) ID=20 & 7X4 		8-94368-500-0 01 1 0009- ●
438 HOSE; RUBBER,VSV,EGR
L=100 SERVICED BY L=3000 		0-04830-300-0 01 1 0009- ●
438 HOSE; RUBBER,VSV,EGR
(A) L=80 SERVICED BY L=3000 		0-04931-300-0 01 1 0009-0201 ●
438 HOSE; RUBBER,VSV,EGR
(B) L=80 SERVICED BY L=3000 		0-04932-300-0 01 1 0009- ●
438 HOSE; RUBBER,VSV,EGR
(C) L=210 SERVICED BY L=3000 		0-04932-300-0 01 1 0009-0201 ●
438 HOSE; RUBBER,VSV,EGR
(D) L=80 SERVICED BY L=3000 		0-04941-300-0 01 1 0009- ●
438 HOSE; RUBBER,VSV,EGR
(E) L=120 SERVICED BY L=3000 		0-04941-300-0 01 1 0009-0201 ●
438 HOSE; RUBBER,VSV,EGR
(F) L=70 SERVICED BY L=3000 		0-04942-300-0 02 1 0009- ●
438 HOSE; RUBBER,VSV,EGR
(G) L=90 SERVICED BY L=3000 		0-04942-300-0 01 1 0009- ●
463 JOINT; RUBBER HOSE
2WAY 		8-97165-694-0 02 1 0009- ●
463 JOINT; RUBBER HOSE
(A) 3WAY 		8-94210-631-0 02 1 0009- ●
463 JOINT; RUBBER HOSE
(B) 2WAY 		8-94426-435-0 01 1 0009- ●
463 JOINT; RUBBER HOSE
(C) 3WAY 		8-94439-294-0 01 1 0009- ●
463 JOINT; RUBBER HOSE
(D) 2WAY 		8-97165-694-0 04 1 0009- ●
472 BOLT; BRKT
M6X16 FLANGE 		0-28480-616-0 03 1 0009- ● ●
542 VALVE; VAC REGULATING 8-97137-812-0 01 1 0009-0105 ●
542 VALVE; VAC REGULATING 8-97240-781-0 01 1 0106- ●
667 SENSOR; VAC 8-16258-659-0 01 1 0009- ●
738 BRACKET; SENSOR,VAC
THA 		8-97920-397-2 01 1 0009- ●
739 BOLT; BRKT,SENSOR
M8X12 FLANGE 		0-28080-812-0 01 1 0009- ●
740 BOLT; VAC REG VALVE
M8X10 FLANGE 		0-28080-810-0 02 1 0009-0105 ●
çizim 48311
221 221
BalonParca AdiParca NoAdetTipApplied Date A B
221 RELAY; MAIN
12V 20A THA 		8-97919-335-1 01 1 0009-0011 ●
221 RELAY; MAIN
4X4<TFS***> 12V 20A THA 		8-97919-335-1 01 1 0009-0011 ●
221 RELAY; MAIN
12V 20A THA 		8-97919-335-1 01 1 0012- ●
221 RELAY; MAIN
4X4<TFS***> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> 12V 20A THA 		8-97919-335-1 01 1 0012- ●

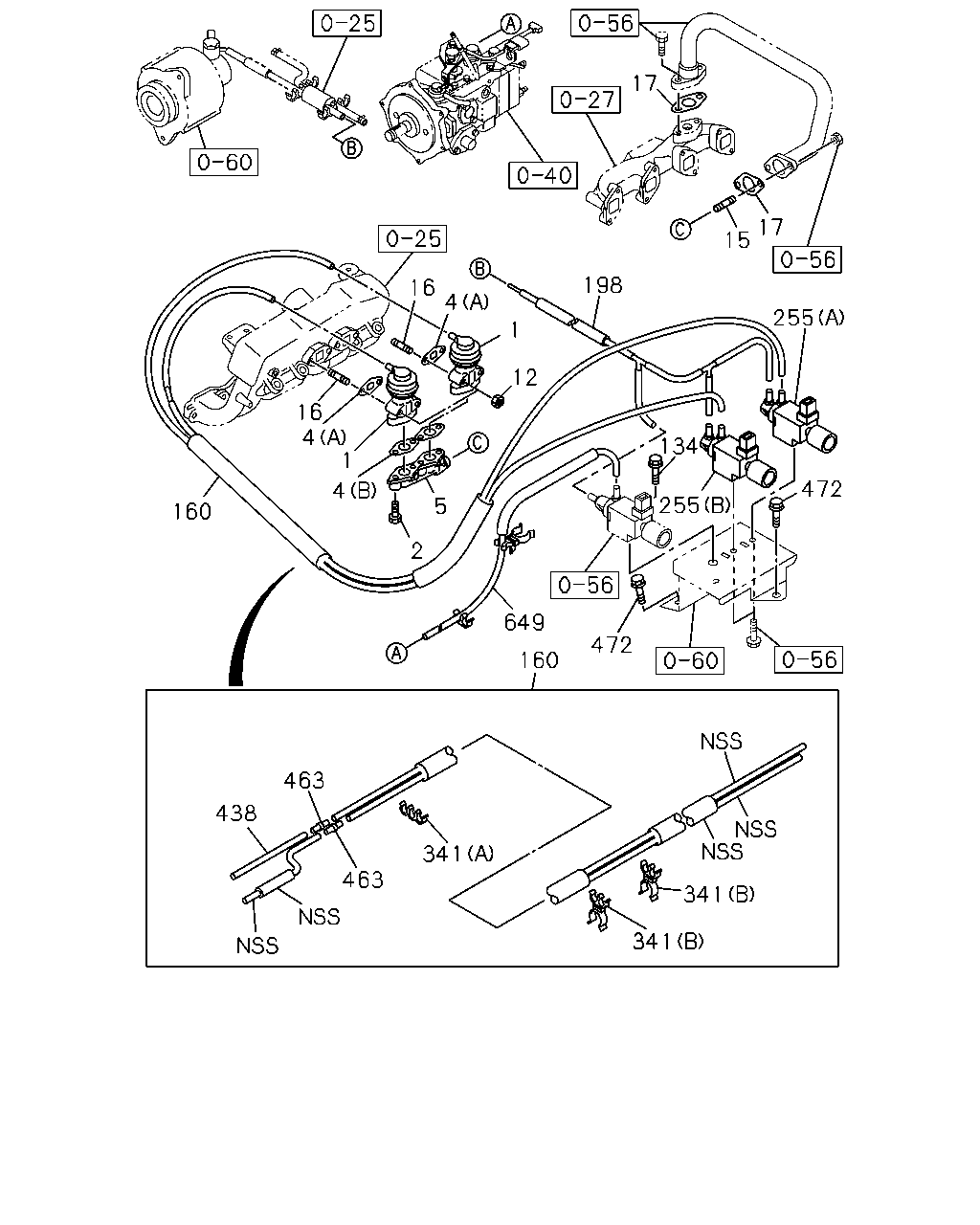

çizim 51148
17 17 15 16 4 1 4 198 16 4 255 1 12 134 472 255 5 160 2 649 472 160 463 438 341 463 341 341
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; EGR 8-97132-802-4 02 1 0009- ● ●
2 BOLT; EGR VLV
M8X40 FLANGE 		0-28080-840-0 04 1 0009- ● ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-94379-754-0 01 1 0009- ● ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) THA 		8-97910-300-0 02 1 0009- ● ●
5 ADAPTER ASM 8-97124-595-0 01 1 0009- ●
5 ADAPTER ASM 8-97248-233-1 01 1 0009- ●
12 NUT; EGR VLV
M8 FLANGE 		0-91150-208-0 04 1 0009- ● ●
15 STUD; EGR PIPE
M8X25 L=37 		9-04110-825-0 02 1 0009- ● ●
16 STUD; EGR VLV
M8X45 L=57 		8-94105-162-1 04 1 0009- ● ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97912-689-0 02 1 0009-0108 ● ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97922-182-0 02 1 0109-0111 ● ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97942-749-0 02 1 0112-0201 ● ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97912-689-0 02 1 0202- ● ●
134 BOLT; VSV
COOLER WO/HEATER<YL1> M8X16 FLANGE 		0-28080-816-0 01 1 0009- ●
160 HOSE; EGR VLV 8-97250-383-2 01 1 0009- ●
160 HOSE; EGR VLV 8-97249-302-3 01 1 0009- ●
198 HOSE; VAC,VSV
COOLER WO/HEATER<YL1> 		8-97163-981-3 01 1 0009- ●
198 HOSE; VAC,VSV
EXC. COOLER WO/HEATER<YL1> 		8-97163-982-3 01 1 0009- ●
255 VALVE; VAC SW,EGR CONT
(A) 		8-97043-750-0 01 1 0009- ●
255 VALVE; VAC SW,EGR CONT
(B) 		8-97171-030-0 01 1 0009- ● ●
255 VALVE; VAC SW,EGR CONT
(B) 		8-97171-030-0 01 1 0009- ●
341 CLIP; RUBBER HOSE
(A) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 0009- ●
341 CLIP; RUBBER HOSE
(B) 		8-94366-035-0 02 1 0009- ●
341 CLIP; RUBBER HOSE
(A) 4XID=6.8 		8-94132-799-0 01 1 0009- ●
341 CLIP; RUBBER HOSE
(B) 4XID=7 		8-94368-497-0 01 1 0009- ●
341 CLIP; RUBBER HOSE
(C) ID=20 & 7X4 		8-94368-500-0 01 1 0009- ●
438 HOSE; RUBBER,VSV,EGR
L=100 SERVICED BY L=3000 		0-04830-300-0 01 1 0009- ●
438 HOSE; RUBBER,VSV,EGR
(A) L=80 SERVICED BY L=3000 		0-04931-300-0 01 1 0009-0201 ●
438 HOSE; RUBBER,VSV,EGR
(B) L=80 SERVICED BY L=3000 		0-04932-300-0 01 1 0009- ●
438 HOSE; RUBBER,VSV,EGR
(C) L=210 SERVICED BY L=3000 		0-04932-300-0 01 1 0009-0201 ●
438 HOSE; RUBBER,VSV,EGR
(D) L=80 SERVICED BY L=3000 		0-04941-300-0 01 1 0009- ●
438 HOSE; RUBBER,VSV,EGR
(E) L=120 SERVICED BY L=3000 		0-04941-300-0 01 1 0009-0201 ●
438 HOSE; RUBBER,VSV,EGR
(F) L=70 SERVICED BY L=3000 		0-04942-300-0 02 1 0009- ●
438 HOSE; RUBBER,VSV,EGR
(G) L=90 SERVICED BY L=3000 		0-04942-300-0 01 1 0009- ●
463 JOINT; RUBBER HOSE
2WAY 		8-97165-694-0 02 1 0009- ●
463 JOINT; RUBBER HOSE
(A) 3WAY 		8-94210-631-0 02 1 0009- ●
463 JOINT; RUBBER HOSE
(B) 2WAY 		8-94426-435-0 01 1 0009- ●
463 JOINT; RUBBER HOSE
(C) 3WAY 		8-94439-294-0 01 1 0009- ●
463 JOINT; RUBBER HOSE
(D) 2WAY 		8-97165-694-0 04 1 0009- ●
472 BOLT; BRKT
M6X16 FLANGE 		0-28480-616-0 03 1 0009- ● ●
649 HOSE ASM; FAST IDLE SOLENOID VLV
COOLER WO/HEATER<YL1> 		8-97163-995-1 01 1 0009- ●
