0-52 — OIL AND VACUUM PIPING; ENGINE (#48775) — 43 parça

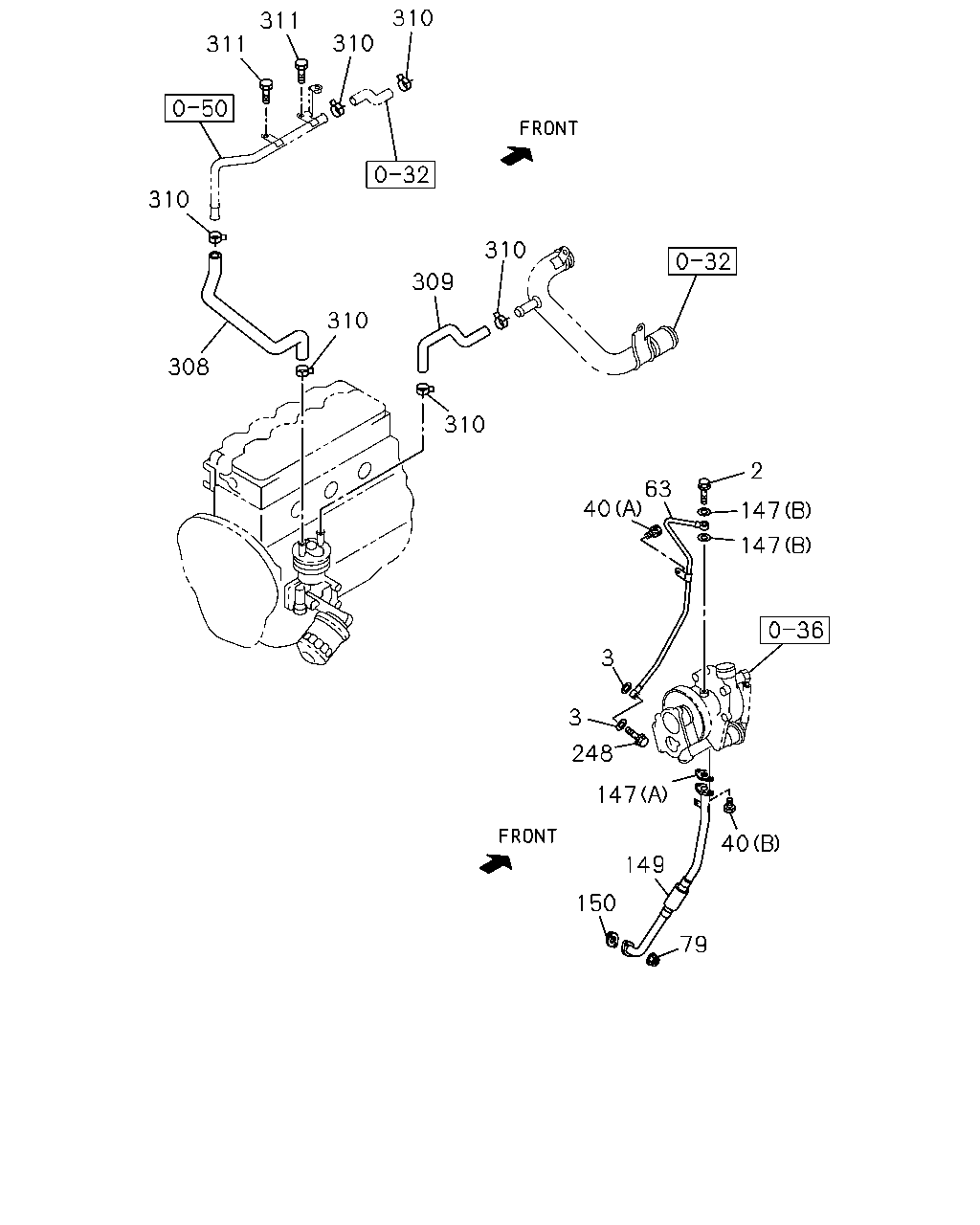

310 311 310 311 310 310 309 310 308 310 2 63 40 147 147 3 3 248 147 40 149 150 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0009-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0 THA	9-09571-414-0	02	1	0009-	●	●
40	BOLT; OIL PIPE (A) M8X16 FLANGE	0-28480-816-0	01	1	0009-	●	●
40	BOLT; OIL PIPE (B) M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	0009-	●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97161-201-0	01	1	0009-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97086-341-0	01	1	0009-	●
79	NUT; OIL DRAIN PIPE M8 FLANGE THA	5-09440-005-0	02	1	0009-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14 THA	8-97910-643-0	01	1	0009-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0009-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) THA	8-97910-642-0	01	1	0009-	●
149	PIPE; OIL RETURN,TURBOCHARGER THA	8-97162-108-0	01	1	0009-		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97162-106-0	01	1	0009-	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-97920-587-0	01	1	0009-	●	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M14X25	8-94315-336-1	01	1	0009-	●	●
308	HOSE; OIL COOLER FEED THA	8-97920-079-0	01	1	0009-	●	●
309	HOSE; OIL COOLER RETURN THA	8-97920-080-1	01	1	0009-	●	●
310	CLIP; WATER HOSE FIX ID=20.8	8-94125-862-1	06	1	0009-	●	●
311	BOLT; PIPE FIX M8X12 FLANGE	0-28080-812-0	02	1	0009-	●	●

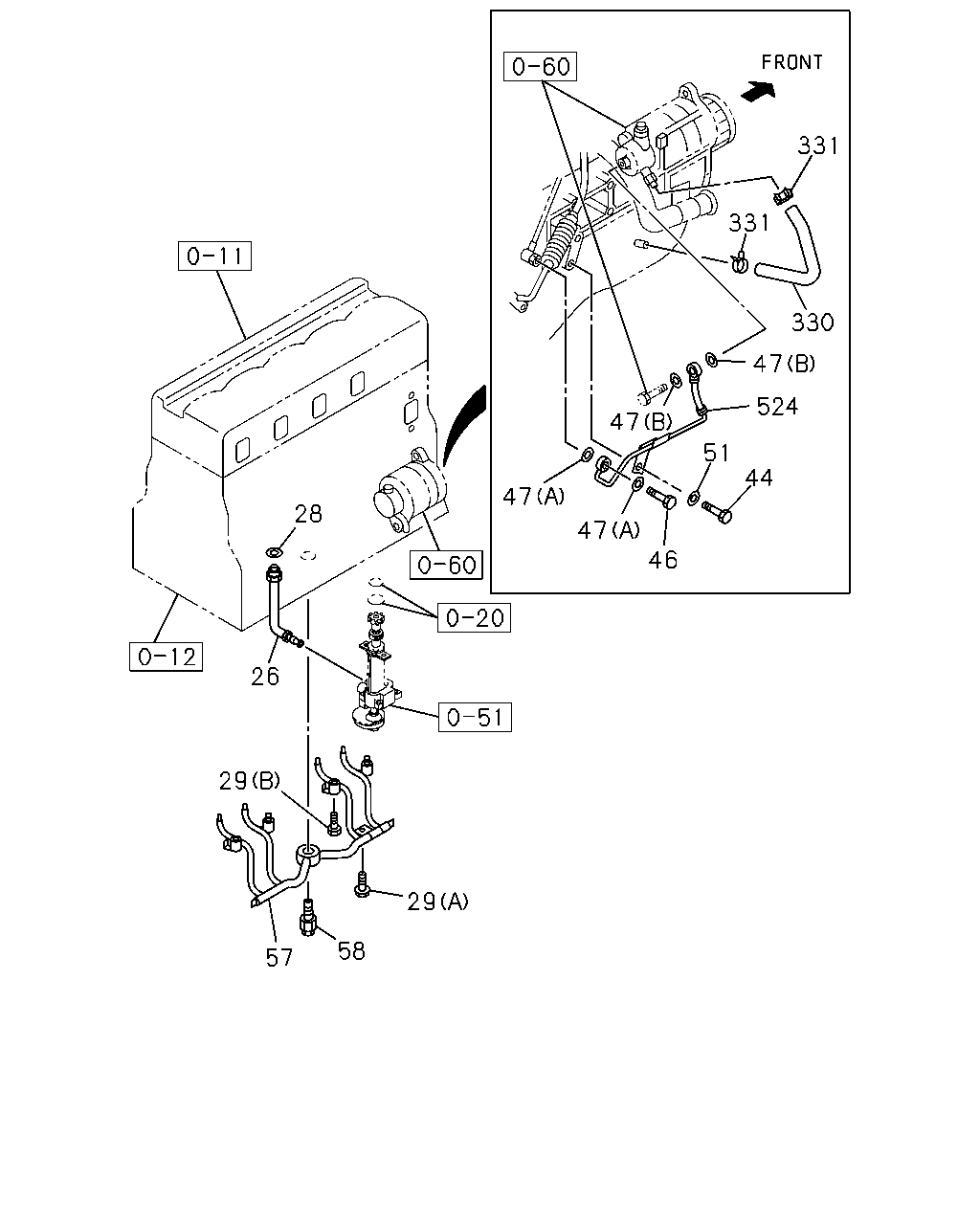

331 331 330 47 524 47 51 44 47 47 46 28 26 29 29 58 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	PIPE; OIL,PUMP TO C/BL THA	8-97920-470-0	01	1	0009-	●	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-97912-535-0	02	1	0009-	●	●
29	BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	0009-0109		●
29	BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	0009-		●
29	BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER	0-50040-812-0	01	1	0009-0109	●
29	BOLT; OIL PIPE,OIL JET M8X12 W/LK WASHER	0-50040-812-0	01	1	0110-	●	●
29	BOLT; OIL PIPE,OIL JET (B) M6X20 THA	8-97920-485-0	04	1	0009-	●
44	BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	0-50040-816-0	01	1	0009-	●	●
46	BOLT; JOINT,OIL FEED PIPE,VAC PUMP M8X20 EYE-BOLT THA	8-97910-296-0	01	1	0009-	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	02	1	0009-	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0009-	●	●
51	WASHER; PL,OIL PIPE,VAC PUMP ID=8.4 OD=18	9-09164-608-0	01	1	0009-	●	●
57	PIPE; OIL,OIL JET THA	8-97912-536-2	01	1	0009-		●
57	PIPE; OIL,OIL JET THA	8-97920-033-3	01	1	0009-	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING THA	8-97912-540-0	01	1	0009-		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING THA	8-97920-423-0	01	1	0009-	●
330	HOSE; VAC PUMP,RETURN THA	8-97921-376-0	01	1	0009-		●
330	HOSE; VAC PUMP,RETURN A/T AISIN<RMD> THA	8-97921-376-0	01	1	0009-	●
330	HOSE; VAC PUMP,RETURN M/T MUA 5 SPEED<RMN> THA	8-97940-140-1	01	1	0009-	●
331	CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	0009-	●	●
524	PIPE; OIL,VAC PUMP FEED THA	8-97914-912-0	01	1	0009-0108		●
524	PIPE; OIL,VAC PUMP FEED A/T AISIN<RMD> THA	8-97914-912-0	01	1	0009-0108	●
524	PIPE; OIL,VAC PUMP FEED THA	8-97922-181-0	01	1	0109-		●
524	PIPE; OIL,VAC PUMP FEED A/T AISIN<RMD> THA	8-97922-181-0	01	1	0109-	●
524	PIPE; OIL,VAC PUMP FEED M/T MUA 5 SPEED<RMN>	8-97226-439-0	01	1	0009-	●
