◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶

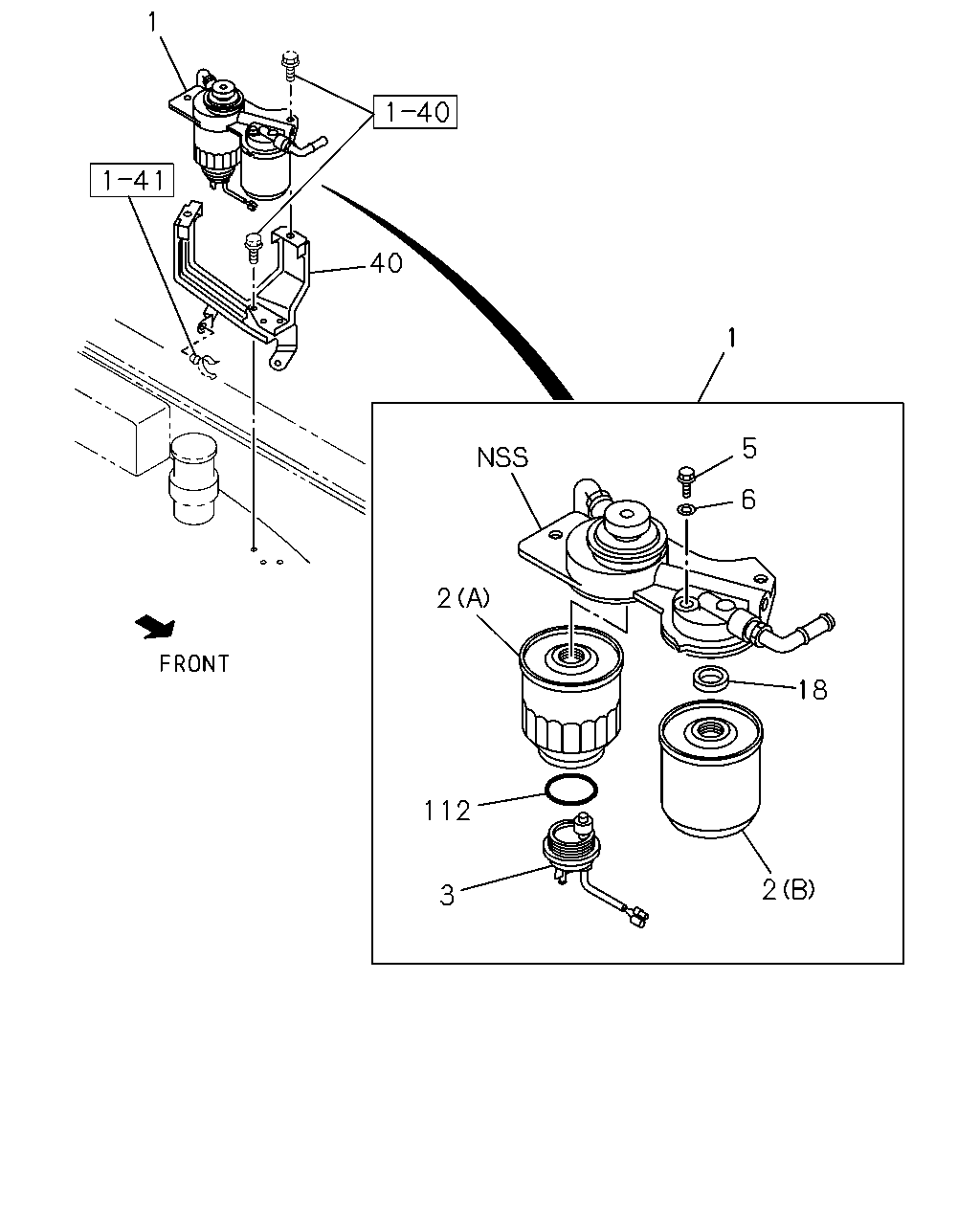

0-41 — FUEL FILTER AND BRACKET (#48772) — 10 parça
çizim 10777
1 40 1 5 6 2 18 112 2 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER ASM; FUEL
THA 		8-97941-598-3 01 1 0009- ●
1 FILTER ASM; FUEL
THA 		8-97941-108-4 01 1 0009- ●
2 ELEMENT KIT; FUEL FILTER
(A) THA 		8-97288-947-0 01 1 0009- ● ●
2 ELEMENT KIT; FUEL FILTER
(B) THA 		8-97916-131-0 01 1 0009- ● ●
3 SENSOR ASM; FUEL FILTER
THA 		8-97288-948-0 01 1 0009- ● ●
5 BOLT; FUEL FILTER 1-13219-074-0 01 1 0009- ● ●
6 GASKET; FUEL FILTER
ID=10.2 OD=15.2 		1-09630-083-0 01 1 0009- ● ●
18 GASKET; ELEMENT TO BODY,FUEL FILTER
THA 		8-97288-946-0 01 1 0009- ● ●
40 BRACKET; FUEL FILTER
THA 		8-97941-148-1 01 1 0009- ● ●
112 GASKET; SENSOR TO CASE
THA 		8-97288-949-0 01 1 0009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
