Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#48771) — 423 parça

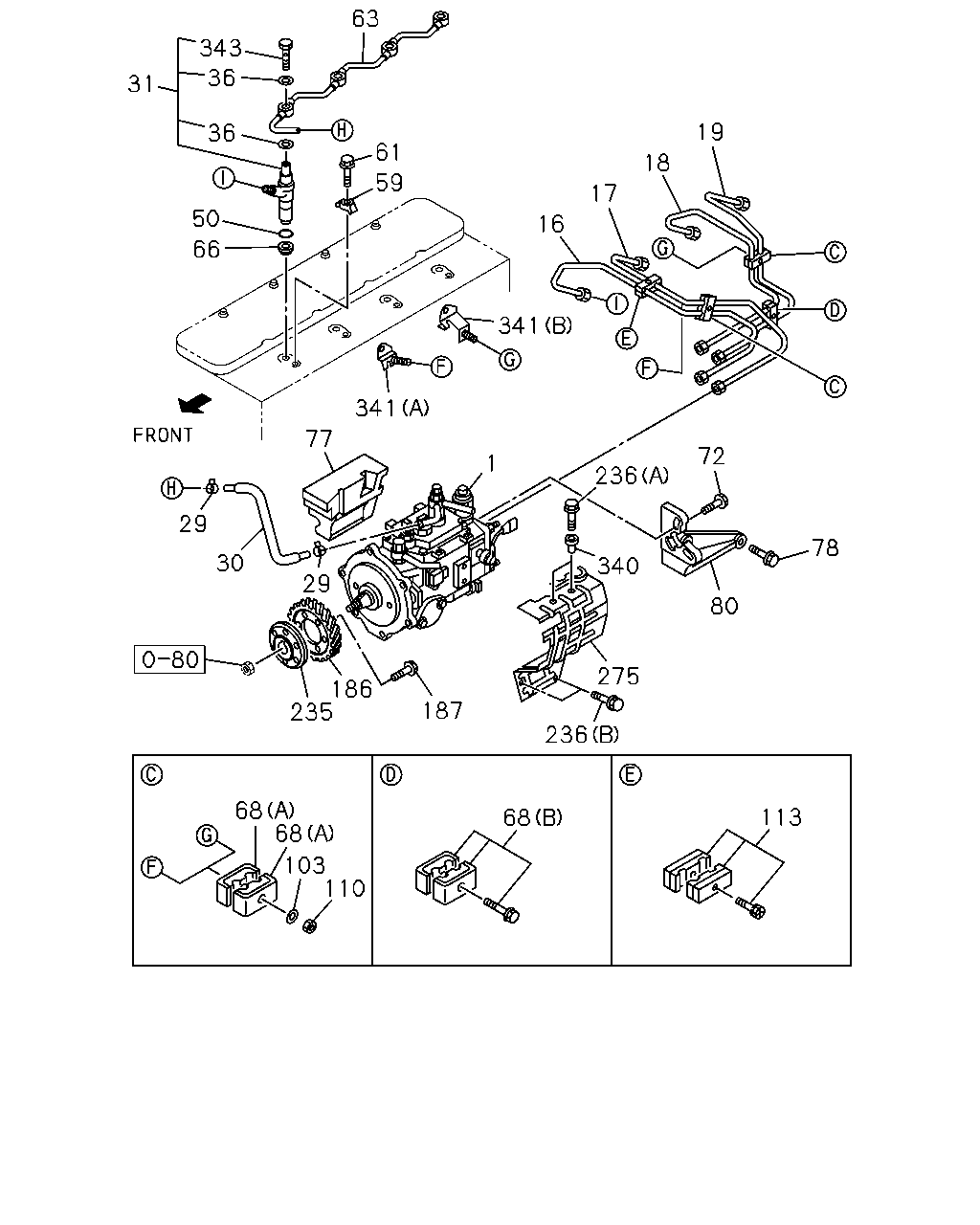

63 343 36 31 19 36 61 59 18 17 50 66 16 341 341 77 72 1 236 29 78 30 340 29 80 275 186 235 187 236 68 68 103 110 113 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. COOLER WO/HEATER<YL1>	8-97226-333-1	01	1	0009-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. COOLER WO/HEATER<YL1>	8-97226-332-1	01	1	0009-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97214-093-4	01	1	0009-		●
16	PIPE; INJ NO.1 THA	8-97921-616-0	01	1	0009-	●
16	PIPE; INJ NO.1 THA	8-97920-022-2	01	1	0009-		●
17	PIPE; INJ NO.2 THA	8-97921-617-0	01	1	0009-	●
17	PIPE; INJ NO.2 THA	8-97920-023-2	01	1	0009-		●
18	PIPE; INJ NO.3 THA	8-97921-618-0	01	1	0009-	●
18	PIPE; INJ NO.3 THA	8-97920-024-2	01	1	0009-		●
19	PIPE; INJ NO.4 THA	8-97921-619-0	01	1	0009-	●
19	PIPE; INJ NO.4 THA	8-97920-025-2	01	1	0009-		●
29	CLIP; HOSE ID=12	8-94238-610-0	07	1	0009-	●
29	CLIP; HOSE ID=12	8-94238-610-0	02	1	0009-	●	●
30	HOSE; RUBBER,FUEL LEAK IRC THA	8-97912-624-0	01	1	0009-	●	●
30	HOSE; RUBBER,FUEL LEAK PCR THA	8-97912-625-1	01	1	0009-	●	●
31	NOZZLE ASM; INJ	8-97188-521-1	04	1	0009-	●
31	NOZZLE ASM; INJ	8-97226-335-1	04	1	0009-		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97238-599-0	08	1	0009-		●
50	GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97912-615-0	04	1	0009-	●	●
59	CLAMP; NOZZLE HOLDER MAP THA	8-97912-616-0	04	1	0009-	●
59	CLAMP; NOZZLE HOLDER IFC THA	8-97914-503-0	04	1	0009-	●
59	CLAMP; NOZZLE HOLDER THA	8-97920-006-0	04	1	0009-		●
61	BOLT; CLAMP NOZZLE HOLDER THA	8-97916-383-0	04	1	0009-	●
61	BOLT; CLAMP NOZZLE HOLDER THA	8-97920-028-0	04	1	0009-		●
63	PIPE; FUEL,NOZZLE LEAK OFF THA	8-97920-247-0	01	1	0009-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0009-	●	●
68	CLIP; INJ PIPE (A)	1-09701-132-0	04	1	0009-		●
68	CLIP; INJ PIPE (B)	8-97224-041-0	01	1	0009-		●
72	BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER THA	0-50051-020-0	02	1	0009-	●
72	BOLT; BRKT TO INJ PUMP M8X25 FLANGE	0-28680-825-0	02	1	0009-		●
77	RUBBER; SPACE,INJ PUMP	8-97231-895-0	01	1	0009-0203		●
77	RUBBER; SPACE,INJ PUMP	8-97231-895-0	02	1	0204-		●
78	BOLT; BRKT TO C/BL M8X20 FLANGE	0-28680-820-0	02	1	0009-	●
78	BOLT; BRKT TO C/BL M8X25 FLANGE	0-28680-825-0	02	1	0009-		●
80	BRACKET; PUMP (A) THA	8-97912-613-0	01	1	0009-	●
80	BRACKET; PUMP (B) THA	8-97912-614-0	01	1	0009-	●
80	BRACKET; PUMP THA	8-97920-065-0	01	1	0009-		●
103	WASHER; LK,CLIP,INJ PIPE ID=6.1	9-09150-506-0	02	1	0009-		●
110	NUT; CLIP M6	9-09110-406-0	02	1	0009-		●
113	CLIP; INJ PIPE THA	8-97912-621-0	02	1	0009-	●
113	CLIP; INJ PIPE THA	8-97912-621-0	01	1	0009-		●
186	GEAR; INJ PUMP THA	8-97131-663-0	01	1	0009-	●
186	GEAR; INJ PUMP THA	8-97941-158-1	01	1	0009-		●
187	BOLT; GEAR M6X18 W/LK WASHER	0-50040-618-0	06	1	0009-	●
187	BOLT; GEAR M6X22 W/LK WASHER	0-50040-622-0	06	1	0009-		●
235	CENTER; INJ PUMP GEAR THA	8-97911-487-0	01	1	0009-	●
235	CENTER; INJ PUMP GEAR THA	8-97920-567-0	01	1	0009-		●
236	BOLT; COVER (A) M6X30 FLANGE	0-28680-630-0	02	1	0009-		●
236	BOLT; COVER (B) M10X30 FLANGE	0-28681-030-0	02	1	0009-		●
275	COVER; INJ PUMP	8-97231-894-3	01	1	0009-		●
340	RUBBER; MTG OD=22 THA	8-94140-428-1	06	1	0109-		●
340	RUBBER; MTG OD=22 THA	8-94140-428-1	02	1	0101-0101		●
340	RUBBER; MTG OD=22 THA	8-94140-428-1	04	1	0102-0108		●
340	RUBBER; MTG OD=22 THA	8-94140-428-1	06	1	0109-		●
341	BRACKET; CLIP,INJ PIPE (A) THA	8-97920-070-0	01	1	0009-		●
341	BRACKET; CLIP,INJ PIPE (B) THA	8-97920-071-1	01	1	0009-		●
363	GUIDE OD=13 T=9.5 THA	8-94140-427-1	02	1	0101-0101		●
363	GUIDE OD=13 T=9.5 THA	8-94140-427-1	04	1	0102-0108		●
363	GUIDE OD=13 T=9.5 THA	8-94140-427-1	06	1	0109-		●

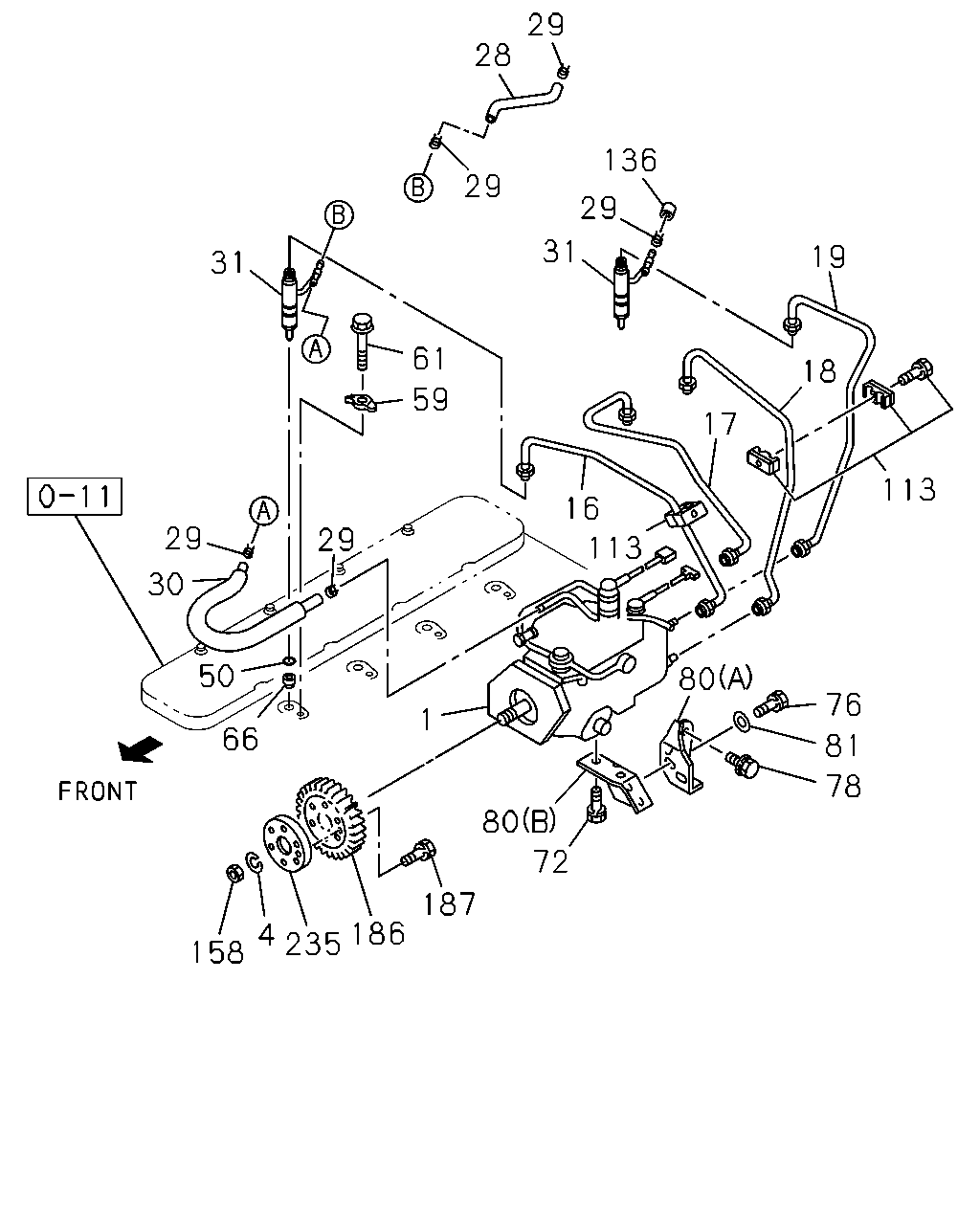

29 28 136 29 29 31 19 31 61 59 18 17 113 16 113 29 30 29 80 50 76 81 78 1 66 80 72 187 4 186 158 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. COOLER WO/HEATER<YL1>	8-97226-333-1	01	1	0009-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. COOLER WO/HEATER<YL1>	8-97226-332-1	01	1	0009-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97214-093-4	01	1	0009-		●
4	WASHER; INJ PUMP	8-94226-554-0	01	1	0009-	●
16	PIPE; INJ NO.1 THA	8-97921-616-0	01	1	0009-	●
16	PIPE; INJ NO.1 THA	8-97920-022-2	01	1	0009-		●
17	PIPE; INJ NO.2 THA	8-97921-617-0	01	1	0009-	●
17	PIPE; INJ NO.2 THA	8-97920-023-2	01	1	0009-		●
18	PIPE; INJ NO.3 THA	8-97921-618-0	01	1	0009-	●
18	PIPE; INJ NO.3 THA	8-97920-024-2	01	1	0009-		●
19	PIPE; INJ NO.4 THA	8-97921-619-0	01	1	0009-	●
19	PIPE; INJ NO.4 THA	8-97920-025-2	01	1	0009-		●
28	HOSE; FUEL,NOZZLE TO NOZZLE THA	8-97912-623-0	03	1	0009-	●
29	CLIP; HOSE ID=12	8-94238-610-0	07	1	0009-	●
29	CLIP; HOSE ID=12	8-94238-610-0	02	1	0009-	●	●
30	HOSE; RUBBER,FUEL LEAK IRC THA	8-97912-624-0	01	1	0009-	●	●
30	HOSE; RUBBER,FUEL LEAK PCR THA	8-97912-625-1	01	1	0009-	●	●
31	NOZZLE ASM; INJ	8-97188-521-1	04	1	0009-	●
31	NOZZLE ASM; INJ	8-97226-335-1	04	1	0009-		●
50	GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97912-615-0	04	1	0009-	●	●
59	CLAMP; NOZZLE HOLDER MAP THA	8-97912-616-0	04	1	0009-	●
59	CLAMP; NOZZLE HOLDER IFC THA	8-97914-503-0	04	1	0009-	●
59	CLAMP; NOZZLE HOLDER THA	8-97920-006-0	04	1	0009-		●
61	BOLT; CLAMP NOZZLE HOLDER THA	8-97916-383-0	04	1	0009-	●
61	BOLT; CLAMP NOZZLE HOLDER THA	8-97920-028-0	04	1	0009-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0009-	●	●
72	BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER THA	0-50051-020-0	02	1	0009-	●
72	BOLT; BRKT TO INJ PUMP M8X25 FLANGE	0-28680-825-0	02	1	0009-		●
76	BOLT; BRKT TO BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	0009-	●
78	BOLT; BRKT TO C/BL M8X20 FLANGE	0-28680-820-0	02	1	0009-	●
78	BOLT; BRKT TO C/BL M8X25 FLANGE	0-28680-825-0	02	1	0009-		●
80	BRACKET; PUMP (A) THA	8-97912-613-0	01	1	0009-	●
80	BRACKET; PUMP (B) THA	8-97912-614-0	01	1	0009-	●
80	BRACKET; PUMP THA	8-97920-065-0	01	1	0009-		●
81	WASHER; PL,BRKT TO PUMP ID=8.4 OD=22	9-09164-708-0	02	1	0009-0105	●
81	WASHER; PL,BRKT TO PUMP ID=8.4 OD=22	9-09164-708-0	04	1	0106-0106	●
81	WASHER; PL,BRKT TO PUMP ID=8.4 OD=22	9-09164-708-0	06	1	0106-	●
113	CLIP; INJ PIPE THA	8-97912-621-0	02	1	0009-	●
113	CLIP; INJ PIPE THA	8-97912-621-0	01	1	0009-		●
136	CAP; NOZZLE,FUEL END THA	8-94473-967-0	01	1	0009-	●
158	NUT; INJ PUMP M14	8-94226-565-0	01	1	0009-	●
186	GEAR; INJ PUMP THA	8-97131-663-0	01	1	0009-	●
186	GEAR; INJ PUMP THA	8-97941-158-1	01	1	0009-		●
187	BOLT; GEAR M6X18 W/LK WASHER	0-50040-618-0	06	1	0009-	●
187	BOLT; GEAR M6X22 W/LK WASHER	0-50040-622-0	06	1	0009-		●
235	CENTER; INJ PUMP GEAR THA	8-97911-487-0	01	1	0009-	●
235	CENTER; INJ PUMP GEAR THA	8-97920-567-0	01	1	0009-		●
363	GUIDE OD=13 T=9.5 THA	8-94140-427-1	02	1	0101-0101		●
363	GUIDE OD=13 T=9.5 THA	8-94140-427-1	04	1	0102-0108		●
363	GUIDE OD=13 T=9.5 THA	8-94140-427-1	06	1	0109-		●

31 32 140 44 43 47 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ	8-97188-521-1	04	1	0009-	●
31	NOZZLE ASM; INJ	8-97226-335-1	04	1	0009-		●
32	HOLDER ASM; NOZZLE	8-97289-581-0	04	1	0009-		●
32	HOLDER ASM; NOZZLE	8-94442-225-0	04	1	0009-	●
33	NOZZLE; INJ	8-97188-610-0	04	1	0009-	●
33	NOZZLE; INJ	8-97228-407-0	04	1	0009-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-97300-529-0	04	1	0009-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.66	8-97288-027-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.67	8-97288-028-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.68	8-97288-029-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.69	8-97288-031-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.70	8-97288-032-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.71	8-97288-033-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.72	8-97288-034-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.73	8-97288-035-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.74	8-97288-036-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.75	8-97288-037-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.76	8-97288-038-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94312-723-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (A)	8-97300-505-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.590	8-97300-506-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.600	8-97300-507-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.610	8-97300-508-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.620	8-97300-509-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.630	8-97300-510-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.640	8-97300-511-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.650	8-97300-512-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.660	8-97300-513-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.700	8-97300-515-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.670	8-97300-516-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.680	8-97300-517-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.690	8-97300-518-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.710	8-97300-519-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.720	8-97300-520-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.730	8-97300-521-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.740	8-97300-522-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.750	8-97300-523-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.760	8-97300-524-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.770	8-97300-525-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.780	8-97300-526-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.790	8-97300-527-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.800	8-97300-528-0	04	1	0009-		●
44	SPRING; NOZZLE,NOZZLE HOLDER (A)	8-97300-503-0	04	1	0009-		●
44	SPRING; NOZZLE,NOZZLE HOLDER (B)	8-97300-504-0	04	1	0009-		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	0009-	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-97300-651-0	08	1	0009-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	0009-	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	8-94174-183-0	04	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.500	8-94174-142-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.525	8-94174-143-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.550	8-94174-144-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.575	8-94174-145-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.600	8-94174-146-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.625	8-94174-147-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.650	8-94174-148-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.675	8-94174-149-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.700	8-94174-150-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.725	8-94174-151-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.750	8-94174-152-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.775	8-94174-153-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.800	8-94174-154-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.825	8-94174-155-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.850	8-94174-156-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.875	8-94174-157-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.900	8-94174-158-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.925	8-94174-159-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.950	8-94174-160-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.975	8-94174-161-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.000	8-94174-162-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.025	8-94174-163-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.050	8-94174-164-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.075	8-94174-165-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.100	8-94174-166-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.125	8-94174-167-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.150	8-94174-168-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.175	8-94174-169-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.200	8-94174-170-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.225	8-94174-171-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.250	8-94174-172-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.275	8-94174-173-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.300	8-94174-174-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.325	8-94174-175-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.350	8-94174-176-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.375	8-94174-177-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.400	8-94174-178-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.425	8-94174-179-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.450	8-94174-180-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.475	8-94174-181-0	AR	1	0009-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.500	8-94174-182-0	AR	1	0009-	●
363	GUIDE OD=13 T=9.5 THA	8-94140-427-1	02	1	0101-0101		●
363	GUIDE OD=13 T=9.5 THA	8-94140-427-1	04	1	0102-0108		●
363	GUIDE OD=13 T=9.5 THA	8-94140-427-1	06	1	0109-		●

31 32 34 36 36 141 43 139 44 43 139 146 345 44 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ	8-97188-521-1	04	1	0009-	●
31	NOZZLE ASM; INJ	8-97226-335-1	04	1	0009-		●
32	HOLDER ASM; NOZZLE	8-97289-581-0	04	1	0009-		●
32	HOLDER ASM; NOZZLE	8-94442-225-0	04	1	0009-	●
33	NOZZLE; INJ	8-97188-610-0	04	1	0009-	●
33	NOZZLE; INJ	8-97228-407-0	04	1	0009-		●
34	BOLT; EYE,NOZZLE HOLDER	8-97238-601-0	04	1	0009-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-97300-529-0	04	1	0009-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	0009-	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97238-599-0	08	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.66	8-97288-027-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.67	8-97288-028-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.68	8-97288-029-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.69	8-97288-031-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.70	8-97288-032-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.71	8-97288-033-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.72	8-97288-034-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.73	8-97288-035-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.74	8-97288-036-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.75	8-97288-037-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER L=2.76	8-97288-038-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94312-723-0	04	1	0009-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (A)	8-97300-505-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.590	8-97300-506-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.600	8-97300-507-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.610	8-97300-508-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.620	8-97300-509-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.630	8-97300-510-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.640	8-97300-511-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.650	8-97300-512-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.660	8-97300-513-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.700	8-97300-515-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.670	8-97300-516-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.680	8-97300-517-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.690	8-97300-518-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.710	8-97300-519-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.720	8-97300-520-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.730	8-97300-521-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.740	8-97300-522-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.750	8-97300-523-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.760	8-97300-524-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.770	8-97300-525-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.780	8-97300-526-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.790	8-97300-527-0	04	1	0009-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B) L=2.800	8-97300-528-0	04	1	0009-		●
44	SPRING; NOZZLE,NOZZLE HOLDER (A)	8-97300-503-0	04	1	0009-		●
44	SPRING; NOZZLE,NOZZLE HOLDER (B)	8-97300-504-0	04	1	0009-		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	0009-	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-97300-651-0	08	1	0009-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	0009-	●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=0.85	8-97288-049-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=0.90	8-97288-050-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=0.95	8-97288-051-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.00	8-97288-052-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.05	8-97288-053-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.10	8-97288-054-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.15	8-97288-055-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.20	8-97288-056-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.25	8-97288-057-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.30	8-97288-058-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.35	8-97288-059-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.40	8-97288-060-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.45	8-97288-061-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.50	8-97288-062-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.55	8-97288-063-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.60	8-97288-064-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.65	8-97288-065-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.70	8-97288-066-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.75	8-97288-067-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.80	8-97288-068-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.85	8-97288-069-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.90	8-97288-070-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.95	8-97288-071-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=2.00	8-97288-072-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=2.05	8-97288-073-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=2.10	8-97288-074-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=2.15	8-97288-075-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=2.20	8-97288-076-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.00	8-97288-077-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.05	8-97288-078-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.10	8-97288-079-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.15	8-97288-080-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.20	8-97288-081-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.25	8-97288-082-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.30	8-97288-083-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.35	8-97288-084-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.40	8-97288-085-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.45	8-97288-086-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.50	8-97288-087-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.55	8-97288-088-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.60	8-97288-089-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.65	8-97288-090-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.70	8-97288-091-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.75	8-97288-092-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.80	8-97288-093-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.85	8-97288-094-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.90	8-97288-095-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=1.95	8-97288-096-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=2.00	8-97288-097-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=2.05	8-97288-098-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER T=2.10	8-97288-099-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.00	8-97300-536-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.05	8-97300-537-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.10	8-97300-538-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.15	8-97300-539-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.20	8-97300-540-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.25	8-97300-541-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.30	8-97300-542-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.35	8-97300-543-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.40	8-97300-544-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.45	8-97300-545-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.50	8-97300-546-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.55	8-97300-547-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.60	8-97300-548-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.65	8-97300-549-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.70	8-97300-550-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.75	8-97300-551-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.80	8-97300-552-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.85	8-97300-553-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.90	8-97300-554-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.95	8-97300-555-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=2.00	8-97300-556-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=2.05	8-97300-557-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=2.10	8-97300-558-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=2.15	8-97300-559-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.275	8-97300-560-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.325	8-97300-561-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.375	8-97300-562-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.425	8-97300-563-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.475	8-97300-566-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.525	8-97300-567-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.575	8-97300-568-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.625	8-97300-569-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.675	8-97300-570-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.725	8-97300-571-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.775	8-97300-572-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.95	8-97300-573-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.70	8-97300-574-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.75	8-97300-575-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.80	8-97300-576-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.85	8-97300-577-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.90	8-97300-578-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.975	8-97300-579-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.025	8-97300-580-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.075	8-97300-581-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.125	8-97300-582-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.175	8-97300-583-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.175	8-97300-583-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (A) T=1.225	8-97300-584-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.800	8-97300-585-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.825	8-97300-586-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.850	8-97300-587-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.875	8-97300-588-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.900	8-97300-589-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.925	8-97300-590-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.950	8-97300-591-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.975	8-97300-592-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.000	8-97300-594-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.025	8-97300-597-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.050	8-97300-598-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.075	8-97300-599-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.100	8-97300-600-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.125	8-97300-601-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.150	8-97300-602-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.175	8-97300-603-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.200	8-97300-604-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.225	8-97300-605-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.250	8-97300-606-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.275	8-97300-607-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.300	8-97300-608-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.325	8-97300-609-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.350	8-97300-610-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.375	8-97300-611-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.400	8-97300-612-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.425	8-97300-613-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.450	8-97300-614-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.475	8-97300-615-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.500	8-97300-616-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.525	8-97300-617-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.550	8-97300-618-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.575	8-97300-619-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.600	8-97300-620-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.625	8-97300-621-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.650	8-97300-622-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.675	8-97300-623-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.700	8-97300-624-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.725	8-97300-625-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.750	8-97300-626-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.775	8-97300-627-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.800	8-97300-628-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.825	8-97300-629-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.850	8-97300-630-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.875	8-97300-631-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.900	8-97300-632-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.925	8-97300-633-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.950	8-97300-634-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.975	8-97300-635-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.000	8-97300-636-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.025	8-97300-637-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.050	8-97300-638-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.075	8-97300-639-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.100	8-97300-640-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.125	8-97300-641-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.150	8-97300-642-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.175	8-97300-643-0	04	1	0009-		●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER (B) T=2.200	8-97300-644-0	04	1	0009-		●
141	ROD; PUSH,UPR,NOZZLE HOLDER	8-97300-502-0	04	1	0009-		●
146	SPACER; NOZZLE	8-97300-650-0	04	1	0009-		●
345	WASHER; NOZZLE HOLDER T=2.400	8-97288-041-0	04	1	0009-		●
345	WASHER; NOZZLE HOLDER T=2.425	8-97288-043-0	04	1	0009-		●
345	WASHER; NOZZLE HOLDER T=2.450	8-97288-044-0	04	1	0009-		●
345	WASHER; NOZZLE HOLDER T=2.475	8-97288-045-0	04	1	0009-		●
345	WASHER; NOZZLE HOLDER T=2.500	8-97288-046-0	04	1	0009-		●
345	WASHER; NOZZLE HOLDER T=2.400	8-97300-645-0	04	1	0009-		●
345	WASHER; NOZZLE HOLDER T=2.425	8-97300-646-0	04	1	0009-		●
345	WASHER; NOZZLE HOLDER T=2.450	8-97300-647-0	04	1	0009-		●
345	WASHER; NOZZLE HOLDER T=2.475	8-97300-648-0	04	1	0009-		●
345	WASHER; NOZZLE HOLDER T=2.500	8-97300-649-0	04	1	0009-		●
363	GUIDE OD=13 T=9.5 THA	8-94140-427-1	02	1	0101-0101		●
363	GUIDE OD=13 T=9.5 THA	8-94140-427-1	04	1	0102-0108		●
363	GUIDE OD=13 T=9.5 THA	8-94140-427-1	06	1	0109-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
