Sayfa 4-35 - Isuzu EPC

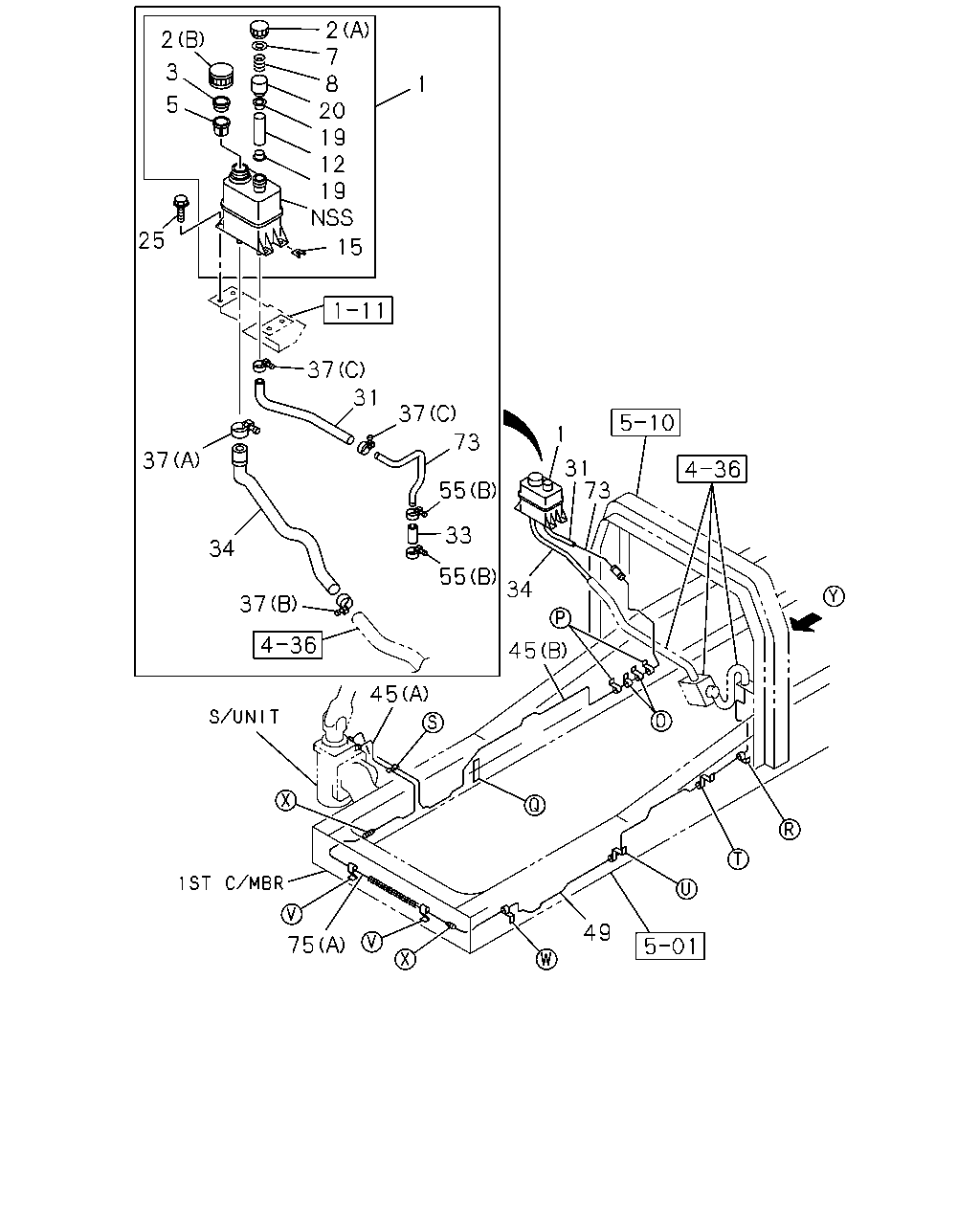

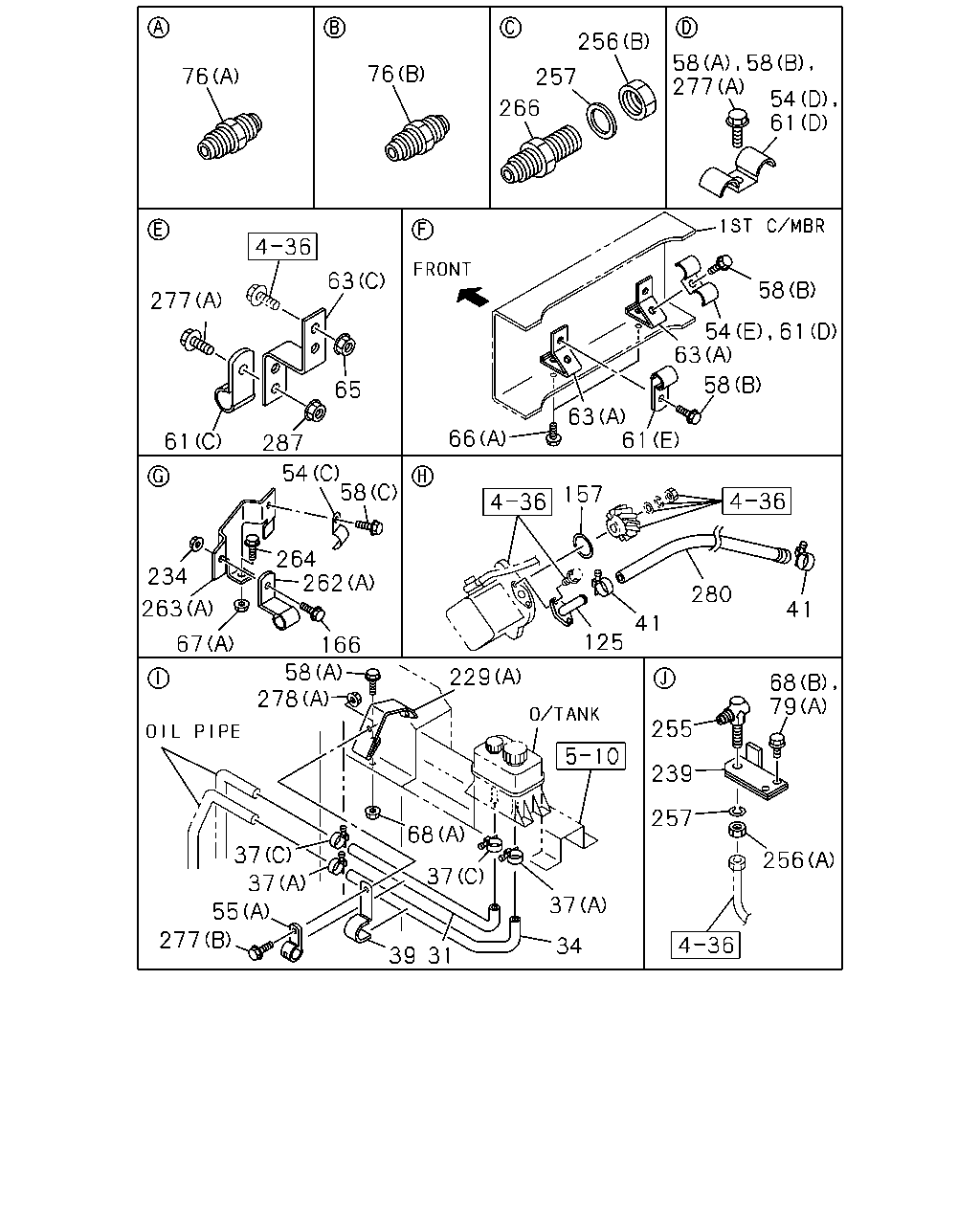

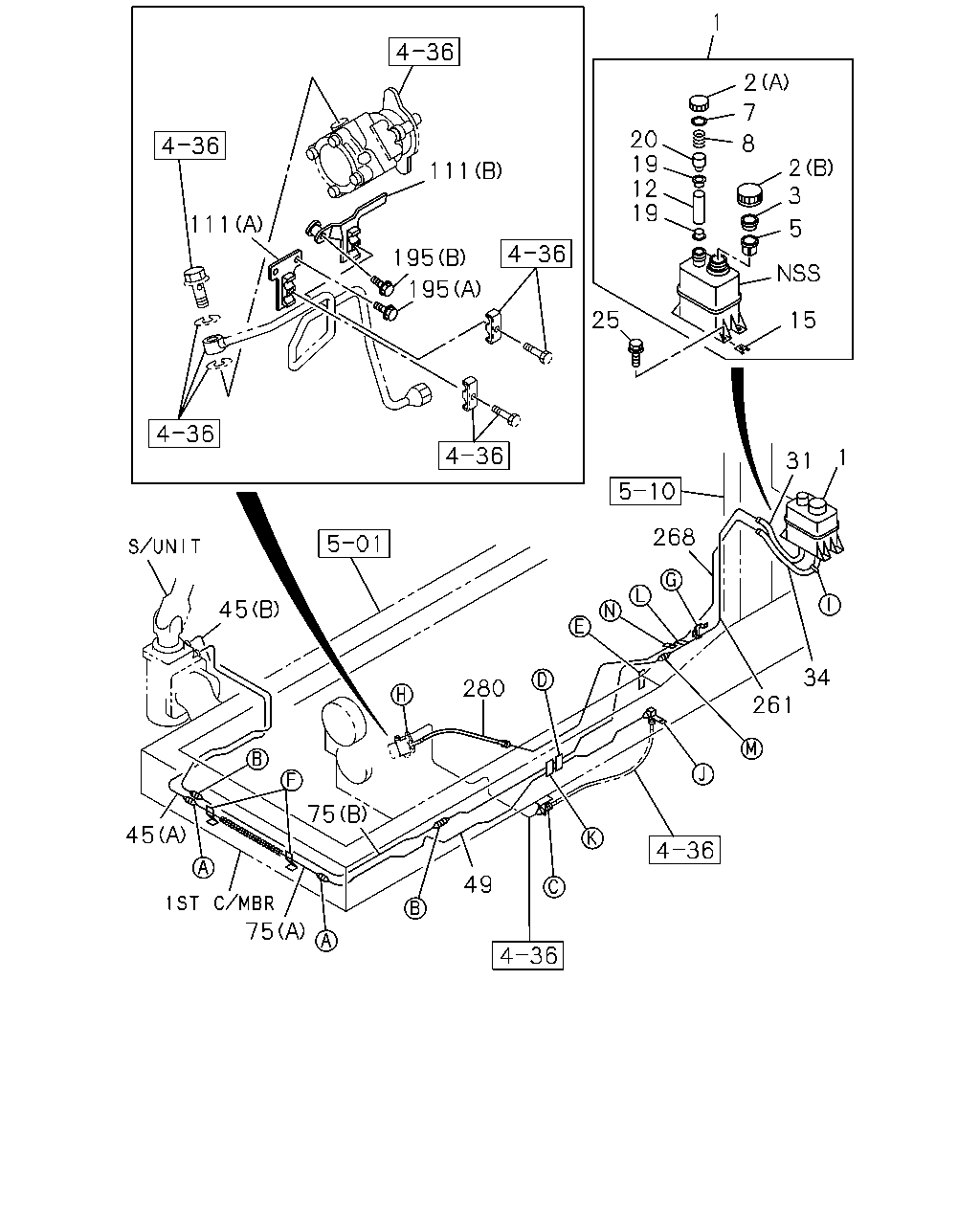

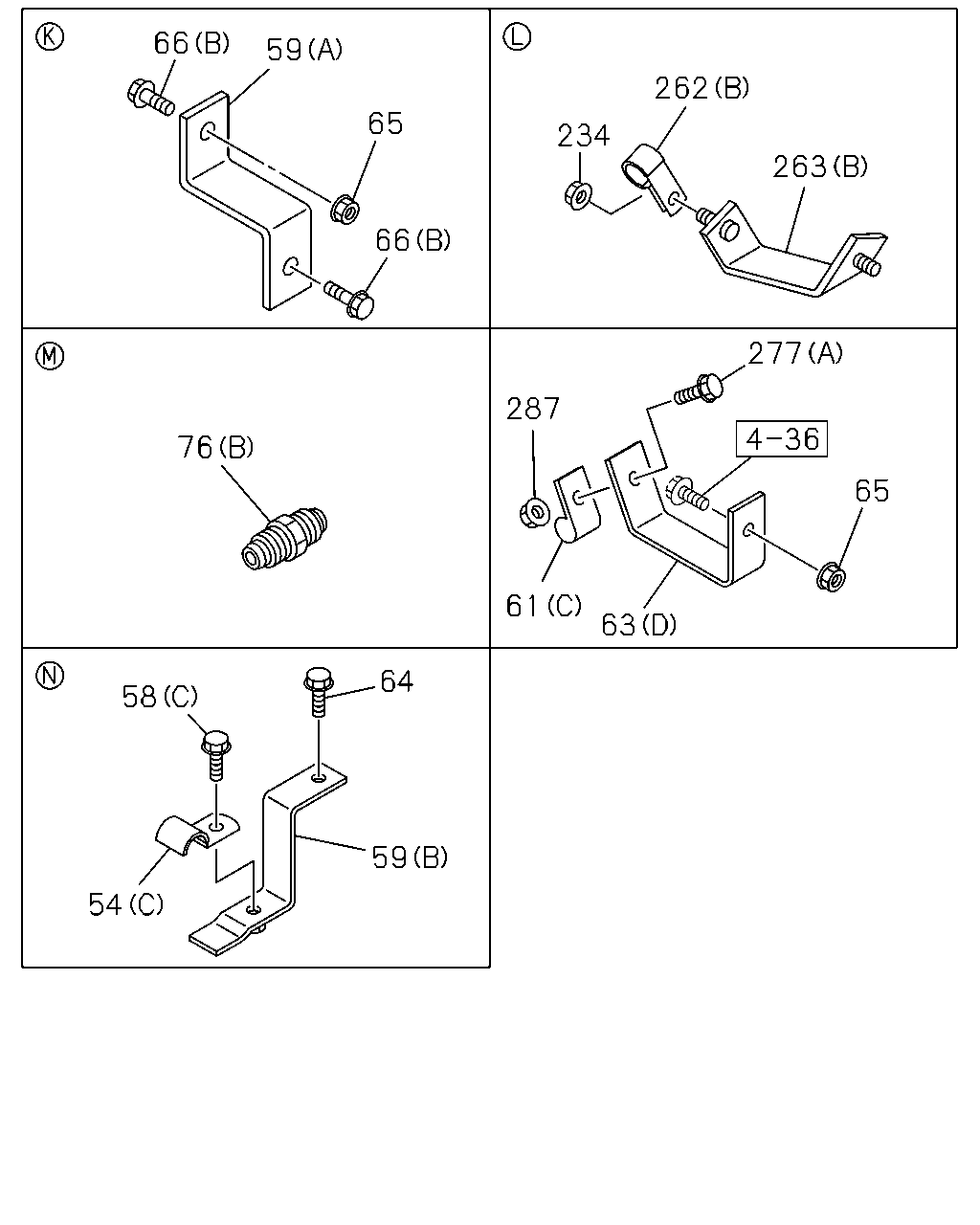

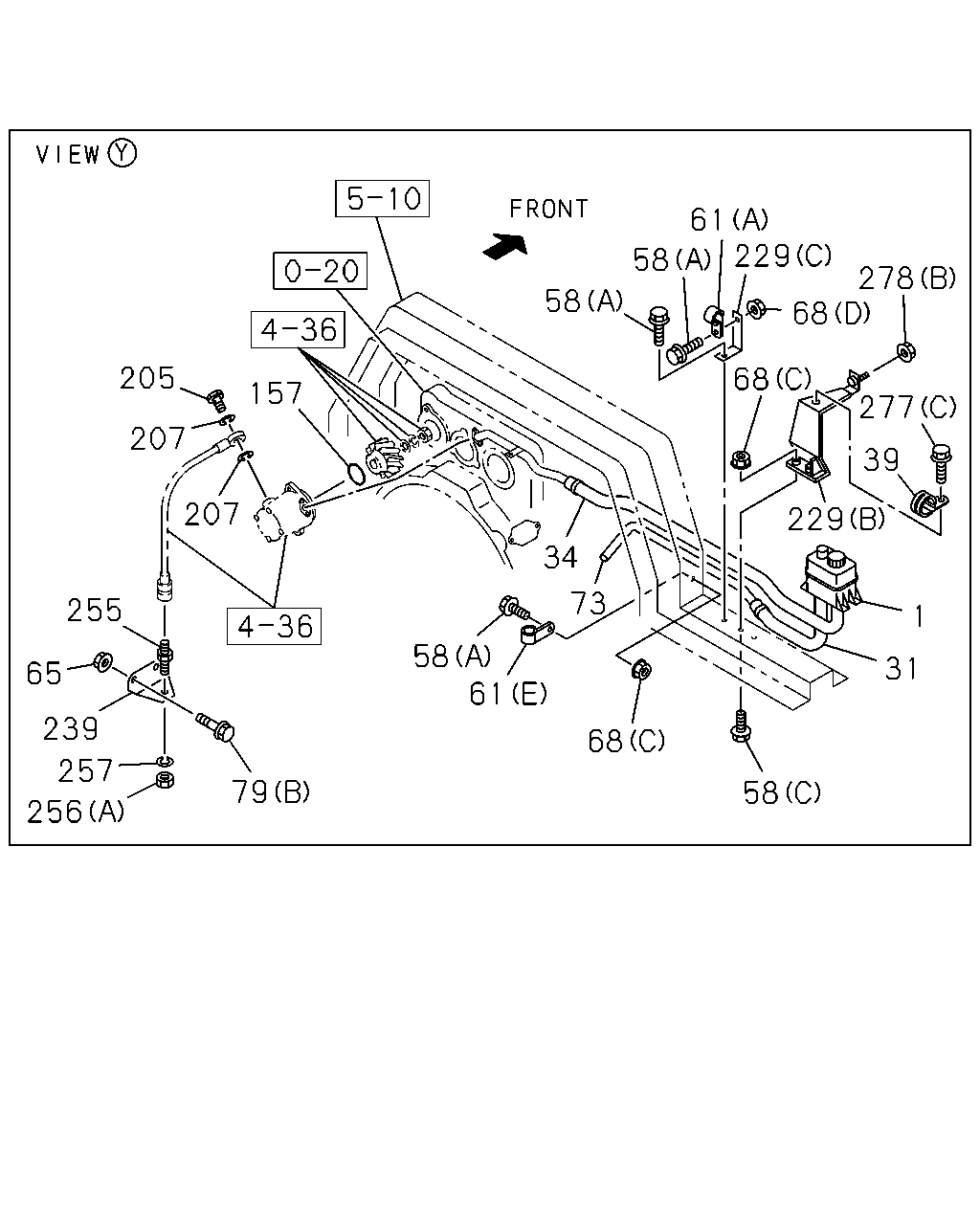

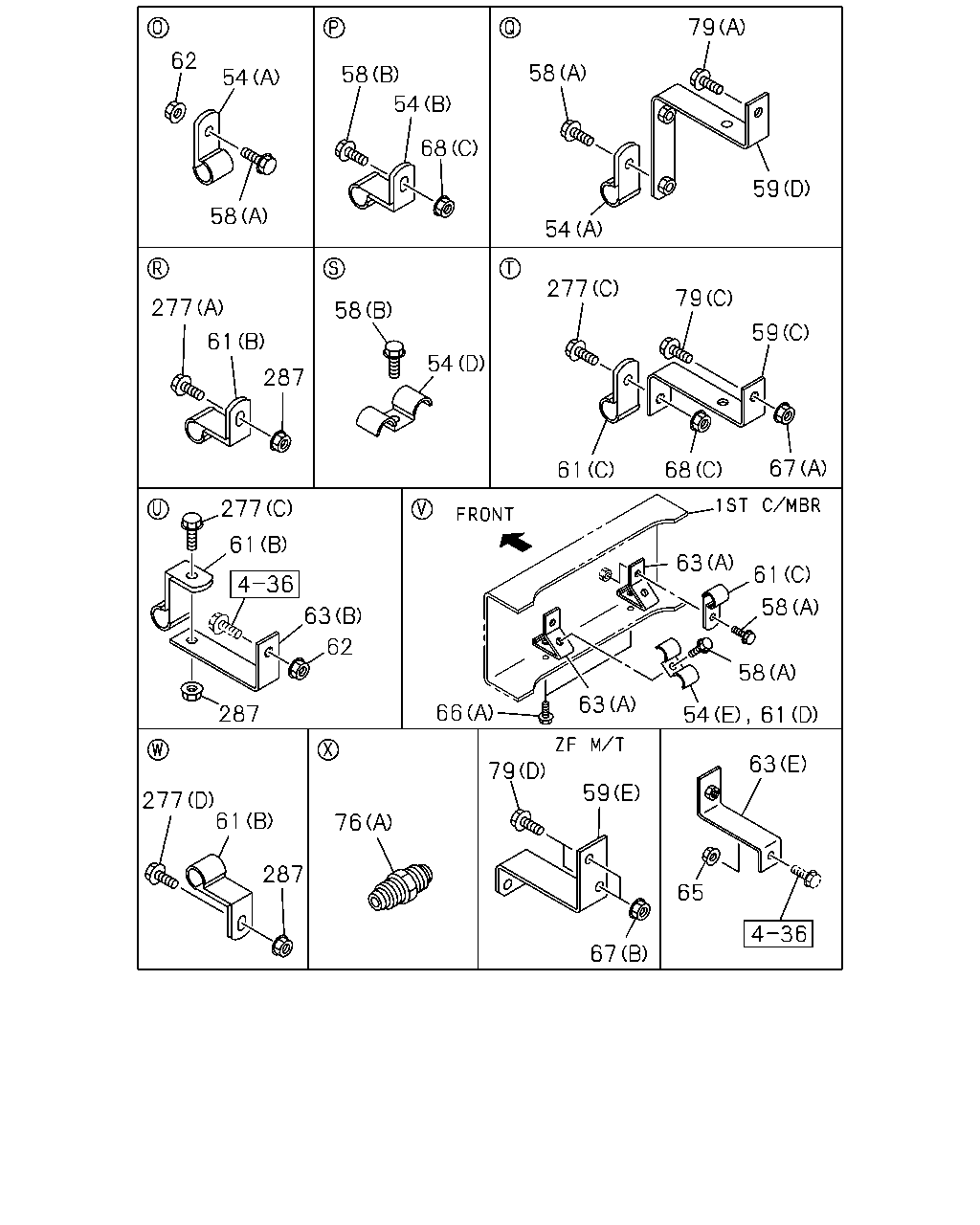

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#4877) — 619 parça

256 277 76 76 257 54 61 266 63 58 277 63 58 65 63 61 66 61 287 54 58 157 264 262 234 280 263 41 41 125 67 166 58 278 229 68 79 255 239 257 68 37 256 37 37 37 55 277 34 39 31 58 58 61 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL L TYPE ENG<90L>	1-21114-284-0	01	1	9601-
31	HOSE; P/S OIL TANK,INL V TYPE ENG<91L>	1-21114-262-0	01	1	9601-
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L>	1-21114-283-0	01	1	9601-
34	HOSE; P/S OIL TANK,OUTLET V TYPE ENG<91L>	1-21114-254-1	01	1	9601-
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	9601-9806
37	CLIP; HOSE,P/S (C) ID=30	9-09915-315-1	02	1	9807-9807
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	9808-
37	CLIP; HOSE,P/S L TYPE ENG<90L> (A) ID=38	9-09915-666-1	02	1	9601-9806
37	CLIP; HOSE,P/S L TYPE ENG<90L> (A) ID=38	9-09915-041-1	02	1	9807-
37	CLIP; HOSE,P/S V TYPE ENG<91L> (B) ID=32	1-09704-085-0	01	1	9601-
37	CLIP; HOSE,P/S V TYPE ENG<91L> (A) ID=38	9-09915-666-1	01	1	9601-9806
37	CLIP; HOSE,P/S V TYPE ENG<91L> (A) ID=38	9-09915-041-1	01	1	9807-
39	CLIP; FLEX HOSE L TYPE ENG<90L> ID=32 L=75	1-09700-702-0	01	1	9601-
39	CLIP; FLEX HOSE V TYPE ENG<91L> ID=31 L=35	1-09700-329-1	01	1	9601-
41	CLIP; HOSE,P/S L TYPE ENG<90L> ID=38	9-09915-666-1	02	1	9601-9806
41	CLIP; HOSE,P/S L TYPE ENG<90L> ID=38	9-09915-041-1	02	1	9807-
54	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9601-9904
54	CLIP; OIL PIPE (D) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-
54	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (E) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
54	CLIP; OIL PIPE ISUZU M/T<X9A> (E) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9905-
54	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=23.6 L=35	1-09700-634-0	02	1	9601-
54	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-536-0	02	1	9601-9702
54	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	02	1	9703-
54	CLIP; OIL PIPE 10PE1S(60L) (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9601-9904
54	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9905-
54	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-536-0	01	1	9601-9702
54	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-535-0	01	1	9703-9712
55	CLIP; P/S RUBBER HOSE L TYPE ENG<90L> (A) ID=28 L=30	1-09700-607-1	01	1	9601-
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (B) ID=28	9-09915-672-1	02	1	9601-9806
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (B) ID=30	9-09915-315-1	02	1	9807-9807
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (B) ID=28	9-09915-672-1	02	1	9808-
58	BOLT; CLIP (B) M8X16 FLANGE	0-28080-816-0	04	1	9601-9602
58	BOLT; CLIP 6WA1 TC-S(56L) (B) M8X16 FLANGE	0-28080-816-0	03	1	9603-9606
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	04	1	9905-
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	03	1	9611-9904
58	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-0103
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-0103
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	0104-
58	BOLT; CLIP (C) M10X20 FLANGE	0-28081-020-0	02	1	9601-9606
58	BOLT; CLIP (C) M10X25 FLANGE	0-28681-025-0	02	1	9607-
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28080-820-0	03	1	9601-9606
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	03	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28680-820-0	01	1	9905-0103
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28680-820-0	03	1	0104-
58	BOLT; CLIP 10PE1S(60L) (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606
58	BOLT; CLIP (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606
58	BOLT; CLIP 10PE1S(60L) (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	02	1	9905-
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
58	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9801-
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9601-9904
61	CLIP; OIL PIPE (E) ID=16 L=20	9-09525-536-0	01	1	9601-9602
61	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9601-9904
61	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> L TYPE ENG<90L> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9601-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	03	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-536-0	01	1	9603-9702
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-535-0	01	1	9703-
61	CLIP; OIL PIPE 10PE1S(60L) (B) ID=12 H=24 L=20	1-09700-605-0	03	1	9601-9608
61	CLIP; OIL PIPE 10PE1S(60L) (B) ID=12 H=24 L=20	1-09700-605-0	02	1	9609-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-
61	CLIP; OIL PIPE 10PE1S(60L) (C) ID=13 L=20	9-09525-235-0	01	1	9601-9608
61	CLIP; OIL PIPE (C) ID=13 L=20	9-09525-235-0	02	1	9609-9904
61	CLIP; OIL PIPE ISUZU M/T<X9A> L TYPE ENG<90L> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9905-
61	CLIP; OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) (E)	9-09525-535-0	02	1	9603-
61	CLIP; OIL PIPE 6WA1 TC-S(56L) (C) ID=13 L=20	9-09525-235-0	02	1	9601-9608
63	BRACKET; CLIP,P/S (D)	1-47477-193-0	01	1	9601-
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	9601-
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (C)	1-47475-963-1	01	1	9601-
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (E) L=90	1-82699-856-0	01	1	9601-
63	BRACKET; CLIP,P/S 10PE1S(60L) (B) L=160	1-47476-712-0	01	1	9601-9608
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (B)	1-34656-009-0	01	1	9609-
65	NUT; BRKT L TYPE ENG<90L> M8	9-09110-508-0	01	1	9601-9606
65	NUT; BRKT L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9607-9904
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-
65	NUT; BRKT 10PE1S(60L) M8	9-09110-508-0	02	1	9601-9606
65	NUT; BRKT 10PE1S(60L) M8 FLANGE	0-91150-108-0	02	1	9607-9904
65	NUT; BRKT V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9905-
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-
66	BOLT; BRKT,OIL PIPE 6WA1 TC-S(56L) (B) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-
66	BOLT; BRKT,OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9904
67	NUT; BRKT (A) M8	9-09110-508-0	01	1	9601-9606
67	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	01	1	9607-
67	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (B) M10	9-09110-510-0	02	1	9601-9606
67	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (B) M10 FLANGE	0-91150-210-0	02	1	9607-9712
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (A) M8	9-09110-508-0	01	1	9601-9606
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (A) M8 FLANGE	0-91150-108-0	01	1	9607-
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (B) M10	9-09110-510-0	02	1	9601-9606
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (C) M8	9-09110-508-0	03	1	9601-9606
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (C) M8 FLANGE	0-91150-108-0	03	1	9607-
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (D) M10	9-09110-510-0	01	1	9601-9606
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (D) M10 FLANGE	0-91150-210-0	01	1	9607-
68	NUT; CLIP,OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) (A) M8 FLANGE	0-91150-108-0	01	1	9611-9904
76	UNION; OIL PIPE (A) M20 STRAIGHT	9-09233-012-1	02	1	9601-9904
76	UNION; OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) (B) M22	9-09233-015-1	02	1	9601-9904
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	9905-
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	9905-
79	BOLT; BRKT (A) M8X30 FLANGE	0-28080-830-0	02	1	9601-9606
79	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-
79	BOLT; BRKT V TYPE ENG<91L> (B) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
79	BOLT; BRKT V TYPE ENG<91L> (B) M8X25 FLANGE	0-28680-825-0	02	1	9607-
79	BOLT; BRKT 10PE1S(60L) (C) M8X25 FLANGE	0-28080-825-0	01	1	9601-9606
79	BOLT; BRKT 10PE1S(60L) (C) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904
79	BOLT; BRKT V TYPE ENG<91L> (C) M8X30 FLANGE	0-28680-830-0	01	1	9905-
79	BOLT; BRKT 10PE1S(60L) ZF M/T<X9E> (D) M10X20 FLANGE	0-28081-020-0	02	1	9601-9606
79	BOLT; BRKT 10PE1S(60L) ZF M/T<X9E> (D) M10X25 FLANGE	0-28681-025-0	02	1	9607-9712
125	CONNECTOR; P/S PUMP L TYPE ENG<90L>	1-13313-532-0	01	1	9601-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	9601-
166	BOLT; CLIP L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
166	BOLT; CLIP L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	01	1	9607-
229	BRACKET; HOSE,POWER STRG L TYPE ENG<90L> (A)	1-21464-407-1	01	1	9601-
229	BRACKET; HOSE,POWER STRG V TYPE ENG<91L> (B)	1-21464-480-0	01	1	9601-
229	BRACKET; HOSE,POWER STRG V TYPE ENG<91L> (C)	1-21464-481-0	01	1	9601-
234	NUT; PIPE CLIP,P/S L TYPE ENG<90L> M8	9-09110-508-0	02	1	9601-9606
234	NUT; PIPE CLIP,P/S L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9607-
239	BRACKET; FLEX HOSE L TYPE ENG<90L>	1-47476-679-4	01	1	9601-
239	BRACKET; FLEX HOSE V TYPE ENG<91L>	1-47477-336-0	01	1	9601-9904
239	BRACKET; FLEX HOSE V TYPE ENG<91L>	1-47478-471-0	01	1	9905-
255	UNION; FLEX HOSE L TYPE ENG<90L> M20 & M22 ELBOW	1-09654-154-1	01	1	9601-9904
255	UNION; FLEX HOSE L TYPE ENG<90L> M22 & M22 ELBOW	1-09654-163-1	01	1	9905-
255	UNION; FLEX HOSE V TYPE ENG<91L> M20 & M22 STRAIGHT	1-09654-167-1	01	1	9601-9904
255	UNION; FLEX HOSE V TYPE ENG<91L> M22 & M22 STRAIGHT	1-09654-204-1	01	1	9905-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	9601-
256	NUT; UNION L TYPE ENG<90L> (B) M22	9-09111-522-0	01	1	9601-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9601-9610
257	WASHER; LK,UNION 6WA1 TC-S(56L) ID=22.5	9-09150-522-0	01	1	9601-9610
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9611-
257	WASHER; LK,UNION L TYPE ENG<90L> ID=22.5	9-09150-522-0	01	1	9611-
262	CLIP; P/S PIPE L TYPE ENG<90L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9601-
262	CLIP; P/S PIPE L TYPE ENG<90L> (B) ID=16 L=20	9-09525-536-0	01	1	9601-9702
262	CLIP; P/S PIPE L TYPE ENG<90L> (B) ID=16 L=20	9-09525-535-0	01	1	9703-
263	BRACKET; P/S PIPE L TYPE ENG<90L> (A)	1-47476-483-2	01	1	9601-
263	BRACKET; P/S PIPE L TYPE ENG<90L> (B)	1-47477-597-3	01	1	9601-
264	BOLT; PIPE BRKT L TYPE ENG<90L> M8X25 FLANGE	0-28080-825-0	01	1	9601-9606
264	BOLT; PIPE BRKT L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	01	1	9607-
266	UNION; OIL PIPE,P/S L TYPE ENG<90L> M20 & M22 STRAIGHT	1-09654-167-1	01	1	9601-
277	BOLT; HOSE CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	9601-9606
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904
277	BOLT; HOSE CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-
277	BOLT; HOSE CLIP L TYPE ENG<90L> (B) M10X20 FLANGE	0-28081-020-0	01	1	9601-9606
277	BOLT; HOSE CLIP L TYPE ENG<90L> (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-
277	BOLT; HOSE CLIP 10PE1S(60L) (C) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
277	BOLT; HOSE CLIP 10PE1S(60L) (C) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904
277	BOLT; HOSE CLIP V TYPE ENG<91L> (C) M8X25 FLANGE	0-28680-825-0	01	1	9905-
277	BOLT; HOSE CLIP V TYPE ENG<91L> (C) M8X25 FLANGE	0-28680-825-0	01	1	9905-
277	BOLT; HOSE CLIP 10PE1S(60L) (D) M8X25 FLANGE	0-28080-825-0	01	1	9601-9606
277	BOLT; HOSE CLIP 10PE1S(60L) (D) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904
277	BOLT; HOSE CLIP V TYPE ENG<91L> (D) M8X20 FLANGE	0-28680-820-0	03	1	9905-
278	NUT; HOSE CLIP L TYPE ENG<90L> (A) M10	9-09110-510-0	01	1	9601-9606
278	NUT; HOSE CLIP L TYPE ENG<90L> (A) M10 FLANGE	0-91150-210-0	01	1	9607-
278	NUT; HOSE CLIP V TYPE ENG<91L> (B) M8	9-09110-508-0	01	1	9601-9606
278	NUT; HOSE CLIP V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	01	1	9607-
280	HOSE; P/S OIL PUMP,INL L TYPE ENG<90L>	1-21115-191-0	01	1	9601-9704
280	HOSE; P/S OIL PUMP,INL L TYPE ENG<90L>	1-21115-865-0	01	1	9905-
287	NUT; CLIP 10PE1S(60L) M8	9-09110-508-0	02	1	9601-9606
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9607-
287	NUT; CLIP 6WA1 TC-S(56L) M8	9-09110-508-0	01	1	9601-9606

79 62 58 58 54 54 68 59 58 54 277 79 277 58 59 61 54 287 67 61 68 277 61 63 61 58 63 62 58 63 66 287 54 61 79 63 59 277 61 76 287 65 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9601-9904
54	CLIP; OIL PIPE (D) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-
54	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (E) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
54	CLIP; OIL PIPE ISUZU M/T<X9A> (E) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9905-
54	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=23.6 L=35	1-09700-634-0	02	1	9601-
54	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-536-0	02	1	9601-9702
54	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	02	1	9703-
54	CLIP; OIL PIPE 10PE1S(60L) (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9601-9904
54	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9905-
54	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-536-0	01	1	9601-9702
54	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-535-0	01	1	9703-9712
58	BOLT; CLIP (B) M8X16 FLANGE	0-28080-816-0	04	1	9601-9602
58	BOLT; CLIP 6WA1 TC-S(56L) (B) M8X16 FLANGE	0-28080-816-0	03	1	9603-9606
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	04	1	9905-
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	03	1	9611-9904
58	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-0103
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-0103
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	0104-
58	BOLT; CLIP (C) M10X20 FLANGE	0-28081-020-0	02	1	9601-9606
58	BOLT; CLIP (C) M10X25 FLANGE	0-28681-025-0	02	1	9607-
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28080-820-0	03	1	9601-9606
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	03	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28680-820-0	01	1	9905-0103
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28680-820-0	03	1	0104-
58	BOLT; CLIP 10PE1S(60L) (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606
58	BOLT; CLIP (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606
58	BOLT; CLIP 10PE1S(60L) (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	02	1	9905-
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
58	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9801-
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (A)	1-47475-881-0	01	1	9601-9904
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (A)	1-47477-235-0	01	1	9905-
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (B)	1-47477-145-0	01	1	9601-
59	BRACKET; CLIP,OIL PIPE 10PE1S(60L) (D)	1-47477-434-0	01	1	9601-9904
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (D)	1-47477-434-0	01	1	9905-
59	BRACKET; CLIP,OIL PIPE 10PE1S(60L) (C) L=90	1-82699-856-0	01	1	9601-9904
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (C) L=90	1-82699-856-0	01	1	9905-
59	BRACKET; CLIP,OIL PIPE 10PE1S(60L) ZF M/T<X9E> (E)	1-47477-630-0	01	1	9601-9712
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9601-9904
61	CLIP; OIL PIPE (E) ID=16 L=20	9-09525-536-0	01	1	9601-9602
61	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9601-9904
61	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> L TYPE ENG<90L> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9601-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	03	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-536-0	01	1	9603-9702
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-535-0	01	1	9703-
61	CLIP; OIL PIPE 10PE1S(60L) (B) ID=12 H=24 L=20	1-09700-605-0	03	1	9601-9608
61	CLIP; OIL PIPE 10PE1S(60L) (B) ID=12 H=24 L=20	1-09700-605-0	02	1	9609-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-
61	CLIP; OIL PIPE 10PE1S(60L) (C) ID=13 L=20	9-09525-235-0	01	1	9601-9608
61	CLIP; OIL PIPE (C) ID=13 L=20	9-09525-235-0	02	1	9609-9904
61	CLIP; OIL PIPE ISUZU M/T<X9A> L TYPE ENG<90L> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9905-
61	CLIP; OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) (E)	9-09525-535-0	02	1	9603-
61	CLIP; OIL PIPE 6WA1 TC-S(56L) (C) ID=13 L=20	9-09525-235-0	02	1	9601-9608
62	NUT; CLIP FIX 10PE1S(60L) M8	9-09110-508-0	01	1	9601-9606
62	NUT; CLIP FIX 10PE1S(60L) ZF M/T<X9E> M8	9-09110-508-0	01	1	9601-9606
62	NUT; CLIP FIX 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9607-9712
62	NUT; CLIP FIX 10PE1S(60L) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9607-9712
62	NUT; CLIP FIX 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9801-9904
62	NUT; CLIP FIX V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9905-
63	BRACKET; CLIP,P/S (D)	1-47477-193-0	01	1	9601-
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	9601-
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (C)	1-47475-963-1	01	1	9601-
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (E) L=90	1-82699-856-0	01	1	9601-
63	BRACKET; CLIP,P/S 10PE1S(60L) (B) L=160	1-47476-712-0	01	1	9601-9608
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (B)	1-34656-009-0	01	1	9609-
65	NUT; BRKT L TYPE ENG<90L> M8	9-09110-508-0	01	1	9601-9606
65	NUT; BRKT L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9607-9904
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-
65	NUT; BRKT 10PE1S(60L) M8	9-09110-508-0	02	1	9601-9606
65	NUT; BRKT 10PE1S(60L) M8 FLANGE	0-91150-108-0	02	1	9607-9904
65	NUT; BRKT V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9905-
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-
66	BOLT; BRKT,OIL PIPE 6WA1 TC-S(56L) (B) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-
66	BOLT; BRKT,OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9904
67	NUT; BRKT (A) M8	9-09110-508-0	01	1	9601-9606
67	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	01	1	9607-
67	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (B) M10	9-09110-510-0	02	1	9601-9606
67	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (B) M10 FLANGE	0-91150-210-0	02	1	9607-9712
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (A) M8	9-09110-508-0	01	1	9601-9606
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (A) M8 FLANGE	0-91150-108-0	01	1	9607-
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (B) M10	9-09110-510-0	02	1	9601-9606
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (C) M8	9-09110-508-0	03	1	9601-9606
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (C) M8 FLANGE	0-91150-108-0	03	1	9607-
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (D) M10	9-09110-510-0	01	1	9601-9606
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (D) M10 FLANGE	0-91150-210-0	01	1	9607-
68	NUT; CLIP,OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) (A) M8 FLANGE	0-91150-108-0	01	1	9611-9904
76	UNION; OIL PIPE (A) M20 STRAIGHT	9-09233-012-1	02	1	9601-9904
76	UNION; OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) (B) M22	9-09233-015-1	02	1	9601-9904
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	9905-
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	9905-
79	BOLT; BRKT (A) M8X30 FLANGE	0-28080-830-0	02	1	9601-9606
79	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-
79	BOLT; BRKT V TYPE ENG<91L> (B) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
79	BOLT; BRKT V TYPE ENG<91L> (B) M8X25 FLANGE	0-28680-825-0	02	1	9607-
79	BOLT; BRKT 10PE1S(60L) (C) M8X25 FLANGE	0-28080-825-0	01	1	9601-9606
79	BOLT; BRKT 10PE1S(60L) (C) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904
79	BOLT; BRKT V TYPE ENG<91L> (C) M8X30 FLANGE	0-28680-830-0	01	1	9905-
79	BOLT; BRKT 10PE1S(60L) ZF M/T<X9E> (D) M10X20 FLANGE	0-28081-020-0	02	1	9601-9606
79	BOLT; BRKT 10PE1S(60L) ZF M/T<X9E> (D) M10X25 FLANGE	0-28681-025-0	02	1	9607-9712
277	BOLT; HOSE CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	9601-9606
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904
277	BOLT; HOSE CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-
277	BOLT; HOSE CLIP L TYPE ENG<90L> (B) M10X20 FLANGE	0-28081-020-0	01	1	9601-9606
277	BOLT; HOSE CLIP L TYPE ENG<90L> (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-
277	BOLT; HOSE CLIP 10PE1S(60L) (C) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
277	BOLT; HOSE CLIP 10PE1S(60L) (C) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904
277	BOLT; HOSE CLIP V TYPE ENG<91L> (C) M8X25 FLANGE	0-28680-825-0	01	1	9905-
277	BOLT; HOSE CLIP V TYPE ENG<91L> (C) M8X25 FLANGE	0-28680-825-0	01	1	9905-
277	BOLT; HOSE CLIP 10PE1S(60L) (D) M8X25 FLANGE	0-28080-825-0	01	1	9601-9606
277	BOLT; HOSE CLIP 10PE1S(60L) (D) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904
277	BOLT; HOSE CLIP V TYPE ENG<91L> (D) M8X20 FLANGE	0-28680-820-0	03	1	9905-
287	NUT; CLIP 10PE1S(60L) M8	9-09110-508-0	02	1	9601-9606
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9607-
287	NUT; CLIP 6WA1 TC-S(56L) M8	9-09110-508-0	01	1	9601-9606

2 7 8 20 19 12 19 2 3 1 5 25 15 37 31 37 1 73 37 31 73 55 33 34 55 34 37 45 45 49 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9601-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	9601-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	9601-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9601-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9601-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9601-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9601-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9601-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9601-
19	SEAT; OIL TANK	1-21262-001-0	02	1	9601-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9601-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	04	1	9601-9606
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-9802
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	9803-
31	HOSE; P/S OIL TANK,INL L TYPE ENG<90L>	1-21114-284-0	01	1	9601-
31	HOSE; P/S OIL TANK,INL V TYPE ENG<91L>	1-21114-262-0	01	1	9601-
33	HOSE; RUBBER,POWER STRG V TYPE ENG<91L> L=80	1-09360-570-0	01	1	9601-
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L>	1-21114-283-0	01	1	9601-
34	HOSE; P/S OIL TANK,OUTLET V TYPE ENG<91L>	1-21114-254-1	01	1	9601-
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	9601-9806
37	CLIP; HOSE,P/S (C) ID=30	9-09915-315-1	02	1	9807-9807
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	9808-
37	CLIP; HOSE,P/S L TYPE ENG<90L> (A) ID=38	9-09915-666-1	02	1	9601-9806
37	CLIP; HOSE,P/S L TYPE ENG<90L> (A) ID=38	9-09915-041-1	02	1	9807-
37	CLIP; HOSE,P/S V TYPE ENG<91L> (B) ID=32	1-09704-085-0	01	1	9601-
37	CLIP; HOSE,P/S V TYPE ENG<91L> (A) ID=38	9-09915-666-1	01	1	9601-9806
37	CLIP; HOSE,P/S V TYPE ENG<91L> (A) ID=38	9-09915-041-1	01	1	9807-
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21115-369-0	01	1	9601-9702
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21115-834-0	01	1	9703-9904
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1106	1-21116-239-0	01	1	9905-0006
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21116-849-0	01	1	0007-
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> (B)	1-21115-370-0	01	1	9601-9602
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> (B) L=1234	1-21116-238-0	01	1	9905-
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L) ISUZU M/T<X9A> (B)	1-21115-527-0	01	1	9601-9904
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L),10PE1N(61L) ISUZU M/T<X9A> (B)	1-21115-527-0	01	1	9905-
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L) ZF M/T<X9E> (B)	1-21115-528-0	01	1	9601-9904
45	PIPE; OIL,P/S UNIT TO UNION V TYPE ENG<91L> (B)	1-21115-528-0	01	1	9905-
49	PIPE; OIL,FLEX HOSE TO UNION L TYPE ENG<90L>	1-21115-568-0	01	1	9601-9904
49	PIPE; OIL,FLEX HOSE TO UNION ZF M/T<X9E> V TYPE ENG<91L>	1-21116-347-0	01	1	9905-
49	PIPE; OIL,FLEX HOSE TO UNION 10PE1S(60L)	1-21115-571-0	01	1	9601-9604
49	PIPE; OIL,FLEX HOSE TO UNION 10PE1S(60L)	1-21115-654-0	01	1	9605-9608
49	PIPE; OIL,FLEX HOSE TO UNION 10PE1S(60L) ZF M/T<X9E>	1-21115-752-0	01	1	9609-9904
49	PIPE; OIL,FLEX HOSE TO UNION 10PE1S(60L) EXC. ZF M/T<X9E>	1-21115-751-0	01	1	9609-9904
49	PIPE; OIL,FLEX HOSE TO UNION V TYPE ENG<91L> EXC. ZF M/T<X9E>	1-21116-346-0	01	1	9905-
49	PIPE; OIL,FLEX HOSE TO UNION L TYPE ENG<90L>	1-21116-457-0	01	1	9905-
55	CLIP; P/S RUBBER HOSE L TYPE ENG<90L> (A) ID=28 L=30	1-09700-607-1	01	1	9601-
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (B) ID=28	9-09915-672-1	02	1	9601-9806
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (B) ID=30	9-09915-315-1	02	1	9807-9807
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (B) ID=28	9-09915-672-1	02	1	9808-
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE V TYPE ENG<91L>	1-21115-014-1	01	1	9601-
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21115-452-0	01	1	9601-9904
75	PIPE; OIL,P/S,UNION TO UNION (A) L=550	1-21116-307-0	01	1	9905-0006
75	PIPE; OIL,P/S,UNION TO UNION L TYPE ENG<90L> (B) L=1807	1-21116-404-0	01	1	9905-
75	PIPE; OIL,P/S,UNION TO UNION 6WA1 TC-C(55L),6WA1 TC-S(56L) (B)	1-21115-639-0	01	1	9603-9904
75	PIPE; OIL,P/S,UNION TO UNION 6WA1 TC-S(56L) (B)	1-21115-585-0	01	1	9601-9602

1 2 7 20 19 12 19 8 2 3 111 111 5 195 195 25 15 1 31 268 45 34 280 261 75 45 49 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9601-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	9601-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	9601-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9601-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9601-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9601-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9601-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9601-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9601-
19	SEAT; OIL TANK	1-21262-001-0	02	1	9601-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9601-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	04	1	9601-9606
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-9802
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	9803-
31	HOSE; P/S OIL TANK,INL L TYPE ENG<90L>	1-21114-284-0	01	1	9601-
31	HOSE; P/S OIL TANK,INL V TYPE ENG<91L>	1-21114-262-0	01	1	9601-
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L>	1-21114-283-0	01	1	9601-
34	HOSE; P/S OIL TANK,OUTLET V TYPE ENG<91L>	1-21114-254-1	01	1	9601-
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21115-369-0	01	1	9601-9702
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21115-834-0	01	1	9703-9904
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1106	1-21116-239-0	01	1	9905-0006
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21116-849-0	01	1	0007-
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> (B)	1-21115-370-0	01	1	9601-9602
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> (B) L=1234	1-21116-238-0	01	1	9905-
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L) ISUZU M/T<X9A> (B)	1-21115-527-0	01	1	9601-9904
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L),10PE1N(61L) ISUZU M/T<X9A> (B)	1-21115-527-0	01	1	9905-
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L) ZF M/T<X9E> (B)	1-21115-528-0	01	1	9601-9904
45	PIPE; OIL,P/S UNIT TO UNION V TYPE ENG<91L> (B)	1-21115-528-0	01	1	9905-
49	PIPE; OIL,FLEX HOSE TO UNION L TYPE ENG<90L>	1-21115-568-0	01	1	9601-9904
49	PIPE; OIL,FLEX HOSE TO UNION ZF M/T<X9E> V TYPE ENG<91L>	1-21116-347-0	01	1	9905-
49	PIPE; OIL,FLEX HOSE TO UNION 10PE1S(60L)	1-21115-571-0	01	1	9601-9604
49	PIPE; OIL,FLEX HOSE TO UNION 10PE1S(60L)	1-21115-654-0	01	1	9605-9608
49	PIPE; OIL,FLEX HOSE TO UNION 10PE1S(60L) ZF M/T<X9E>	1-21115-752-0	01	1	9609-9904
49	PIPE; OIL,FLEX HOSE TO UNION 10PE1S(60L) EXC. ZF M/T<X9E>	1-21115-751-0	01	1	9609-9904
49	PIPE; OIL,FLEX HOSE TO UNION V TYPE ENG<91L> EXC. ZF M/T<X9E>	1-21116-346-0	01	1	9905-
49	PIPE; OIL,FLEX HOSE TO UNION L TYPE ENG<90L>	1-21116-457-0	01	1	9905-
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21115-452-0	01	1	9601-9904
75	PIPE; OIL,P/S,UNION TO UNION (A) L=550	1-21116-307-0	01	1	9905-0006
75	PIPE; OIL,P/S,UNION TO UNION L TYPE ENG<90L> (B) L=1807	1-21116-404-0	01	1	9905-
75	PIPE; OIL,P/S,UNION TO UNION 6WA1 TC-C(55L),6WA1 TC-S(56L) (B)	1-21115-639-0	01	1	9603-9904
75	PIPE; OIL,P/S,UNION TO UNION 6WA1 TC-S(56L) (B)	1-21115-585-0	01	1	9601-9602
111	BRACKET; OIL PIPE L TYPE ENG<90L> (A)	1-13345-186-0	01	1	9601-
111	BRACKET; OIL PIPE L TYPE ENG<90L> (B)	1-13345-187-0	01	1	9601-
195	BOLT; BRKT L TYPE ENG<90L> (A) M8X12 FLANGE	0-28080-812-0	02	1	9601-
195	BOLT; BRKT L TYPE ENG<90L> (B) M10X35 FLANGE	0-28181-035-0	01	1	9601-
261	PIPE; OIL,UNION TO HOSE L TYPE ENG<90L> L=1034	1-21115-588-0	01	1	9601-0104
261	PIPE; OIL,UNION TO HOSE L TYPE ENG<90L> L=1031	1-21117-048-0	01	1	0105-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L TYPE ENG<90L>	1-21115-394-0	01	1	9601-0006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L TYPE ENG<90L>	1-21116-854-0	01	1	0007-
280	HOSE; P/S OIL PUMP,INL L TYPE ENG<90L>	1-21115-191-0	01	1	9601-9704
280	HOSE; P/S OIL PUMP,INL L TYPE ENG<90L>	1-21115-865-0	01	1	9905-

66 59 262 65 234 263 66 277 287 76 65 61 63 64 58 59 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9601-9904
54	CLIP; OIL PIPE (D) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-
54	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (E) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
54	CLIP; OIL PIPE ISUZU M/T<X9A> (E) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9905-
54	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=23.6 L=35	1-09700-634-0	02	1	9601-
54	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-536-0	02	1	9601-9702
54	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	02	1	9703-
54	CLIP; OIL PIPE 10PE1S(60L) (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9601-9904
54	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9905-
54	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-536-0	01	1	9601-9702
54	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-535-0	01	1	9703-9712
58	BOLT; CLIP (B) M8X16 FLANGE	0-28080-816-0	04	1	9601-9602
58	BOLT; CLIP 6WA1 TC-S(56L) (B) M8X16 FLANGE	0-28080-816-0	03	1	9603-9606
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	04	1	9905-
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	03	1	9611-9904
58	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-0103
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-0103
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	0104-
58	BOLT; CLIP (C) M10X20 FLANGE	0-28081-020-0	02	1	9601-9606
58	BOLT; CLIP (C) M10X25 FLANGE	0-28681-025-0	02	1	9607-
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28080-820-0	03	1	9601-9606
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	03	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28680-820-0	01	1	9905-0103
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28680-820-0	03	1	0104-
58	BOLT; CLIP 10PE1S(60L) (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606
58	BOLT; CLIP (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606
58	BOLT; CLIP 10PE1S(60L) (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	02	1	9905-
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
58	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9801-
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (A)	1-47475-881-0	01	1	9601-9904
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (A)	1-47477-235-0	01	1	9905-
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (B)	1-47477-145-0	01	1	9601-
59	BRACKET; CLIP,OIL PIPE 10PE1S(60L) (D)	1-47477-434-0	01	1	9601-9904
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (D)	1-47477-434-0	01	1	9905-
59	BRACKET; CLIP,OIL PIPE 10PE1S(60L) (C) L=90	1-82699-856-0	01	1	9601-9904
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (C) L=90	1-82699-856-0	01	1	9905-
59	BRACKET; CLIP,OIL PIPE 10PE1S(60L) ZF M/T<X9E> (E)	1-47477-630-0	01	1	9601-9712
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9601-9904
61	CLIP; OIL PIPE (E) ID=16 L=20	9-09525-536-0	01	1	9601-9602
61	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9601-9904
61	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> L TYPE ENG<90L> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9601-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	03	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-536-0	01	1	9603-9702
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-535-0	01	1	9703-
61	CLIP; OIL PIPE 10PE1S(60L) (B) ID=12 H=24 L=20	1-09700-605-0	03	1	9601-9608
61	CLIP; OIL PIPE 10PE1S(60L) (B) ID=12 H=24 L=20	1-09700-605-0	02	1	9609-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-
61	CLIP; OIL PIPE 10PE1S(60L) (C) ID=13 L=20	9-09525-235-0	01	1	9601-9608
61	CLIP; OIL PIPE (C) ID=13 L=20	9-09525-235-0	02	1	9609-9904
61	CLIP; OIL PIPE ISUZU M/T<X9A> L TYPE ENG<90L> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9905-
61	CLIP; OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) (E)	9-09525-535-0	02	1	9603-
61	CLIP; OIL PIPE 6WA1 TC-S(56L) (C) ID=13 L=20	9-09525-235-0	02	1	9601-9608
63	BRACKET; CLIP,P/S (D)	1-47477-193-0	01	1	9601-
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	9601-
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (C)	1-47475-963-1	01	1	9601-
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (E) L=90	1-82699-856-0	01	1	9601-
63	BRACKET; CLIP,P/S 10PE1S(60L) (B) L=160	1-47476-712-0	01	1	9601-9608
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (B)	1-34656-009-0	01	1	9609-
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	01	1	9607-0103
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	0104-
65	NUT; BRKT L TYPE ENG<90L> M8	9-09110-508-0	01	1	9601-9606
65	NUT; BRKT L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9607-9904
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-
65	NUT; BRKT 10PE1S(60L) M8	9-09110-508-0	02	1	9601-9606
65	NUT; BRKT 10PE1S(60L) M8 FLANGE	0-91150-108-0	02	1	9607-9904
65	NUT; BRKT V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9905-
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-
66	BOLT; BRKT,OIL PIPE 6WA1 TC-S(56L) (B) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-
66	BOLT; BRKT,OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9904
76	UNION; OIL PIPE (A) M20 STRAIGHT	9-09233-012-1	02	1	9601-9904
76	UNION; OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) (B) M22	9-09233-015-1	02	1	9601-9904
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	9905-
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	9905-
234	NUT; PIPE CLIP,P/S L TYPE ENG<90L> M8	9-09110-508-0	02	1	9601-9606
234	NUT; PIPE CLIP,P/S L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9607-
262	CLIP; P/S PIPE L TYPE ENG<90L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9601-
262	CLIP; P/S PIPE L TYPE ENG<90L> (B) ID=16 L=20	9-09525-536-0	01	1	9601-9702
262	CLIP; P/S PIPE L TYPE ENG<90L> (B) ID=16 L=20	9-09525-535-0	01	1	9703-
263	BRACKET; P/S PIPE L TYPE ENG<90L> (A)	1-47476-483-2	01	1	9601-
263	BRACKET; P/S PIPE L TYPE ENG<90L> (B)	1-47477-597-3	01	1	9601-
277	BOLT; HOSE CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	9601-9606
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904
277	BOLT; HOSE CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-
277	BOLT; HOSE CLIP L TYPE ENG<90L> (B) M10X20 FLANGE	0-28081-020-0	01	1	9601-9606
277	BOLT; HOSE CLIP L TYPE ENG<90L> (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-
277	BOLT; HOSE CLIP 10PE1S(60L) (C) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
277	BOLT; HOSE CLIP 10PE1S(60L) (C) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904
277	BOLT; HOSE CLIP V TYPE ENG<91L> (C) M8X25 FLANGE	0-28680-825-0	01	1	9905-
277	BOLT; HOSE CLIP V TYPE ENG<91L> (C) M8X25 FLANGE	0-28680-825-0	01	1	9905-
277	BOLT; HOSE CLIP 10PE1S(60L) (D) M8X25 FLANGE	0-28080-825-0	01	1	9601-9606
277	BOLT; HOSE CLIP 10PE1S(60L) (D) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904
277	BOLT; HOSE CLIP V TYPE ENG<91L> (D) M8X20 FLANGE	0-28680-820-0	03	1	9905-
287	NUT; CLIP 10PE1S(60L) M8	9-09110-508-0	02	1	9601-9606
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9607-
287	NUT; CLIP 6WA1 TC-S(56L) M8	9-09110-508-0	01	1	9601-9606

61 229 58 278 68 58 68 205 157 277 207 39 207 229 34 73 255 1 58 61 31 65 239 68 257 79 58 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9601-
31	HOSE; P/S OIL TANK,INL L TYPE ENG<90L>	1-21114-284-0	01	1	9601-
31	HOSE; P/S OIL TANK,INL V TYPE ENG<91L>	1-21114-262-0	01	1	9601-
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L>	1-21114-283-0	01	1	9601-
34	HOSE; P/S OIL TANK,OUTLET V TYPE ENG<91L>	1-21114-254-1	01	1	9601-
39	CLIP; FLEX HOSE L TYPE ENG<90L> ID=32 L=75	1-09700-702-0	01	1	9601-
39	CLIP; FLEX HOSE V TYPE ENG<91L> ID=31 L=35	1-09700-329-1	01	1	9601-
58	BOLT; CLIP (B) M8X16 FLANGE	0-28080-816-0	04	1	9601-9602
58	BOLT; CLIP 6WA1 TC-S(56L) (B) M8X16 FLANGE	0-28080-816-0	03	1	9603-9606
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	04	1	9905-
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	03	1	9611-9904
58	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-0103
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-0103
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	0104-
58	BOLT; CLIP (C) M10X20 FLANGE	0-28081-020-0	02	1	9601-9606
58	BOLT; CLIP (C) M10X25 FLANGE	0-28681-025-0	02	1	9607-
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28080-820-0	03	1	9601-9606
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	03	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28680-820-0	01	1	9905-0103
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28680-820-0	03	1	0104-
58	BOLT; CLIP 10PE1S(60L) (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606
58	BOLT; CLIP (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606
58	BOLT; CLIP 10PE1S(60L) (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	02	1	9905-
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
58	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9801-
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9601-9904
61	CLIP; OIL PIPE (E) ID=16 L=20	9-09525-536-0	01	1	9601-9602
61	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9601-9904
61	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> L TYPE ENG<90L> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9601-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	03	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-536-0	01	1	9603-9702
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-535-0	01	1	9703-
61	CLIP; OIL PIPE 10PE1S(60L) (B) ID=12 H=24 L=20	1-09700-605-0	03	1	9601-9608
61	CLIP; OIL PIPE 10PE1S(60L) (B) ID=12 H=24 L=20	1-09700-605-0	02	1	9609-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-
61	CLIP; OIL PIPE 10PE1S(60L) (C) ID=13 L=20	9-09525-235-0	01	1	9601-9608
61	CLIP; OIL PIPE (C) ID=13 L=20	9-09525-235-0	02	1	9609-9904
61	CLIP; OIL PIPE ISUZU M/T<X9A> L TYPE ENG<90L> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9905-
61	CLIP; OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) (E)	9-09525-535-0	02	1	9603-
61	CLIP; OIL PIPE 6WA1 TC-S(56L) (C) ID=13 L=20	9-09525-235-0	02	1	9601-9608
65	NUT; BRKT L TYPE ENG<90L> M8	9-09110-508-0	01	1	9601-9606
65	NUT; BRKT L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9607-9904
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-
65	NUT; BRKT 10PE1S(60L) M8	9-09110-508-0	02	1	9601-9606
65	NUT; BRKT 10PE1S(60L) M8 FLANGE	0-91150-108-0	02	1	9607-9904
65	NUT; BRKT V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9905-
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (A) M8	9-09110-508-0	01	1	9601-9606
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (A) M8 FLANGE	0-91150-108-0	01	1	9607-
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (B) M10	9-09110-510-0	02	1	9601-9606
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (C) M8	9-09110-508-0	03	1	9601-9606
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (C) M8 FLANGE	0-91150-108-0	03	1	9607-
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (D) M10	9-09110-510-0	01	1	9601-9606
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (D) M10 FLANGE	0-91150-210-0	01	1	9607-
68	NUT; CLIP,OIL PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) (A) M8 FLANGE	0-91150-108-0	01	1	9611-9904
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE V TYPE ENG<91L>	1-21115-014-1	01	1	9601-
79	BOLT; BRKT (A) M8X30 FLANGE	0-28080-830-0	02	1	9601-9606
79	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-
79	BOLT; BRKT V TYPE ENG<91L> (B) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
79	BOLT; BRKT V TYPE ENG<91L> (B) M8X25 FLANGE	0-28680-825-0	02	1	9607-
79	BOLT; BRKT 10PE1S(60L) (C) M8X25 FLANGE	0-28080-825-0	01	1	9601-9606
79	BOLT; BRKT 10PE1S(60L) (C) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904
79	BOLT; BRKT V TYPE ENG<91L> (C) M8X30 FLANGE	0-28680-830-0	01	1	9905-
79	BOLT; BRKT 10PE1S(60L) ZF M/T<X9E> (D) M10X20 FLANGE	0-28081-020-0	02	1	9601-9606
79	BOLT; BRKT 10PE1S(60L) ZF M/T<X9E> (D) M10X25 FLANGE	0-28681-025-0	02	1	9607-9712
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	9601-
205	BOLT; EYE,FLEX HOSE,P/S V TYPE ENG<91L> M18X40	1-09675-153-0	01	1	9601-
207	GASKET; FLEX HOSE,P/S PUMP V TYPE ENG<91L> ID=18.2 OD=24.4	1-09630-087-0	02	1	9601-
229	BRACKET; HOSE,POWER STRG L TYPE ENG<90L> (A)	1-21464-407-1	01	1	9601-
229	BRACKET; HOSE,POWER STRG V TYPE ENG<91L> (B)	1-21464-480-0	01	1	9601-
229	BRACKET; HOSE,POWER STRG V TYPE ENG<91L> (C)	1-21464-481-0	01	1	9601-
239	BRACKET; FLEX HOSE L TYPE ENG<90L>	1-47476-679-4	01	1	9601-
239	BRACKET; FLEX HOSE V TYPE ENG<91L>	1-47477-336-0	01	1	9601-9904
239	BRACKET; FLEX HOSE V TYPE ENG<91L>	1-47478-471-0	01	1	9905-
255	UNION; FLEX HOSE L TYPE ENG<90L> M20 & M22 ELBOW	1-09654-154-1	01	1	9601-9904
255	UNION; FLEX HOSE L TYPE ENG<90L> M22 & M22 ELBOW	1-09654-163-1	01	1	9905-
255	UNION; FLEX HOSE V TYPE ENG<91L> M20 & M22 STRAIGHT	1-09654-167-1	01	1	9601-9904
255	UNION; FLEX HOSE V TYPE ENG<91L> M22 & M22 STRAIGHT	1-09654-204-1	01	1	9905-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	9601-
256	NUT; UNION L TYPE ENG<90L> (B) M22	9-09111-522-0	01	1	9601-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9601-9610
257	WASHER; LK,UNION 6WA1 TC-S(56L) ID=22.5	9-09150-522-0	01	1	9601-9610
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9611-
257	WASHER; LK,UNION L TYPE ENG<90L> ID=22.5	9-09150-522-0	01	1	9611-
277	BOLT; HOSE CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	9601-9606
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904
277	BOLT; HOSE CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-
277	BOLT; HOSE CLIP L TYPE ENG<90L> (B) M10X20 FLANGE	0-28081-020-0	01	1	9601-9606
277	BOLT; HOSE CLIP L TYPE ENG<90L> (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-
277	BOLT; HOSE CLIP 10PE1S(60L) (C) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
277	BOLT; HOSE CLIP 10PE1S(60L) (C) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904
277	BOLT; HOSE CLIP V TYPE ENG<91L> (C) M8X25 FLANGE	0-28680-825-0	01	1	9905-
277	BOLT; HOSE CLIP V TYPE ENG<91L> (C) M8X25 FLANGE	0-28680-825-0	01	1	9905-
277	BOLT; HOSE CLIP 10PE1S(60L) (D) M8X25 FLANGE	0-28080-825-0	01	1	9601-9606
277	BOLT; HOSE CLIP 10PE1S(60L) (D) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904
277	BOLT; HOSE CLIP V TYPE ENG<91L> (D) M8X20 FLANGE	0-28680-820-0	03	1	9905-
278	NUT; HOSE CLIP L TYPE ENG<90L> (A) M10	9-09110-510-0	01	1	9601-9606
278	NUT; HOSE CLIP L TYPE ENG<90L> (A) M10 FLANGE	0-91150-210-0	01	1	9607-
278	NUT; HOSE CLIP V TYPE ENG<91L> (B) M8	9-09110-508-0	01	1	9601-9606
278	NUT; HOSE CLIP V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	01	1	9607-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
