◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#48766) — 14 parça

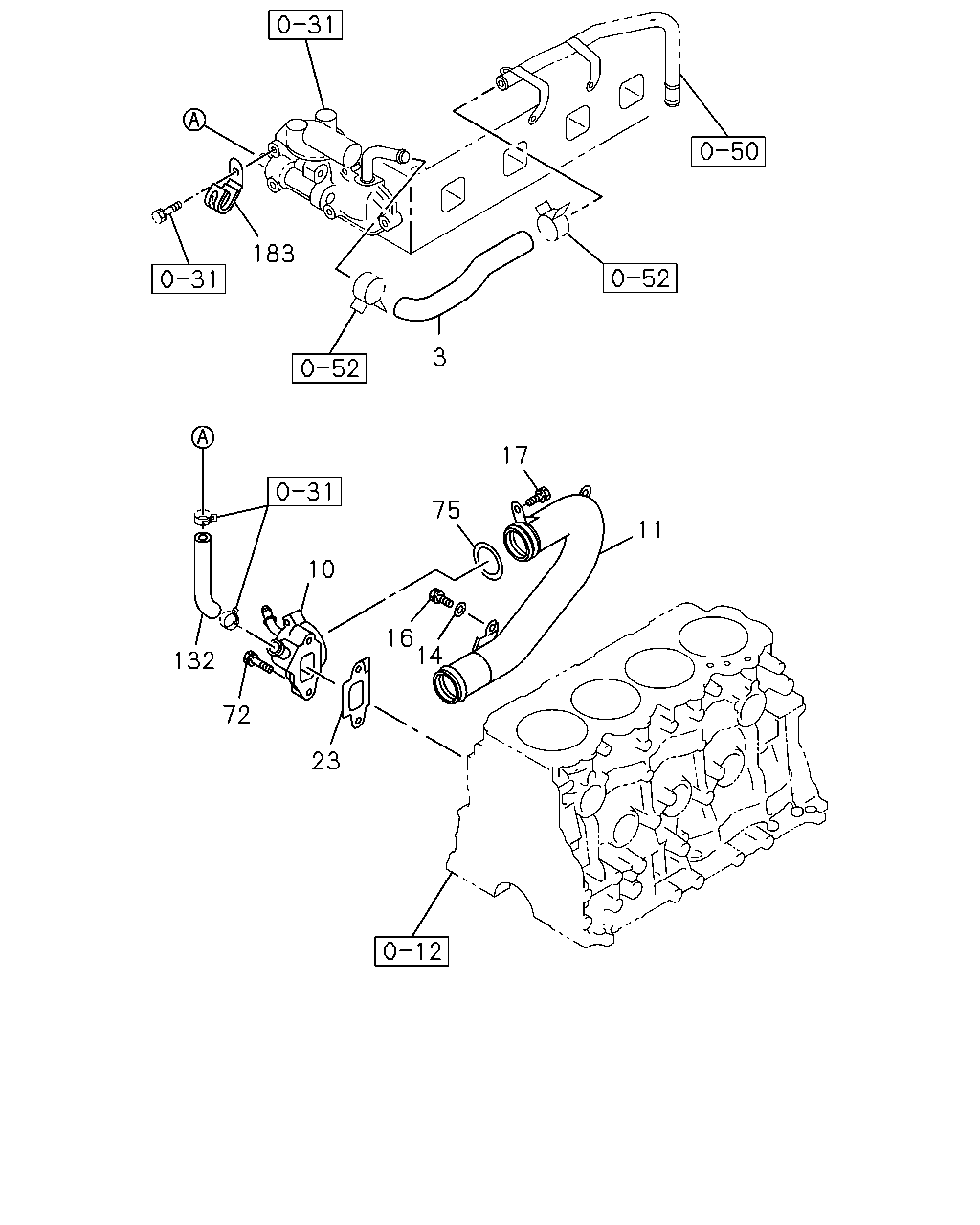

çizim 11467
183 3 17 75 11 10 16 14 132 72 23
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOSE; WATER,OIL COOLER
THA 		8-97910-111-0 01 1 0009- ●
3 HOSE; WATER,OIL COOLER
THA 		8-97920-060-0 01 1 0009- ●
10 PIPE; SUCTION
THA 		8-97910-590-0 01 1 0009- ●
10 PIPE; SUCTION
THA 		8-97910-379-0 01 1 0009- ●
11 PIPE; INL,WATER PUMP
THA 		8-97910-105-1 01 1 0009- ● ●
14 WASHER; PL,INL PIPE TO BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 0009- ● ●
16 BOLT; INL PIPE
M8X20 W/LK WASHER 		0-50040-820-0 01 1 0009- ● ●
17 BOLT; SUCTION PIPE
M8X20 W/LK WASHER 		0-50040-820-0 01 1 0009- ● ●
23 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97912-602-0 01 1 0009- ● ●
72 BOLT; WATER PIPE
M8X50 W/LK WASHER THA 		0-50040-850-0 02 1 0009- ● ●
75 GASKET; INL PIPE TO WATER PUMP
ID=35.2 		9-09565-335-0 01 1 0009- ● ●
132 HOSE; WATER PIPE
THA 		8-97910-064-0 01 1 0009- ●
132 HOSE; WATER PIPE
THA 		8-97910-065-0 01 1 0009- ●
183 CLIP; VACUUM HOSE
ID=8.5 THA 		8-97912-605-0 01 1 0009- ● ●
