0-31 — THERMOSTAT AND HOUSING (#48765) — 17 parça

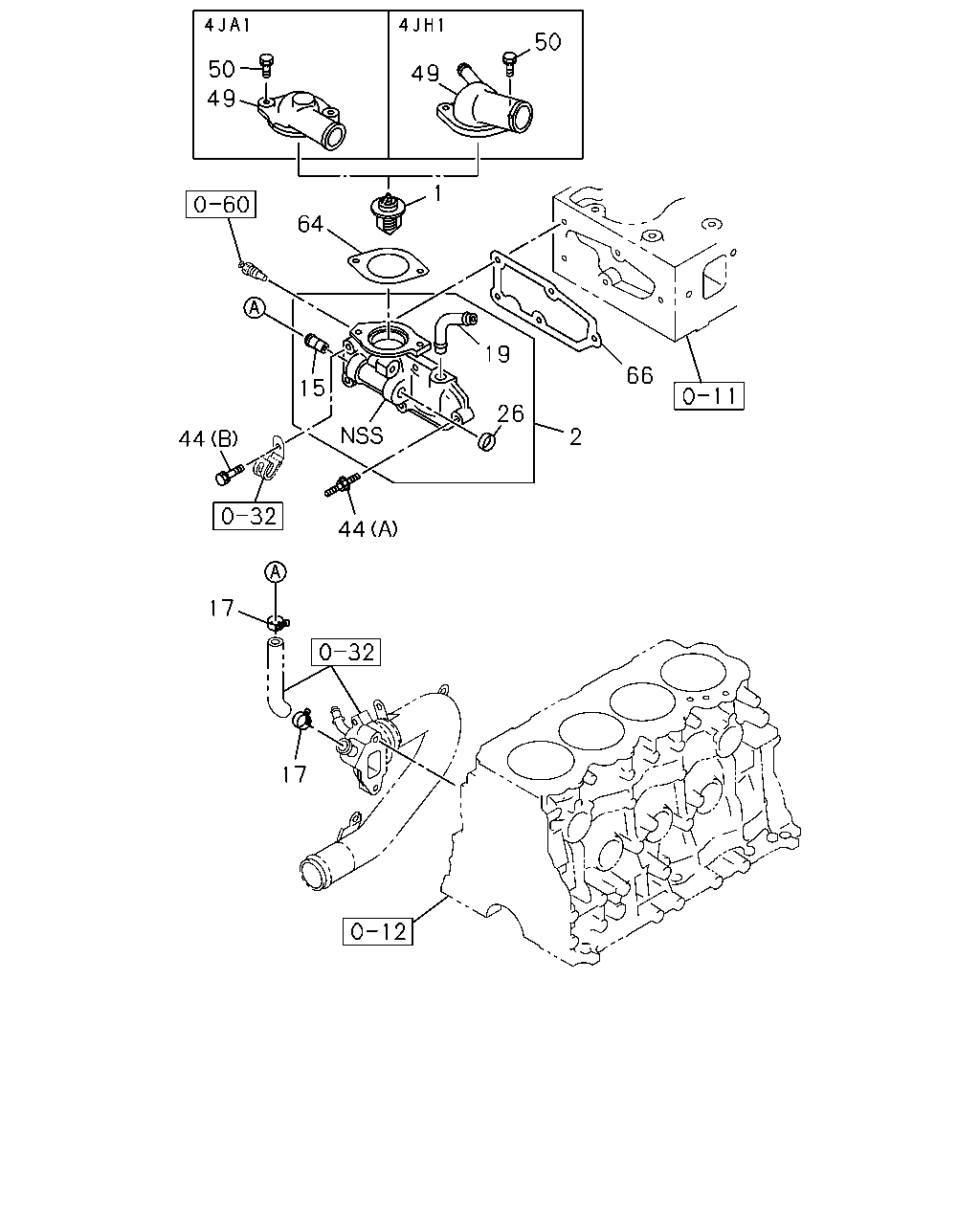

çizim 48029
50 50 49 49 1 64 15 19 66 26 2 44 44 17 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 0009- ● ●
2 HOUSING; THERMOSTAT
THA 		8-97916-700-0 01 1 0009- ●
2 HOUSING; THERMOSTAT
THA 		8-97920-061-0 01 1 0009- ●
15 PIPE; BYPASS
THA 		8-97910-083-0 01 1 0009- ● ●
17 CLIP; WATER HOSE
ID=20.8 		8-94125-862-1 02 1 0009- ● ●
19 PIPE; HSG TO HTR
THA 		8-97910-082-0 01 1 0009- ● ●
26 CUP; SEALING,VLV,VENTILATION
OD=18 		5-11219-008-0 01 1 0011- ●
26 CUP; SEALING,VLV,VENTILATION
OD=18 		5-11219-008-0 01 1 0009-0010 ● ●
26 CUP; SEALING,VLV,VENTILATION
OD=18 		5-11219-008-0 02 1 0011- ●
44 BOLT; HSG TO HD
EXC. POWER STEERING<N40> (B) M8X30 W/LK WASHER 		0-50040-830-0 05 1 0009- ●
44 BOLT; HSG TO HD
(A) M8X28,M8X34 L=69 		8-94479-011-1 01 1 0009- ● ●
44 BOLT; HSG TO HD
POWER STEERING<N40> (B) M8X30 W/LK WASHER 		0-50040-830-0 04 1 0009- ● ●
49 PIPE; WATER OUTLET
THA 		8-97910-202-0 01 1 0009- ●
49 PIPE; WATER OUTLET
THA 		8-97920-347-0 01 1 0009- ●
50 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0009- ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-97912-604-0 01 1 0009- ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-97920-513-0 01 1 0009- ● ●
