Isuzu WW
▶
PICKUP
▶
TFR
▶
50890 - TFR/S(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶

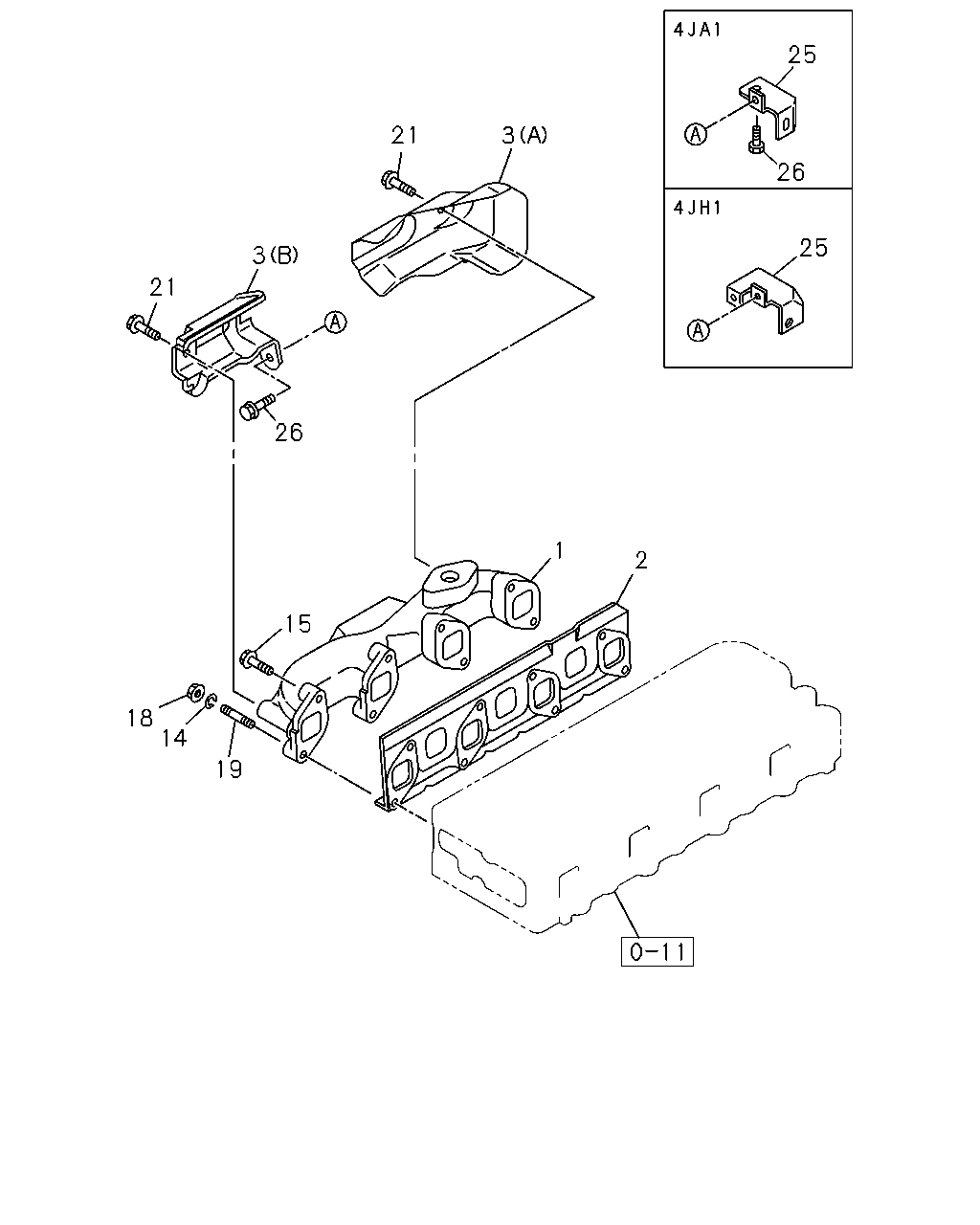

0-27 — EXHAUST MANIFOLD
(#48762) — 20 parça
Tümü
A - 4JA1 ENG
B - 4JH1 ENG
25
21
3
26
25
3
21
26
1
2
15
18
14
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MANIFOLD; EXHAUST
THA
8-97916-881-2
01
1
0009-0108
●
1
MANIFOLD; EXHAUST
THA
8-97922-183-0
01
1
0109-0111
●
1
MANIFOLD; EXHAUST
THA
8-97942-750-0
01
1
0112-
●
1
MANIFOLD; EXHAUST
THA
8-97919-997-0
01
1
0009-0110
●
1
MANIFOLD; EXHAUST
THA
8-97942-767-0
01
1
0111-
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA
8-97920-200-2
01
1
0009-
●
●
3
PROTECTOR; HEAT,EXH MANIF
(A) THA
8-97920-417-1
01
1
0009-
●
●
3
PROTECTOR; HEAT,EXH MANIF
(B) THA
8-97920-418-1
01
1
0009-
●
●
14
WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4
8-97257-914-0
02
1
0009-
●
●
15
BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE THA
8-97941-057-0
06
1
0009-
●
●
18
NUT; EXH MANIF
M8 FLANGE
0-91150-208-0
02
1
0009-
●
●
19
STUD; MANIF TO CYL HD
M8X35 L=46
8-97048-055-1
02
1
0009-
●
●
21
BOLT; HEAT PROTECTOR
M6X12 FLANGE
0-28080-612-0
01
1
0009-
●
●
21
BOLT; HEAT PROTECTOR
M8X12 FLANGE
0-28080-812-0
02
1
0009-
●
●
21
BOLT; HEAT PROTECTOR
M8X16 FLANGE
0-28480-816-0
01
1
0009-0011
●
●
21
BOLT; HEAT PROTECTOR
M8X16 FLANGE
0-28480-816-0
01
1
0012-
●
25
BRACKET; EXH MANIF
THA
8-97916-880-0
01
1
0009-
●
25
BRACKET; EXH MANIF
THA
8-97920-535-0
01
1
0009-
●
26
BOLT; BRKT TO EXH MANIF
M8X30 FLANGE
0-28080-830-0
01
1
0009-
●
26
BOLT; BRKT TO EXH MANIF
M8X14 FLANGE
8-94312-699-1
01
1
0009-
●
●
