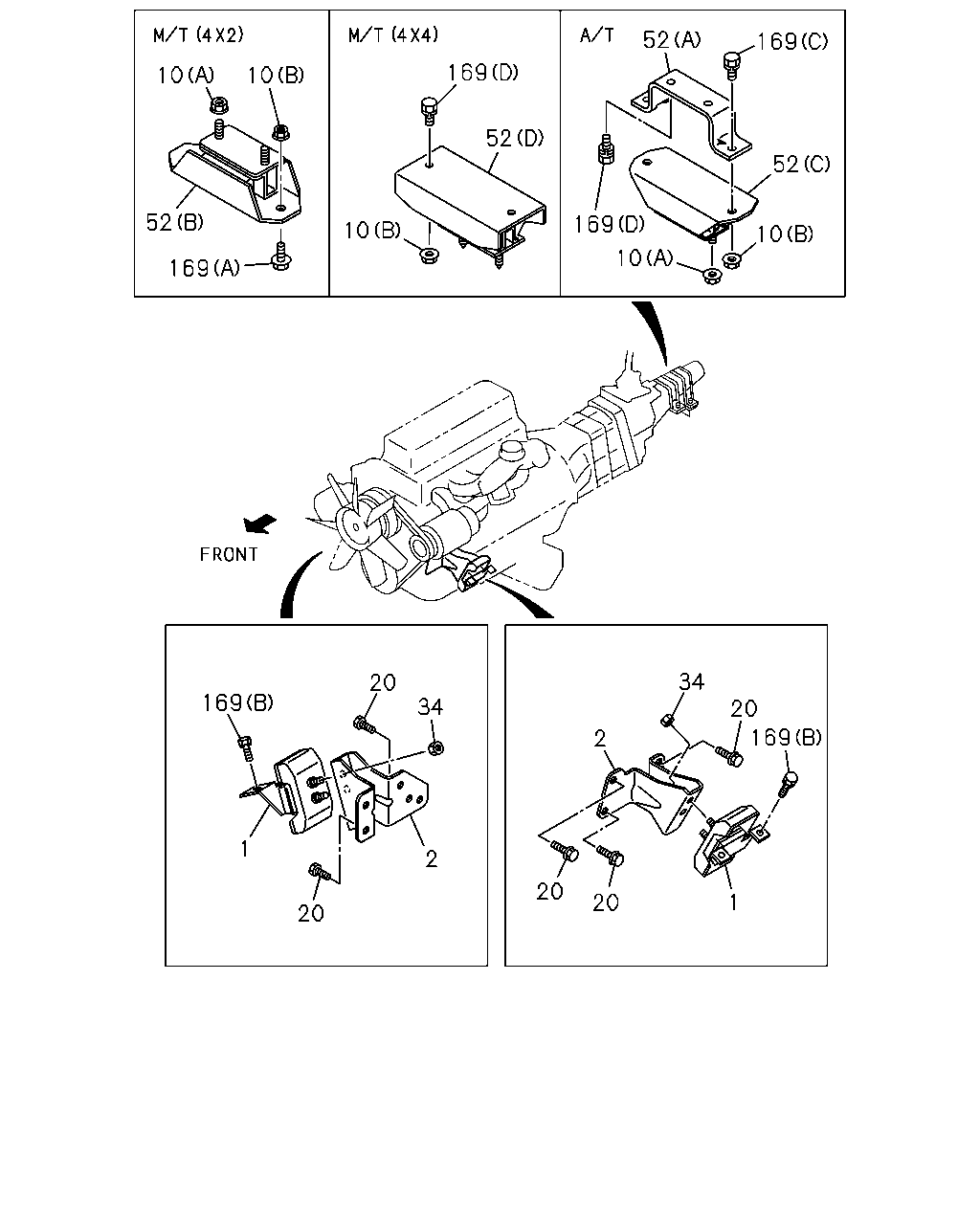

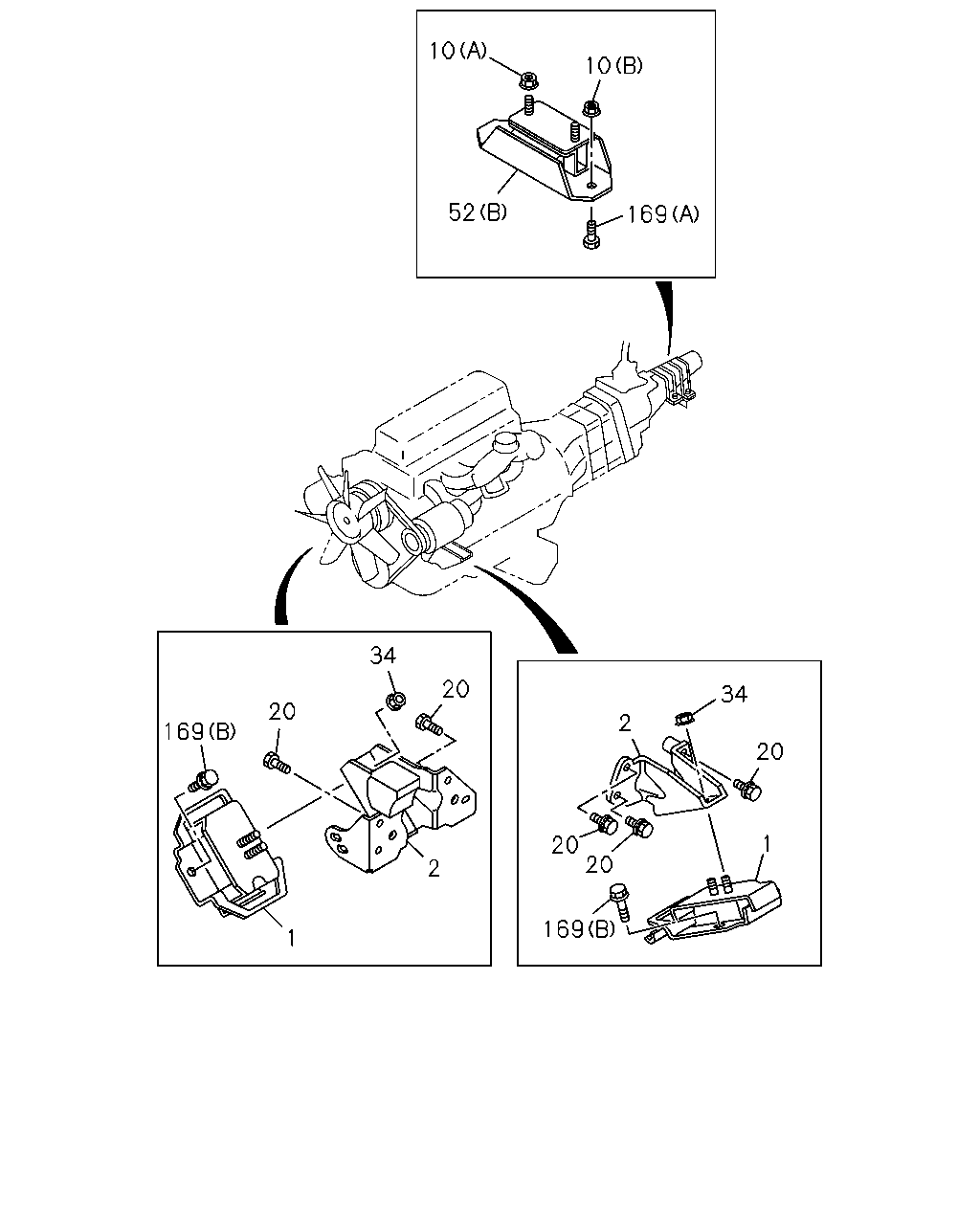

0-22 — ENGINE MOUNTING (#48760) — 50 parça

10 10 52 169 34 20 34 20 2 169 20 1 20 20 2 169 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RUBBER; ENG FOOT,FRT THA	8-97916-331-0	01	1	0009-	●
1	RUBBER; ENG FOOT,FRT THA	8-97916-330-0	01	1	0009-	●
1	RUBBER; ENG FOOT,FRT THA	8-97941-907-0	01	1	0009-		●
1	RUBBER; ENG FOOT,FRT THA	8-97941-906-0	01	1	0009-		●
2	FOOT; ENG SAB THA	8-97910-097-0	01	1	0009-	●
2	FOOT; ENG TRM THA	8-97910-109-0	01	1	0009-	●
2	FOOT; ENG SAB THA	8-97910-096-0	01	1	0009-	●
2	FOOT; ENG TRM THA	8-97910-108-0	01	1	0009-	●
2	FOOT; ENG THA	8-97920-868-0	01	1	0009-		●
2	FOOT; ENG THA	8-97920-867-0	01	1	0009-		●
10	NUT; MTG RUBBER (B) M10 FLANGE THA	8-94126-973-0	02	1	0009-	●	●
10	NUT; MTG RUBBER 4X2<TFB***> (A) M10 FLANGE	0-91150-110-0	02	1	0009-	●	●
20	BOLT; ENG FOOT M10X22 W/LK WASHER	0-50041-022-0	06	1	0009-	●	●
20	BOLT; ENG FOOT M10X35 W/LK WASHER	0-50041-035-0	01	1	0009-	●	●
20	BOLT; ENG FOOT M14X25 W/LK WASHER	0-50041-425-0	01	1	0009-	●	●
34	NUT; RUBBER TO ENG M10 FLANGE	0-91150-210-0	04	1	0009-	●	●
52	RUBBER; CUSHION,ENG MTG,RR 4X2<TFB***> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> (B) THA	8-97911-267-0	01	1	0009-	●	●
52	RUBBER; CUSHION,ENG MTG,RR 4X2<TFB***> A/T AISIN<RMD> (A)	8-97130-429-3	01	1	0009-		●
52	RUBBER; CUSHION,ENG MTG,RR 4X2<TFB***> A/T AISIN<RMD> (C) THA	8-97911-268-0	01	1	0009-		●
52	RUBBER; CUSHION,ENG MTG,RR 4X4<TFS***> (D) THA	8-97911-266-0	01	1	0009-		●
169	BOLT; SUPPORT (B) M10X28 W/LK WASHER THA	8-97916-477-0	04	1	0009-	●	●
169	BOLT; SUPPORT 4X2<TFB***> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> (A) M10X25 FLANGE	0-28681-025-0	02	1	0009-	●	●
169	BOLT; SUPPORT 4X2<TFB***> A/T AISIN<RMD> (D) M10X25 W/LK WASHER	0-50041-025-0	02	1	0009-		●
169	BOLT; SUPPORT 4X4<TFS***> (D) M10X25 W/LK WASHER	0-50041-025-0	02	1	0009-		●
169	BOLT; SUPPORT 4X2<TFB***> A/T AISIN<RMD> (C) M10X22	8-97229-172-0	02	1	0009-		●

52 169 169 10 10 52 52 52 169 10 10 10 169 34 20 169 34 20 169 2 1 2 20 20 1 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RUBBER; ENG FOOT,FRT THA	8-97916-331-0	01	1	0009-	●
1	RUBBER; ENG FOOT,FRT THA	8-97916-330-0	01	1	0009-	●
1	RUBBER; ENG FOOT,FRT THA	8-97941-907-0	01	1	0009-		●
1	RUBBER; ENG FOOT,FRT THA	8-97941-906-0	01	1	0009-		●
2	FOOT; ENG SAB THA	8-97910-097-0	01	1	0009-	●
2	FOOT; ENG TRM THA	8-97910-109-0	01	1	0009-	●
2	FOOT; ENG SAB THA	8-97910-096-0	01	1	0009-	●
2	FOOT; ENG TRM THA	8-97910-108-0	01	1	0009-	●
2	FOOT; ENG THA	8-97920-868-0	01	1	0009-		●
2	FOOT; ENG THA	8-97920-867-0	01	1	0009-		●
10	NUT; MTG RUBBER (B) M10 FLANGE THA	8-94126-973-0	02	1	0009-	●	●
10	NUT; MTG RUBBER 4X2<TFB***> (A) M10 FLANGE	0-91150-110-0	02	1	0009-	●	●
20	BOLT; ENG FOOT M10X22 W/LK WASHER	0-50041-022-0	06	1	0009-	●	●
20	BOLT; ENG FOOT M10X35 W/LK WASHER	0-50041-035-0	01	1	0009-	●	●
20	BOLT; ENG FOOT M14X25 W/LK WASHER	0-50041-425-0	01	1	0009-	●	●
34	NUT; RUBBER TO ENG M10 FLANGE	0-91150-210-0	04	1	0009-	●	●
52	RUBBER; CUSHION,ENG MTG,RR 4X2<TFB***> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> (B) THA	8-97911-267-0	01	1	0009-	●	●
52	RUBBER; CUSHION,ENG MTG,RR 4X2<TFB***> A/T AISIN<RMD> (A)	8-97130-429-3	01	1	0009-		●
52	RUBBER; CUSHION,ENG MTG,RR 4X2<TFB***> A/T AISIN<RMD> (C) THA	8-97911-268-0	01	1	0009-		●
52	RUBBER; CUSHION,ENG MTG,RR 4X4<TFS***> (D) THA	8-97911-266-0	01	1	0009-		●
169	BOLT; SUPPORT (B) M10X28 W/LK WASHER THA	8-97916-477-0	04	1	0009-	●	●
169	BOLT; SUPPORT 4X2<TFB***> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> (A) M10X25 FLANGE	0-28681-025-0	02	1	0009-	●	●
169	BOLT; SUPPORT 4X2<TFB***> A/T AISIN<RMD> (D) M10X25 W/LK WASHER	0-50041-025-0	02	1	0009-		●
169	BOLT; SUPPORT 4X4<TFS***> (D) M10X25 W/LK WASHER	0-50041-025-0	02	1	0009-		●
169	BOLT; SUPPORT 4X2<TFB***> A/T AISIN<RMD> (C) M10X22	8-97229-172-0	02	1	0009-		●
