0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#48759) — 61 parça

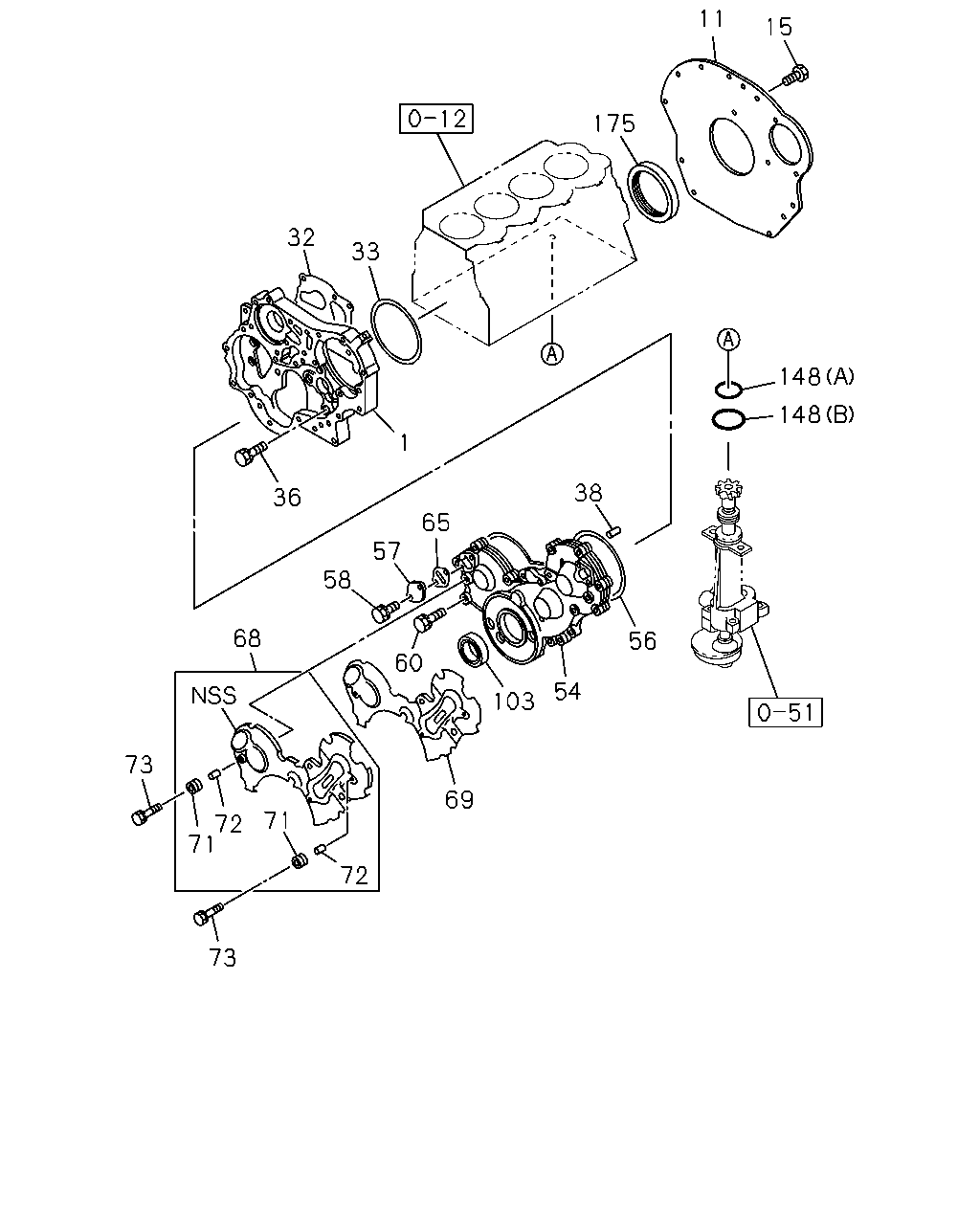

11 15 175 32 33 148 148 1 38 36 65 57 58 68 56 60 54 103 73 69 71 72 71 72 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR THA	8-97919-991-1	01	1	0009-	●	●
11	PLATE; RR,C/BL THA	8-97912-556-0	01	1	0009-	●	●
15	BOLT; RR PLATE TO C/BL M12X25 THA	8-97916-324-0	03	1	0009-	●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-97920-345-0	01	1	0009-		●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-97920-346-0	01	1	0009-	●
33	GASKET; BRKT TO CASE THA	8-97912-581-0	01	1	0009-	●	●
36	BOLT; GEAR CASE M8X20 W/LK WASHER	0-50040-820-0	06	1	0009-	●	●
36	BOLT; GEAR CASE M8X45 W/LK WASHER	0-50040-845-0	02	1	0009-	●	●
38	PIN; GEAR CASE COVER OD=10 L=20 THA	9-08151-020-0	02	1	0009-	●	●
54	COVER; GEAR CASE THA	8-97940-716-0	01	1	0009-		●
54	COVER; GEAR CASE THA	8-97919-993-3	01	1	0009-	●
56	GASKET; GEAR CASE TO COVER THA	8-97238-631-0	01	1	0009-0106	●	●
56	GASKET; GEAR CASE TO COVER	8-97287-694-0	01	1	0107-	●	●
57	COVER; TIMING CHECK HOLE THA	8-97912-582-0	02	1	0009-	●	●
58	BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	0009-	●	●
60	BOLT; COVER TO CASE M12X55 HEX SOCKET THA	0-58331-255-0	01	1	0112-	●	●
60	BOLT; COVER TO CASE M8X60 FLANGE	0-28080-860-0	06	1	0009-		●
60	BOLT; COVER TO CASE M8X30 FLANGE	0-28080-830-0	08	1	0009-	●	●
60	BOLT; COVER TO CASE M8X58 FLANGE THA	8-97920-481-0	01	1	0009-	●	●
60	BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	0009-0108	●	●
60	BOLT; COVER TO CASE M12X55 W/HEX-SOCKET THA	0-58311-255-0	01	1	0109-0203	●	●
60	BOLT; COVER TO CASE M8X70 W/LK WASHER	0-50040-870-0	06	1	0009-	●
65	GASKET; COVER,TIMING CHECK HOLE THA	8-97915-787-0	02	1	0009-0110	●	●
65	GASKET; COVER,TIMING CHECK HOLE THA	8-97922-242-0	02	1	0111-	●	●
68	COVER ASM; GEAR CASE COVER THA	8-97919-891-0	01	1	0009-		●
69	SEAL; RUBBER,COVER TO COVER THA	8-97919-893-0	01	1	0009-		●
71	RUBBER; MTG,COVER THA	8-97914-631-0	04	1	0009-		●
72	BUSHING; SPACER,COVER TO COVER THA	8-97914-630-0	04	1	0009-		●
73	BOLT; COVER FIX M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	0009-		●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	0009-	●	●
148	GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	1-09623-170-0	01	1	0009-	●	●
148	GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-220-0	01	1	0009-	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0009-	●	●

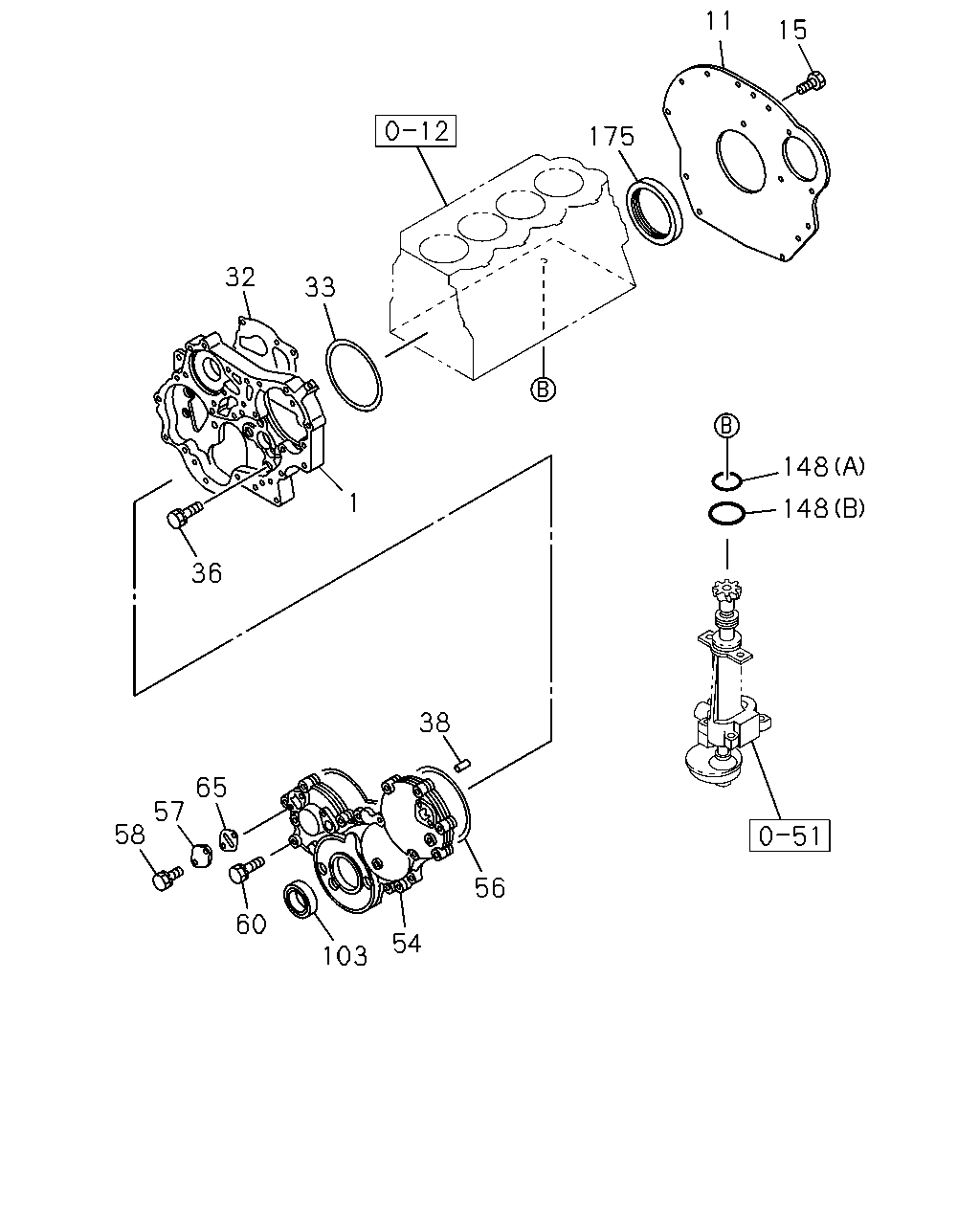

11 15 175 32 33 148 1 148 36 38 65 57 58 56 60 54 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR THA	8-97919-991-1	01	1	0009-	●	●
11	PLATE; RR,C/BL THA	8-97912-556-0	01	1	0009-	●	●
15	BOLT; RR PLATE TO C/BL M12X25 THA	8-97916-324-0	03	1	0009-	●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-97920-345-0	01	1	0009-		●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-97920-346-0	01	1	0009-	●
33	GASKET; BRKT TO CASE THA	8-97912-581-0	01	1	0009-	●	●
36	BOLT; GEAR CASE M8X20 W/LK WASHER	0-50040-820-0	06	1	0009-	●	●
36	BOLT; GEAR CASE M8X45 W/LK WASHER	0-50040-845-0	02	1	0009-	●	●
38	PIN; GEAR CASE COVER OD=10 L=20 THA	9-08151-020-0	02	1	0009-	●	●
54	COVER; GEAR CASE THA	8-97940-716-0	01	1	0009-		●
54	COVER; GEAR CASE THA	8-97919-993-3	01	1	0009-	●
56	GASKET; GEAR CASE TO COVER THA	8-97238-631-0	01	1	0009-0106	●	●
56	GASKET; GEAR CASE TO COVER	8-97287-694-0	01	1	0107-	●	●
57	COVER; TIMING CHECK HOLE THA	8-97912-582-0	02	1	0009-	●	●
58	BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	0009-	●	●
60	BOLT; COVER TO CASE M12X55 HEX SOCKET THA	0-58331-255-0	01	1	0112-	●	●
60	BOLT; COVER TO CASE M8X60 FLANGE	0-28080-860-0	06	1	0009-		●
60	BOLT; COVER TO CASE M8X30 FLANGE	0-28080-830-0	08	1	0009-	●	●
60	BOLT; COVER TO CASE M8X58 FLANGE THA	8-97920-481-0	01	1	0009-	●	●
60	BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	0009-0108	●	●
60	BOLT; COVER TO CASE M12X55 W/HEX-SOCKET THA	0-58311-255-0	01	1	0109-0203	●	●
60	BOLT; COVER TO CASE M8X70 W/LK WASHER	0-50040-870-0	06	1	0009-	●
65	GASKET; COVER,TIMING CHECK HOLE THA	8-97915-787-0	02	1	0009-0110	●	●
65	GASKET; COVER,TIMING CHECK HOLE THA	8-97922-242-0	02	1	0111-	●	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	0009-	●	●
148	GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	1-09623-170-0	01	1	0009-	●	●
148	GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-220-0	01	1	0009-	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0009-	●	●
