0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#48758) — 127 parça

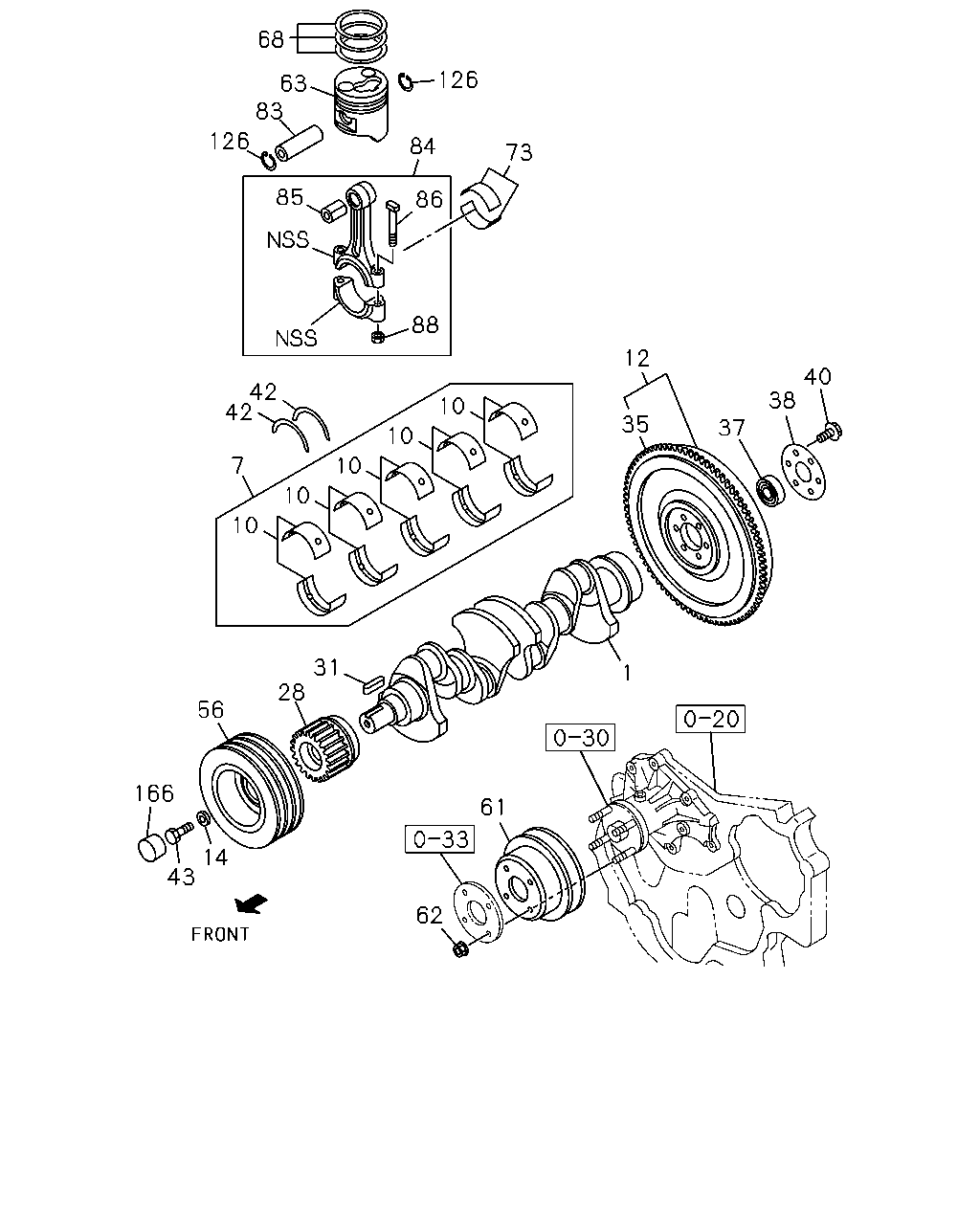

68 63 126 84 83 126 73 85 12 40 38 35 87 42 42 86 10 10 7 10 37 10 10 31 1 40 38 61 28 62 100 56 12 35 14 43 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT THA	8-94455-240-1	01	1	0009-	●
1	CRANKSHAFT THA	8-97940-743-0	01	1	0009-		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE THA	8-97259-526-0	05	1	0009-	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK THA	8-97259-528-0	05	1	0009-	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN THA	8-97259-529-0	05	1	0009-	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN THA	8-97288-115-0	05	1	0009-	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW THA	8-97288-116-0	05	1	0009-	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN THA	8-97288-117-0	05	1	0009-		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK THA	8-97288-118-0	05	1	0009-		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE THA	8-97288-119-0	05	1	0009-		●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW THA	8-97288-120-0	05	1	0009-		●
10	METAL SET; CRANKSHAFT,STANDARD RED THA	8-97288-121-0	05	1	0009-		●
12	FLYWHEEL THA	8-97912-518-0	01	1	0009-	●
12	FLYWHEEL M/T MUA 5 SPEED<RMN> THA	8-97920-004-0	01	1	0009-		●
12	FLYWHEEL A/T AISIN<RMD> THA	8-97912-517-0	01	1	0009-		●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0009-	●	●
28	GEAR; CR/SHF THA	8-97912-749-0	01	1	0009-	●
28	GEAR; CR/SHF THA	8-97941-155-1	01	1	0009-		●
31	KEY; FEATHER,CR/SHF	9-08030-743-0	01	1	0009-	●	●
35	GEAR; RING Z=108 THA	8-97912-516-0	01	1	0009-	●	●
37	BEARING; PILOT,TOP GEAR SHAFT NSK THA	8-97920-344-0	01	1	0009-	●	●
38	WASHER; FLYWHEEL M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA	8-97912-522-0	01	1	0009-	●	●
38	WASHER; FLYWHEEL A/T AISIN<RMD>	8-97038-939-0	01	1	0009-		●
40	BOLT; FLYWHEEL M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> M13X36 THA	8-97941-069-0	08	1	0009-	●	●
40	BOLT; FLYWHEEL A/T AISIN<RMD> M13X78	8-97080-561-1	08	1	0009-		●
42	WASHER; THRUST,CR/SHF THA	8-97912-506-0	02	1	0009-	●
42	WASHER; THRUST,CR/SHF THA	8-97940-143-0	02	1	0009-		●
43	BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0009-	●	●
56	PULLEY; CR/SHF DAMPER POWER STEERING<N40> 3-GROOVE THA	8-97920-304-0	01	1	0009-0105	●
56	PULLEY; CR/SHF DAMPER 3-GROOVE THA	8-97920-304-0	01	1	0106-	●
56	PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> 2-GROOVE THA	8-97920-305-0	01	1	0009-0105	●
56	PULLEY; CR/SHF DAMPER 3-GROOVE THA	8-97941-119-1	01	1	0009-		●
61	PULLEY; FAN DRIVE THA	8-97922-138-0	01	1	0009-		●
61	PULLEY; FAN DRIVE THA	8-97912-591-0	01	1	0009-	●
62	NUT; FAN PULLEY M6 FLANGE	5-09440-004-0	04	1	0009-	●	●
63	PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97942-985-0	04	1	0204-	●
63	PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97942-986-0	04	1	0204-	●
63	PISTON GRADE=AX ALSO INCLUDED IN LINER SET. THA	8-97942-618-0	04	1	0105-	●
63	PISTON GRADE=CX ALSO INCLUDED IN LINER SET. THA	8-97942-619-0	04	1	0105-	●
63	PISTON GRADE=AX THA	8-97941-125-0	04	1	0009-0101	●
63	PISTON GRADE=AX THA	8-97942-514-0	04	1	0102-0105	●
63	PISTON GRADE=CX THA	8-97941-126-0	04	1	0009-0101	●
63	PISTON GRADE=CX THA	8-97942-515-0	04	1	0102-0105	●
63	PISTON GRADE=AX THA	8-97941-127-0	04	1	0009-		●
63	PISTON GRADE=CX THA	8-97941-128-0	04	1	0009-		●
68	RING SET; PISTON,STANDARD THA	8-97941-123-0	04	1	0009-0101	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. THA	8-97942-518-0	04	1	0102-	●
68	RING SET; PISTON,STANDARD THA	8-97941-122-0	04	1	0009-		●
73	METAL SET; CONN ROD,STANDARD THA	8-94372-193-1	04	1	0009-	●	●
83	PIN; PISTON THA	8-97912-529-0	04	1	0009-0109	●	●
83	PIN; PISTON THA	8-97942-732-0	04	1	0110-	●	●
84	ROD ASM; CONN THA	8-97915-828-1	04	1	0009-	●
84	ROD ASM; CONN THA	8-97941-030-1	04	1	0009-		●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	0011-0111	●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0110-	●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	0009-0010	●	●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	0011-0112		●
86	BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0009-		●
86	BOLT; CONNROD M11X59	5-12235-009-0	08	1	0009-	●
87	PIN; CONNROD BIG END OD=5 L=8 THA	9-08160-508-0	08	1	0009-		●
100	PLATE; FLEX A/T AISIN<RMD>	8-97118-308-0	01	1	0009-		●
126	RING; SNAP,PISTON PIN ID=33.9	8-94133-969-0	08	1	0009-	●	●
166	RUBBER; SPACE,PULLEY	8-97234-657-0	01	1	0009-	●
166	RUBBER; SPACE,PULLEY THA	8-97231-528-0	01	1	0009-		●

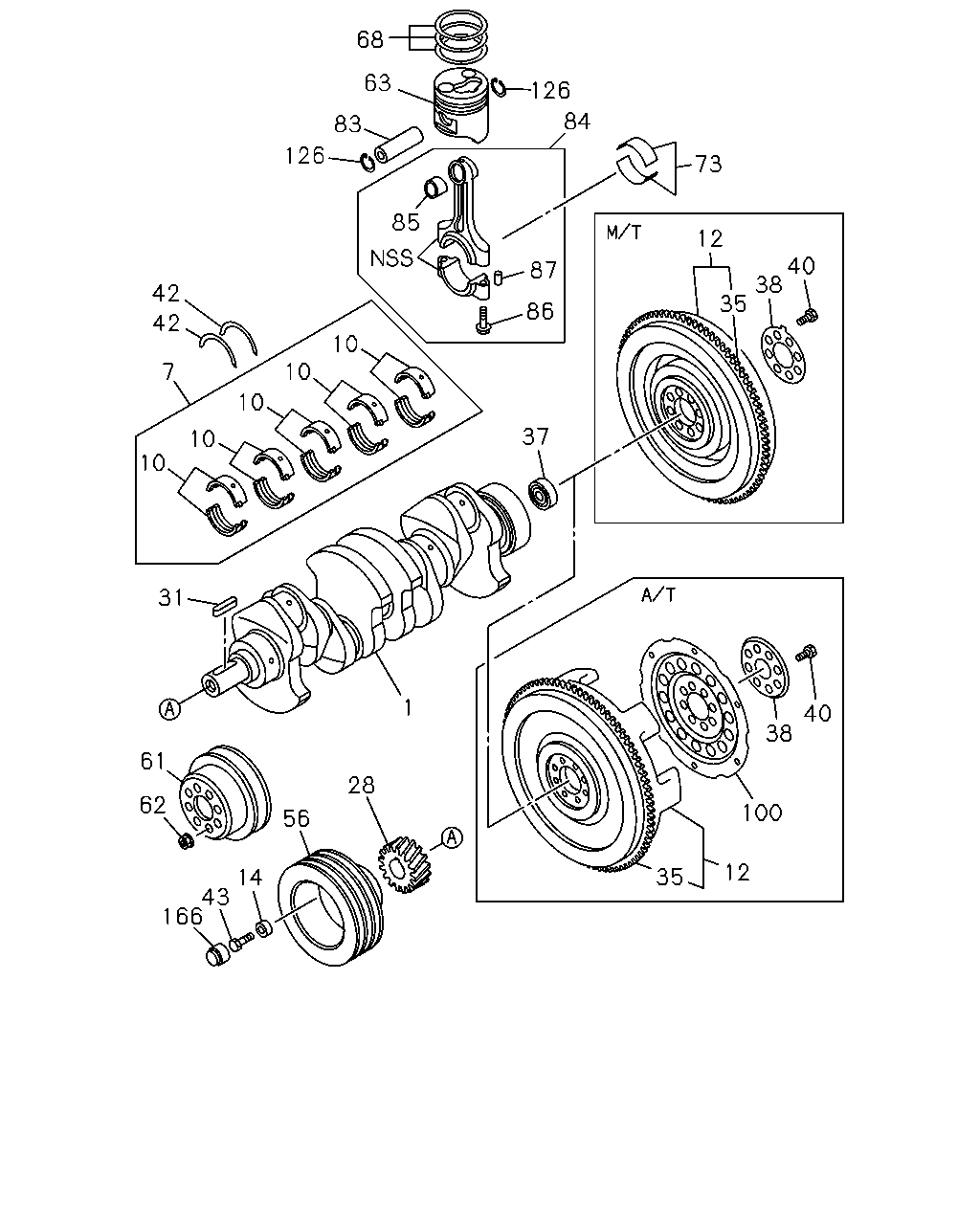

68 126 63 83 126 84 73 85 86 88 12 40 38 42 42 10 35 37 10 7 10 10 10 31 28 1 56 166 61 14 43 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT THA	8-94455-240-1	01	1	0009-	●
1	CRANKSHAFT THA	8-97940-743-0	01	1	0009-		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE THA	8-97259-526-0	05	1	0009-	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK THA	8-97259-528-0	05	1	0009-	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN THA	8-97259-529-0	05	1	0009-	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN THA	8-97288-115-0	05	1	0009-	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW THA	8-97288-116-0	05	1	0009-	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN THA	8-97288-117-0	05	1	0009-		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK THA	8-97288-118-0	05	1	0009-		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE THA	8-97288-119-0	05	1	0009-		●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW THA	8-97288-120-0	05	1	0009-		●
10	METAL SET; CRANKSHAFT,STANDARD RED THA	8-97288-121-0	05	1	0009-		●
12	FLYWHEEL THA	8-97912-518-0	01	1	0009-	●
12	FLYWHEEL M/T MUA 5 SPEED<RMN> THA	8-97920-004-0	01	1	0009-		●
12	FLYWHEEL A/T AISIN<RMD> THA	8-97912-517-0	01	1	0009-		●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0009-	●	●
28	GEAR; CR/SHF THA	8-97912-749-0	01	1	0009-	●
28	GEAR; CR/SHF THA	8-97941-155-1	01	1	0009-		●
31	KEY; FEATHER,CR/SHF	9-08030-743-0	01	1	0009-	●	●
35	GEAR; RING Z=108 THA	8-97912-516-0	01	1	0009-	●	●
37	BEARING; PILOT,TOP GEAR SHAFT NSK THA	8-97920-344-0	01	1	0009-	●	●
38	WASHER; FLYWHEEL M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA	8-97912-522-0	01	1	0009-	●	●
38	WASHER; FLYWHEEL A/T AISIN<RMD>	8-97038-939-0	01	1	0009-		●
40	BOLT; FLYWHEEL M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> M13X36 THA	8-97941-069-0	08	1	0009-	●	●
40	BOLT; FLYWHEEL A/T AISIN<RMD> M13X78	8-97080-561-1	08	1	0009-		●
42	WASHER; THRUST,CR/SHF THA	8-97912-506-0	02	1	0009-	●
42	WASHER; THRUST,CR/SHF THA	8-97940-143-0	02	1	0009-		●
43	BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0009-	●	●
56	PULLEY; CR/SHF DAMPER POWER STEERING<N40> 3-GROOVE THA	8-97920-304-0	01	1	0009-0105	●
56	PULLEY; CR/SHF DAMPER 3-GROOVE THA	8-97920-304-0	01	1	0106-	●
56	PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> 2-GROOVE THA	8-97920-305-0	01	1	0009-0105	●
56	PULLEY; CR/SHF DAMPER 3-GROOVE THA	8-97941-119-1	01	1	0009-		●
61	PULLEY; FAN DRIVE THA	8-97922-138-0	01	1	0009-		●
61	PULLEY; FAN DRIVE THA	8-97912-591-0	01	1	0009-	●
62	NUT; FAN PULLEY M6 FLANGE	5-09440-004-0	04	1	0009-	●	●
63	PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97942-985-0	04	1	0204-	●
63	PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97942-986-0	04	1	0204-	●
63	PISTON GRADE=AX ALSO INCLUDED IN LINER SET. THA	8-97942-618-0	04	1	0105-	●
63	PISTON GRADE=CX ALSO INCLUDED IN LINER SET. THA	8-97942-619-0	04	1	0105-	●
63	PISTON GRADE=AX THA	8-97941-125-0	04	1	0009-0101	●
63	PISTON GRADE=AX THA	8-97942-514-0	04	1	0102-0105	●
63	PISTON GRADE=CX THA	8-97941-126-0	04	1	0009-0101	●
63	PISTON GRADE=CX THA	8-97942-515-0	04	1	0102-0105	●
63	PISTON GRADE=AX THA	8-97941-127-0	04	1	0009-		●
63	PISTON GRADE=CX THA	8-97941-128-0	04	1	0009-		●
68	RING SET; PISTON,STANDARD THA	8-97941-123-0	04	1	0009-0101	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. THA	8-97942-518-0	04	1	0102-	●
68	RING SET; PISTON,STANDARD THA	8-97941-122-0	04	1	0009-		●
73	METAL SET; CONN ROD,STANDARD THA	8-94372-193-1	04	1	0009-	●	●
83	PIN; PISTON THA	8-97912-529-0	04	1	0009-0109	●	●
83	PIN; PISTON THA	8-97942-732-0	04	1	0110-	●	●
84	ROD ASM; CONN THA	8-97915-828-1	04	1	0009-	●
84	ROD ASM; CONN THA	8-97941-030-1	04	1	0009-		●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	0011-0111	●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0110-	●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	0009-0010	●	●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	0011-0112		●
86	BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0009-		●
86	BOLT; CONNROD M11X59	5-12235-009-0	08	1	0009-	●
88	NUT; CONNROD M11	5-09409-016-0	08	1	0009-	●
126	RING; SNAP,PISTON PIN ID=33.9	8-94133-969-0	08	1	0009-	●	●
166	RUBBER; SPACE,PULLEY	8-97234-657-0	01	1	0009-	●
166	RUBBER; SPACE,PULLEY THA	8-97231-528-0	01	1	0009-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
