0-13 — OIL PAN AND LEVEL GAUGE (#48756) — 29 parça

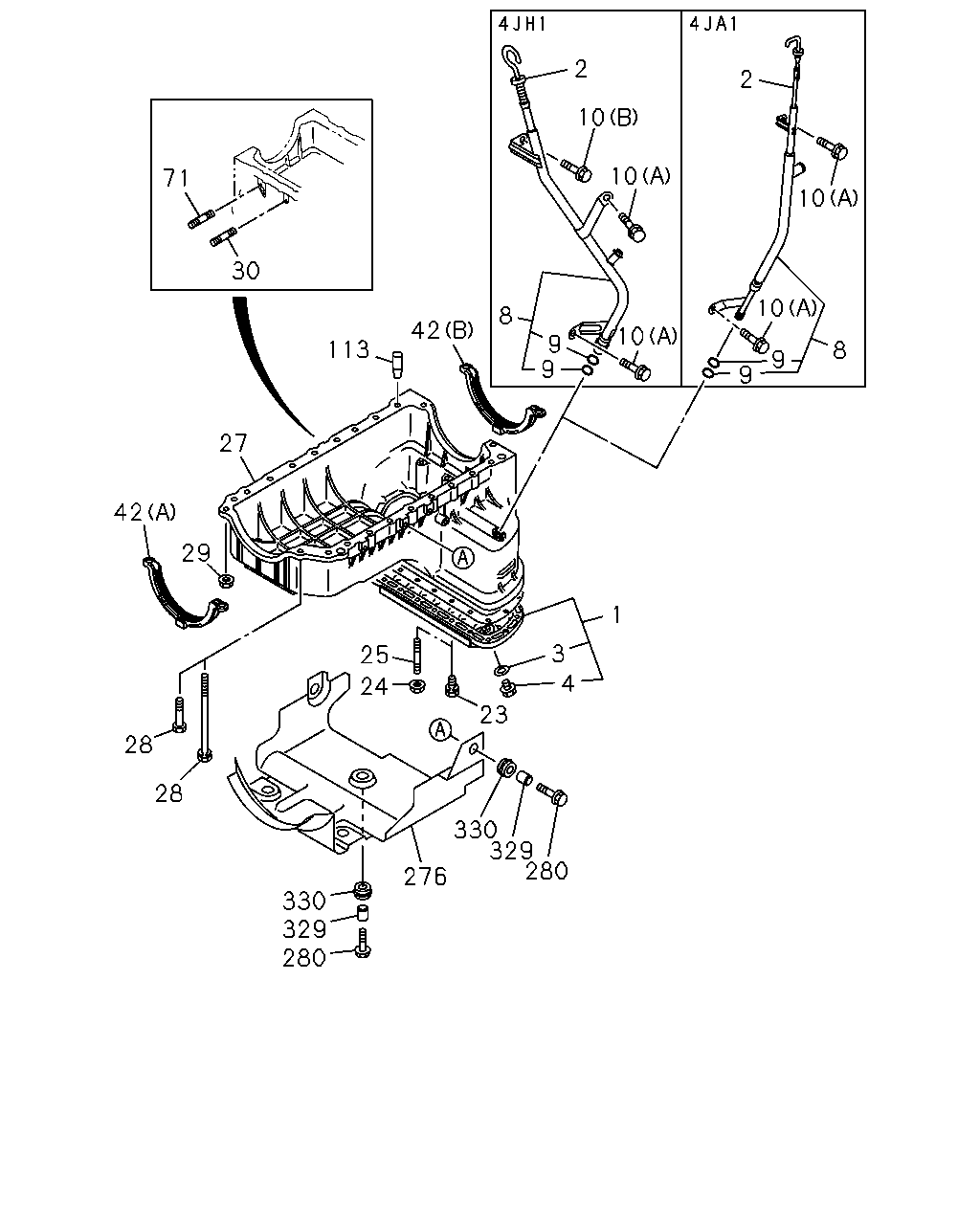

çizim 9849
2 2 10 10 71 10 30 10 8 42 10 113 27 42 28 28 330 329 280 276 330 329 280 24 25 23 4 3 1 9 9 9 9 8 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL
4X2<TFB***> THA 		8-97920-578-0 01 1 0009- ● ●
1 PAN ASM; OIL
4X4<TFS***> THA 		8-97920-576-0 01 1 0009- ●
2 GAUGE; OIL LEVEL
THA 		8-97912-722-0 01 1 0009- ●
2 GAUGE; OIL LEVEL
THA 		8-97921-440-1 01 1 0009- ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 THA 		8-97912-531-0 01 1 0009- ● ●
4 PLUG; DRAIN,OIL
M14X14 THA 		8-97912-530-0 01 1 0009- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-97910-172-3 01 1 0009- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-97920-021-3 01 1 0009- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97912-535-0 02 1 0009- ● ●
10 BOLT; GUIDE TUBE
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0009- ● ●
10 BOLT; GUIDE TUBE
(B) M6X12 W/LK WASHER 		0-50040-612-0 01 1 0009- ●
23 BOLT; OIL PAN
M6X13 THA 		8-97916-379-0 16 1 0009- ● ●
24 NUT; OIL PAN
M6 W/LK WASHER 		8-97137-836-0 02 1 0009- ● ●
25 STUD; OIL PAN
M6X12 L=21 THA 		9-04110-612-0 02 1 0009- ● ●
27 CRANKCASE
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97920-000-0 01 1 0009- ● ●
27 CRANKCASE
A/T AISIN<RMD> THA 		8-97920-001-0 01 1 0009- ●
28 BOLT; CRANKCASE TO C/BL
M8X120 FLANGE 		0-28085-812-0 02 1 0009- ● ●
28 BOLT; CRANKCASE TO C/BL
M8X32 W/LK WASHER 		0-50040-832-0 18 1 0009- ● ●
29 NUT; CRANKCASE
M8 FLANGE 		0-91150-108-0 02 1 0009- ● ●
30 STUD; CRANKCASE
M8X35 L=47 THA 		9-04110-835-0 02 1 0009- ● ●
42 GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) FRT 		8-97120-933-0 01 1 0009- ● ●
42 GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) RR 		8-97123-342-0 01 1 0009- ● ●
71 STUD; OIL DRAIN PIPE
M8X18 L=30 THA 		9-04110-818-0 02 1 0009- ● ●
113 PIN; STRAIGHT
L=31 THA 		8-97920-964-1 02 1 0009- ● ●
276 COVER; CRANKCASE 8-97229-929-5 01 1 0009- ● ●
280 BOLT; COVER
M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0009- ● ●
329 GUIDE; COVER,CRANKCASE
OD=13 T=9.5 THA 		8-94140-427-1 05 1 0009- ● ●
330 RUBBER; MTG,CRANKCASE COVER
OD=22 THA 		8-94140-428-1 05 1 0009-0201 ● ●
330 RUBBER; MTG,CRANKCASE COVER
OD=21.8 		8-97325-051-0 05 1 0202- ● ●
