0-12 — CYLINDER BLOCK (#48755) — 83 parça

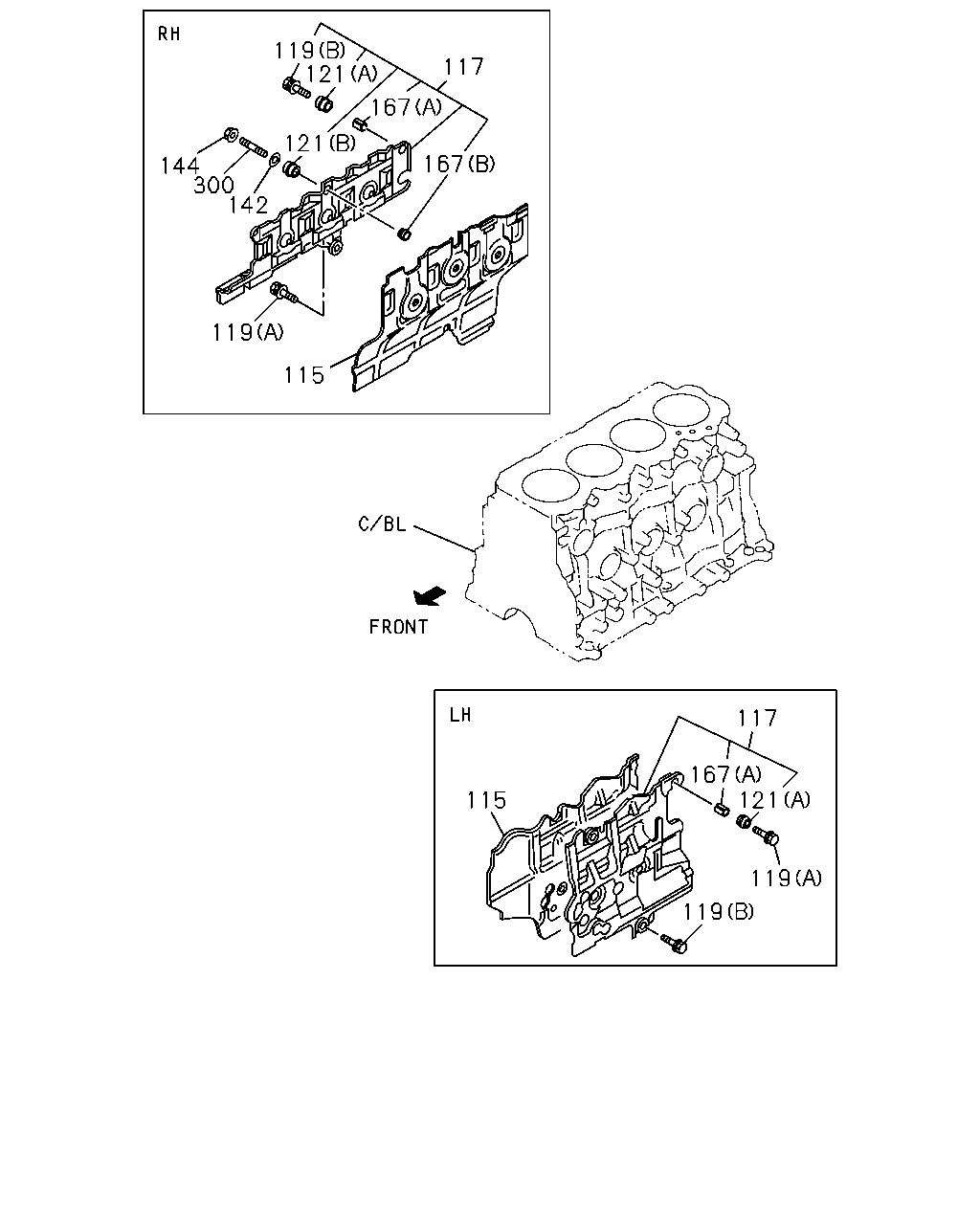

çizim 45895
119 121 167 117 121 167 144 300 142 119 115 115 117 167 121 119 119
BalonParca AdiParca NoAdetTipApplied Date A B
115 RUBBER; SPACE
THA 		8-97942-631-0 01 1 0112- ●
115 RUBBER; SPACE
THA 		8-97942-634-0 01 1 0112- ●
115 RUBBER; SPACE 8-97204-194-0 01 1 0009-0203 ●
115 RUBBER; SPACE 8-97204-194-0 02 1 0204- ●
115 RUBBER; SPACE
THA 		8-97141-687-0 01 1 0009-0203 ●
117 COVER ASM; C/BL
THA 		8-97919-885-1 01 1 0009- ●
117 COVER ASM; C/BL
THA 		8-97919-886-0 01 1 0009- ●
119 BOLT; COVER FIX
(A) M10X28 		8-94329-952-1 02 1 0009- ●
119 BOLT; COVER FIX
(B) M8X22 W/LK&PL WASHER 		8-94329-953-1 04 1 0009- ●
121 RUBBER; MTG,COVER
(A) THA 		8-97916-666-1 05 1 0009-0106 ●
121 RUBBER; MTG,COVER
THA 		8-97916-666-1 02 1 0107-0107 ●
121 RUBBER; MTG,COVER
THA 		8-97916-666-1 08 1 0108- ●
121 RUBBER; MTG,COVER
(B) THA 		8-97919-890-0 01 1 0009- ●
142 WASHER; PL
ID=8.4 OD=26 		9-09164-808-0 01 1 0009- ●
144 NUT; COVER FIX
M8 FLANGE 		0-91150-208-0 01 1 0009- ●
167 TUBE; DIST,SIDE COVER
(A) THA 		8-97916-668-0 05 1 0009-0106 ●
167 TUBE; DIST,SIDE COVER
THA 		8-97916-668-0 02 1 0107-0107 ●
167 TUBE; DIST,SIDE COVER
THA 		8-97916-668-0 08 1 0108- ●
167 TUBE; DIST,SIDE COVER
(B) THA 		8-97919-889-0 01 1 0009- ●
300 STUD; COVER
M8X30 L=41 		9-04110-830-0 01 1 0009- ●

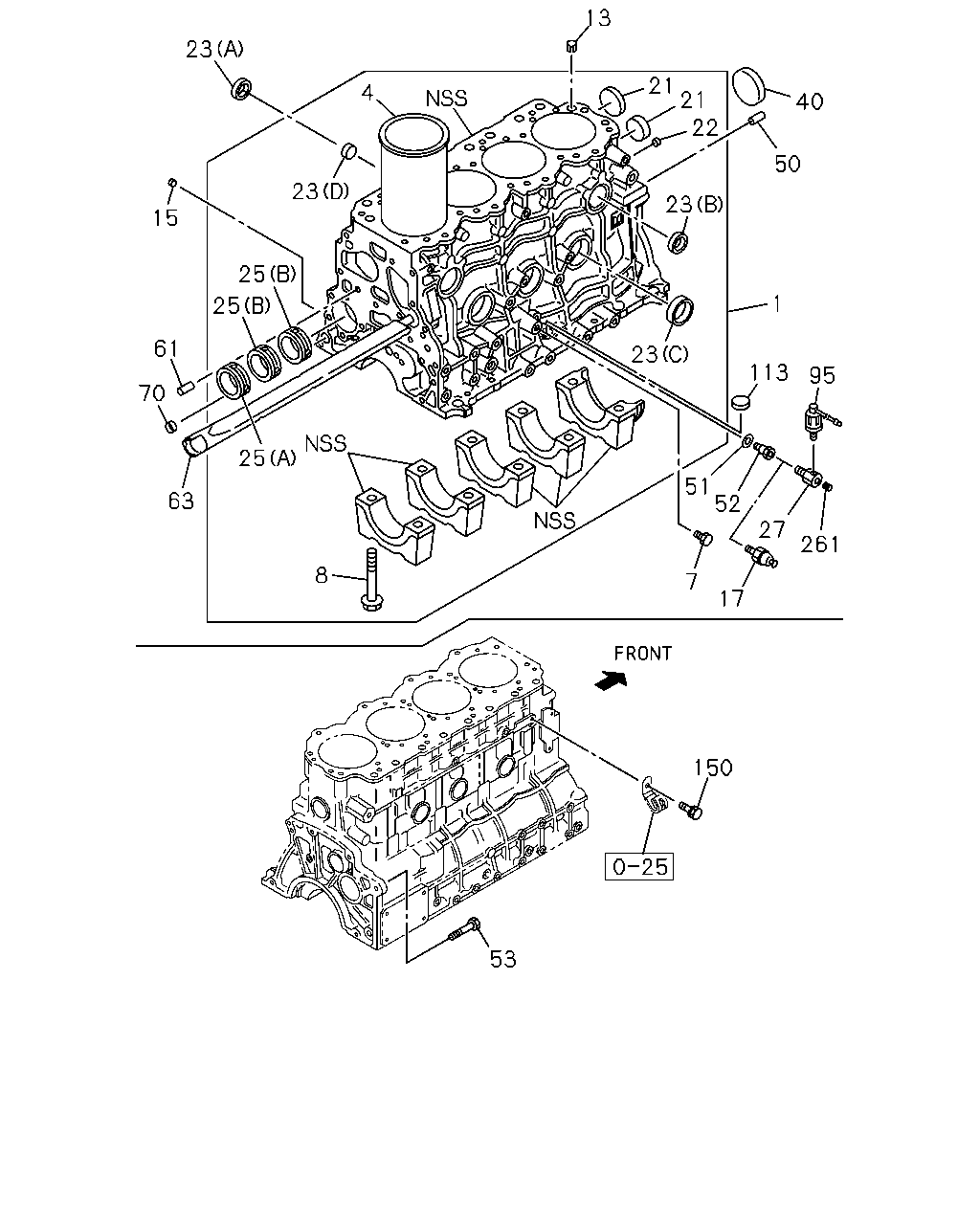

çizim 50714
13 23 21 21 22 4 40 50 23 23 15 25 25 61 70 63 25 8 23 1 113 95 51 52 27 261 7 17 150 53
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL
THA 		8-97940-934-2 01 1 0009- ●
1 BLOCK ASM; CYL
THA 		8-97940-732-4 01 1 0009- ●
4 LINER; C/BL
OD GRADE=1,ID GRADE=AX ALSO INCLUDED IN LINER SET. 		8-97176-691-0 08 1 0009- ●
4 LINER; C/BL
OD GRADE=1,ID GRADE=CX ALSO INCLUDED IN LINER SET. 		8-97176-692-0 08 1 0009- ●
4 LINER; C/BL
OD GRADE=2,ID GRADE=AX ALSO INCLUDED IN LINER SET. 		8-97176-693-0 08 1 0009- ●
4 LINER; C/BL
OD GRADE=2,ID GRADE=CX ALSO INCLUDED IN LINER SET. 		8-97176-694-0 08 1 0009- ●
4 LINER; C/BL
OD GRADE=3,ID GRADE=AX ALSO INCLUDED IN LINER SET. 		8-97176-695-0 08 1 0009- ●
4 LINER; C/BL
OD GRADE=3,ID GRADE=CX ALSO INCLUDED IN LINER SET. 		8-97176-696-0 08 1 0009- ●
4 LINER; C/BL
OD GRADE=4,ID GRADE=AX ALSO INCLUDED IN LINER SET. 		8-97176-697-0 08 1 0009- ●
4 LINER; C/BL
OD GRADE=4,ID GRADE=CX ALSO INCLUDED IN LINER SET. 		8-97176-698-0 08 1 0009- ●
4 LINER; C/BL
OD GRADE=1,ID GRADE=AX 		8-97176-699-0 04 1 0009- ●
4 LINER; C/BL
OD GRADE=1,ID GRADE=CX 		8-97176-700-0 04 1 0009- ●
4 LINER; C/BL
OD GRADE=2,ID GRADE=AX 		8-97176-701-0 04 1 0009- ●
4 LINER; C/BL
OD GRADE=2,ID GRADE=CX 		8-97176-702-0 04 1 0009- ●
4 LINER; C/BL
OD GRADE=3,ID GRADE=AX 		8-97176-703-0 04 1 0009- ●
4 LINER; C/BL
OD GRADE=3,ID GRADE=CX 		8-97176-704-0 04 1 0009- ●
4 LINER; C/BL
OD GRADE=4,ID GRADE=AX 		8-97176-705-0 04 1 0009- ●
4 LINER; C/BL
OD GRADE=4,ID GRADE=CX 		8-97176-706-0 04 1 0009- ●
7 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 02 1 0103-0106 ●
7 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0009-0106 ●
7 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0107- ● ●
8 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 0103-0106 ●
8 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 0009-0106 ●
8 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 0107-0111 ● ●
8 BOLT; BRG CAP
M14X89 FLANGE THA 		8-97941-068-0 10 1 0112- ● ●
13 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0009- ● ●
15 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 03 1 0009- ● ●
17 SWITCH; OIL PRESSURE
SINGLE CAB<TF**S*> 		9-82720-209-2 01 1 0009- ●
21 CUP; SEALING,RR
OD=38 		5-11219-017-0 02 1 0103-0106 ●
21 CUP; SEALING,RR
OD=36 		5-11219-018-0 02 1 0103-0106 ●
21 CUP; SEALING,RR
OD=38 		5-11219-017-0 01 1 0009-0106 ●
21 CUP; SEALING,RR
OD=38 		5-11219-017-0 01 1 0107- ● ●
21 CUP; SEALING,RR
OD=36 		5-11219-018-0 01 1 0009-0106 ●
21 CUP; SEALING,RR
OD=36 		5-11219-018-0 01 1 0107- ● ●
22 CUP; SEALING,DUCT HOLE
OD=12.3 		5-09600-013-0 02 1 0103-0106 ●
22 CUP; SEALING,DUCT HOLE
OD=12.3 		5-09600-013-0 01 1 0009-0106 ●
22 CUP; SEALING,DUCT HOLE
OD=12.3 		5-09600-013-0 01 1 0107- ● ●
23 CUP; SEALING,C/BL FRT & RR
OD=45 		1-09600-005-1 06 1 0103-0106 ●
23 CUP; SEALING,C/BL FRT & RR
OD=18 		5-11219-008-0 06 1 0103-0106 ●
23 CUP; SEALING,C/BL FRT & RR
OD=45 		1-09600-005-1 03 1 0009-0102 ● ●
23 CUP; SEALING,C/BL FRT & RR
OD=45 		1-09600-005-1 03 1 0103-0106 ●
23 CUP; SEALING,C/BL FRT & RR
OD=45 		1-09600-005-1 03 1 0107- ● ●
23 CUP; SEALING,C/BL FRT & RR
OD=18 		5-11219-008-0 03 1 0009-0102 ● ●
23 CUP; SEALING,C/BL FRT & RR
OD=18 		5-11219-008-0 03 1 0103-0106 ●
23 CUP; SEALING,C/BL FRT & RR
OD=18 		5-11219-008-0 03 1 0107- ● ●
23 CUP; SEALING,C/BL FRT & RR
OD=32 		5-11219-015-0 02 1 0009- ●
23 CUP; SEALING,C/BL FRT & RR
(A) OD=36 		5-11219-018-0 03 1 0009- ● ●
25 METAL; CM/SHF
(A) THA 		8-97942-173-0 01 1 0009- ● ●
25 METAL; CM/SHF
(B) THA 		8-97942-174-0 02 1 0009- ● ●
27 NIPPLE; OIL GALLERY
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> 		8-97231-967-2 01 1 0009- ● ●
40 CUP; SEALING,C/BL RR
OD=56 		8-94250-514-0 01 1 0009- ● ●
50 PIN; STRAIGHT,RR PLATE
OD=10 L=32 THA 		9-08161-032-0 01 1 0009- ● ●
51 GASKET; OIL PRESS WARNING SW,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97912-498-0 01 1 0009- ● ●
52 NIPPLE; OIL PRESS WARNING SW,C/BL 8-94167-750-2 01 1 0009- ● ●
53 BOLT; REAMER
M10X52 THA 		8-97916-382-0 01 1 0009- ● ●
61 PIN; STRAIGHT
OD=10 L=20 THA 		9-08151-020-0 01 1 0009- ● ●
63 DUCT; WATER,C/BL
THA 		8-97912-496-0 01 1 0009- ●
63 DUCT; WATER,C/BL
THA 		8-97920-058-0 01 1 0009- ●
70 CUP; SEALING,FRT & RR
OD=16 		5-11129-006-0 02 1 0009- ● ●
95 PRESSURE UNIT; OIL
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> THA 		8-97163-851-0 01 1 0009- ● ●
113 CUP; SEALING
OD=15.6 		5-11129-003-0 01 1 0009- ● ●
150 BOLT; CLIP
M8X10 FLANGE 		0-28080-810-0 01 1 0009- ● ●
261 PLUG; OIL PRESS UNIT
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> PT1/8 		1-09605-050-0 01 1 0009- ● ●
