◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#4875) — 96 parça

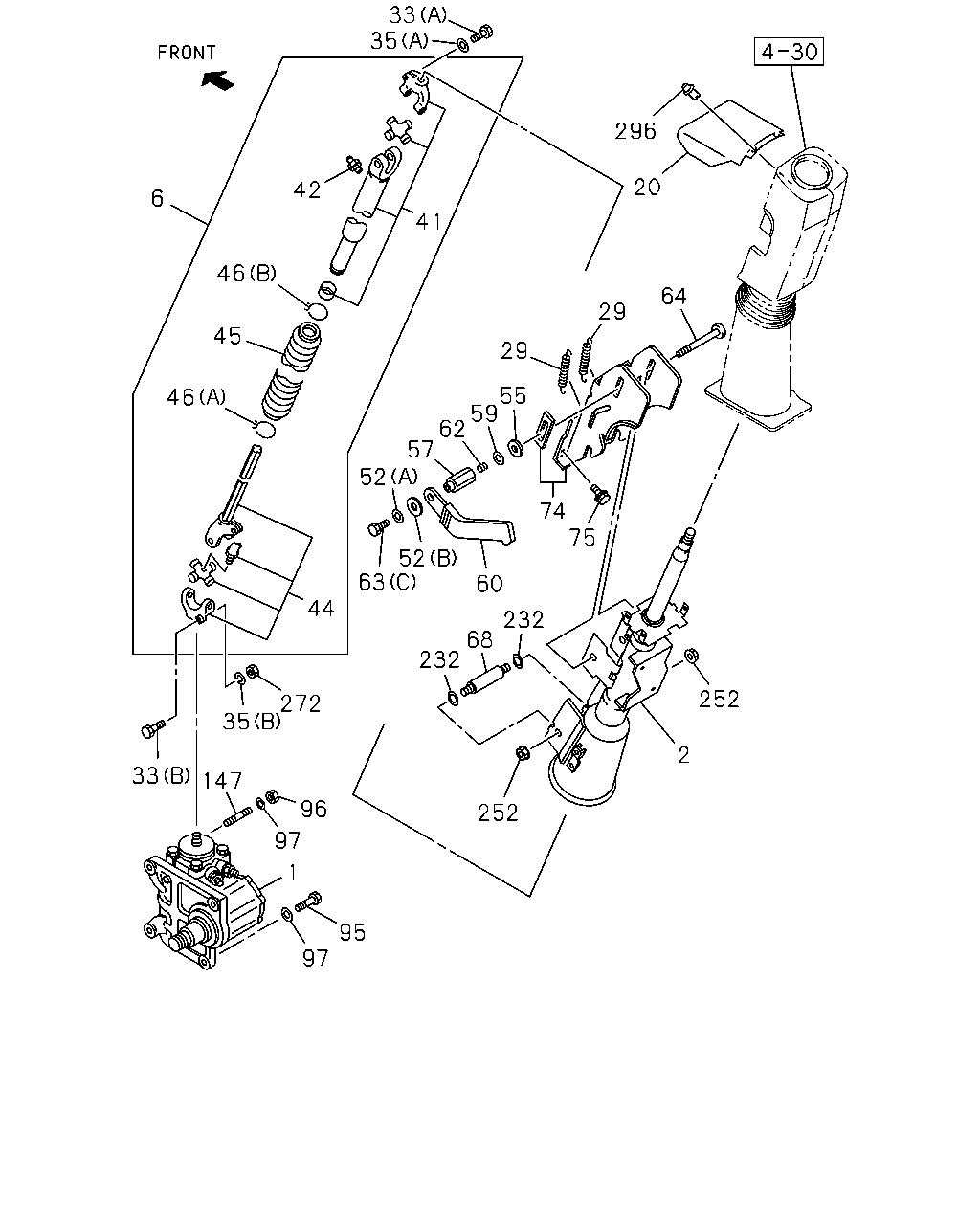

çizim 7797
6 42 41 46 45 46 44 272 35 147 33 97 96 95 1 97 252 2 232 68 232 252 60 52 63 52 57 62 59 55 29 29 64 20 296 74 75 33 35
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-819-2 01 1 9601-9904
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY> 		1-44000-858-1 01 1 9905-
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> 		1-44000-863-1 01 1 9905-
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-586-0 01 1 9601-9804
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-694-0 01 1 9805-
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-556-1 01 1 9601-9804
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-689-0 01 1 9805-
6 SHAFT; STRG LWR 1-44135-301-0 01 1 9601-9804
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9601-
29 SPRING; COLUMN 1-44227-136-0 02 1 9601-9804
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 9601-
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 9601-9804
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 9807-
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-142-0 01 1 9601-9804
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-154-0 01 1 9805-
35 WASHER; LK,STRG SHAFT
(B) ID=10.2 		9-09150-810-0 01 1 9601-
41 YOKE; SLEEVE,STRG 1-44135-303-0 01 1 9601-9804
42 NIPPLE; GREASE,SLEEVE YOKE
M6 STRAIGHT 		9-09031-006-0 01 1 9601-9804
44 SHAFT; SPLINE,STRG 1-44135-305-0 01 1 9601-9804
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9601-9804
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9805-
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9601-9804
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9805-
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9601-9804
52 WASHER; PL,ADJ LEVER
(A) 		1-44227-127-0 01 1 9601-9804
52 WASHER; PL,ADJ LEVER
(B) 		1-44227-137-0 01 1 9601-9804
55 PLATE; GUIDE 1-44227-132-0 01 1 9601-9804
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9601-9804
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9805-
59 COLLAR; DIST,ADJ BOLT 1-44227-131-0 01 1 9601-9804
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9601-9804
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9805-
62 SPRING; LK,LEVER 1-44227-130-0 01 1 9601-9804
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9805-
63 BOLT; ADJ LEVER,TILT STRG
(C) 		1-44227-126-0 01 1 9601-9804
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 9805-
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9805-
64 BOLT; ADJ,PROTECTOR 1-44227-128-0 01 1 9601-9804
68 PIN; TILT CENTER 1-44227-133-1 01 1 9601-9804
74 BRACKET; SUPPORT,STRG 1-44221-075-1 01 1 9601-9804
75 BOLT; STRG COLUMN
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9601-9606
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9607-
95 BOLT; STRG UNIT
M18X65 		1-09000-583-0 03 1 9601-
96 NUT; STRG UNIT
M18 		9-99110-518-0 01 1 9601-
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 9601-
147 STUD; STRG UNIT
M18X49 L=76 		1-09300-107-0 01 1 9601-
232 SPACER; STRG SHAFT 1-44227-134-0 02 1 9601-9804
252 NUT; TILT CENTER BOLT 1-44227-135-0 02 1 9601-9804
272 NUT; SHAFT TO YOKE
M10 		9-09110-510-0 01 1 9601-
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9601-

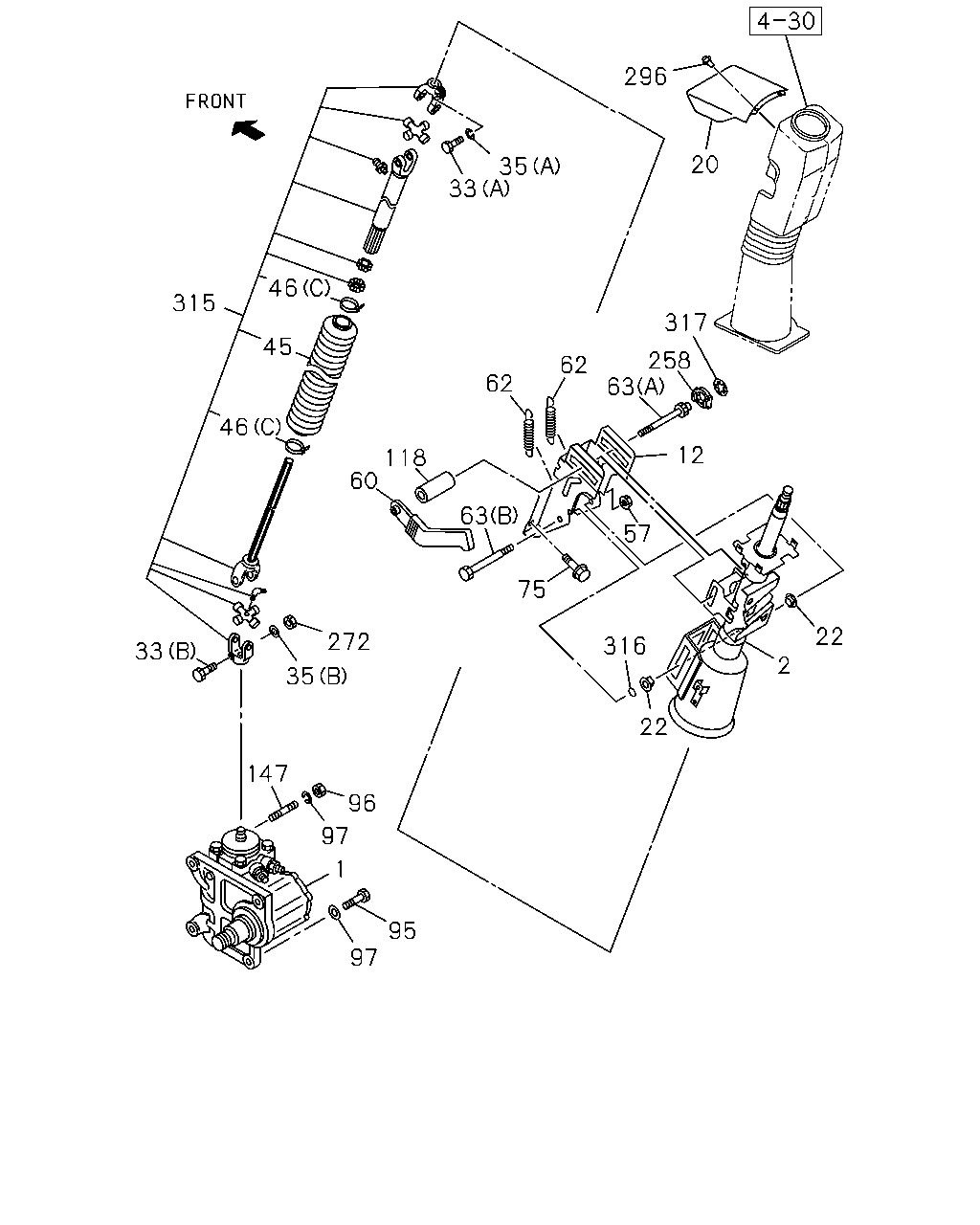

çizim 42359
296 20 35 33 46 315 317 45 258 63 62 6 46 12 118 60 63 57 75 22 272 316 33 2 35 22 147 96 97 1 95 97
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-819-2 01 1 9601-9904
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY> 		1-44000-858-1 01 1 9905-
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> 		1-44000-863-1 01 1 9905-
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-586-0 01 1 9601-9804
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-694-0 01 1 9805-
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-556-1 01 1 9601-9804
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-689-0 01 1 9805-
6 SHAFT; STRG LWR 1-44135-301-0 01 1 9601-9804
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 9805-
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9601-
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 9805-
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 9601-
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 9601-9804
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 9807-
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-142-0 01 1 9601-9804
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-154-0 01 1 9805-
35 WASHER; LK,STRG SHAFT
(B) ID=10.2 		9-09150-810-0 01 1 9601-
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9601-9804
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9805-
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9601-9804
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9805-
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9601-9804
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9601-9804
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9805-
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9601-9804
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9805-
62 SPRING; LK,LEVER 1-44227-130-0 01 1 9601-9804
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9805-
63 BOLT; ADJ LEVER,TILT STRG
(C) 		1-44227-126-0 01 1 9601-9804
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 9805-
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9805-
75 BOLT; STRG COLUMN
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9601-9606
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9607-
95 BOLT; STRG UNIT
M18X65 		1-09000-583-0 03 1 9601-
96 NUT; STRG UNIT
M18 		9-99110-518-0 01 1 9601-
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 9601-
118 NUT; LEVER,TILT BOLT 1-44227-146-0 01 1 9805-
147 STUD; STRG UNIT
M18X49 L=76 		1-09300-107-0 01 1 9601-
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 9805-
272 NUT; SHAFT TO YOKE
M10 		9-09110-510-0 01 1 9601-
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9601-
315 JOINT; SPLINE 1-44135-338-0 01 1 9805-9806
315 JOINT; SPLINE 1-44135-343-0 01 1 9807-
316 RING 1-44139-152-0 01 1 9805-9806
316 RING 1-44227-152-0 01 1 9805-
317 NUT; PUSH 1-44227-148-0 01 1 9805-
