8-28 — CHASSIS ELECTRICAL (#48744) — 34 parça
çizim 46881
361 72 72 45 46 44
BalonParca AdiParca NoAdetTipApplied Date A B C
44 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> THA 		8-97910-356-0 01 1 0009- ● ● ●
45 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> THA 		8-97910-357-0 01 1 0009- ● ● ●
46 BOLT; HORN TO BODY
DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0009- ● ● ●
46 BOLT; HORN TO BODY
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0009- ● ● ●
72 PROTECTOR; RELAY
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE<V66> (B) L=65 		8-94235-856-0 01 1 0009- ●
72 PROTECTOR; RELAY
PTO TRANSMISSION SIDE<V66> (B) L=65 		8-94235-856-0 01 1 0009- ● ●
72 PROTECTOR; RELAY
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=200 		8-97096-423-0 01 1 0009- ●
72 PROTECTOR; RELAY
PTO TRANSMISSION SIDE<V66> (A) L=200 		8-97096-423-0 01 1 0009- ●
361 BOLT; CONNECTOR
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 03 1 0009- ● ● ●

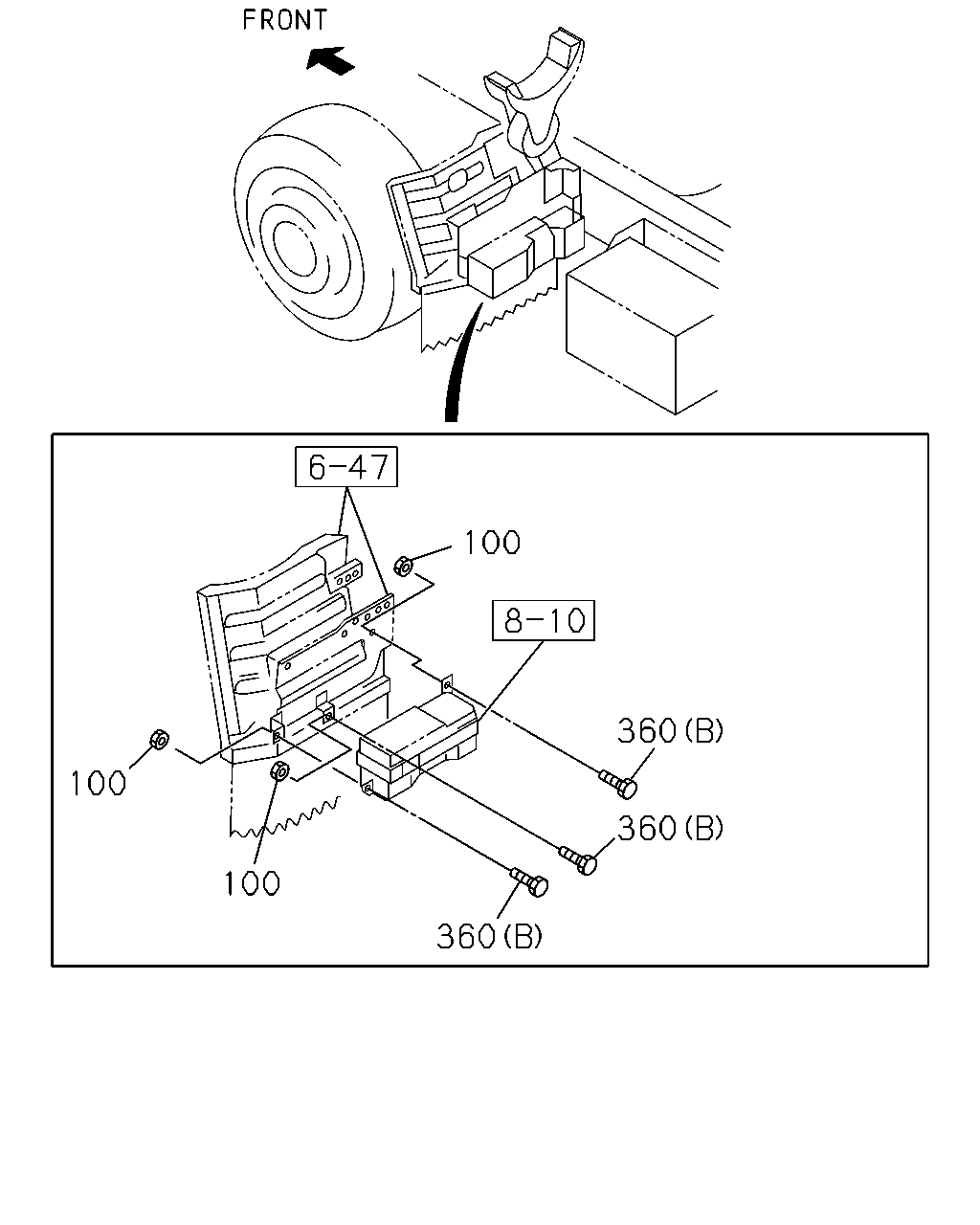

çizim 49669
100 360 100 360 100 360
BalonParca AdiParca NoAdetTipApplied Date A B C
100 NUT; RELAY BOX COVER
EXC. TIRE SIZE 8.25-16<7QP> M8 FLANGE 		0-91150-108-0 02 1 0009- ● ●
100 NUT; RELAY BOX COVER
M8 FLANGE 		0-91150-108-0 02 1 0009- ●
360 BOLT; RELAY BOX
TIRE SIZE 8.25-16<7QP> (B) M8X20 FLANGE 		0-28080-820-0 03 1 0009- ● ●
360 BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER THA 		8-94139-963-0 02 1 0009- ● ● ●
360 BOLT; RELAY BOX
EXC. TIRE SIZE 8.25-16<7QP> (B) M8X16 FLANGE 		0-28080-816-0 01 1 0009- ● ●
360 BOLT; RELAY BOX
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0009- ●

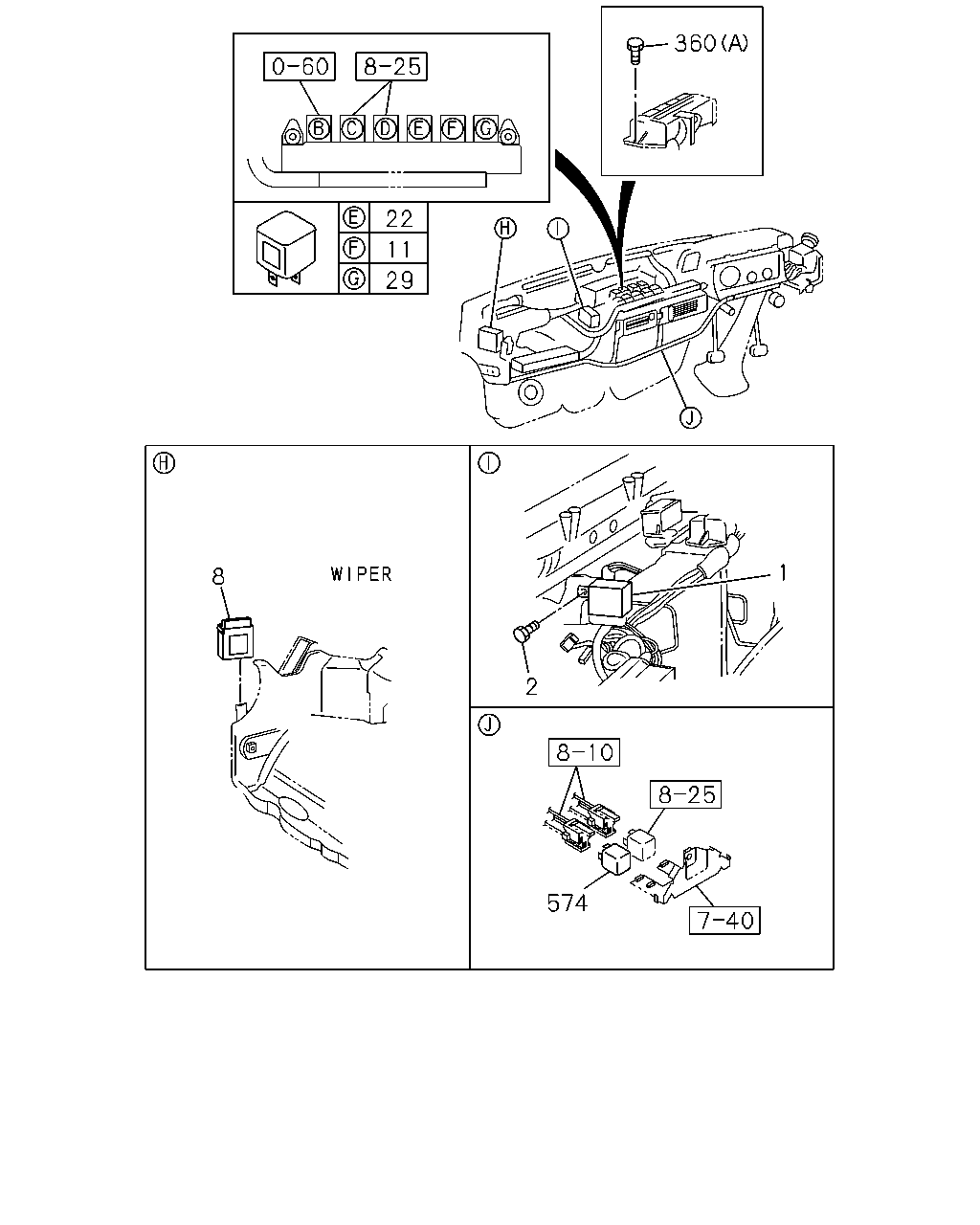

çizim 51206
360 22 11 29 1 8 2 574
BalonParca AdiParca NoAdetTipApplied Date A B C
1 UNIT; FLASHER 8-97086-508-1 01 1 0009-0212 ● ● ●
1 UNIT; FLASHER 8-97360-084-0 01 1 0301- ● ● ●
2 BOLT; FLASHER UNIT
M6X16 W/LK&PL WASHER THA 		8-94139-963-0 01 1 0009- ● ● ●
8 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97184-233-0 01 1 0009-0301 ● ● ●
8 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-983-0 01 1 0302- ● ● ●
11 RELAY; DIMMER
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0009-0104 ● ● ●
11 RELAY; DIMMER
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0105- ● ● ●
22 RELAY; STOP LAMP
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0009-0104 ● ● ●
22 RELAY; STOP LAMP
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0105- ● ● ●
29 RELAY; HORN
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0009-0104 ● ● ●
29 RELAY; HORN
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0105- ● ● ●
360 BOLT; RELAY BOX
TIRE SIZE 8.25-16<7QP> (B) M8X20 FLANGE 		0-28080-820-0 03 1 0009- ● ●
360 BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER THA 		8-94139-963-0 02 1 0009- ● ● ●
360 BOLT; RELAY BOX
EXC. TIRE SIZE 8.25-16<7QP> (B) M8X16 FLANGE 		0-28080-816-0 01 1 0009- ● ●
360 BOLT; RELAY BOX
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0009- ●
574 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0009-0104 ●
574 RELAY; CANCEL,BUZZER
24V 12.5A JIDECO THA 		8-97062-815-1 01 1 0009-0104 ●
574 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0105- ●
574 RELAY; CANCEL,BUZZER
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0105- ●
