◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#48743) — 18 parça

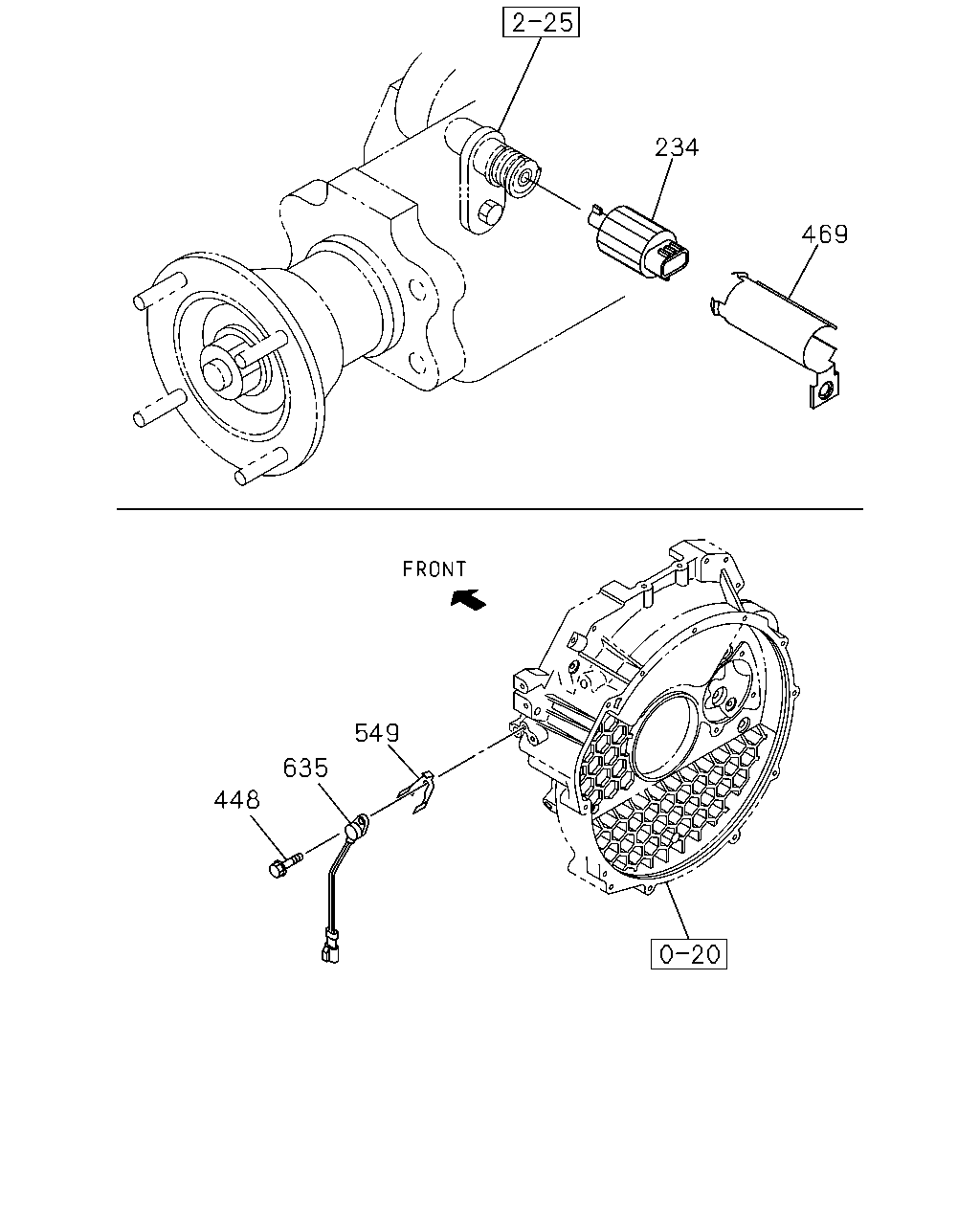

çizim 48705
234 469 549 635 448
BalonParca AdiParca NoAdetTipApplied Date A B C
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 0009- ● ● ●
448 BOLT; SENSOR
4HG1 ENG<RJH> M6X16 FLANGE 		0-28080-616-0 01 1 0009- ● ●
448 BOLT; SENSOR
4HE1 ENG<RLY> EURO2 SPECIFICATION<7AF> M6X16 FLANGE 		0-28080-616-0 01 1 0009- ● ●
469 PROTECTOR; SPEED SENSOR
FLOOR REMOTE SHIFT<M11> 		8-97168-308-0 01 1 0009- ●
469 PROTECTOR; SPEED SENSOR 8-97168-308-0 01 1 0009- ● ●
549 SHEET
4HG1 ENG<RJH> 		8-97161-633-2 01 1 0009- ● ●
549 SHEET
4HE1 ENG<RLY> EURO2 SPECIFICATION<7AF> 		8-97161-633-2 01 1 0009- ● ●
635 SENSOR; TACHOMETER
4HG1 ENG<RJH> YAZAKI 		8-97214-325-0 01 1 0009- ● ●
635 SENSOR; TACHOMETER
4HE1 ENG<RLY> EURO2 SPECIFICATION<7AF> YAZAKI 		8-97214-325-0 01 1 0009- ● ●

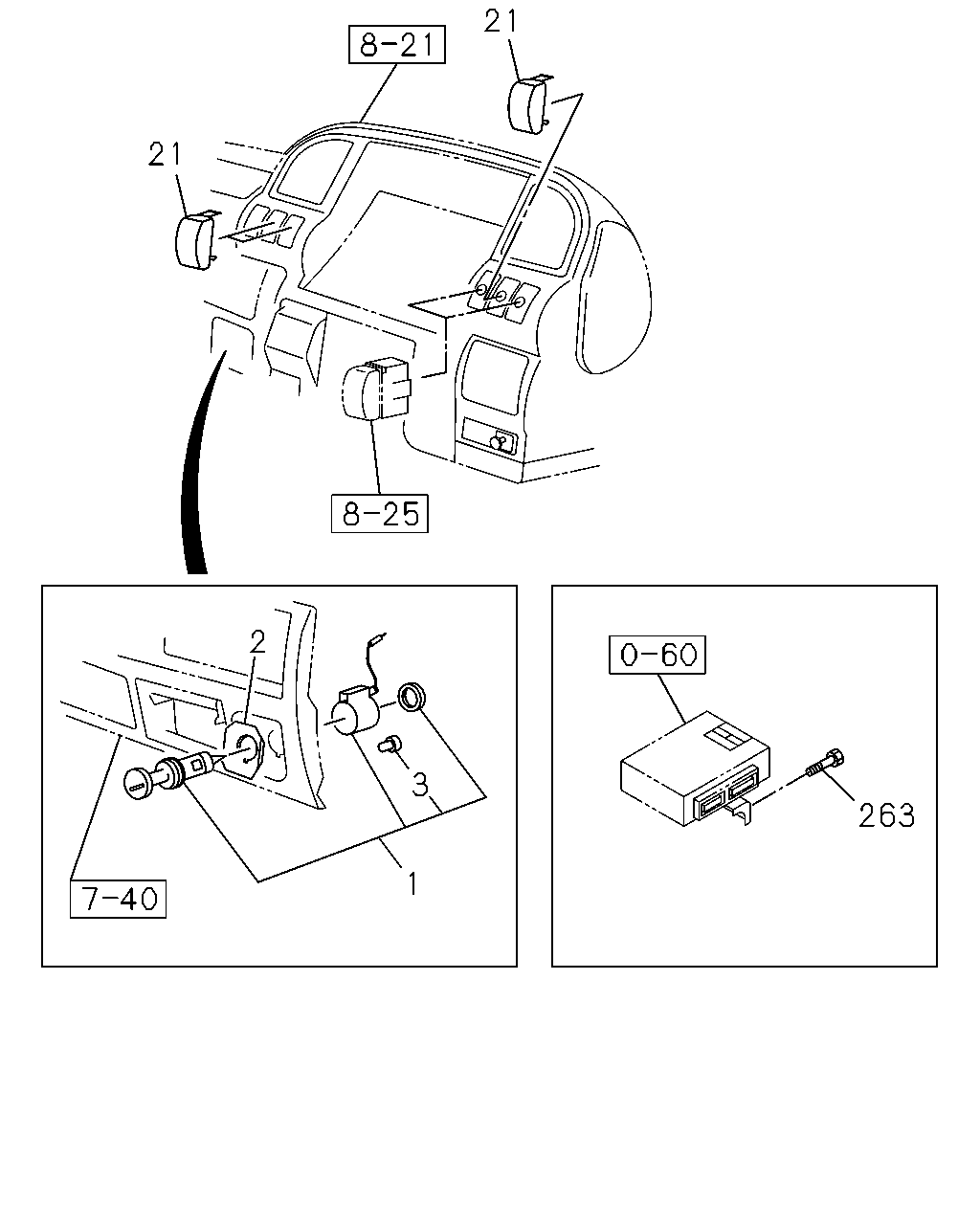

çizim 51209
21 21 2 3 263 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LIGHTER; CIGAR 8-97064-970-1 01 1 0009-0108 ● ● ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109- ● ● ●
2 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0009- ● ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0009- ● ● ●
21 COVER; HOLE
FLOOR REMOTE SHIFT<M11> 		8-97136-694-0 01 1 0009- ●
21 COVER; HOLE 8-97136-694-0 01 1 0009- ● ●
21 COVER; HOLE 8-97136-694-0 02 1 0009- ● ● ●
263 BOLT; CONT UNIT
TURBOCHARGER<K51> M6X20 		0-28280-620-0 02 1 0009- ●
263 BOLT; CONT UNIT
M6X20 		0-28280-620-0 02 1 0009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
