8-21 — METER ASM (#48741) — 78 parça

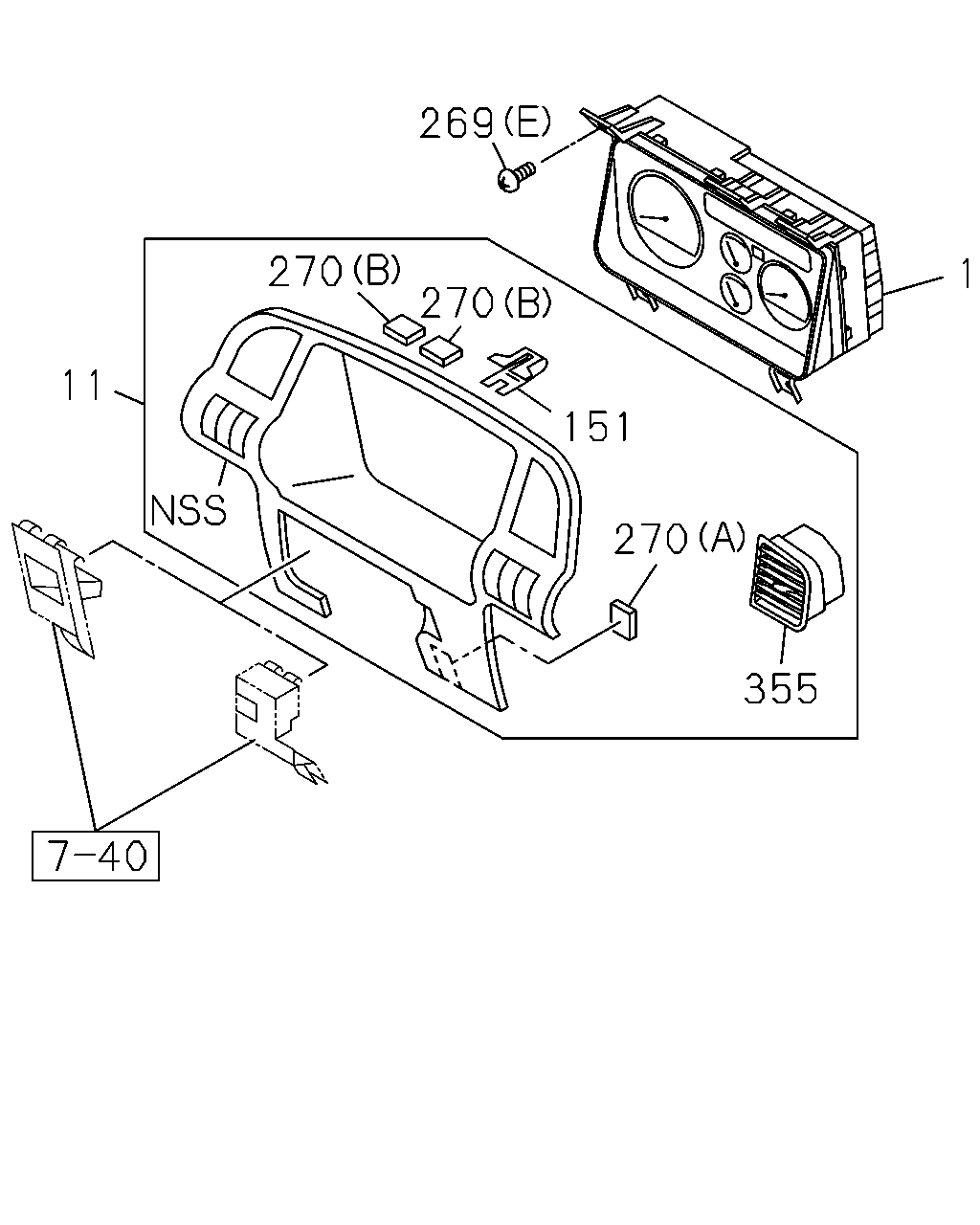

çizim 9411
270 1 11 151 355 270 269 270
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER
4HG1 ENG<RJH> TACHOMETER<U16> 		8-97170-600-2 01 1 0009- ● ●
1 METER COMPL; CLUSTER
4HG1 ENG<RJH> EXC. TACHOMETER<U16> 		8-97170-596-2 01 1 0009- ● ●
1 METER COMPL; CLUSTER
4HE1 ENG<RLY> TACHOMETER<U16> 		8-97217-064-0 01 1 0009- ● ●
1 METER COMPL; CLUSTER
4HE1 ENG<RLY> EXC. TACHOMETER<U16> 		8-97181-027-2 01 1 0009- ● ●
11 CLUSTER ASM; METER
BLACK 		8-97195-965-2 01 1 0009- ● ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 07 1 0009-0208 ● ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 14 1 0209-0210 ● ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 07 1 0211- ● ● ●
269 SCREW; METER CLUSTER
(D) 		8-97185-523-0 01 1 0009- ● ● ●
269 SCREW; METER CLUSTER
(A) 		8-97185-525-0 06 1 0009- ● ● ●
269 SCREW; METER CLUSTER
(C) 		8-97185-528-0 05 1 0009- ● ● ●
269 SCREW; METER CLUSTER
TACHOMETER<U16> (B) 		8-97185-524-0 08 1 0009- ● ● ●
269 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (B) 		8-97185-524-0 07 1 0009- ● ● ●
269 SCREW; METER CLUSTER
(E) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 05 1 0009- ● ● ●
270 CUSHION; METER CLUSTER
(A) 15X30 T=5 		8-94270-366-2 01 1 0009-0208 ● ● ●
270 CUSHION; METER CLUSTER
15X30 T=5 		8-94270-366-2 02 1 0209-0210 ● ● ●
270 CUSHION; METER CLUSTER
15X30 T=5 		8-94270-366-2 01 1 0211- ● ● ●
270 CUSHION; METER CLUSTER
(B) 6X30 T=2 		8-94270-378-1 02 1 0009-0208 ● ● ●
270 CUSHION; METER CLUSTER
6X30 T=2 		8-94270-378-1 04 1 0209-0210 ● ● ●
270 CUSHION; METER CLUSTER
6X30 T=2 		8-94270-378-1 02 1 0211- ● ● ●
355 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 0009-0208 ● ● ●
355 GRILLE; VENT
BLACK 		8-97195-966-1 02 1 0209-0210 ● ● ●
355 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 0211- ● ● ●
355 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 0009-0208 ● ● ●
355 GRILLE; VENT
BLACK 		8-97195-967-1 02 1 0209-0210 ● ● ●
355 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 0211- ● ● ●

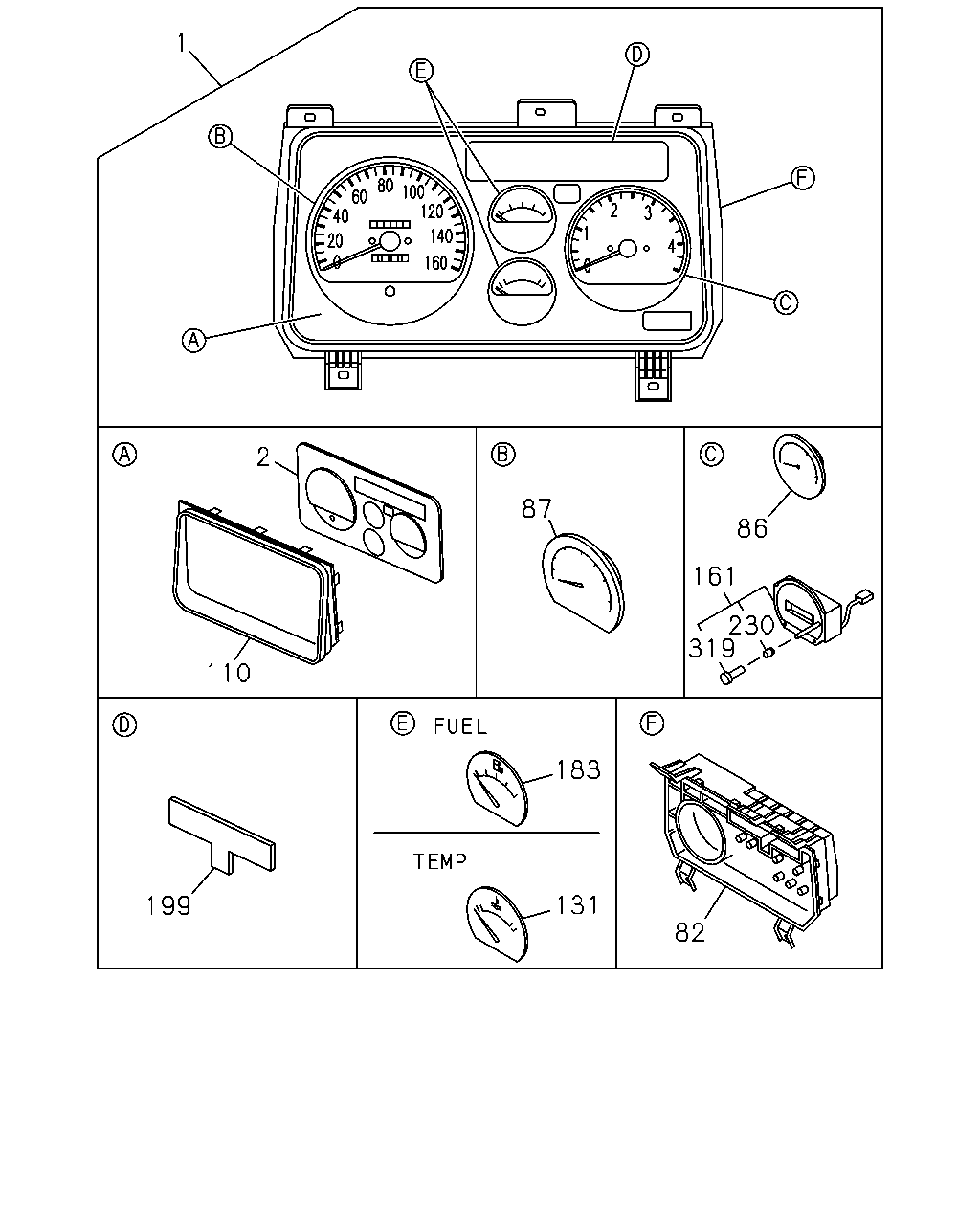

çizim 48662
1 2 87 86 161 230 319 110 183 131 199 82
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER
4HG1 ENG<RJH> TACHOMETER<U16> 		8-97170-600-2 01 1 0009- ● ●
1 METER COMPL; CLUSTER
4HG1 ENG<RJH> EXC. TACHOMETER<U16> 		8-97170-596-2 01 1 0009- ● ●
1 METER COMPL; CLUSTER
4HE1 ENG<RLY> TACHOMETER<U16> 		8-97217-064-0 01 1 0009- ● ●
1 METER COMPL; CLUSTER
4HE1 ENG<RLY> EXC. TACHOMETER<U16> 		8-97181-027-2 01 1 0009- ● ●
2 PANEL; CLUSTER 8-97185-443-0 01 1 0009- ● ● ●
82 CASE ASM; CLUSTER METER 8-97185-448-0 01 1 0009- ● ● ●
86 TACHOMETER; CLUSTER METER
4HG1 ENG<RJH> TACHOMETER<U16> 		8-97185-470-0 01 1 0009- ● ●
86 TACHOMETER; CLUSTER METER
4HE1 ENG<RLY> TACHOMETER<U16> 		8-97218-460-0 01 1 0009- ● ●
87 SPEEDOMETER 8-97185-457-0 01 1 0009- ● ● ●
110 GLASS; CLUSTER METER
TACHOMETER<U16> 		8-97185-452-0 01 1 0009- ● ● ●
110 GLASS; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97185-451-0 01 1 0009- ● ● ●
131 GAUGE; TEMP,CLUSTER METER 8-97185-475-0 01 1 0009- ● ● ●
161 CLOCK; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97185-462-0 01 1 0009- ● ● ●
183 GAUGE; FUEL 8-97185-473-0 01 1 0009- ● ● ●
199 LENS; WARNING LAMP 8-97185-481-0 01 1 0009- ● ● ●
230 KNOB; DIGITAL CLOCK,SUB METER
EXC. TACHOMETER<U16> 		8-97185-644-0 01 1 0009- ● ● ●
319 SCREW; KNOB,CLUSTER METER
EXC. TACHOMETER<U16> 		8-97185-522-0 01 1 0009- ● ● ●

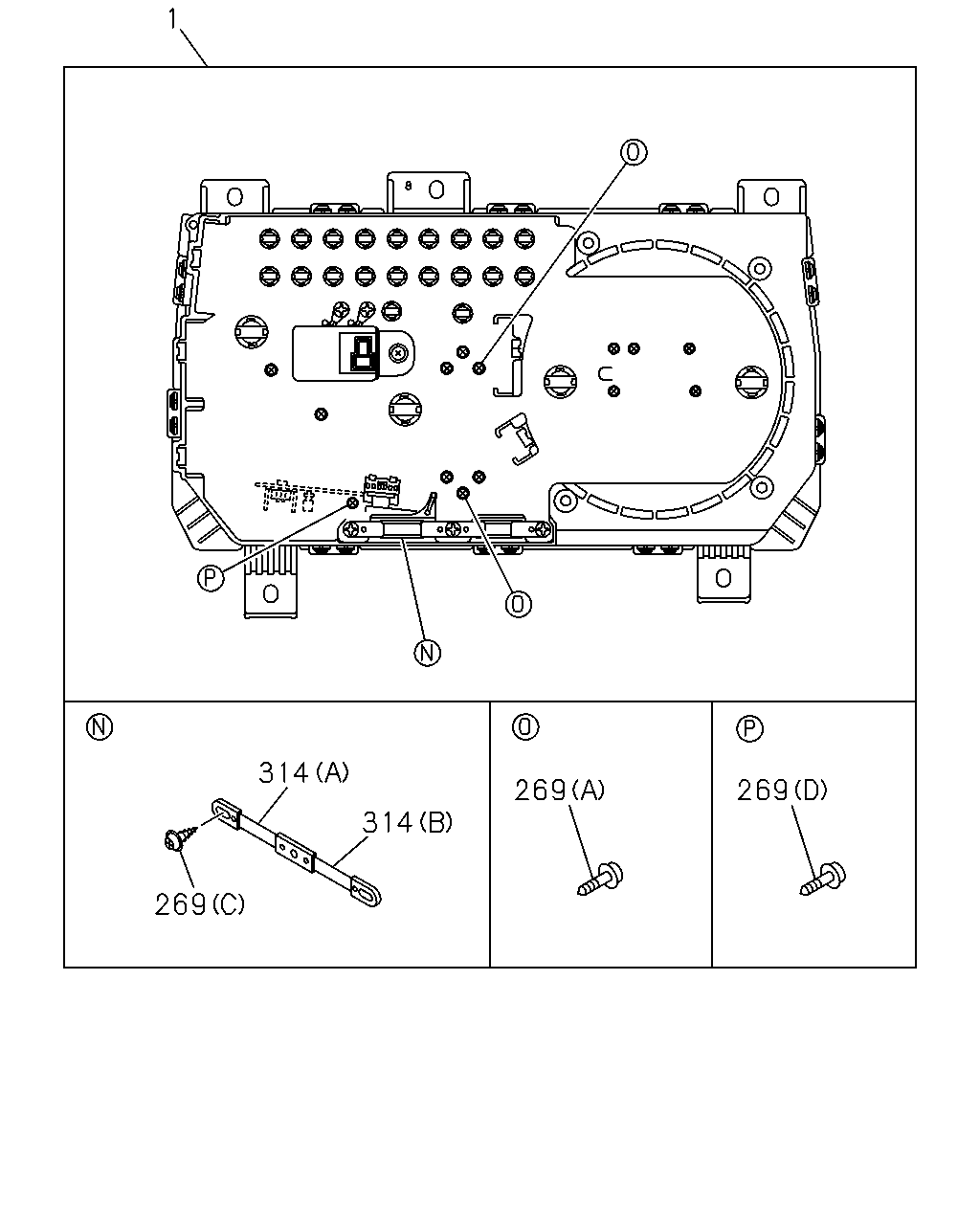

çizim 51210
1 314 269 269 314 269
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER
4HG1 ENG<RJH> TACHOMETER<U16> 		8-97170-600-2 01 1 0009- ● ●
1 METER COMPL; CLUSTER
4HG1 ENG<RJH> EXC. TACHOMETER<U16> 		8-97170-596-2 01 1 0009- ● ●
1 METER COMPL; CLUSTER
4HE1 ENG<RLY> TACHOMETER<U16> 		8-97217-064-0 01 1 0009- ● ●
1 METER COMPL; CLUSTER
4HE1 ENG<RLY> EXC. TACHOMETER<U16> 		8-97181-027-2 01 1 0009- ● ●
269 SCREW; METER CLUSTER
(D) 		8-97185-523-0 01 1 0009- ● ● ●
269 SCREW; METER CLUSTER
(A) 		8-97185-525-0 06 1 0009- ● ● ●
269 SCREW; METER CLUSTER
(C) 		8-97185-528-0 05 1 0009- ● ● ●
269 SCREW; METER CLUSTER
TACHOMETER<U16> (B) 		8-97185-524-0 08 1 0009- ● ● ●
269 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (B) 		8-97185-524-0 07 1 0009- ● ● ●
269 SCREW; METER CLUSTER
(E) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 05 1 0009- ● ● ●
314 RESISTOR; COMB METER,CLUSTER METER
(A) 		8-97185-515-0 01 1 0009- ● ● ●
314 RESISTOR; COMB METER,CLUSTER METER
(B) 		8-97185-516-0 01 1 0009- ● ● ●

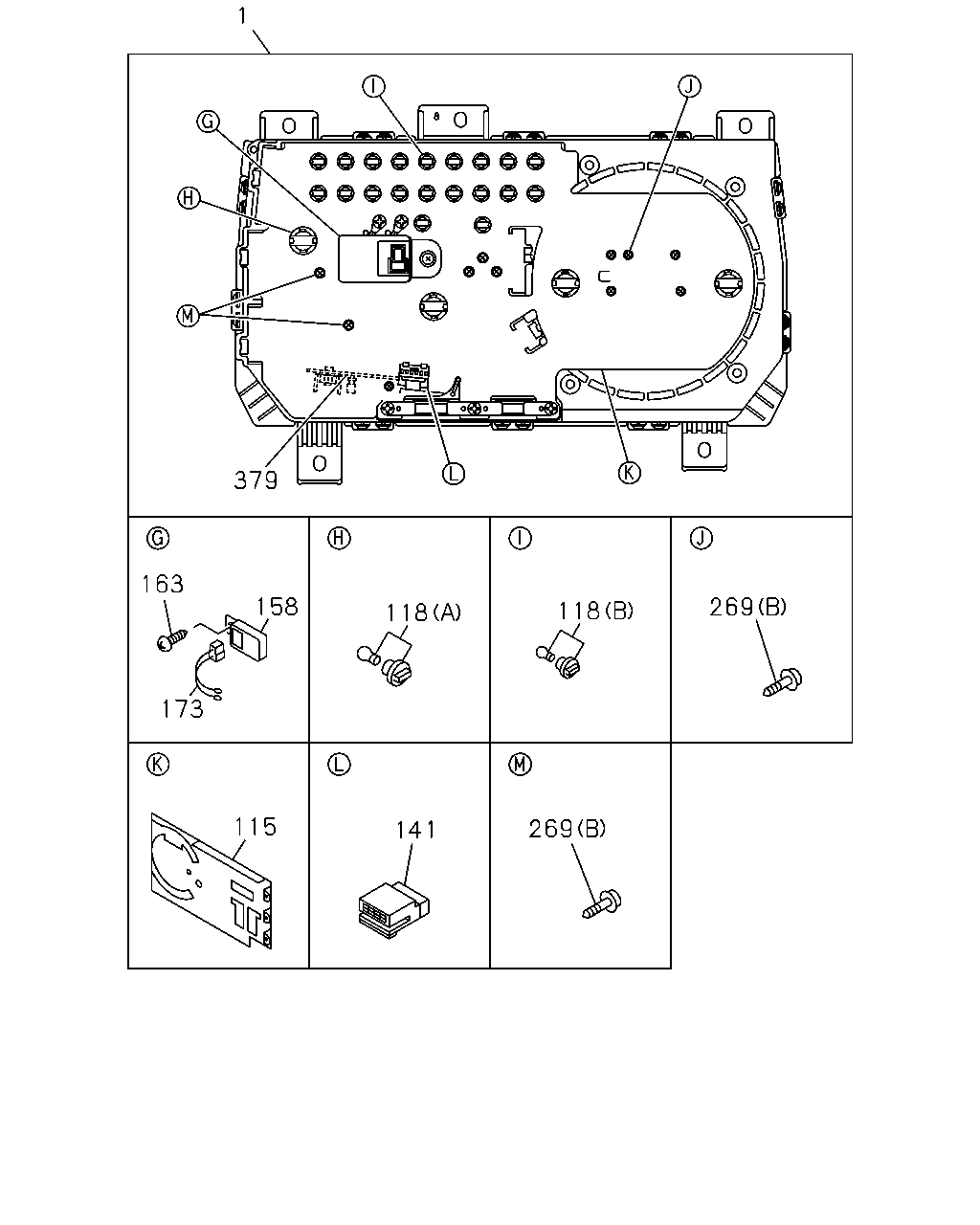

çizim 51211
1 379 163 158 269 118 118 173 115 269 141
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER
4HG1 ENG<RJH> TACHOMETER<U16> 		8-97170-600-2 01 1 0009- ● ●
1 METER COMPL; CLUSTER
4HG1 ENG<RJH> EXC. TACHOMETER<U16> 		8-97170-596-2 01 1 0009- ● ●
1 METER COMPL; CLUSTER
4HE1 ENG<RLY> TACHOMETER<U16> 		8-97217-064-0 01 1 0009- ● ●
1 METER COMPL; CLUSTER
4HE1 ENG<RLY> EXC. TACHOMETER<U16> 		8-97181-027-2 01 1 0009- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
4HG1 ENG<RJH> TACHOMETER<U16> 		8-97185-507-0 01 1 0009- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
4HG1 ENG<RJH> EXC. TACHOMETER<U16> 		8-97185-489-0 01 1 0009- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG<RLY> TACHOMETER<U16> 		8-97185-493-0 01 1 0009- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG<RLY> EXC. TACHOMETER<U16> 		8-97185-510-0 01 1 0009- ● ●
118 BULB; CLUSTER METER
(A) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 04 1 0009- ● ● ●
118 BULB; CLUSTER METER
(B) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 02 1 0009- ● ● ●
118 BULB; CLUSTER METER
4HG1 ENG<RJH> (B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 09 1 0009- ● ●
118 BULB; CLUSTER METER
4HE1 ENG<RLY> (B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 10 1 0009- ● ●
141 CONNECTOR; CLUSTER METER 8-97185-513-0 01 1 0009- ● ● ●
158 BUZZER; VAC WARNING
24V 		8-97185-519-0 01 1 0009- ● ● ●
163 SCREW; BUZZER 8-97185-527-0 01 1 0009- ● ● ●
173 WIRE; LEAD 8-97185-643-0 01 1 0009- ● ● ●
269 SCREW; METER CLUSTER
(D) 		8-97185-523-0 01 1 0009- ● ● ●
269 SCREW; METER CLUSTER
(A) 		8-97185-525-0 06 1 0009- ● ● ●
269 SCREW; METER CLUSTER
(C) 		8-97185-528-0 05 1 0009- ● ● ●
269 SCREW; METER CLUSTER
TACHOMETER<U16> (B) 		8-97185-524-0 08 1 0009- ● ● ●
269 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (B) 		8-97185-524-0 07 1 0009- ● ● ●
269 SCREW; METER CLUSTER
(E) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 05 1 0009- ● ● ●
379 CIRCUIT; DROP 8-97185-512-0 01 1 0009- ● ● ●
