Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#48740) — 328 parça

48 48 48 48 53 504 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
48	CLIP; FRAME HARNESS 4HE1 ENG<RLY> T=4.5 & 9	5-09709-023-0	01	1	0009-	●
48	CLIP; FRAME HARNESS T=4.5 & 9	5-09709-023-0	01	1	0009-		●
48	CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT<C60> (K) L=140	5-09707-031-1	02	1	0009-	●	●	●
48	CLIP; FRAME HARNESS FLOOR REMOTE SHIFT<M11> (D) ID=9.6	8-94147-870-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (D) ID=9.6	8-94147-870-0	01	1	0009-		●	●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (H) ID=32 L=75	1-09700-702-0	01	1	0009-	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=32 L=75	1-09700-702-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (H) ID=32 L=75	1-09700-702-0	01	1	0009-		●	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (M) ID=20	5-09700-321-0	02	1	0009-	●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (M) ID=20	5-09700-321-0	02	1	0009-	●
48	CLIP; FRAME HARNESS (M) ID=20	5-09700-321-0	02	1	0009-		●	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=33 L=63	1-09700-807-0	07	1	0009-	●
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	07	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (J) L=110	8-94149-419-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (J) L=110	8-94149-419-0	01	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=30 W/STUD	8-97078-642-2	01	1	0009-	●
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	01	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (N) T=4.5 & 9	5-09709-023-0	02	1	0009-	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (I) ID=9	8-97063-874-0	02	1	0009-	●
48	CLIP; FRAME HARNESS (F) L=170.3 THA	1-09987-182-0	01	1	0009-	●	●	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (F) L=170.3 THA	1-09987-182-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (F) L=170.3 THA	1-09987-182-0	01	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=26 L=26	1-09701-236-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (E) ID=26 L=26	1-09701-236-0	01	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=14 L=47	5-09700-319-0	05	1	0009-	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	05	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (L) ID=12 B=14 ID=8.5 THA	5-09700-350-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (L) ID=12 B=14 ID=8.5 THA	5-09700-350-0	01	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (O) T=9 & 10.5	8-97041-091-0	02	1	0009-	●
48	CLIP; FRAME HARNESS (O) T=9 & 10.5	8-97041-091-0	02	1	0009-			●
48	CLIP; FRAME HARNESS 4HE1 ENG<RLY> (B) ID=14 L=47	5-09700-319-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	01	1	0009-		●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	03	1	0009-	●	●	●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (B) ID=14 L=47	5-09700-319-0	03	1	0009-	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	03	1	0009-		●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (A) ID=33 L=63	1-09700-807-0	04	1	0009-	●
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	04	1	0009-		●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (C) ID=30 W/STUD	8-97078-642-2	02	1	0009-	●
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	02	1	0009-		●
48	CLIP; FRAME HARNESS (G) ID=31 L=30	1-09700-969-0	01	1	0009-	●	●	●
48	CLIP; FRAME HARNESS (I) ID=9	8-97063-874-0	01	1	0009-	●	●	●
53	BRACKET; HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97062-178-3	01	1	0009-	●
53	BRACKET; HARNESS (A)	8-97062-178-3	01	1	0009-			●
53	BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97065-158-2	01	1	0009-	●
53	BRACKET; HARNESS (B)	8-97065-158-2	01	1	0009-			●
504	PROTECTOR; HARNESS FRAME STRAIGHT TYPE<7KJ> L=200	8-97096-423-0	01	1	0009-	●
504	PROTECTOR; HARNESS L=200	8-97096-423-0	01	1	0009-		●
514	FINISHER; HARNESS L=120 SERVICED BY L=2040	1-71997-513-1	03	1	0009-	●	●	●
514	FINISHER; HARNESS L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0009-	●	●	●

16 14 16 48 142 483 488 48 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	CLIP; BAND,HARNESS L=200	8-94464-835-0	01	1	0009-	●	●	●
16	CLIP; HARNESS (H) ID=6 & 10-13 THA	8-97069-515-0	02	1	0009-	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (E) L=100 THA	8-94327-067-1	04	1	0009-	●	●	●
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FMW/CASSETTE 2 SPEAKERS<6VL> (E) L=100 THA	8-94327-067-1	04	1	0009-	●	●	●
16	CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=100 THA	8-94327-067-1	04	1	0009-	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (I) L=155 THA	8-97173-307-0	04	1	0009-	●	●	●
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FMW/CASSETTE 2 SPEAKERS<6VL> (I) L=155 THA	8-97173-307-0	04	1	0009-	●	●	●
16	CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (I) L=155 THA	8-97173-307-0	04	1	0009-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (I) L=155 THA	8-97173-307-0	10	1	0009-	●	●	●
16	CLIP; HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=14 L=47	5-09700-319-0	11	1	0009-	●
16	CLIP; HARNESS POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) ID=16.5 & 16.5	8-94473-320-0	01	1	0009-	●
16	CLIP; HARNESS EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) ID=16.5 & 16.5	8-94473-320-0	01	1	0009-	●
16	CLIP; HARNESS (C) ID=16.5 & 16.5	8-94473-320-0	01	1	0009-			●
16	CLIP; HARNESS POWER ASSIST CLUTCH<S2T> (C) ID=16.5 & 16.5	8-94473-320-0	01	1	0009-		●
16	CLIP; HARNESS FRAME STRAIGHT TYPE<7KJ> (D) ID=14 L=47	5-09700-319-0	10	1	0009-	●
16	CLIP; HARNESS HYDRO BRAKE BOOSTER<7QQ> (J) ID=10 & 16.5	8-94360-745-0	01	1	0009-	●
16	CLIP; HARNESS (J) ID=10 & 16.5	8-94360-745-0	01	1	0009-		●
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0009-	●	●	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	03	1	0009-	●	●	●
16	CLIP; HARNESS (F) ID=16	8-94413-325-0	02	1	0009-	●	●	●
16	CLIP; HARNESS (G) ID=12.5-14.5	8-97087-726-0	05	1	0009-	●	●	●
16	CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT<C60> (A) L=170	5-09707-054-0	01	1	0009-	●	●	●
16	CLIP; HARNESS (D) ID=14 L=47	5-09700-319-0	13	1	0009-		●	●
48	CLIP; FRAME HARNESS 4HE1 ENG<RLY> T=4.5 & 9	5-09709-023-0	01	1	0009-	●
48	CLIP; FRAME HARNESS T=4.5 & 9	5-09709-023-0	01	1	0009-		●
48	CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT<C60> (K) L=140	5-09707-031-1	02	1	0009-	●	●	●
48	CLIP; FRAME HARNESS FLOOR REMOTE SHIFT<M11> (D) ID=9.6	8-94147-870-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (D) ID=9.6	8-94147-870-0	01	1	0009-		●	●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (H) ID=32 L=75	1-09700-702-0	01	1	0009-	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=32 L=75	1-09700-702-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (H) ID=32 L=75	1-09700-702-0	01	1	0009-		●	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (M) ID=20	5-09700-321-0	02	1	0009-	●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (M) ID=20	5-09700-321-0	02	1	0009-	●
48	CLIP; FRAME HARNESS (M) ID=20	5-09700-321-0	02	1	0009-		●	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=33 L=63	1-09700-807-0	07	1	0009-	●
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	07	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (J) L=110	8-94149-419-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (J) L=110	8-94149-419-0	01	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=30 W/STUD	8-97078-642-2	01	1	0009-	●
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	01	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (N) T=4.5 & 9	5-09709-023-0	02	1	0009-	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (I) ID=9	8-97063-874-0	02	1	0009-	●
48	CLIP; FRAME HARNESS (F) L=170.3 THA	1-09987-182-0	01	1	0009-	●	●	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (F) L=170.3 THA	1-09987-182-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (F) L=170.3 THA	1-09987-182-0	01	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=26 L=26	1-09701-236-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (E) ID=26 L=26	1-09701-236-0	01	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=14 L=47	5-09700-319-0	05	1	0009-	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	05	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (L) ID=12 B=14 ID=8.5 THA	5-09700-350-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (L) ID=12 B=14 ID=8.5 THA	5-09700-350-0	01	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (O) T=9 & 10.5	8-97041-091-0	02	1	0009-	●
48	CLIP; FRAME HARNESS (O) T=9 & 10.5	8-97041-091-0	02	1	0009-			●
48	CLIP; FRAME HARNESS 4HE1 ENG<RLY> (B) ID=14 L=47	5-09700-319-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	01	1	0009-		●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	03	1	0009-	●	●	●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (B) ID=14 L=47	5-09700-319-0	03	1	0009-	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	03	1	0009-		●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (A) ID=33 L=63	1-09700-807-0	04	1	0009-	●
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	04	1	0009-		●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (C) ID=30 W/STUD	8-97078-642-2	02	1	0009-	●
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	02	1	0009-		●
48	CLIP; FRAME HARNESS (G) ID=31 L=30	1-09700-969-0	01	1	0009-	●	●	●
48	CLIP; FRAME HARNESS (I) ID=9	8-97063-874-0	01	1	0009-	●	●	●
142	CLIP; HARNESS,ENG 4HE1 ENG<RLY> (B) THA	8-97101-436-0	01	1	0009-	●
142	CLIP; HARNESS,ENG (B) THA	8-97101-436-0	01	1	0009-		●
142	CLIP; HARNESS,ENG (A) L=140	5-09707-031-1	01	1	0009-	●	●	●
483	CLIP; ENG HARNESS 4HG1 ENG<RJH> TURBOCHARGER<K51> L=140	5-09707-031-1	02	1	0009-	●
483	CLIP; ENG HARNESS L=140	5-09707-031-1	02	1	0009-			●
483	CLIP; ENG HARNESS 4HE1 ENG<RLY> FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> HYDRO BRAKE BOOSTER<7QQ> ENGINE POWER N-SPEC(7QV) L=140	5-09707-031-1	01	1	0009-	●
483	CLIP; ENG HARNESS CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> L=140	5-09707-031-1	01	1	0009-		●
488	CLIP; CABLE,TRAILER L=250 THA	5-09707-030-1	01	1	0009-	●	●	●

312 53 139 31 31 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	BRACKET; HARNESS CLIP,PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=20	8-94165-263-1	01	1	0009-	●
31	BRACKET; HARNESS CLIP,PIPE (A) L=20	8-94165-263-1	01	1	0009-			●
31	BRACKET; HARNESS CLIP,PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97017-071-2	01	1	0009-	●
31	BRACKET; HARNESS CLIP,PIPE (C)	8-97017-071-2	01	1	0009-			●
31	BRACKET; HARNESS CLIP,PIPE FRAME STRAIGHT TYPE<7KJ> (B) L=73	8-97077-845-0	02	1	0009-	●
31	BRACKET; HARNESS CLIP,PIPE (B) L=73	8-97077-845-0	02	1	0009-		●
31	BRACKET; HARNESS CLIP,PIPE (B) L=47	8-97042-635-0	01	1	0009-	●	●	●
53	BRACKET; HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97062-178-3	01	1	0009-	●
53	BRACKET; HARNESS (A)	8-97062-178-3	01	1	0009-			●
53	BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97065-158-2	01	1	0009-	●
53	BRACKET; HARNESS (B)	8-97065-158-2	01	1	0009-			●
139	BOLT; BRKT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-451-3	01	1	0009-	●
139	BOLT; BRKT (A)	8-97028-451-3	01	1	0009-			●
139	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	03	1	0009-	●	●	●
312	BRACKET; CLIP HARNESS	8-97017-072-2	01	1	0009-	●	●	●

16 48 464 48 464 16 142 16 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CLIP; HARNESS (H) ID=6 & 10-13 THA	8-97069-515-0	02	1	0009-	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (E) L=100 THA	8-94327-067-1	04	1	0009-	●	●	●
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FMW/CASSETTE 2 SPEAKERS<6VL> (E) L=100 THA	8-94327-067-1	04	1	0009-	●	●	●
16	CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=100 THA	8-94327-067-1	04	1	0009-	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (I) L=155 THA	8-97173-307-0	04	1	0009-	●	●	●
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FMW/CASSETTE 2 SPEAKERS<6VL> (I) L=155 THA	8-97173-307-0	04	1	0009-	●	●	●
16	CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (I) L=155 THA	8-97173-307-0	04	1	0009-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (I) L=155 THA	8-97173-307-0	10	1	0009-	●	●	●
16	CLIP; HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=14 L=47	5-09700-319-0	11	1	0009-	●
16	CLIP; HARNESS POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) ID=16.5 & 16.5	8-94473-320-0	01	1	0009-	●
16	CLIP; HARNESS EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) ID=16.5 & 16.5	8-94473-320-0	01	1	0009-	●
16	CLIP; HARNESS (C) ID=16.5 & 16.5	8-94473-320-0	01	1	0009-			●
16	CLIP; HARNESS POWER ASSIST CLUTCH<S2T> (C) ID=16.5 & 16.5	8-94473-320-0	01	1	0009-		●
16	CLIP; HARNESS FRAME STRAIGHT TYPE<7KJ> (D) ID=14 L=47	5-09700-319-0	10	1	0009-	●
16	CLIP; HARNESS HYDRO BRAKE BOOSTER<7QQ> (J) ID=10 & 16.5	8-94360-745-0	01	1	0009-	●
16	CLIP; HARNESS (J) ID=10 & 16.5	8-94360-745-0	01	1	0009-		●
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0009-	●	●	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	03	1	0009-	●	●	●
16	CLIP; HARNESS (F) ID=16	8-94413-325-0	02	1	0009-	●	●	●
16	CLIP; HARNESS (G) ID=12.5-14.5	8-97087-726-0	05	1	0009-	●	●	●
16	CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT<C60> (A) L=170	5-09707-054-0	01	1	0009-	●	●	●
16	CLIP; HARNESS (D) ID=14 L=47	5-09700-319-0	13	1	0009-		●	●
48	CLIP; FRAME HARNESS 4HE1 ENG<RLY> T=4.5 & 9	5-09709-023-0	01	1	0009-	●
48	CLIP; FRAME HARNESS T=4.5 & 9	5-09709-023-0	01	1	0009-		●
48	CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT<C60> (K) L=140	5-09707-031-1	02	1	0009-	●	●	●
48	CLIP; FRAME HARNESS FLOOR REMOTE SHIFT<M11> (D) ID=9.6	8-94147-870-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (D) ID=9.6	8-94147-870-0	01	1	0009-		●	●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (H) ID=32 L=75	1-09700-702-0	01	1	0009-	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=32 L=75	1-09700-702-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (H) ID=32 L=75	1-09700-702-0	01	1	0009-		●	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (M) ID=20	5-09700-321-0	02	1	0009-	●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (M) ID=20	5-09700-321-0	02	1	0009-	●
48	CLIP; FRAME HARNESS (M) ID=20	5-09700-321-0	02	1	0009-		●	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=33 L=63	1-09700-807-0	07	1	0009-	●
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	07	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (J) L=110	8-94149-419-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (J) L=110	8-94149-419-0	01	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=30 W/STUD	8-97078-642-2	01	1	0009-	●
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	01	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (N) T=4.5 & 9	5-09709-023-0	02	1	0009-	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (I) ID=9	8-97063-874-0	02	1	0009-	●
48	CLIP; FRAME HARNESS (F) L=170.3 THA	1-09987-182-0	01	1	0009-	●	●	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (F) L=170.3 THA	1-09987-182-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (F) L=170.3 THA	1-09987-182-0	01	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=26 L=26	1-09701-236-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (E) ID=26 L=26	1-09701-236-0	01	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=14 L=47	5-09700-319-0	05	1	0009-	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	05	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (L) ID=12 B=14 ID=8.5 THA	5-09700-350-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (L) ID=12 B=14 ID=8.5 THA	5-09700-350-0	01	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (O) T=9 & 10.5	8-97041-091-0	02	1	0009-	●
48	CLIP; FRAME HARNESS (O) T=9 & 10.5	8-97041-091-0	02	1	0009-			●
48	CLIP; FRAME HARNESS 4HE1 ENG<RLY> (B) ID=14 L=47	5-09700-319-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	01	1	0009-		●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	03	1	0009-	●	●	●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (B) ID=14 L=47	5-09700-319-0	03	1	0009-	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	03	1	0009-		●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (A) ID=33 L=63	1-09700-807-0	04	1	0009-	●
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	04	1	0009-		●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (C) ID=30 W/STUD	8-97078-642-2	02	1	0009-	●
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	02	1	0009-		●
48	CLIP; FRAME HARNESS (G) ID=31 L=30	1-09700-969-0	01	1	0009-	●	●	●
48	CLIP; FRAME HARNESS (I) ID=9	8-97063-874-0	01	1	0009-	●	●	●
142	CLIP; HARNESS,ENG 4HE1 ENG<RLY> (B) THA	8-97101-436-0	01	1	0009-	●
142	CLIP; HARNESS,ENG (B) THA	8-97101-436-0	01	1	0009-		●
142	CLIP; HARNESS,ENG (A) L=140	5-09707-031-1	01	1	0009-	●	●	●
264	CLIP; HARNESS,HEADLAMP ID=16	8-94413-325-0	03	1	0009-	●	●	●
464	CLIP; SEDIMENTER HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10	5-09700-318-0	01	1	0009-	●
464	CLIP; SEDIMENTER HARNESS (A) ID=10	5-09700-318-0	01	1	0009-			●
464	CLIP; SEDIMENTER HARNESS 4HG1 ENG<RJH> EXC. HYDRO MASTER<7LT> (B) ID=6.5 THA	8-94257-639-0	01	1	0009-	●
464	CLIP; SEDIMENTER HARNESS (B) ID=6.5 THA	8-94257-639-0	01	1	0009-			●
464	CLIP; SEDIMENTER HARNESS HYDRO MASTER<7LT> (C) ID=9	8-97063-874-0	01	1	0009-	●

48 464 16 48 48 48 48 48 48 16 220 16 49 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CLIP; HARNESS (H) ID=6 & 10-13 THA	8-97069-515-0	02	1	0009-	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (E) L=100 THA	8-94327-067-1	04	1	0009-	●	●	●
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FMW/CASSETTE 2 SPEAKERS<6VL> (E) L=100 THA	8-94327-067-1	04	1	0009-	●	●	●
16	CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=100 THA	8-94327-067-1	04	1	0009-	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (I) L=155 THA	8-97173-307-0	04	1	0009-	●	●	●
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FMW/CASSETTE 2 SPEAKERS<6VL> (I) L=155 THA	8-97173-307-0	04	1	0009-	●	●	●
16	CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (I) L=155 THA	8-97173-307-0	04	1	0009-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (I) L=155 THA	8-97173-307-0	10	1	0009-	●	●	●
16	CLIP; HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=14 L=47	5-09700-319-0	11	1	0009-	●
16	CLIP; HARNESS POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) ID=16.5 & 16.5	8-94473-320-0	01	1	0009-	●
16	CLIP; HARNESS EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) ID=16.5 & 16.5	8-94473-320-0	01	1	0009-	●
16	CLIP; HARNESS (C) ID=16.5 & 16.5	8-94473-320-0	01	1	0009-			●
16	CLIP; HARNESS POWER ASSIST CLUTCH<S2T> (C) ID=16.5 & 16.5	8-94473-320-0	01	1	0009-		●
16	CLIP; HARNESS FRAME STRAIGHT TYPE<7KJ> (D) ID=14 L=47	5-09700-319-0	10	1	0009-	●
16	CLIP; HARNESS HYDRO BRAKE BOOSTER<7QQ> (J) ID=10 & 16.5	8-94360-745-0	01	1	0009-	●
16	CLIP; HARNESS (J) ID=10 & 16.5	8-94360-745-0	01	1	0009-		●
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0009-	●	●	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	03	1	0009-	●	●	●
16	CLIP; HARNESS (F) ID=16	8-94413-325-0	02	1	0009-	●	●	●
16	CLIP; HARNESS (G) ID=12.5-14.5	8-97087-726-0	05	1	0009-	●	●	●
16	CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT<C60> (A) L=170	5-09707-054-0	01	1	0009-	●	●	●
16	CLIP; HARNESS (D) ID=14 L=47	5-09700-319-0	13	1	0009-		●	●
48	CLIP; FRAME HARNESS 4HE1 ENG<RLY> T=4.5 & 9	5-09709-023-0	01	1	0009-	●
48	CLIP; FRAME HARNESS T=4.5 & 9	5-09709-023-0	01	1	0009-		●
48	CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT<C60> (K) L=140	5-09707-031-1	02	1	0009-	●	●	●
48	CLIP; FRAME HARNESS FLOOR REMOTE SHIFT<M11> (D) ID=9.6	8-94147-870-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (D) ID=9.6	8-94147-870-0	01	1	0009-		●	●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (H) ID=32 L=75	1-09700-702-0	01	1	0009-	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=32 L=75	1-09700-702-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (H) ID=32 L=75	1-09700-702-0	01	1	0009-		●	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (M) ID=20	5-09700-321-0	02	1	0009-	●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (M) ID=20	5-09700-321-0	02	1	0009-	●
48	CLIP; FRAME HARNESS (M) ID=20	5-09700-321-0	02	1	0009-		●	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=33 L=63	1-09700-807-0	07	1	0009-	●
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	07	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (J) L=110	8-94149-419-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (J) L=110	8-94149-419-0	01	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=30 W/STUD	8-97078-642-2	01	1	0009-	●
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	01	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (N) T=4.5 & 9	5-09709-023-0	02	1	0009-	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (I) ID=9	8-97063-874-0	02	1	0009-	●
48	CLIP; FRAME HARNESS (F) L=170.3 THA	1-09987-182-0	01	1	0009-	●	●	●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (F) L=170.3 THA	1-09987-182-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (F) L=170.3 THA	1-09987-182-0	01	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=26 L=26	1-09701-236-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (E) ID=26 L=26	1-09701-236-0	01	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=14 L=47	5-09700-319-0	05	1	0009-	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	05	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (L) ID=12 B=14 ID=8.5 THA	5-09700-350-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (L) ID=12 B=14 ID=8.5 THA	5-09700-350-0	01	1	0009-			●
48	CLIP; FRAME HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (O) T=9 & 10.5	8-97041-091-0	02	1	0009-	●
48	CLIP; FRAME HARNESS (O) T=9 & 10.5	8-97041-091-0	02	1	0009-			●
48	CLIP; FRAME HARNESS 4HE1 ENG<RLY> (B) ID=14 L=47	5-09700-319-0	01	1	0009-	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	01	1	0009-		●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	03	1	0009-	●	●	●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (B) ID=14 L=47	5-09700-319-0	03	1	0009-	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47	5-09700-319-0	03	1	0009-		●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (A) ID=33 L=63	1-09700-807-0	04	1	0009-	●
48	CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	04	1	0009-		●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (C) ID=30 W/STUD	8-97078-642-2	02	1	0009-	●
48	CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	02	1	0009-		●
48	CLIP; FRAME HARNESS (G) ID=31 L=30	1-09700-969-0	01	1	0009-	●	●	●
48	CLIP; FRAME HARNESS (I) ID=9	8-97063-874-0	01	1	0009-	●	●	●
49	CLIP; GEN HARNESS FRAME STRAIGHT TYPE<7KJ> ID=13 & 16.5	8-94169-028-0	01	1	0009-	●
49	CLIP; GEN HARNESS ID=13 & 16.5	8-94169-028-0	01	1	0009-		●
220	CLIP; HARNESS TO CABLE FRAME STRAIGHT TYPE<7KJ> ID=25.5 & 8.0	8-94363-538-0	01	1	0009-	●
220	CLIP; HARNESS TO CABLE ID=25.5 & 8.0	8-94363-538-0	01	1	0009-		●
464	CLIP; SEDIMENTER HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10	5-09700-318-0	01	1	0009-	●
464	CLIP; SEDIMENTER HARNESS (A) ID=10	5-09700-318-0	01	1	0009-			●
464	CLIP; SEDIMENTER HARNESS 4HG1 ENG<RJH> EXC. HYDRO MASTER<7LT> (B) ID=6.5 THA	8-94257-639-0	01	1	0009-	●
464	CLIP; SEDIMENTER HARNESS (B) ID=6.5 THA	8-94257-639-0	01	1	0009-			●
464	CLIP; SEDIMENTER HARNESS HYDRO MASTER<7LT> (C) ID=9	8-97063-874-0	01	1	0009-	●

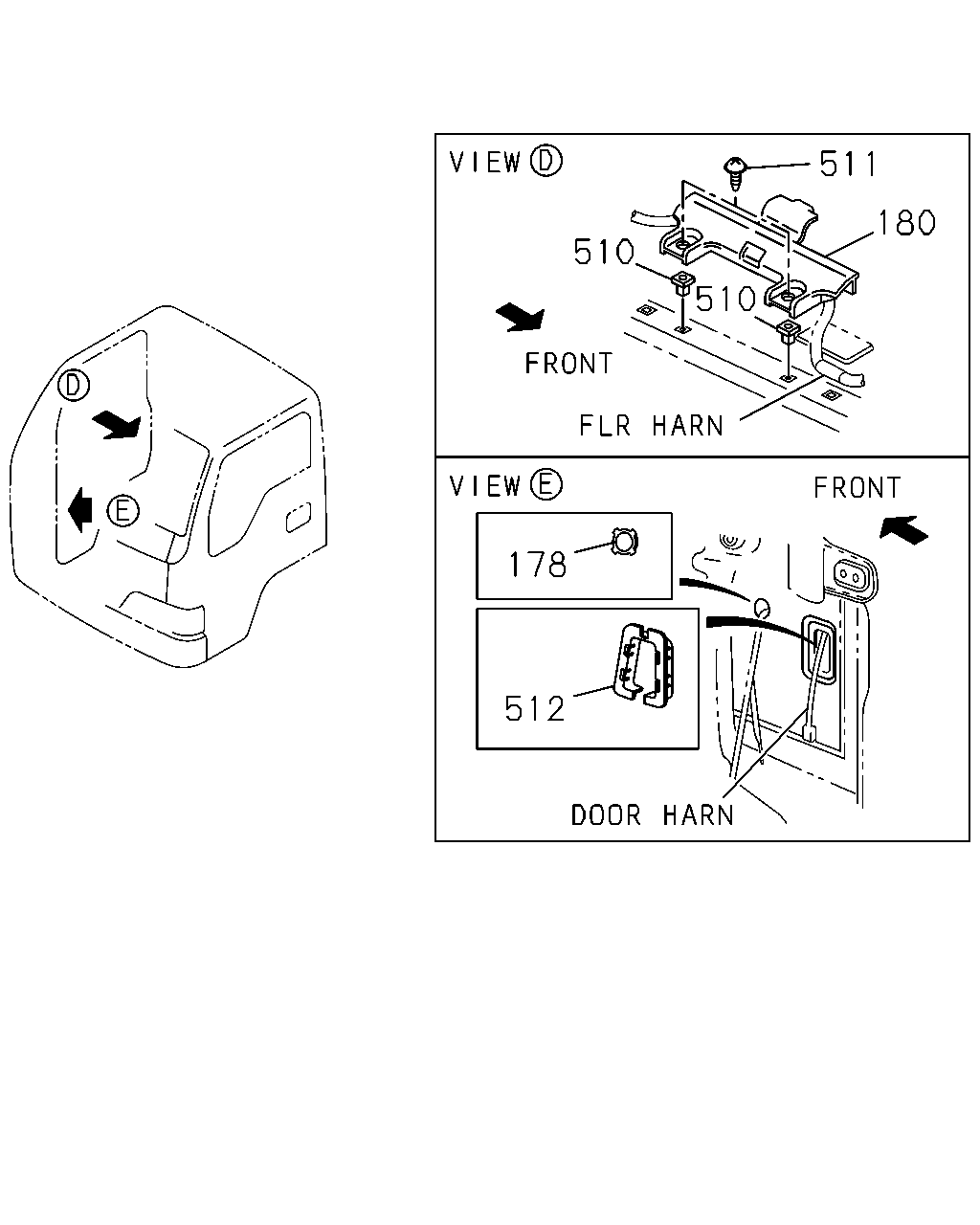

511 180 510 510 178 512

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
178	GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0009-	●	●	●
180	COVER; HARNESS	8-97856-130-4	02	1	0009-	●	●	●
510	GROMMET; SCREW H=15	8-94463-268-1	04	1	0009-	●	●	●
511	SCREW; HARNESS COVER M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0009-	●	●	●
512	PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0009-	●	●	●
512	PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0009-	●	●	●
512	PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FMW/CASSETTE 2 SPEAKERS<6VL>	8-97072-950-0	02	1	0009-	●	●	●
512	PROTECTOR; HARNESS RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0009-	●	●	●

38 139 19 38 38 386 377 239 219 294 515 219 219 469 519 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	BOLT; PROTECTOR FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE	0-28681-035-0	01	1	0009-	●
19	BOLT; PROTECTOR M10X35 FLANGE	0-28681-035-0	01	1	0009-		●
38	BOLT; CLIP,HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6X25 FLANGE	0-28680-625-0	01	1	0009-	●
38	BOLT; CLIP,HARNESS (A) M6X25 FLANGE	0-28680-625-0	01	1	0009-			●
38	BOLT; CLIP,HARNESS 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (C) M10X35 FLANGE	0-28681-035-0	01	1	0009-	●
38	BOLT; CLIP,HARNESS (C) M10X35 FLANGE	0-28681-035-0	01	1	0009-			●
38	BOLT; CLIP,HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6X25 FLANGE	0-28680-625-0	02	1	0009-	●
38	BOLT; CLIP,HARNESS (A) M6X25 FLANGE	0-28680-625-0	02	1	0009-			●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0009-	●	●	●
38	BOLT; CLIP,HARNESS FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE	0-28680-825-0	01	1	0009-	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0009-		●	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0009-		●
139	BOLT; BRKT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-451-3	01	1	0009-	●
139	BOLT; BRKT (A)	8-97028-451-3	01	1	0009-			●
139	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	03	1	0009-	●	●	●
219	NUT 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE	0-91150-106-0	01	1	0009-	●
219	NUT M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE	0-91150-106-0	01	1	0009-	●
219	NUT (A) M6 FLANGE	0-91150-106-0	01	1	0009-			●
219	NUT (A) M6 FLANGE	0-91150-106-0	01	1	0009-			●
219	NUT 4HG1 ENG<RJH> M/T MXA5T<RNQ> EXC. FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE	0-91150-110-0	01	1	0009-	●
219	NUT (C) M10 FLANGE	0-91150-110-0	01	1	0009-			●
219	NUT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE	0-91150-106-0	02	1	0009-	●
219	NUT FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE	0-91150-106-0	02	1	0009-	●
219	NUT (A) M6 FLANGE	0-91150-106-0	02	1	0009-		●	●
219	NUT (B) M8 FLANGE	0-91150-108-0	01	1	0009-	●	●	●
219	NUT FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE	0-91150-108-0	01	1	0009-	●
219	NUT FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE	0-91150-108-0	01	1	0009-	●
219	NUT (B) M8 FLANGE	0-91150-108-0	01	1	0009-		●
219	NUT (B) M8 FLANGE	0-91150-108-0	01	1	0009-		●
239	BOLT; GRAND M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0009-	●	●	●
294	NUT M6 FLANGE	0-91150-106-0	01	1	0009-	●	●	●
377	BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0009-	●	●	●
386	BOLT; GRAND HARNESS M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0009-	●	●	●
469	NUT; PROTECTOR FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	0009-	●
469	NUT; PROTECTOR M10 FLANGE	0-91150-110-0	01	1	0009-		●
515	NUT; BRKT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M6 FLANGE	0-91150-106-0	02	1	0009-	●
515	NUT; BRKT M6 FLANGE	0-91150-106-0	02	1	0009-			●
519	NUT; EARTH CABLE M10 FLANGE	0-91150-110-0	01	1	0009-	●	●	●
525	NUT; CLIP 4HE1 ENG<RLY> M10 FLANGE	0-91150-110-0	01	1	0009-	●
525	NUT; CLIP M10 FLANGE	0-91150-110-0	01	1	0009-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
