◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#4874) — 72 parça

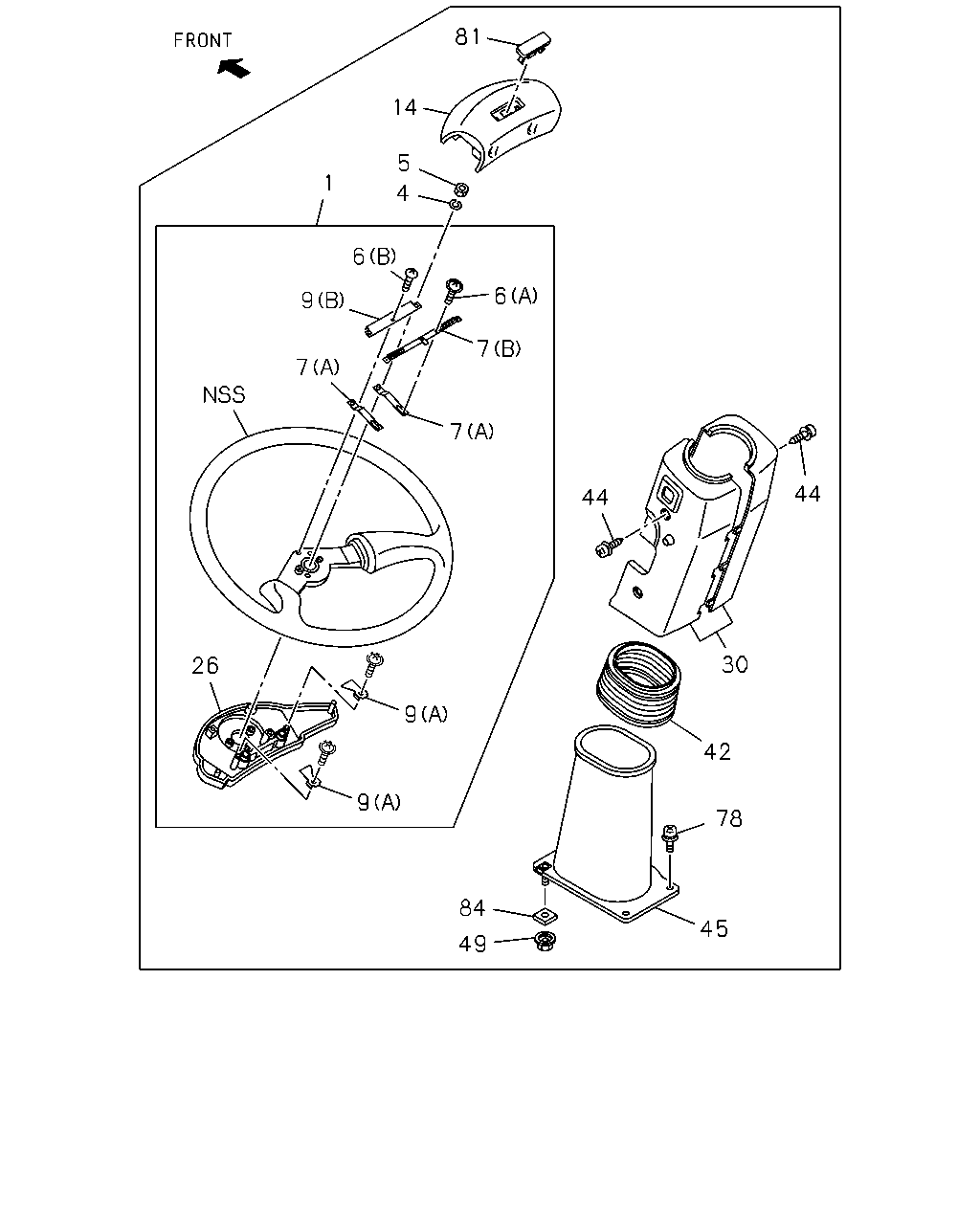

çizim 40875
81 14 5 1 4 6 6 9 7 7 7 44 44 30 26 9 42 9 78 84 45 49
BalonParca AdiParca NoAdetTipApplied Date
1 WHEEL; STRG 1-44110-146-0 01 1 9601-9904
1 WHEEL; STRG
EXC. STRG WHEEL LEATHER WRAPPED<NP5> 		1-44110-146-0 01 1 9905-
1 WHEEL; STRG
STRG WHEEL LEATHER WRAPPED<NP5> 		1-44110-157-1 01 1 9905-
4 WASHER; LK,STRG WHEEL
ID=20.2 		9-09150-520-0 01 1 9601-
5 NUT; STRG WHEEL TO SHAFT
H=16 M20 		9-99110-420-0 01 1 9601-9606
5 NUT; STRG WHEEL TO SHAFT
H=12 M20 		9-99111-420-0 01 1 9607-
6 SCREW; HORN SPR CONTACT
(B) M4X10 		1-44129-034-0 01 1 9601-9904
6 SCREW; HORN SPR CONTACT
EXC. STRG WHEEL LEATHER WRAPPED<NP5> (B) M4X10 		1-44129-034-0 01 1 9905-
6 SCREW; HORN SPR CONTACT
(A) M4X16 		1-44129-036-0 04 1 9601-9904
6 SCREW; HORN SPR CONTACT
(A) M4X16 		1-44129-036-0 04 1 9905-
6 SCREW; HORN SPR CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (B) M5X10 		1-44129-049-0 01 1 9905-
7 SPRING; HORN CONTACT
(A) 		1-44129-033-0 02 1 9601-9904
7 SPRING; HORN CONTACT
(B) 		1-44129-037-0 01 1 9601-9904
7 SPRING; HORN CONTACT
EXC. STRG WHEEL LEATHER WRAPPED<NP5> (B) 		1-44129-037-0 01 1 9905-
7 SPRING; HORN CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (B) 		1-44129-060-0 01 1 9905-
7 SPRING; HORN CONTACT
(A) 		1-44129-033-0 02 1 9905-
9 PLATE; HORN CONTACT
(C) 		1-44129-038-0 01 1 9601-9904
9 PLATE; HORN CONTACT
EXC. STRG WHEEL LEATHER WRAPPED<NP5> (C) 		1-44129-038-0 01 1 9905-
9 PLATE; HORN CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (A) 		1-44129-048-0 02 1 9905-
9 PLATE; HORN CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (B) 		1-44129-059-0 01 1 9905-
14 BUTTON; HORN,STRG WHEEL 1-44120-045-2 01 1 9601-9904
14 BUTTON; HORN,STRG WHEEL 1-44120-045-2 01 1 9905-
26 COVER; STRG WHEEL,LWR 1-44129-039-0 01 1 9601-9904
26 COVER; STRG WHEEL,LWR
EXC. STRG WHEEL LEATHER WRAPPED<NP5> 		1-44129-039-0 01 1 9905-
26 COVER; STRG WHEEL,LWR
STRG WHEEL LEATHER WRAPPED<NP5> 		1-44129-050-0 01 1 9905-
30 COWL; STEERING
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-79998-932-0 01 1 9601-
30 COWL; STEERING
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-79997-342-3 01 1 9601-
42 BOOT; STEERING COLUMN 1-79998-803-1 01 1 9601-9802
42 BOOT; STEERING COLUMN 1-79996-385-0 01 1 9803-
44 SCREW; STRG COWL
M6X16 		8-94479-534-0 04 1 9601-
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 9601-
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		1-09984-141-0 02 1 9601-
78 BOLT; STRG
M6X20 W/LK&PL WASHER 		8-94279-202-0 02 1 9601-9906
78 BOLT; STRG
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 9907-
81 EMBLEM; STRG WHEEL 1-76210-638-1 01 1 9601-
84 SEAL; WATER
25X25 		8-94272-533-0 02 1 9601-

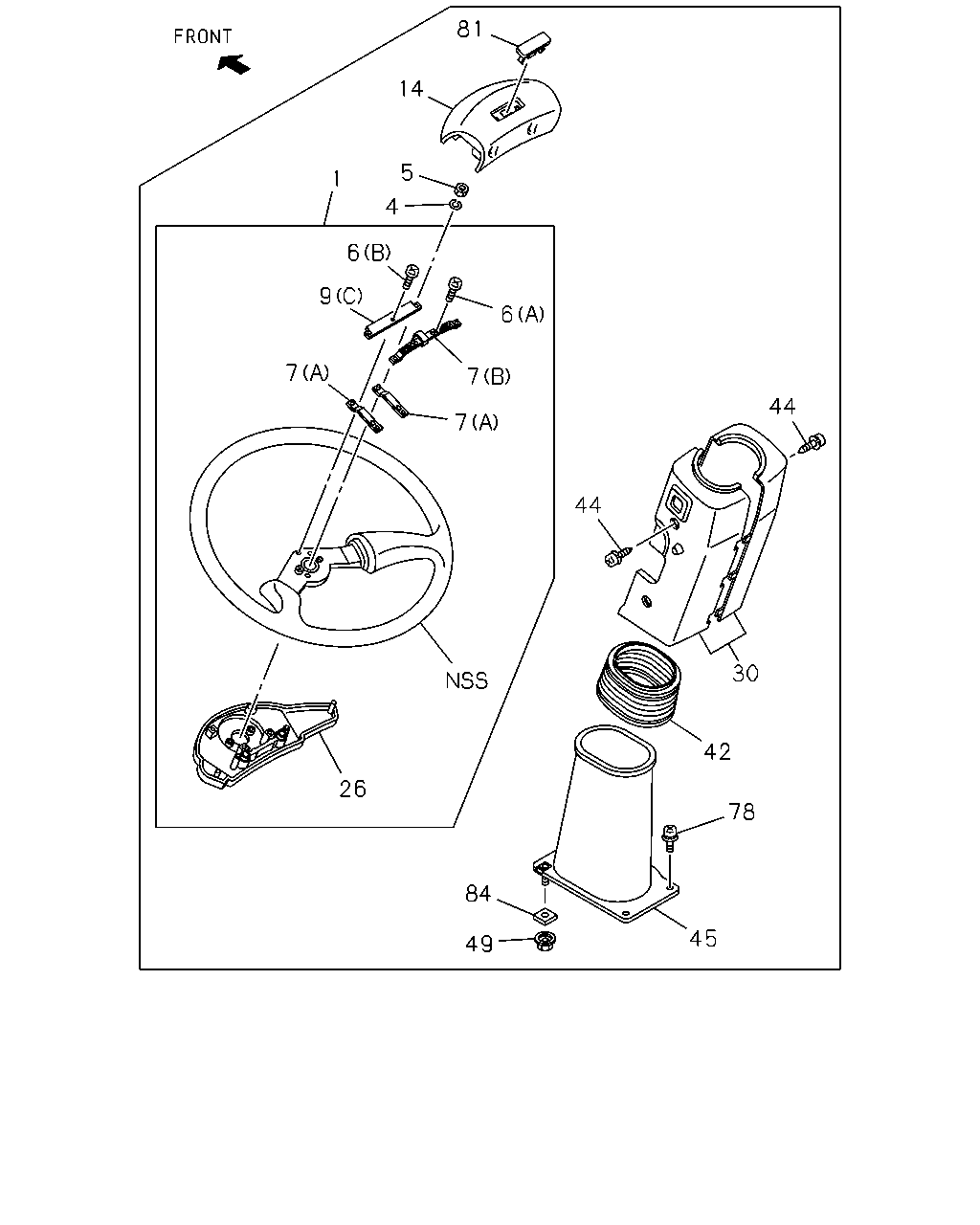

çizim 43089
81 14 5 1 4 6 9 6 7 7 44 7 44 30 42 26 78 84 45 49
BalonParca AdiParca NoAdetTipApplied Date
1 WHEEL; STRG 1-44110-146-0 01 1 9601-9904
1 WHEEL; STRG
EXC. STRG WHEEL LEATHER WRAPPED<NP5> 		1-44110-146-0 01 1 9905-
1 WHEEL; STRG
STRG WHEEL LEATHER WRAPPED<NP5> 		1-44110-157-1 01 1 9905-
4 WASHER; LK,STRG WHEEL
ID=20.2 		9-09150-520-0 01 1 9601-
5 NUT; STRG WHEEL TO SHAFT
H=16 M20 		9-99110-420-0 01 1 9601-9606
5 NUT; STRG WHEEL TO SHAFT
H=12 M20 		9-99111-420-0 01 1 9607-
6 SCREW; HORN SPR CONTACT
(B) M4X10 		1-44129-034-0 01 1 9601-9904
6 SCREW; HORN SPR CONTACT
EXC. STRG WHEEL LEATHER WRAPPED<NP5> (B) M4X10 		1-44129-034-0 01 1 9905-
6 SCREW; HORN SPR CONTACT
(A) M4X16 		1-44129-036-0 04 1 9601-9904
6 SCREW; HORN SPR CONTACT
(A) M4X16 		1-44129-036-0 04 1 9905-
6 SCREW; HORN SPR CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (B) M5X10 		1-44129-049-0 01 1 9905-
7 SPRING; HORN CONTACT
(A) 		1-44129-033-0 02 1 9601-9904
7 SPRING; HORN CONTACT
(B) 		1-44129-037-0 01 1 9601-9904
7 SPRING; HORN CONTACT
EXC. STRG WHEEL LEATHER WRAPPED<NP5> (B) 		1-44129-037-0 01 1 9905-
7 SPRING; HORN CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (B) 		1-44129-060-0 01 1 9905-
7 SPRING; HORN CONTACT
(A) 		1-44129-033-0 02 1 9905-
9 PLATE; HORN CONTACT
(C) 		1-44129-038-0 01 1 9601-9904
9 PLATE; HORN CONTACT
EXC. STRG WHEEL LEATHER WRAPPED<NP5> (C) 		1-44129-038-0 01 1 9905-
9 PLATE; HORN CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (A) 		1-44129-048-0 02 1 9905-
9 PLATE; HORN CONTACT
STRG WHEEL LEATHER WRAPPED<NP5> (B) 		1-44129-059-0 01 1 9905-
14 BUTTON; HORN,STRG WHEEL 1-44120-045-2 01 1 9601-9904
14 BUTTON; HORN,STRG WHEEL 1-44120-045-2 01 1 9905-
26 COVER; STRG WHEEL,LWR 1-44129-039-0 01 1 9601-9904
26 COVER; STRG WHEEL,LWR
EXC. STRG WHEEL LEATHER WRAPPED<NP5> 		1-44129-039-0 01 1 9905-
26 COVER; STRG WHEEL,LWR
STRG WHEEL LEATHER WRAPPED<NP5> 		1-44129-050-0 01 1 9905-
30 COWL; STEERING
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-79998-932-0 01 1 9601-
30 COWL; STEERING
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-79997-342-3 01 1 9601-
42 BOOT; STEERING COLUMN 1-79998-803-1 01 1 9601-9802
42 BOOT; STEERING COLUMN 1-79996-385-0 01 1 9803-
44 SCREW; STRG COWL
M6X16 		8-94479-534-0 04 1 9601-
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 9601-
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		1-09984-141-0 02 1 9601-
78 BOLT; STRG
M6X20 W/LK&PL WASHER 		8-94279-202-0 02 1 9601-9906
78 BOLT; STRG
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 9907-
81 EMBLEM; STRG WHEEL 1-76210-638-1 01 1 9601-
84 SEAL; WATER
25X25 		8-94272-533-0 02 1 9601-
