8-03 — LAMP; REAR AND REAR SIDE (#48738) — 36 parça

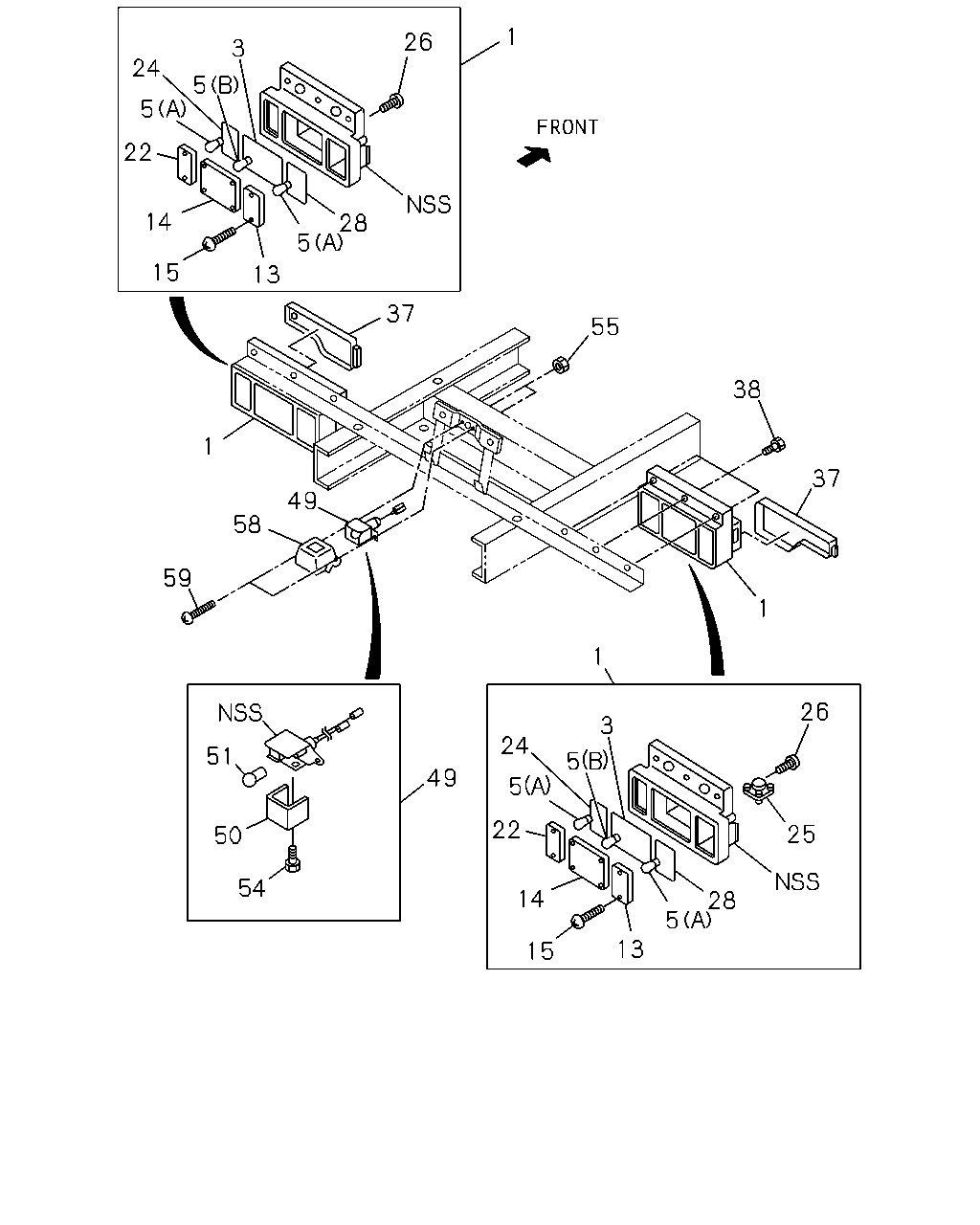

çizim 12078
1 26 3 24 5 5 22 14 28 5 15 13 37 55 38 1 37 49 58 59 1 1 26 3 24 51 5 49 5 22 25 50 54 14 28 5 13 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LAMP ASM; RR COMB
BACK BUZZER<YM9> THA 		8-97917-073-0 01 1 0009- ● ● ●
1 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9> 		8-97213-368-0 01 1 0009- ● ● ●
1 LAMP ASM; RR COMB
THA 		8-97917-050-0 01 1 0009- ● ● ●
3 GASKET; RR COMB LAMP
THA 		8-94257-505-0 02 1 0009- ● ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W THA 		8-97916-983-0 01 1 0009- ● ● ●
5 BULB; RR COMB LAMP
BACK BUZZER<YM9> (B) 24V 21/5W THA 		8-97916-983-0 01 1 0009- ● ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W THA 		8-97916-984-0 02 1 0009- ● ● ●
5 BULB; RR COMB LAMP
BACK BUZZER<YM9> (A) 24V 21W THA 		8-97916-984-0 02 1 0009- ● ● ●
5 BULB; RR COMB LAMP
EXC. BACK BUZZER<YM9> (A) 24V 21W THA 		1-82194-036-0 02 1 0009- ● ● ●
5 BULB; RR COMB LAMP
EXC. BACK BUZZER<YM9> (B) 24V 21/5W THA 		1-82194-038-0 01 1 0009- ● ● ●
9 NUT; LAMP,RR COMB
EXC. FRAME STRAIGHT TYPE<7KJ> M6 FLANGE THA 		5-09440-004-0 06 1 0211- ●
9 NUT; LAMP,RR COMB
M6 FLANGE THA 		5-09440-004-0 06 1 0211- ●
13 LENS; TURN SIGNAL
THA 		8-94174-638-0 01 1 0009- ● ● ●
13 LENS; TURN SIGNAL
THA 		8-94174-639-0 01 1 0009- ● ● ●
14 LENS; TAIL & STOP,RR COMB LAMP
THA 		8-94178-624-0 01 1 0009- ● ● ●
14 LENS; TAIL & STOP,RR COMB LAMP
THA 		8-94178-625-0 01 1 0009- ● ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0009- ● ● ●
22 LENS; BACKUP,RR COMB LAMP
THA 		8-94257-512-1 01 1 0009- ● ● ●
24 GASKET; BACK,LAMP
THA 		8-94257-506-0 01 1 0009- ● ● ●
25 HORN ASM; BACK
BACK BUZZER<YM9> THA 		8-94257-518-0 01 1 0009- ● ● ●
26 SCREW; BACK HORN
BACK BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 02 1 0009- ● ● ●
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 0009- ● ● ●
26 SCREW; BACK HORN
EXC. BACK BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 01 1 0009- ● ● ●
28 GASKET; TURN,LAMP
THA 		8-94257-507-0 01 1 0009- ● ● ●
37 COVER; RR COMB LAMP 8-94128-858-2 02 1 0009-0308 ● ● ●
37 COVER; RR COMB LAMP 8-94128-858-4 01 1 0309- ● ● ●
37 COVER; RR COMB LAMP 8-94129-274-2 02 1 0009-0308 ● ● ●
37 COVER; RR COMB LAMP 8-94129-274-4 01 1 0309- ● ● ●
38 BOLT; LAMP,RR COMB
M6X20 		8-94402-623-0 06 1 0009- ● ● ●
49 LAMP; LICENSE PLATE
24V 12W THA 		8-97917-018-0 01 1 0009- ● ● ●
50 LENS; LICENSE PLATE LAMP
THA 		5-82125-004-0 01 1 0009- ● ● ●
51 BULB; LICENSE PLATE LAMP
24V 12W THA 		8-97916-986-0 01 1 0009- ● ● ●
54 SCREW; LICENSE PLATE LAMP
M4X8 THA 		8-94419-312-0 01 1 0009- ● ● ●
55 NUT; LICENSE PLATE LAMP
M5 FLANGE 		8-94153-039-0 02 1 0009- ● ● ●
58 COVER; LICENSE PLATE LAMP 8-97076-590-1 01 1 0009- ● ● ●
59 SCREW; TAP,LICENSE LAMP BODY
M5X20 		9-93490-520-0 02 1 0009- ● ● ●
