8-01 — LAMP; FRONT AND FRONT SIDE (#48737) — 64 parça

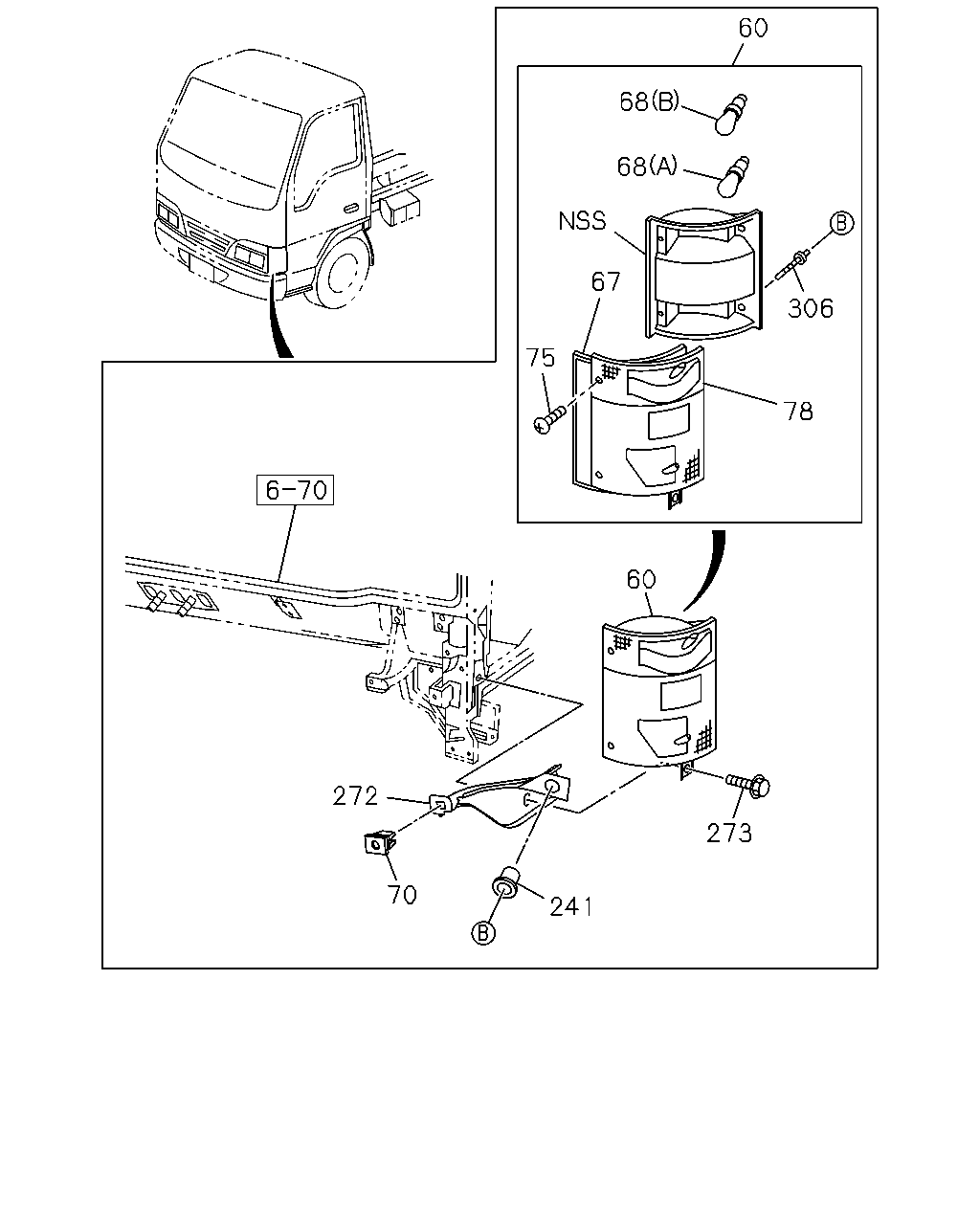

çizim 46990
60 68 68 67 306 75 78 60 272 273 70 241
BalonParca AdiParca NoAdetTipApplied Date A B C
60 LAMP ASM; FRT COMB
THA 		8-97916-885-0 01 1 0009- ● ● ●
60 LAMP ASM; FRT COMB
THA 		8-97916-886-0 01 1 0009- ● ● ●
67 GASKET; FRT COMB LAMP
THA 		8-97918-667-0 02 1 0009- ● ● ●
68 BULB; FRT COMB LAMP
(A) 24V 30/10W THA 		8-97918-672-0 02 1 0009- ● ● ●
68 BULB; FRT COMB LAMP
(B) 24V 25W THA 		8-97918-673-0 02 1 0009- ● ● ●
70 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 0009- ● ● ●
75 SCREW; FRT COMB LAMP
THA 		8-97918-662-0 08 1 0009- ● ● ●
78 LENS ASM; FRT COMB
THA 		8-97918-668-0 01 1 0009- ● ● ●
78 LENS ASM; FRT COMB
THA 		8-97918-669-0 01 1 0009- ● ● ●
241 GROMMET; FRT LAMP 8-94452-095-0 04 1 0009- ● ● ●
272 BRACKET; FRT COMB LAMP 8-97853-236-2 01 1 0009- ● ● ●
272 BRACKET; FRT COMB LAMP 8-97853-237-2 01 1 0009- ● ● ●
273 BOLT; BRKT
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0009- ● ● ●
306 PIVOT; FRT COMB LAMP
THA 		8-97918-670-0 04 1 0009- ● ● ●

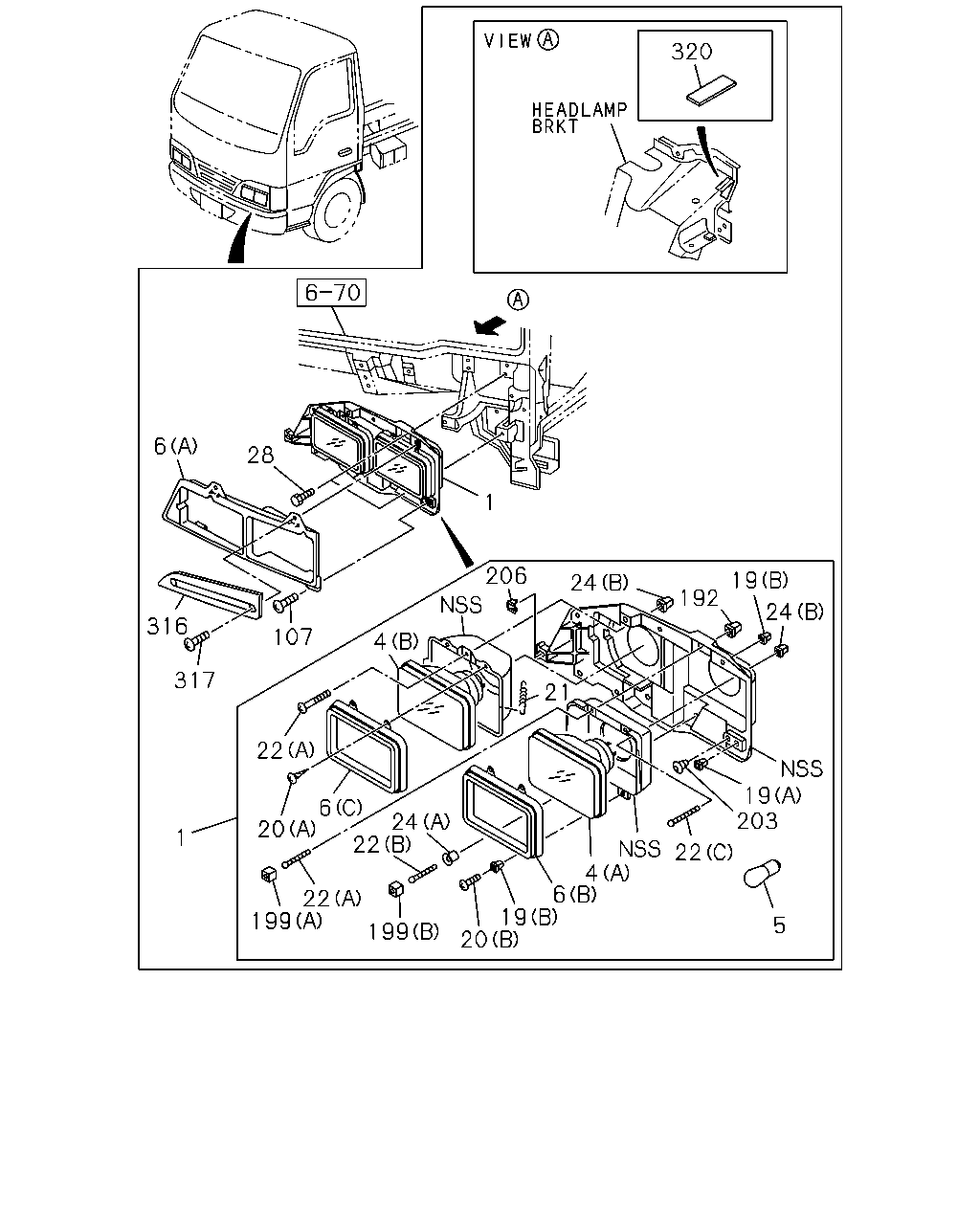

çizim 47024
320 6 28 1 206 19 24 192 24 316 107 4 21 317 22 19 203 6 24 22 20 1 4 6 19 20 22 22 199 5 199
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LAMP ASM; HEAD
THA 		8-97916-912-1 01 1 0009- ● ● ●
1 LAMP ASM; HEAD
THA 		8-97916-913-1 01 1 0009- ● ● ●
4 HEADLAMP UNIT
(A) 24V 55/50W THA 		8-94101-732-0 02 1 0009- ● ● ●
4 HEADLAMP UNIT
(B) 24V 55W THA 		8-94101-740-0 02 1 0009- ● ● ●
5 BULB; HEADLAMP
24V 55/50W CLEAR THA 		5-82193-003-0 04 1 0009- ● ● ●
6 RIM; HEADLAMP
(C) THA 		1-82114-016-0 02 1 0009- ● ● ●
6 RIM; HEADLAMP
(B) THA 		8-97855-211-0 02 1 0009- ● ● ●
6 RIM; HEADLAMP
(A) 		8-97890-800-0 01 1 0009-0211 ● ● ●
6 RIM; HEADLAMP 8-97581-088-0 01 1 0212- ● ● ●
6 RIM; HEADLAMP
(A) 		8-97890-801-0 01 1 0009-0211 ● ● ●
6 RIM; HEADLAMP 8-97581-089-0 01 1 0212- ● ● ●
19 NUT; HEADLAMP
(A) THA 		8-97044-618-0 08 1 0009- ● ● ●
19 NUT; HEADLAMP
(B) THA 		8-97044-623-0 08 1 0009- ● ● ●
20 SCREW; HEADLAMP
(A) M4X8 THA 		8-94165-886-0 08 1 0009- ● ● ●
20 SCREW; HEADLAMP
(B) THA 		8-97855-213-0 08 1 0009- ● ● ●
21 SPRING; ADJ HEADLAMP
THA 		1-82119-021-0 02 1 0009- ● ● ●
22 SCREW; ADJ,HEADLAMP
(A) THA 		8-97855-205-0 04 1 0009- ● ● ●
22 SCREW; ADJ,HEADLAMP
(B) THA 		8-97855-206-0 02 1 0009- ● ● ●
22 SCREW; ADJ,HEADLAMP
(C) THA 		8-97855-207-0 02 1 0009- ● ● ●
24 MOUNTING; ADJ SCREW HD LAMP
(B) THA 		8-94387-097-0 06 1 0009- ● ● ●
24 MOUNTING; ADJ SCREW HD LAMP
(A) THA 		8-97855-208-0 02 1 0009- ● ● ●
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0009- ● ● ●
107 SCREW; RIM,HEADLAMP
M4X20 TAPPING 		8-94279-391-0 04 1 0009-0202 ● ● ●
107 SCREW; RIM,HEADLAMP
M4X20 TAPPING 		8-97326-998-0 04 1 0203- ● ● ●
192 PIVOT; HEADLAMP
THA 		8-94381-595-0 02 1 0009- ● ● ●
199 BUSHING
(A) THA 		8-94381-605-0 04 1 0009- ● ● ●
199 BUSHING
(B) THA 		8-97855-212-0 02 1 0009- ● ● ●
203 FASTENER; HEADLAMP 8-94382-231-0 04 1 0009- ● ● ●
206 HOLDER; HEADLAMP
THA 		8-97868-156-0 02 1 0009- ● ● ●
316 ORNAMENT; HEAD LAMP
THA 		8-97916-917-1 01 1 0009- ● ● ●
316 ORNAMENT; HEAD LAMP
THA 		8-97916-916-0 01 1 0009- ● ● ●
317 SCREW; ORNAMENT
M4X20 TAPPING 		8-94279-391-0 04 1 0009-0202 ● ● ●
317 SCREW; ORNAMENT
M4X20 TAPPING 		8-97326-998-0 04 1 0203- ● ● ●
320 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0009- ● ● ●

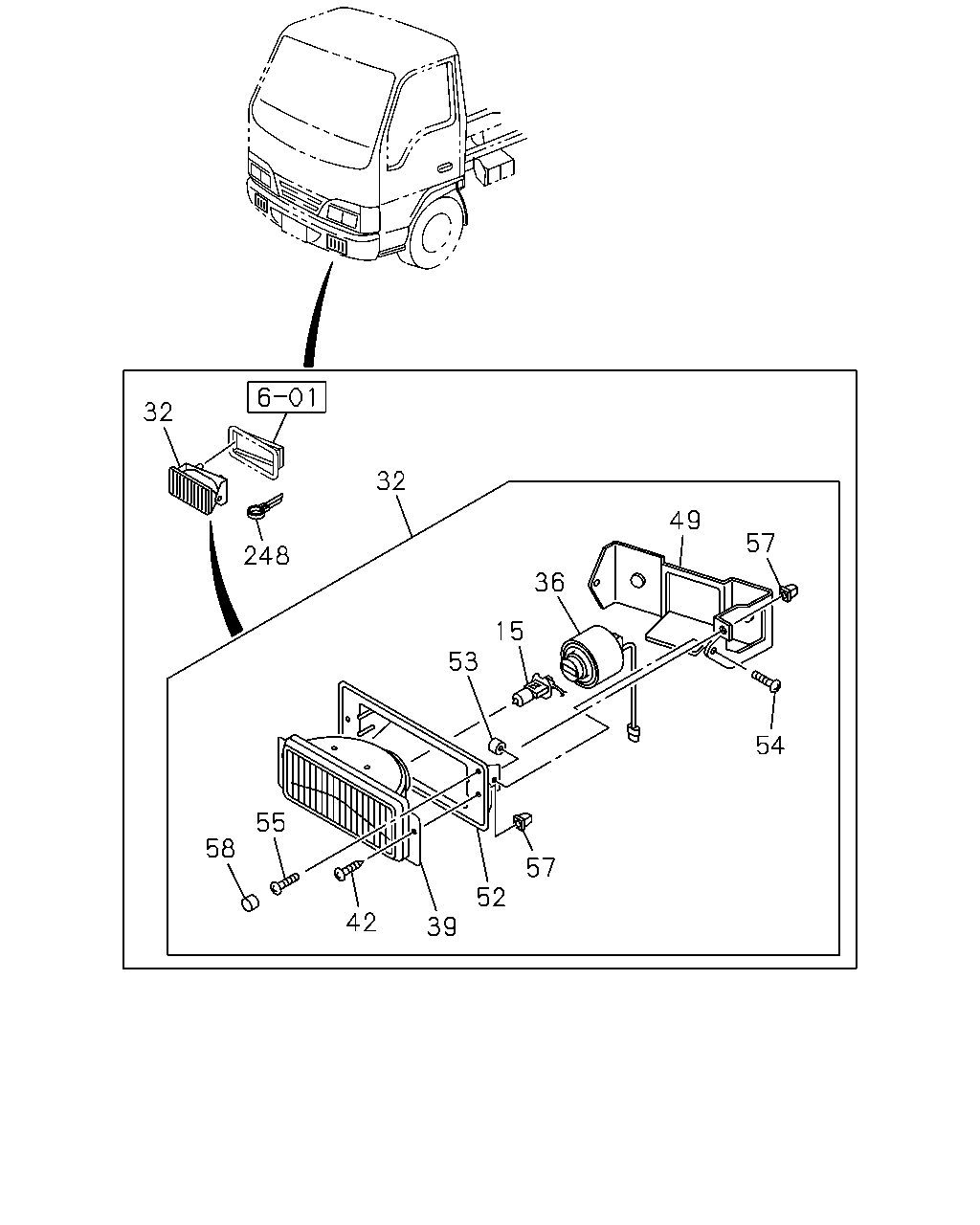

çizim 48279
32 32 49 57 248 36 15 53 54 55 58 57 52 42 39
BalonParca AdiParca NoAdetTipApplied Date A B C
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 55W 		1-82194-095-0 02 1 0009- ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-545-0 01 1 0009- ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-546-0 01 1 0009- ● ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		8-97095-518-0 02 1 0009- ● ● ●
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97104-061-0 01 1 0009- ● ● ●
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97119-301-0 01 1 0009- ● ● ●
42 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97104-089-0 04 1 0009- ● ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-094-0 01 1 0009- ● ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-095-0 01 1 0009- ● ● ●
52 RING; MTG,FOG LAMP
FOG LAMP<T96> 		8-97104-062-0 02 1 0009- ● ● ●
53 NUT; MTG RING,FOG LAMP
FOG LAMP<T96> 		8-94379-802-0 04 1 0009- ● ● ●
54 BOLT; MTG RING,FOG LAMP
FOG LAMP<T96> M5X12 		8-94379-803-0 04 1 0009- ● ● ●
55 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-97104-087-0 02 1 0009- ● ● ●
57 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-94379-806-0 06 1 0009- ● ● ●
58 HOLDER; FOG LAMP
FOG LAMP<T96> 		8-97104-088-0 02 1 0009- ● ● ●
248 CLIP; HARNESS
FOG LAMP<T96> ID=20 		5-09700-321-0 02 1 0009- ● ● ●
