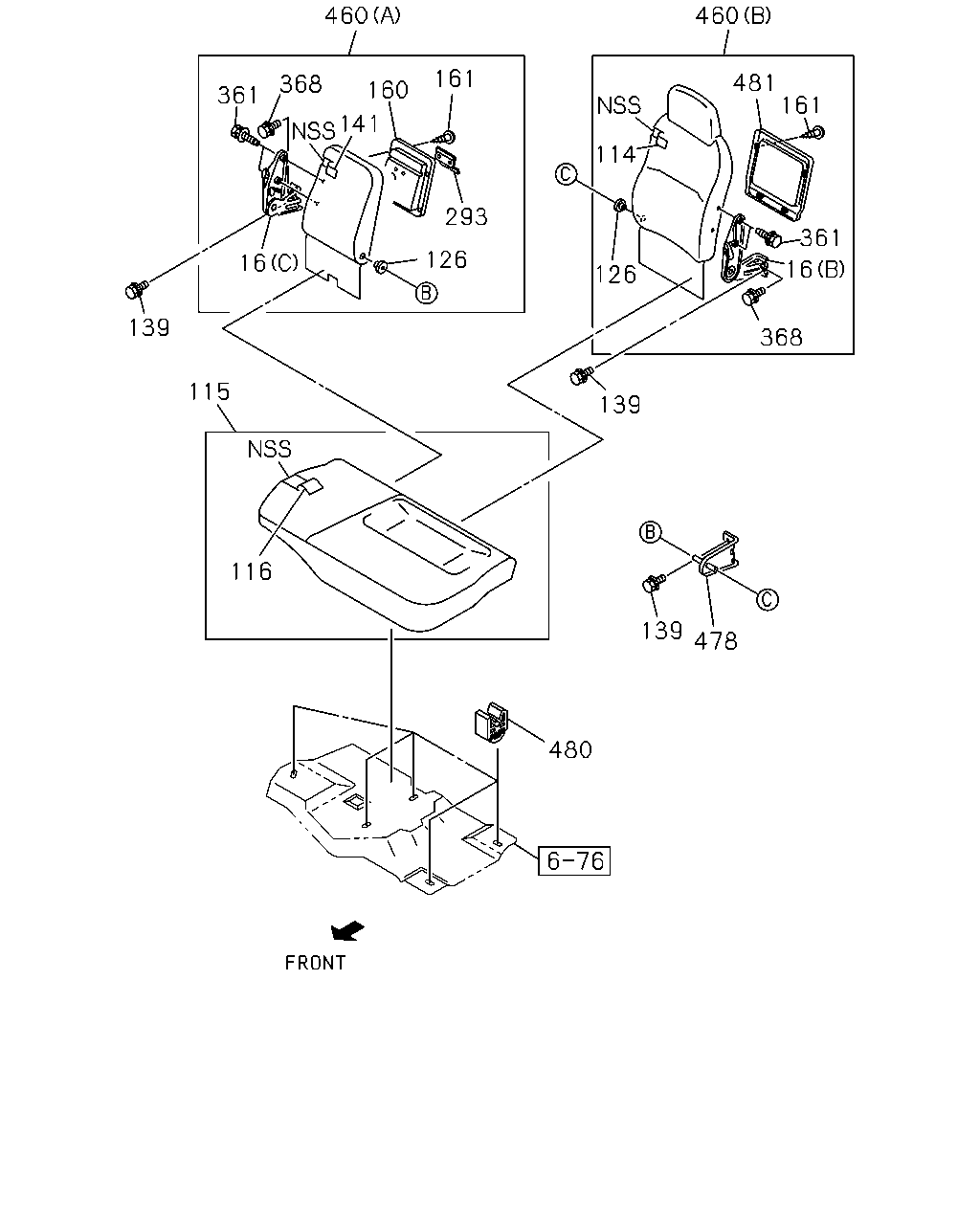

7-50 — FRONT SEAT (#48735) — 73 parça

460 460 161 481 368 160 361 161 141 114 293 361 126 16 16 126 139 368 115 139 116 139 478 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	ADJUSTER ASM; RECLINING EXC. SEAT CLOTH<7FL> BLACK THA	8-97859-274-3	02	1	0203-0203	●	●	●
16	ADJUSTER ASM; RECLINING SEAT CLOTH<7FL> BLACK THA	8-97859-274-3	01	1	0203-0203	●	●	●
16	ADJUSTER ASM; RECLINING EXC. SEAT CLOTH<7FL> (A) DRIVER	8-97854-057-2	01	1	0009-	●	●	●
16	ADJUSTER ASM; RECLINING EXC. SEAT CLOTH<7FL> (B) PASSENGER THA	8-97917-120-0	01	1	0009-	●	●	●
16	ADJUSTER ASM; RECLINING EXC. SEAT CLOTH<7FL> (C) PASSENGER CENTER THA	8-97917-199-0	01	1	0009-	●	●	●
16	ADJUSTER ASM; RECLINING SEAT CLOTH<7FL> (A) DRIVER	8-97854-057-2	01	1	0009-	●	●	●
16	ADJUSTER ASM; RECLINING SEAT CLOTH<7FL> (B) PASSENGER BLACK THA	8-97859-273-3	01	1	0009-	●	●	●
16	ADJUSTER ASM; RECLINING SEAT CLOTH<7FL> (C) PASSENGER CENTER BLACK THA	8-97859-274-3	01	1	0009-	●	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97867-096-5	01	1	0009-	●	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT CLOTH<7FL> THA	8-97917-189-1	01	1	0009-	●	●	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97868-477-5	01	1	0009-	●	●	●
115	CUSHION ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> THA	8-97917-256-0	01	1	0009-	●	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97867-472-3	01	1	0009-	●	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. SEAT CLOTH<7FL> THA	8-97917-201-0	01	1	0009-	●	●	●
126	BUSHING; HINGE,RECLINING EXC. SEAT CLOTH<7FL> THA	8-97917-184-0	02	1	0009-	●	●	●
126	BUSHING; HINGE,RECLINING SEAT CLOTH<7FL> THA	8-97854-900-0	02	1	0009-	●	●	●
139	BOLT; PASSENGER SEAT M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	0009-	●	●	●
141	COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97867-466-5	01	1	0009-	●	●	●
141	COVER; TRIM,BENCH SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY THA	8-97867-464-4	02	1	0203-0203	●	●	●
141	COVER; TRIM,BENCH SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY THA	8-97867-464-4	01	1	0204-	●	●	●
141	COVER; TRIM,BENCH SEAT,BACK EXC. SEAT CLOTH<7FL> THA	8-97917-190-1	01	1	0009-	●	●	●
160	CONSOLE; UPR,BACK CENTER DARK GRAY THA	8-97393-932-0	01	1	0203-	●	●	●
160	CONSOLE; UPR,BACK CENTER EXC. SEAT CLOTH<7FL> THA	8-97917-193-0	01	1	0009-	●	●	●
160	CONSOLE; UPR,BACK CENTER SEAT CLOTH<7FL> DARK GRAY THA	8-97859-028-1	01	1	0009-0202	●	●	●
161	SCREW; CONSOLE EXC. SEAT CLOTH<7FL> THA	8-97917-195-0	08	1	0009-	●	●	●
161	SCREW; CONSOLE SEAT CLOTH<7FL> M4X12 THA	8-94279-351-0	08	1	0009-	●	●	●
293	BINDER; CENTER CONSOLE EXC. SEAT CLOTH<7FL> THA	8-97917-194-0	01	1	0009-	●	●	●
293	BINDER; CENTER CONSOLE SEAT CLOTH<7FL> THA	8-97854-344-1	01	1	0009-0202	●	●	●
361	BOLT; ADJ,RECLINING M8X18 THA	8-94279-109-1	04	1	0009-	●	●	●
368	BOLT; SEAT M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	0009-	●	●	●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (A) DARK GRAY	8-97868-472-6	01	1	0009-	●	●	●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (B) DARK GRAY	8-97868-512-5	01	1	0009-	●	●	●
460	BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> (B) THA	8-97916-405-2	01	1	0009-	●	●	●
460	BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> (A) THA	8-97917-253-2	01	1	0009-	●	●	●
478	BRACKET ASM; HINGE,PASSENGER SEAT THA	8-97916-789-0	01	1	0009-	●	●	●
480	CLIP; CUSHION	8-94279-977-0	05	1	0009-	●	●	●
481	TRAY; SEAT BACK EXC. SEAT CLOTH<7FL> THA	8-97917-198-0	01	1	0009-	●	●	●
481	TRAY; SEAT BACK SEAT CLOTH<7FL> DARK GRAY THA	8-97859-024-0	01	1	0009-	●	●	●

1 18 228 24 2 16 99 17 19 12 13 69 382 67 71 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97866-983-6	01	1	0009-	●	●	●
1	BACK ASM; SEAT EXC. SEAT CLOTH<7FL> THA	8-97916-786-0	01	1	0009-	●	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97867-066-4	01	1	0009-	●	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. SEAT CLOTH<7FL> THA	8-97916-800-0	01	1	0009-	●	●	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> DARK GRAY	8-97867-002-5	01	1	0009-	●	●	●
12	CUSHION; SEAT,FRT EXC. SEAT CLOTH<7FL> THA	8-97916-787-0	01	1	0009-	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97867-080-5	01	1	0009-	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT CLOTH<7FL> THA	8-97916-797-0	01	1	0009-	●	●	●
16	ADJUSTER ASM; RECLINING EXC. SEAT CLOTH<7FL> BLACK THA	8-97859-274-3	02	1	0203-0203	●	●	●
16	ADJUSTER ASM; RECLINING SEAT CLOTH<7FL> BLACK THA	8-97859-274-3	01	1	0203-0203	●	●	●
16	ADJUSTER ASM; RECLINING EXC. SEAT CLOTH<7FL> (A) DRIVER	8-97854-057-2	01	1	0009-	●	●	●
16	ADJUSTER ASM; RECLINING EXC. SEAT CLOTH<7FL> (B) PASSENGER THA	8-97917-120-0	01	1	0009-	●	●	●
16	ADJUSTER ASM; RECLINING EXC. SEAT CLOTH<7FL> (C) PASSENGER CENTER THA	8-97917-199-0	01	1	0009-	●	●	●
16	ADJUSTER ASM; RECLINING SEAT CLOTH<7FL> (A) DRIVER	8-97854-057-2	01	1	0009-	●	●	●
16	ADJUSTER ASM; RECLINING SEAT CLOTH<7FL> (B) PASSENGER BLACK THA	8-97859-273-3	01	1	0009-	●	●	●
16	ADJUSTER ASM; RECLINING SEAT CLOTH<7FL> (C) PASSENGER CENTER BLACK THA	8-97859-274-3	01	1	0009-	●	●	●
17	BOLT; RECLINING EXC. SEAT CLOTH<7FL> M8X18 THA	8-94279-109-1	02	1	0009-0009	●	●	●
17	BOLT; RECLINING EXC. SEAT CLOTH<7FL> M8X20 THA	8-97255-906-0	02	1	0009-	●	●	●
17	BOLT; RECLINING SEAT CLOTH<7FL> M8X20 THA	8-97255-906-0	02	1	0009-	●	●	●
18	COVER; RECLINING EXC. SEAT CLOTH<7FL> THA	8-97913-525-0	01	1	0009-	●	●	●
18	COVER; RECLINING SEAT CLOTH<7FL> DARK GRAY THA	8-97867-020-0	01	1	0009-	●	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0009-	●	●	●
24	KNOB; RECLINING,FRT,SEAT EXC. SEAT CLOTH<7FL> THA	8-97913-535-0	01	1	0009-	●	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT CLOTH<7FL> DARK GRAY THA	8-97867-021-0	01	1	0009-	●	●	●
63	ADJUSTER; SEAT SLIDE EXC. SEAT CLOTH<7FL> THA	8-97916-796-0	01	1	0009-	●	●	●
63	ADJUSTER; SEAT SLIDE SEAT CLOTH<7FL> THA	8-97854-059-3	01	1	0009-	●	●	●
67	BOLT; FRT SEAT TO BODY M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	0009-	●	●	●
69	NUT; FRT SEAT M8	1-09984-109-0	01	1	0009-	●	●	●
71	BOLT; ADJ TO SEAT EXC. SEAT CLOTH<7FL> M8X18 THA	8-94279-109-1	02	1	0009-0009	●	●	●
71	BOLT; ADJ TO SEAT EXC. SEAT CLOTH<7FL> M8X20 THA	8-97255-906-0	02	1	0009-	●	●	●
71	BOLT; ADJ TO SEAT SEAT CLOTH<7FL> M8X20 THA	8-97255-906-0	02	1	0009-	●	●	●
99	BUSHING; SEAT BACK EXC. SEAT CLOTH<7FL> THA	8-97916-793-0	01	1	0009-	●	●	●
99	BUSHING; SEAT BACK SEAT CLOTH<7FL> THA	8-97854-087-0	01	1	0009-	●	●	●
228	SCREW; KNOB M4X6 THA	8-97042-273-0	01	1	0009-	●	●	●
382	WASHER; PL,DRIVER SEAT ID=8.4 OD=22	8-94127-883-1	01	1	0009-	●	●	●
